XY Multitool V0.5

[yspacedev]

Here's a more than half-baked release of my modification to the xy_grid script. It allows you to change more than 1 parameter on 1 axis. The code is janky and messy since I am a self-taught non-professional programmer, but it works. It is based off of an older version of xy_grid, but it should work on newer versions of the webui since the script framework shouldn't have changed much since a month ago. Here's the repository with the file: my repository. Just download the new expanded_xy_grid.py, and put it in the scripts folder. I may pull request the changes into xy_grid.py on this repo once I deem the script feature-complete and bug-free.

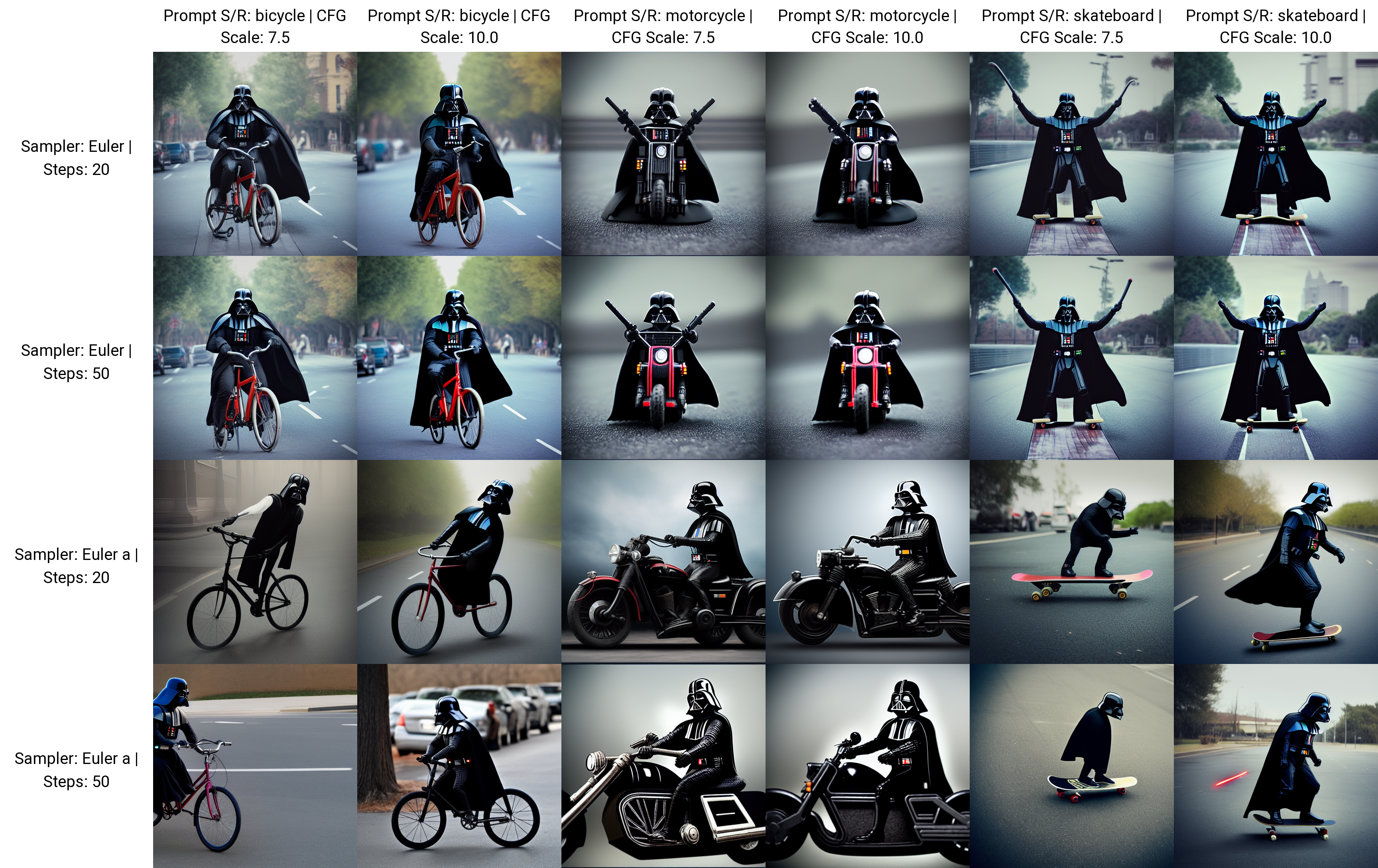

Here is an image comparing the images from the prompt "darth vader riding a bicycle" with 4 different parameters.

The format for Multitool inputs is like this: Checkpoint name: 1.4, 1.5 | Sampler: Euler a, Euler. A pipe ( | ) with spaces around it separates the parameter-data pairs. The parameter must be the exact name (not case-sensitive) of the parameter you want to change (the one in the drop-down menu). Data values also must be separated from the parameters with a colon followed by a space. This is because of how the current parser works. The format will become better and more flexible once I work on it more. Feel free to pull request any changes to the code and comment with any suggestions/changes. The prompt order parameter does not work right now for some reason.

[grexzen]

Nice job!

[yspacedev]

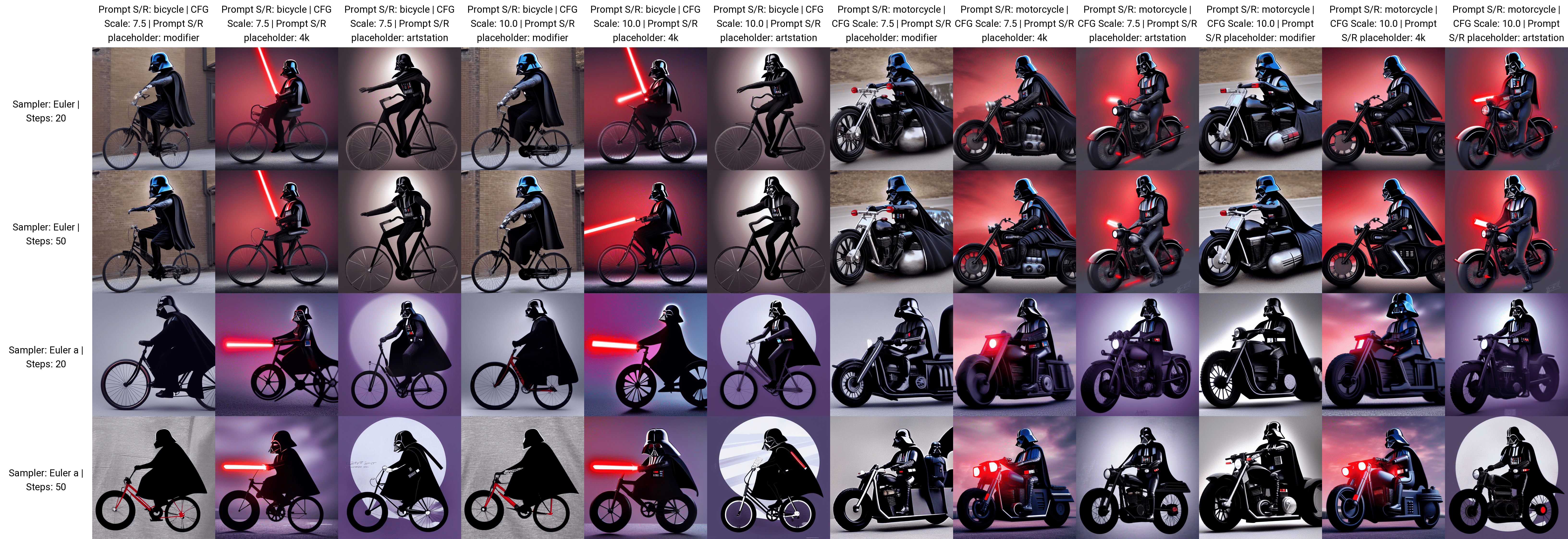

Here's another example. The prompt is "darth vader riding a bicycle, modifier" (different seed from last example). This time with 5 parameters (note that "modifier" means replace "modifier" with "" (S/R Placeholder feature I added (also included in repo))):

[yspacedev]

It's kind of an XYZ plot, but it's in 2D, and it can have as many parameters as you want.

[tusharbhutt]

Looks good, but perhaps change the name so we don't overwrite the original XY?

[yspacedev]

I was thinking of changing it to something like Expanded XY, because there are also more features like a more customizable prompt matrix, S/R Placeholder, and group files in a directory.

[yspacedev]

now it's a separate thing

[tusharbhutt]

Awesome, I'll have a look soon

[JustAnOkapi]

Can you turn it into an extension?

[yspacedev]

I don't think it needs to be an extension, and if it becomes an extension, it may not play well with other scripts and extensions. If you want to fork my repository and turn it into an extension, you can.

[ClashSAN]

How unfortunate. the documentation must not be clear, it is you (script-smiths) we want to reach most.

To convert a custom-script into an extension:
Step 1: put your expanded_xy_grid.py into a folder named scripts
Step 2: There is no step 2.

advice: rename it from xy plot to X/Y multitool, line 434, also add a screencap or show clear example of you filling multiple parameters for each X and Y to the readme page.

(There are many custom scripts that haven't been turned into extensions with this one simple trick!!)
