PCB export issue

[msasdk]

Hello!

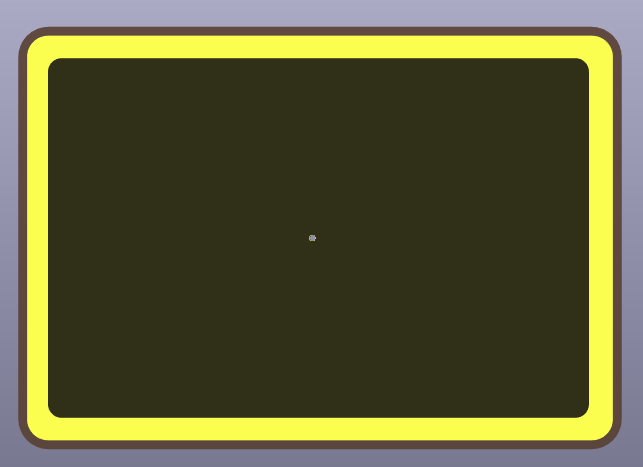

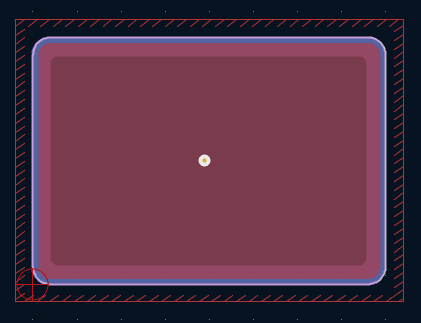

I have created this PCB in KiCad 7.0:
problematic.zip

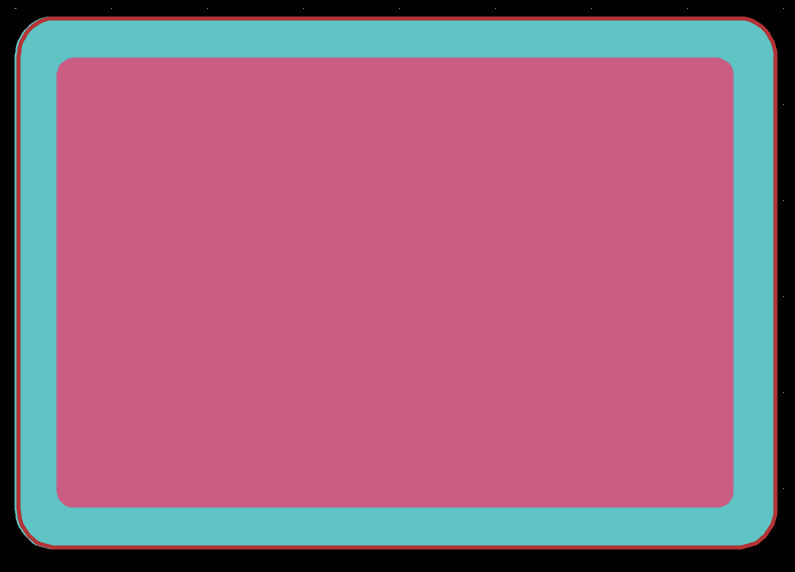

When exported as gerber, things looks as they are intended:

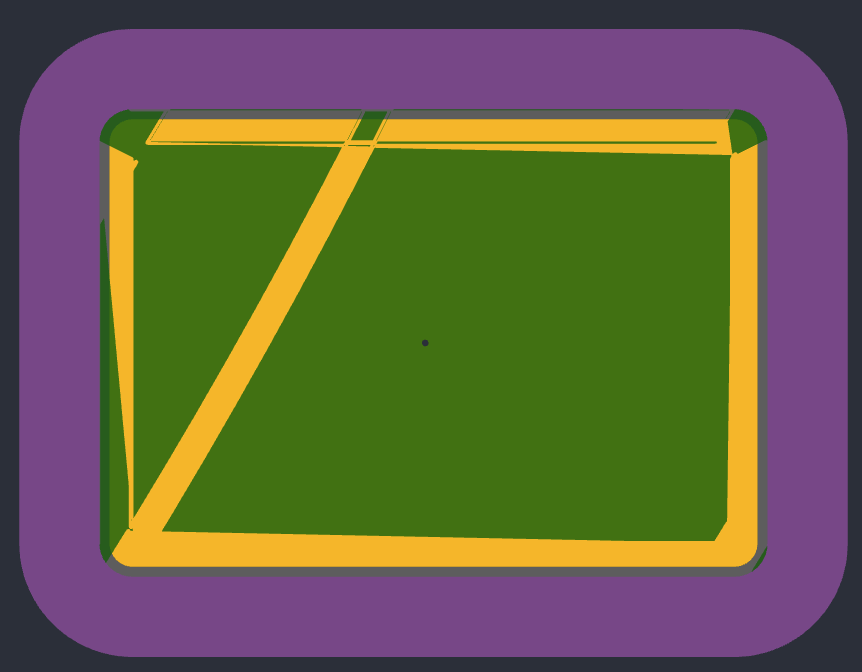

However, when exported using the Aisler plugin, or if the kicad_pcb fileis imported directly on Aisler.net, I get following result.

[PatrickFranken]

Hi! I guess this issue is more KiCad related. If I open the generated gerber files using the Ucamco reference viewer I get a list of issues. These issues also cause our CAM to misbehave.

[msasdk]

But as stated in the issue description, this does not occur if I generate the gerber with KiCad without the plugin.

[msasdk]

These gerbers are generated directly from KiCad
grb.zip

[PatrickFranken]

You are right on this! However I have no clue what causes KiCad to plot these corrupted Gerbers as the plugin actually uses the same interface as the UI. I'll check with the KiCad developers!

[Golany2806]

Seems there is a problem using push to aisler using kicad...it connecting to microsoft edge without loading the files...
