如何使用Cloudflare中转Alist的流量？ #2697

Arc-2023 · 2022-12-13T06:34:37Z

Arc-2023
Dec 13, 2022

问题始于阿里云盘多用户下载导致403的问题和阿里云小鸡5M带宽根本不够用
于是本着多用户通过一个Cloudflare服务器中转流量的想法，尝试部署了一下
首先是部署Workers，将Alist给出的最新JS代码
https://github.com/alist-org/alist-proxy/blob/main/alist-proxy.js
拷贝出，然后把Host和Token替换成自己的IP以及token

之后是第一个问题：workers的域名在国内是访问不到的
也就是说们直接访问这个是访问不到的
于是我尝试用cloudflare代理一个域名
首先把我的一个已经用Cloudflare代理的域名创建CNAME记录，将down子域名指向workers域名(好像这里填什么都影响不大，因为流量总是会被中转到workers)
然后在cloudflare管理域名界面为子域名添加了Worker Route，如图：

（那个aa的服务就是alist-proxy的js代码）
此时在国内访问那个down子域名就会返回如下的Json：
{ "code": 401, "message": "expire missing" }
也就是说GET请求成功转发到了workers，那个CNAME记录的添加是有效的（大概吧）

然后我把down子域名写到了alist网盘设置的下载代理域名中，在浏览器网页点击链接并被IDM捕获之后发现下载链接的前缀从我自己的阿里云服务器域名变成了CNAME记录所写的down子域名

然后这就有了第二个问题：无法下载。

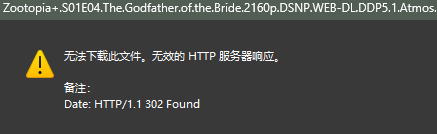

首先，IDM捕获到下载请求之后点击下载就会报500(Internal Server Error)或者302，如图：

而用Edge下载则会根据302跳转信息跳转到那个下载页面并显示此信息：

此时在cloudflare中查看流日志可以看到报错信息：
{ "outcome": "exception", "scriptName": "aa", "exceptions": [ { "name": "SyntaxError", "message": "Unexpected token 'e', \"error code: 1003\" is not valid JSON", "timestamp": 1670913067165 } ], "logs": [], "eventTimestamp": 1670913067160, "event": { "request": { "url": "https://down.ghngtfnjufgjnghnjfhnjfghjghjhfgjndfthdtrbhdtrh.tk/ali/MOV/%E8%80%81%E5%8F%8B%E8%AE%B0%E5%85%A8%E5%8D%81%E5%AD%A3.Friends.The.Complete.Series.1994-2003.BluRay.1080p.x265.10bit.MNHD-FRDS/%E8%80%81%E5%8F%8B%E8%AE%B0%E7%AC%AC%E5%85%AB%E5%AD%A3.Friends.S08.2001.BluRay.1080p.x265.10bit.MNHD-FRDS/Friends.S08E10.2001.BluRay.1080p.x265.10bit.MNHD-FRDS.mkv?sign=REDACTED=:0", "method": "GET", "headers": { "accept": "text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9", "accept-encoding": "gzip", "accept-language": "zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6", "cf-connecting-ip": "20.212.107.98", "cf-ipcountry": "SG", "cf-ray": "778ca7ad7f0e5627", "cf-visitor": "{\"scheme\":\"https\"}", "connection": "Keep-Alive", "host": "down.ghngtfnjufgjnghnjfhnjfghjghjhfgjndfthdtrbhdtrh.tk", "sec-ch-ua": "\"Not?A_Brand\";v=\"8\", \"Chromium\";v=\"108\", \"Microsoft Edge\";v=\"108\"", "sec-ch-ua-mobile": "?0", "sec-ch-ua-platform": "\"Windows\"", "sec-fetch-dest": "document", "sec-fetch-mode": "navigate", "sec-fetch-site": "cross-site", "sec-fetch-user": "?1", "upgrade-insecure-requests": "1", "user-agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/108.0.0.0 Safari/537.36 Edg/108.0.1462.46", "x-forwarded-proto": "https", "x-real-ip": "20.212.107.98" }, "cf": { "clientTcpRtt": 2, "longitude": "103.85540", "latitude": "1.30360", "tlsCipher": "AEAD-AES128-GCM-SHA256", "continent": "AS", "asn": 8075, "clientAcceptEncoding": "gzip, deflate, br", "country": "SG", "tlsClientAuth": { "certIssuerDNLegacy": "", "certIssuerSKI": "", "certSubjectDNRFC2253": "", "certSubjectDNLegacy": "", "certFingerprintSHA256": "", "certNotBefore": "", "certSKI": "", "certSerial": "", "certIssuerDN": "", "certVerified": "NONE", "certNotAfter": "", "certSubjectDN": "", "certPresented": "0", "certRevoked": "0", "certIssuerSerial": "", "certIssuerDNRFC2253": "", "certFingerprintSHA1": "" }, "tlsExportedAuthenticator": { "clientFinished": "395f2eeddc1c983ec34593ca5e36af1a171fcc3dc9de893bc4ac17dc745e6992", "clientHandshake": "0161a4f6c2c6c3d196d14b58ec17aeb897b643edf894c9722f4c87c0b9f6497f", "serverHandshake": "1ba578616d5b00e19664c1be6b19c782769423c7ecedfaa6d92518a86ce9221c", "serverFinished": "1489494780bbca0964b717cecec74e07020066c6d58833ae73d93ef9f5c13030" }, "tlsVersion": "TLSv1.3", "colo": "SIN", "timezone": "Asia/Singapore", "edgeRequestKeepAliveStatus": 1, "requestPriority": "weight=256;exclusive=1", "city": "Singapore", "httpProtocol": "HTTP/2", "asOrganization": "Microsoft Azure", "postalCode": "18" } }, "response": { "status": 500 } }, "id": 0 }
看起来像是我alist的下载请求中的数据没有成功转发到workers导致的报错？这是因为我哪里的操作有问题吗？
请问各路大神，这种问题我该如何解决？

Answered by Arc-2023

Jan 11, 2023

问题已解决：将workers中的alist地址换成域名即可

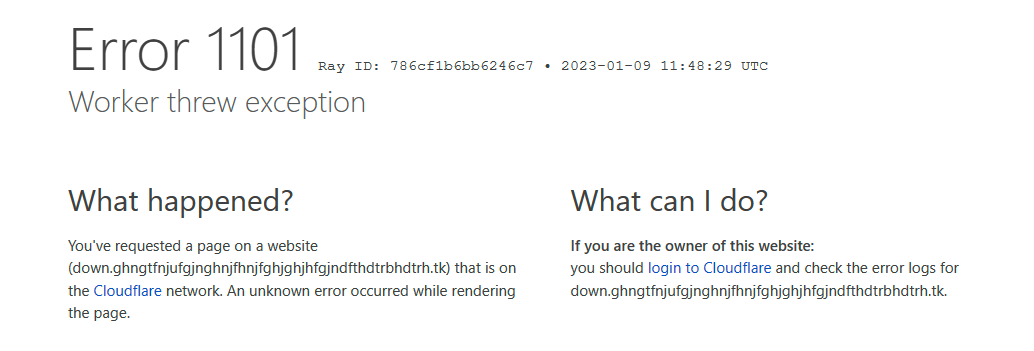

如果是填的ip，带端口与否、cloudflare支持端口与否cloudflare都会报1101错误

View full answer

Scarecrow-ai · 2022-12-22T09:50:13Z

Scarecrow-ai
Dec 22, 2022

遇到了相同的问题，期待解决方法

0 replies

xhofe · 2022-12-22T11:10:45Z

xhofe
Dec 22, 2022
Maintainer

https://developers.cloudflare.com/fundamentals/get-started/reference/network-ports/

1 reply

Arc-2023 Jan 9, 2023
Author

将使用docker部署的alist重新部署，端口映射换到80:5244之后改了下cloudflare worker的代码：

使用302转发下载的话,idm显示的下载地址是含beijing的域名:https://cn-beijing-data.aliyundrive.net/*
cloudflare应该也是会走这个https域名
所以

worker会连接到我的服务器，走的是80端口
worker会连接到阿里云的服务器，走的是443端口

这样应该就不会被cloudflare因端口限制连接了吧
但是还是故障依旧

Code:
{ "outcome": "exception", "scriptName": "aa", "exceptions": [ { "name": "SyntaxError", "message": "Unexpected token 'e', \"error code: 1003\" is not valid JSON", "timestamp": 1673265020393 } ], "logs": [], "eventTimestamp": 1673265020375, "event": { "request": { "url": "http://down.ghngtfnjufgjnghnjfhnjfghjghjhfgjndfthdtrbhdtrh.tk/ali/MOV/God%20of%20War%202023.01.01%20-%2023.14.07.01.mp4?sign=REDACTED=:0", "method": "GET", "headers": { "accept": "*/*", "accept-encoding": "gzip", "accept-language": "zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6", "cf-connecting-ip": "175.41.167.44", "cf-ipcountry": "SG", "cf-ray": "786cf4690d224733", "cf-visitor": "{\"scheme\":\"http\"}", "connection": "Keep-Alive", "host": "down.ghngtfnjufgjnghnjfhnjfghjghjhfgjndfthdtrbhdtrh.tk", "range": "bytes=0-", "user-agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/108.0.0.0 Safari/537.36 Edg/108.0.1462.76", "x-forwarded-proto": "http", "x-real-ip": "175.41.167.44" }, "cf": { "clientTcpRtt": 1, "longitude": "103.85470", "latitude": "1.29290", "tlsCipher": "", "continent": "AS", "asn": 16509, "clientAcceptEncoding": "identity;q=1, *;q=0", "country": "SG", "tlsClientAuth": { "certIssuerDNLegacy": "", "certIssuerSKI": "", "certSubjectDNRFC2253": "", "certSubjectDNLegacy": "", "certFingerprintSHA256": "", "certNotBefore": "", "certSKI": "", "certSerial": "", "certIssuerDN": "", "certVerified": "NONE", "certNotAfter": "", "certSubjectDN": "", "certPresented": "0", "certRevoked": "0", "certIssuerSerial": "", "certIssuerDNRFC2253": "", "certFingerprintSHA1": "" }, "tlsVersion": "", "colo": "SIN", "timezone": "Asia/Singapore", "edgeRequestKeepAliveStatus": 1, "requestPriority": "", "asOrganization": "Amazon.com", "httpProtocol": "HTTP/1.1" } }, "response": { "status": 500 } }, "id": 0 }

m3terpreter · 2022-12-29T00:06:21Z

m3terpreter
Dec 29, 2022

您的邮件已收到，谢谢。

0 replies

wonka80 · 2022-12-29T00:06:26Z

wonka80
Dec 29, 2022

收到您的邮件，谢谢！

0 replies

chouqiao · 2022-12-29T02:29:15Z

chouqiao
Dec 29, 2022

问题始于阿里云盘多用户下载导致403的问题和阿里云小鸡5M带宽根本不够用于是本着多用户通过一个Cloudflare服务器中转流量的想法，尝试部署了一下首先是部署Workers，将Alist给出的最新JS代码 https://github.com/alist-org/alist-proxy/blob/main/alist-proxy.js 拷贝出，然后把Host和Token替换成自己的IPhttp://119.23.243.88:5244以及token
* 之后是第一个问题：workers的域名在国内是访问不到的`https://aa.a13930228843.workers.dev`
  也就是说们直接访问这个是访问不到的
  于是我尝试用cloudflare代理一个域名
  首先把我的一个已经用Cloudflare代理的域名创建CNAME记录，将down子域名指向workers域名(好像这里填什么都影响不大，因为流量总是会被中转到workers)
  然后在cloudflare管理域名界面为子域名添加了Worker Route，如图：
  ![image](https://user-images.githubusercontent.com/64178177/207241812-1c6b2d08-ffec-4748-a0e9-ad64baecdab5.png)
  ![image](https://user-images.githubusercontent.com/64178177/207243511-9919dabc-f547-40c6-8c91-7f0e8fa6875e.png)
  （那个aa的服务就是alist-proxy的js代码）
  此时在国内访问那个down子域名就会返回如下的Json：
  `{ "code": 401, "message": "expire missing" }`
  **也就是说GET请求成功转发到了workers，那个CNAME记录的添加是有效的**（大概吧）
然后我把down子域名写到了alist网盘设置的下载代理域名中，在浏览器网页点击链接并被IDM捕获之后发现下载链接的前缀从我自己的阿里云服务器域名变成了CNAME记录所写的down子域名
* 然后这就有了第二个问题：无法下载。
  首先，IDM捕获到下载请求之后点击下载就会报500(Internal Server Error)或者302，如图：
  ![image](https://user-images.githubusercontent.com/64178177/207242583-6f46df25-2030-4078-943d-815ba19fbc90.png)
而用Edge下载则会根据302跳转信息跳转到那个下载页面并显示此信息：此时在cloudflare中查看流日志可以看到报错信息： { "outcome": "exception", "scriptName": "aa", "exceptions": [ { "name": "SyntaxError", "message": "Unexpected token 'e', \"error code: 1003\" is not valid JSON", "timestamp": 1670913067165 } ], "logs": [], "eventTimestamp": 1670913067160, "event": { "request": { "url": "https://down.ghngtfnjufgjnghnjfhnjfghjghjhfgjndfthdtrbhdtrh.tk/ali/MOV/%E8%80%81%E5%8F%8B%E8%AE%B0%E5%85%A8%E5%8D%81%E5%AD%A3.Friends.The.Complete.Series.1994-2003.BluRay.1080p.x265.10bit.MNHD-FRDS/%E8%80%81%E5%8F%8B%E8%AE%B0%E7%AC%AC%E5%85%AB%E5%AD%A3.Friends.S08.2001.BluRay.1080p.x265.10bit.MNHD-FRDS/Friends.S08E10.2001.BluRay.1080p.x265.10bit.MNHD-FRDS.mkv?sign=REDACTED=:0", "method": "GET", "headers": { "accept": "text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8,application/signed-exchange;v=b3;q=0.9", "accept-encoding": "gzip", "accept-language": "zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6", "cf-connecting-ip": "20.212.107.98", "cf-ipcountry": "SG", "cf-ray": "778ca7ad7f0e5627", "cf-visitor": "{\"scheme\":\"https\"}", "connection": "Keep-Alive", "host": "down.ghngtfnjufgjnghnjfhnjfghjghjhfgjndfthdtrbhdtrh.tk", "sec-ch-ua": "\"Not?A_Brand\";v=\"8\", \"Chromium\";v=\"108\", \"Microsoft Edge\";v=\"108\"", "sec-ch-ua-mobile": "?0", "sec-ch-ua-platform": "\"Windows\"", "sec-fetch-dest": "document", "sec-fetch-mode": "navigate", "sec-fetch-site": "cross-site", "sec-fetch-user": "?1", "upgrade-insecure-requests": "1", "user-agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/108.0.0.0 Safari/537.36 Edg/108.0.1462.46", "x-forwarded-proto": "https", "x-real-ip": "20.212.107.98" }, "cf": { "clientTcpRtt": 2, "longitude": "103.85540", "latitude": "1.30360", "tlsCipher": "AEAD-AES128-GCM-SHA256", "continent": "AS", "asn": 8075, "clientAcceptEncoding": "gzip, deflate, br", "country": "SG", "tlsClientAuth": { "certIssuerDNLegacy": "", "certIssuerSKI": "", "certSubjectDNRFC2253": "", "certSubjectDNLegacy": "", "certFingerprintSHA256": "", "certNotBefore": "", "certSKI": "", "certSerial": "", "certIssuerDN": "", "certVerified": "NONE", "certNotAfter": "", "certSubjectDN": "", "certPresented": "0", "certRevoked": "0", "certIssuerSerial": "", "certIssuerDNRFC2253": "", "certFingerprintSHA1": "" }, "tlsExportedAuthenticator": { "clientFinished": "395f2eeddc1c983ec34593ca5e36af1a171fcc3dc9de893bc4ac17dc745e6992", "clientHandshake": "0161a4f6c2c6c3d196d14b58ec17aeb897b643edf894c9722f4c87c0b9f6497f", "serverHandshake": "1ba578616d5b00e19664c1be6b19c782769423c7ecedfaa6d92518a86ce9221c", "serverFinished": "1489494780bbca0964b717cecec74e07020066c6d58833ae73d93ef9f5c13030" }, "tlsVersion": "TLSv1.3", "colo": "SIN", "timezone": "Asia/Singapore", "edgeRequestKeepAliveStatus": 1, "requestPriority": "weight=256;exclusive=1", "city": "Singapore", "httpProtocol": "HTTP/2", "asOrganization": "Microsoft Azure", "postalCode": "18" } }, "response": { "status": 500 } }, "id": 0 } 看起来像是我alist的下载请求中的数据没有成功转发到workers导致的报错？这是因为我哪里的操作有问题吗？请问各路大神，这种问题我该如何解决？

下载会走alist服务器流量么？文件不是直接从对应网盘直接拉取么？我是新手

1 reply

Arc-2023 Jan 11, 2023
Author

与你的选择有关，详见(#2279 (comment))

Arc-2023 · 2023-01-11T02:23:55Z

Arc-2023
Jan 11, 2023
Author

问题已解决：将workers中的alist地址换成域名即可

如果是填的ip，带端口与否、cloudflare支持端口与否cloudflare都会报1101错误

3 replies

ghostWindows-files · 2024-03-01T12:22:44Z

ghostWindows-files
Mar 1, 2024

遇到同样的问题worker中的网盘地址加入了https：//就解决了

0 replies
