Adal to Msal

Differences between ADAL.NET and MSAL.NET applications

Choosing between ADAL.NET (Azure AD v1.0) and MSAL.NET (Azure AD v2.0)

See choosing between ADAL.NET (Azure AD v1.0) and MSAL.NET (Azure AD v2.0) to understand why you might want to use MSAL.NET instead of ADAL.NET, and the current constraints.

If you are already familiar with the v1.0 endpoint (and ADAL.NET), you might want to read What's different about the v2.0 endpoint?

Differences between ADAL.NET (Azure AD v1.0) and MSAL.NET (Azure AD v2.0) apps

Overview of the differences

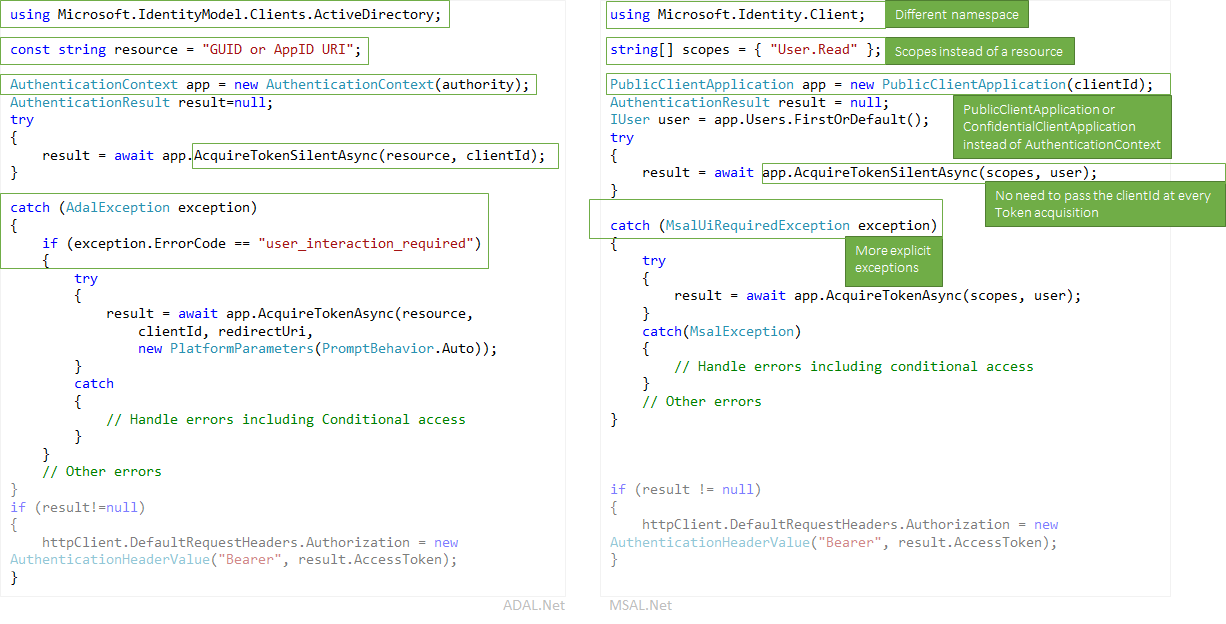

The picture below summarizes some of the differences between ADAL.NET and MSAL.NET

Details

NuGet packages and Namespaces

ADAL.NET is consumed from the Microsoft.IdentityModel.Clients.ActiveDirectory NuGet package. the namespace to use is Microsoft.IdentityModel.Clients.ActiveDirectory.

To use MSAL.NET you will need to add the Microsoft.Identity.Client NuGet package (for the moment in Preview), and use the Microsoft.Identity.Client namespace

Scopes not resources

Whereas ADAL.NET acquires token for resources, MSAL.NET acquires them for scopes. A number of MSAL.NET AcquireToken overrides require a parameter called scopes(IEnumerable<string> scopes). This parameter is a simple list of strings that declare the desired permissions and resources that are requested. Well known scopes are the Microsoft Graph's scopes.

It's also possible in MSAL.NET to access v1.0 resources. See details in Scopes for a v1.0 application below

Core classes

• ADAL.NET uses AuthenticationContext as the representation of your connection to the Security Token Service (STS) or authorization server, through an Authority. On the contrary, MSAL.NET is designed around client applications. It provides two separate classes PublicClientApplication and ConfidentialClientApplication

• Acquiring Tokens: ADAL.NET and MSAL.NET have the same authentication calls (AcquireTokenAsync and AcquireTokenSilentAsync) but with different parameters required. One difference is the fact that, in MSAL.NET, you no longer have to pass in the ClientID of your application in every AcquireTokenXX call. Indeed, the ClientID is set only once when calling the constructor of the (PublicClientApplication or ConfidentialClientApplication.

IAccount not IUser

ADAL.NET manipulated users. However, a user is a human or a software agent, but it can possess/own/be responsible for one or more accounts in the Microsoft identity system (several Azure AD accounts, Azure AD B2C, Microsoft personal accounts).

MSAL.NET 2.x now defines the notion of Account (through the IAccount interface). This breaking change provides the right semantics: the fact that the same user can have several accounts, in different Azure AD directories. Also MSAL.NET provides better information in the case of guest scenarios, as home account information is provided.

For more information about the differences between IUser and IAccount see https://aka.ms/msal-net-2-released

Exceptions

Interaction required exceptions

MSAL.NET has more explicit exceptions. For example: when silent authentication fails in ADAL, the current procedure is to catch the exception and look for the “user_interaction_required” error code:

ADAL.NET:

catch(AdalException exception)
{
 if (exception.ErrorCode == ““user_interaction_required”)
 {
  try
  {“try to authenticate interactively”}}
 }
}

See details in The recommended pattern to acquire a token with ADAL.NET

In MSAL.NET, you can catch MsalUiRequiredException as described in AcquireTokenSilentAsync

catch(MsalUiRequiredException exception)
{
 Try {“try to authenticate interactively”}
}

Handling Claim challenge exceptions

How ADAL.NET does it?

• AdalClaimChallengeException is an exception (deriving from AdalServiceException) thrown by the service in case a resource requires more claims from the user (for instance two-factors authentication). The Claims member contains some json fragment with the claims, which are expected.
• Still in ADAL.NET, the public client application receiving this exception needs to call the AcquireTokenAsync override having a claims parameter. This override of AcquireTokenAsync does not even try to hit the cache, it’s necessarily interactive. The reason is that the token in the cache does not have the right claims (otherwise an AdalClaimChallengeException would not have been thrown). Therefore, there is no need looking at the cache. Note that the ClaimChallengeException can be received in a WebAPI doing OBO, whereas the AcquireTokenAsync needs to be called in a public client application calling this Web API.
• for details, including samples see Handling AdalClaimChallengeException

How to handle claim challenge exceptions in MSAL.NET?

• The Claims are surfaced in the MsalServiceException.
• Almost all the AcquireTokenAsync overrides in MSAL.NET all have extraQueryParameters parameter. The way to go today is to add $"&claims={msalServiceException.Claims}” to the current extraQueryParameters.

Supported grants

Not all the grants are yet supported in MSAL.NET / the AAD v2.0 endpoint. Here is a summary comparing ADAL.NET and MSAL.NET's supported grants

Public client applications

Here are the grants supported in ADAL.NET and MSAL.NET for Desktop and Mobile applications

Grant	ADAL.NET	MSAL.NET
Interactive	Interactive Auth	Acquiring tokens interactively in MSAL.NET
Integrated Windows Authentication	AcquireTokenSilentAsync using Integrated authentication on Windows (Kerberos)	Integrated Windows Authentication
Username / Password	Acquiring tokens with username and password	Username Password Authentication
Device code flow	Device profile for devices without web browsers	Device Code flow

Confidential client applications

Here are the grants supported in ADAL.NET and MSAL.NET for Web Applications, Web APIs, and daemon applications:

Type of App	Grant	ADAL.NET	MSAL.NET
Web App, Web API, daemon	Client Credentials	Client credential flows in ADAL.NET	Client credential flows in MSAL.NET
Web API	On behalf of	Service to service calls on behalf of the user with ADAL.NET	On behalf of in MSAL.NET
Web App	Auth Code	Acquiring tokens with authorization codes on web apps with ADAL.NET	Acquiring tokens with authorization codes on web apps with A MSAL.NET

Cache persistence

ADAL.NET allows you to extend the TokenCache class to implement the desired persistence functionality on platforms without a secure storage (.NET Framework and .NET core) by using the BeforeAccess, AfterAccess and BeforeWrite methods. For details, see Token Cache Serialization in ADAL.NET.

MSAL.NET makes the token cache a sealed class, removing the ability to extend it. Therefore, your implementation of token cache persistence must be in the form of a helper class that interacts with the sealed token cache. This interaction is described in Token Cache Serialization in MSAL.NET

Signification of the common authority

In v1.0, if you use the https://login.microsoftonline.com/common authority, you will allow users to sign in with any AAD account (for any organization). See Authority Validation in ADAL.NET

If you use the https://login.microsoftonline.com/common authority in v2.0, you will allow users to sign in with any AAD organization or a Microsoft personal account (MSA). In MSAL.NET, if you want to restrict login to any AAD account (same behavior as with ADAL.NET), you need to use https://login.microsoftonline.com/organizations. For details, see the authority parameter in public client application.

v1.0 and v2.0 Tokens

There are two versions of tokens

• v1.0 tokens
• v2.0 tokens

the v1.0 endpoint (used by ADAL) only emits v1.0 tokens. However the v2.0 endpoints (used by MSAL) emits the version of the token that the Web API accepts. A property of the application manifest of the Web API enables developers to choose which version of token is accepted. See `` in

For more information about v1.0 and v2.0 tokens see Azure Active Directory access tokens

Scopes for a Web API accepting v1.0 tokens

OAuth2 permissions are permission scopes that a v1.0 web API (resource) application exposes to client applications. These permission scopes may be granted to client applications during consent. See the section about oauth2Permissions in the Azure Active Directory application manifest article

Scopes to request access to specific OAuth2 permissions of a v1.0 application

if you want to acquire tokens for specific scopes of a v1.0 application (for instance the AAD graph, which is https://graph.windows.net), you'd need to create scopes by concatenating a desired resource identifier with a desired OAuth2 permission for that resource.

For instance, to access, in the name of the user, a v1.0 Web API which App ID URI is ResourceId, you'd want to use:

var scopes = new [] {  ResourceId+"/user_impersonation"};

If you want to read and write with MSAL.NET Azure Active Directory using the AAD graph API (https://graph.windows.net/), you would create a list of scopes like in the following snippet:

ResourceId = "https://graph.windows.net/";
var scopes = new [] { ResourceId + “Directory.Read”, ResourceID + “Directory.Write”}

Warning: Should you have one or two slashes in the scope corresponding to a v1.0 Web API

If you want to write the scope corresponding to the Azure Resource Manager API (https://management.core.windows.net/) , you'll notice that you'll need to request the following scope (note the two slashes)

var scopes = new[] {"https://management.core.windows.net//user_impersonation"};
var result = await app.AcquireTokenAsync(scopes);

// then call the API: https://management.azure.com/subscriptions?api-version=2016-09-01

This is because the ARM API expects a slash in its audience claim (aud), and then there is a slash to separate the API name from the scope.

The logic used by Azure AD is the following:

• For ADAL (v1.0) endpoint with a v1.0 access token (the only possible), aud=resource
• For MSAL (v2 endpoint) asking an access token for a resource accepting v2.0 tokens, aud=resource.AppId
• For MSAL (v2.0 endpoint) asking an access token for a resource accepting a v2.0 access token (which is the case above), Azure AD parses the desired audience from the requested scope by taking everything before the last slash and using it as the resource identifier. Therefore if https://database.windows.net expects an audience of "https://database.windows.net/", you'll need to request a scope of https://database.windows.net//.default. See also issue #747: Resource url's trailing slash is omitted, which caused sql auth failure #747

Scopes to request access to all the permissions of a v1.0 application

For instance, if you want to acquire a token for all the static scopes of a v1.0 application, one would need to use

ResourceId = "someAppIDURI";
var scopes = new [] {  ResourceId+"/.default"};

Scopes to request in the case of client credential flow / daemon app

In the case of client credential flow, the scope to pass would also be /.default. This tells to Azure AD: "all the app-level permissions that the admin has consented to in the application registration.

ADAL.NET v2.x migration to MSAL.NET v2.x.

In ADAL.NET v2.X, the refresh tokens were exposed allowing you to develop solutions around the use of these tokens by caching them and using the AcquireTokenByRefreshToken methods provided by ADAL 2.x. Some of those solutions were used in scenarios such as:

• Long running services that do actions including refreshing dashboards on behalf of the users whereas the users are no longer connected.
• WebFarm scenarios for enabling the client to bring the RT to the web service (caching is done client side, encrypted cookie, and not server side)

This is not the case with MSAL 2.x however as we no longer recommend utilizing refresh tokens in this manner for security reasons. This would make it difficult to migrate to MSAL 2.x as the API does not provide a way to pass in previously acquired refresh tokens.

Fortunately, MSAL now has an API that allows you to migrate your previous refresh tokens into the ConfidentialClientApplication.

/// <summary>
/// Acquires an access token from an existing refresh token and stores it and the refresh token into
/// the application user token cache, where it will be available for further AcquireTokenSilentAsync calls.
/// This method can be used in migration to MSAL from ADAL v2 and in various integration
/// scenarios where you have a RefreshToken available.
/// (see https://aka.ms/msal-net-migration-adal2-msal2)
/// </summary>
/// <param name="scopes">Scope to request from the token endpoint.
/// Setting this to null or empty will request an access token, refresh token and ID token with default scopes</param>
/// <param name="refreshToken">The refresh token from ADAL 2.x</param>
async Task<AuthenticationResult> IByRefreshToken.AcquireTokenByRefreshTokenAsync(IEnumerable<string> scopes, string refreshToken);

With this method, you can provide the previously used refresh token along with any scopes (resources) you desire. The refresh token will be exchanged for a new one and cached into your application.

As this method is intended for scenarios that are not typical, it is not readily accessible with the ConfidentialClientApplication without first casting it to IByRefreshToken.

This code snippet shows some migration code in a confidential client application. GetCachedRefreshTokenForSignedInUser retrieve the refresh token that was stored in some storage by a previous version of the application that used to leverage ADAL 2.x. GetTokenCacheForSignedInUser deserializes a cache for the signed-in user (as confidential client applications should have one cache per user)

TokenCache userCache = GetTokenCacheForSignedInUser();
string rt = GetCachedRefreshTokenForSignedInUser();
ClientCredential cc = new ClientCredential(ClientSecret);
ConfidentialClientApplication app = new ConfidentialClientApplication(serviceBundle, ClientId, Authority, RedirectUri, cc, userCache, null);

AuthenticationResult result = await (app as IByRefreshToken).AcquireTokenByRefreshTokenAsync(null, rt).ConfigureAwait(false);

You will see an access token and ID token returned in your AuthenticationResult while your new refresh token is stored in the cache.

Note: You can also use this method for various integration scenarios where you have a refresh token available.

More information

you can find more information about the scopes in Scopes, permissions, and consent in the Azure Active Directory v2.0 endpoint
