SSD1963 - ESP32 - 8 bit Parallel - Add support for GSL1680-F touchscreen driver

[iw7dmh]

Hello,

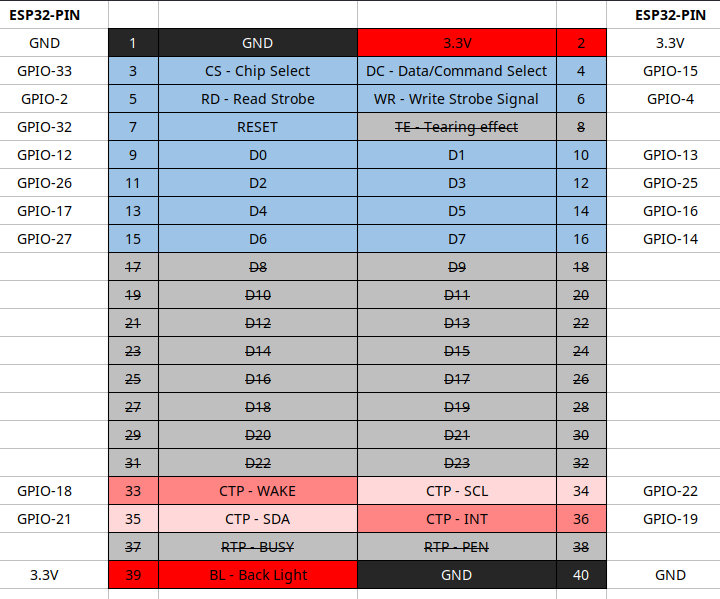

I configured in a very easy way TFT_eSPI (2.4.74) libs for my 5-inch display ER-TFTM050-5 but had a lot of problems trying to configure the GSL1680-F touchscreen driver.
After some code "patchworking" I was able to make it works with ESP32 on Arduino Framework, so I am wondering if you can add an "official support" for this TouchScreen controller. I found it is very fast and I found it can handle up to ten fingers.
If it could help I am leaving here the working code.

Best regards
Enzo Stefanazzi

GSL1680 - F.zip
User_Setup.h.txt

[Bodmer]

Thanks for this. I think the best solution is to have an independant library that supports multiple touch controllers and interface types. I will consider this further.
