Animated Dial. Custom dial background, how to prevent black sweep?

[jacobohara77]

Hello, I'll begin by saying this is my first delve into any sort of custom computer program work!

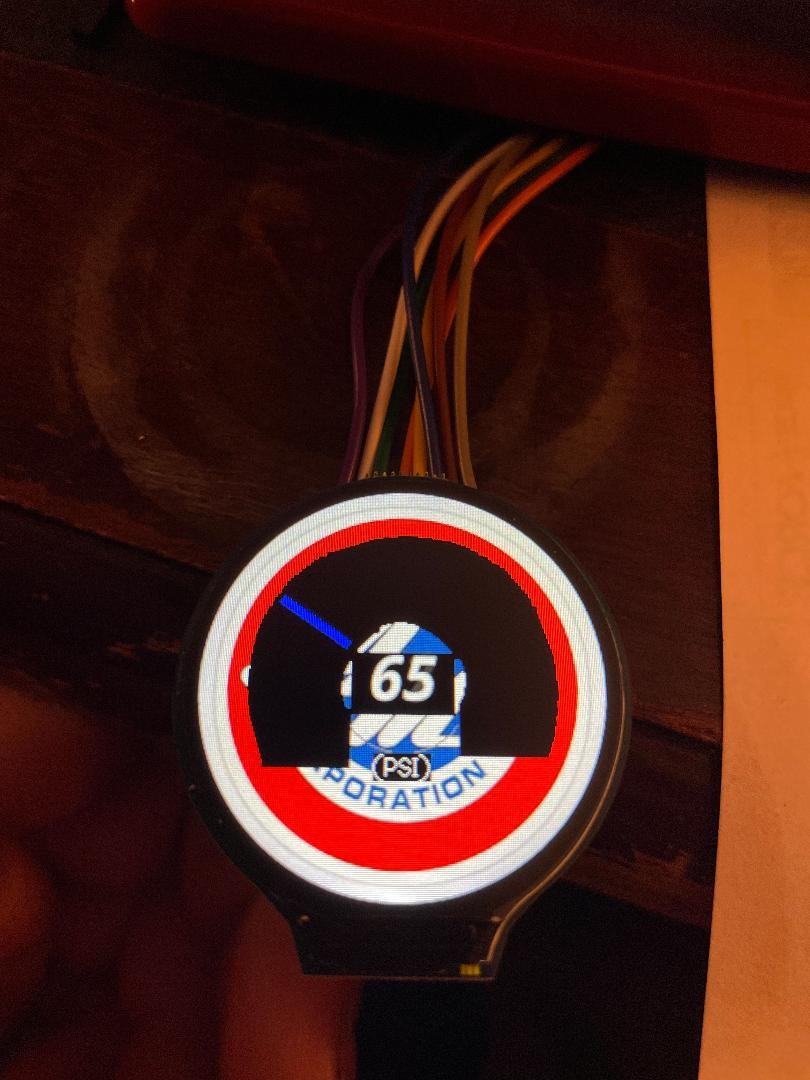

I'm trying to alter the dial to be a twin needle gauge to show the PSI in both the front and rear air bag of my classic car project. I've converted a jpeg to hexadecimal and have it set as my back ground, however when the needle sweeps, it leaves a black trace, can this be removed or made transparent?
At this time I have not altered any code from the standard animated dial...trying to ease in slowly!

My setup is a ESP32C3 with a GC9A01 screen

[Bodmer]

Does the original animated dial sketch work?

[jacobohara77]

Yes it does.
Thank you

[RndUsername]

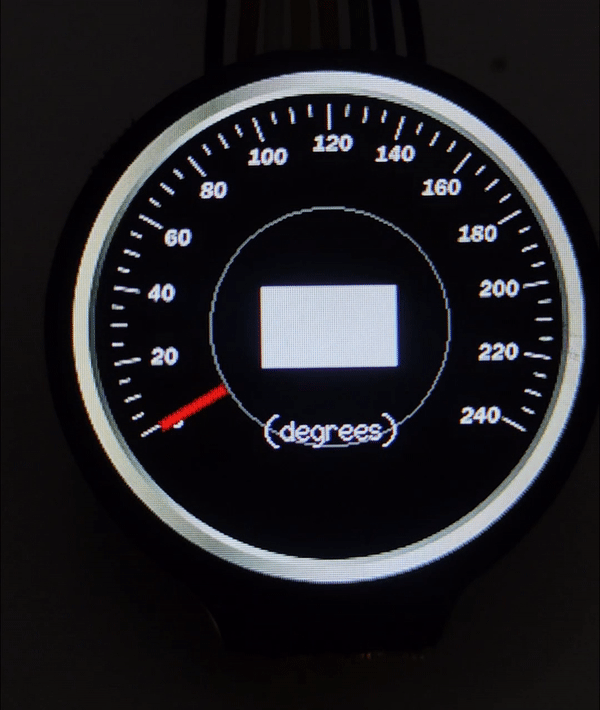

I have a similar problem, although I use the demo project and have white instead of black sweeps.

[Bodmer]

This indicates the screen interface does not support reading back pixel colours.

You could try the following sketch which uses sprites:
#860 (comment)
