print bluetooth symbol on st7789 lcd

[ghost]

HI team,
I am new to this Arduino platform. i need to print the Bluetooth symbol on 1.3 inch st7789 lcd. how to print that one.

please provide some guidance or help to achieve this one.

thanks

[Bodmer]

See this example for a possible approach:
https://github.com/Bodmer/TFT_eSPI/blob/master/examples/Generic/TFT_Flash_Bitmap/TFT_Flash_Bitmap.ino

[Bodmer]

The easy way to convert a bmp format image to a C array for inclusion in the above sketch is to use the tool here:

https://notisrac.github.io/FileToCArray/

Example settings to generate the right file format:

The line to display that particular array would then be:

tft.pushImage(0, 0, TIGER_WIDTH, TIGER_HEIGHT, Tiger);

[Bodmer]

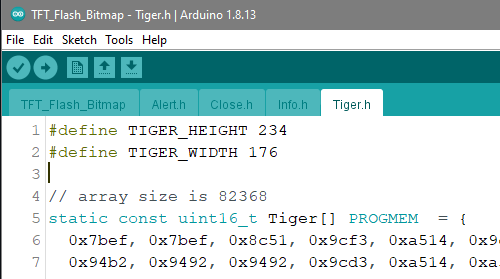

Here the array has been pasted into the sketch:

In this example add the following line to the sketch:
#include "Tiger.h"

Draw with:
tft.pushImage(0, 0, TIGER_WIDTH, TIGER_HEIGHT, Tiger);
