Home Assistant and ESPHome Help - No Devices?

[missmah]

Hi all,

I have a new Home Assistant VM setup with ESPHome installed, and the meter installed with the YAML from: https://github.com/CircuitSetup/Expandable-6-Channel-ESP32-Energy-Meter/blob/master/Software/ESPHome/6chan_energy_meter_main_board.yaml with minor changes for my Wifi, and the new way of specifying:

esp32:
  board: nodemcu-32s
  framework:
    type: arduino

Nothing that should cause material issues, I think. I have firewall, DNS, NAT, etc. all setup to enable the device on my Wifi router to communicate with HomeAssistant. The network communication appears to be working fine (I can OTA upload new firmware, see live logging, from the NodeMCU-32s, etc.)

I'm currently powering the board over USB, don't have a 9V adapter plugged in yet, and no CTs connected yet. Still, it outputs a stream of text like this regularly via the log:

[03:39:44][VV][api.service:337]: on_ping_request: PingRequest {}
[03:39:44][VV][api.service:043]: send_ping_response: PingResponse {}
[03:39:45][VV][scheduler:185]: Running interval '' with interval=60000 last_execution=463294 (now=523299)
[03:39:45][D][esp32.preferences:114]: Saving preferences to flash...
[03:39:49][VV][scheduler:185]: Running interval 'update' with interval=10000 last_execution=517256 (now=527263)
[03:39:49][V][sensor:062]: '6C-energy-meter-alpha Total Watts': Received new state -0.000640
[03:39:49][D][sensor:113]: '6C-energy-meter-alpha Total Watts': Sending state -0.00064 W with 1 decimals of accuracy
[03:39:49][V][sensor:062]: '6C-energy-meter-alpha Total kWh': Received new state -0.000220
[03:39:49][VV][sensor.filter:013]: Filter(0x3ffb9030)::input(-0.000220)
[03:39:49][VV][sensor.filter:020]: Filter(0x3ffb9030)::output(-0.000000) -> SENSOR
[03:39:49][D][sensor:113]: '6C-energy-meter-alpha Total kWh': Sending state -0.00000 kWh with 3 decimals of accuracy
[03:39:49][V][component:199]: Component template.sensor took a long time for an operation (0.05 s).
[03:39:49][V][component:200]: Components should block for at most 20-30ms.
[03:39:50][VV][scheduler:185]: Running interval 'update' with interval=10000 last_execution=518727 (now=528727)
[03:39:50][V][sensor:062]: '6C-energy-meter-alpha Total Amps': Received new state 0.006000
[03:39:50][D][sensor:113]: '6C-energy-meter-alpha Total Amps': Sending state 0.00600 A with 2 decimals of accuracy
[03:39:50][VV][scheduler:185]: Running interval 'update' with interval=10000 last_execution=518922 (now=528923)
[03:39:50][VV][atm90e32:176]: read16_ 0x0000 output 0x0001
[03:39:50][VV][atm90e32:176]: read16_ 0x00D9 output 0x0001
[03:39:50][V][sensor:062]: '6C-energy-meter-alpha Volts B': Received new state 0.010000
[03:39:50][D][sensor:113]: '6C-energy-meter-alpha Volts B': Sending state 0.01000 V with 1 decimals of accuracy
[03:39:50][VV][atm90e32:176]: read16_ 0x00DD output 0x0001
[03:39:50][V][sensor:062]: '6C-energy-meter-alpha CT4 Amps': Received new state 0.001000
[03:39:50][D][sensor:113]: '6C-energy-meter-alpha CT4 Amps': Sending state 0.00100 A with 2 decimals of accuracy

So, I was expecting to see some devices appear in Home Assistant, even if they're measuring 0V, 0A, etc. But, I don't see any devices/measurements in the Home Assistant dashboard. Is this simply a case of "it won't add any until there are actual CTs attached?"

Thanks in advance for any help/advice anyone can provide.

P.S. Here's the full startup verbose log before it starts looping over sensor readings:

INFO Successfully connected to 6-channel-energy-meter-alpha.local
[03:39:29][I][app:102]: ESPHome version 2021.12.3 compiled on Jan 19 2022, 03:30:16
[03:39:29][C][wifi:488]: WiFi:
[03:39:29][C][wifi:350]:   Local MAC: 78:21:84:7C:56:38
[03:39:29][C][wifi:351]:   SSID: [redacted]
[03:39:29][C][wifi:352]:   IP Address: 192.168.25.56
[03:39:29][C][wifi:354]:   BSSID: [redacted]
[03:39:29][C][wifi:355]:   Hostname: '6-channel-energy-meter-alpha'
[03:39:29][C][wifi:357]:   Signal strength: -48 dB ▂▄▆█
[03:39:29][V][wifi:359]:   Priority: 0.0
[03:39:29][C][wifi:361]:   Channel: 1
[03:39:29][C][wifi:362]:   Subnet: 255.255.255.0
[03:39:29][C][wifi:363]:   Gateway: 192.168.25.1
[03:39:29][C][logger:233]: Logger:
[03:39:29][C][logger:234]:   Level: VERY_VERBOSE
[03:39:29][C][logger:235]:   Log Baud Rate: 115200
[03:39:29][C][logger:236]:   Hardware UART: UART0
[03:39:29][C][spi:097]: SPI bus:
[03:39:29][C][spi:098]:   CLK Pin: GPIO18
[03:39:29][C][spi:099]:   MISO Pin: GPIO19
[03:39:29][C][spi:100]:   MOSI Pin: GPIO23
[03:39:29][C][spi:102]:   Using HW SPI: YES
[03:39:29][C][template.sensor:023]: Template Sensor '6C-energy-meter-alpha Total Amps'
[03:39:29][C][template.sensor:023]:   State Class: ''
[03:39:29][C][template.sensor:023]:   Unit of Measurement: 'A'
[03:39:29][C][template.sensor:023]:   Accuracy Decimals: 2
[03:39:29][C][template.sensor:023]:   Icon: 'mdi:flash'
[03:39:29][C][template.sensor:024]:   Update Interval: 10.0s
[03:39:29][C][template.sensor:023]: Template Sensor '6C-energy-meter-alpha Total Watts'
[03:39:29][C][template.sensor:023]:   State Class: ''
[03:39:29][C][template.sensor:023]:   Unit of Measurement: 'W'
[03:39:29][C][template.sensor:023]:   Accuracy Decimals: 1
[03:39:29][C][template.sensor:023]:   Icon: 'mdi:flash-circle'
[03:39:29][C][template.sensor:024]:   Update Interval: 10.0s
[03:39:29][C][:129]: ATM90E32:
[03:39:29][C][atm90e32:130]:   CS Pin: GPIO5
[03:39:29][C][atm90e32:134]:   Update Interval: 10.0s
[03:39:29][C][atm90e32:135]:   Voltage A '6C-energy-meter-alpha Volts A'
[03:39:29][C][atm90e32:135]:     Device Class: 'voltage'
[03:39:29][C][atm90e32:135]:     State Class: 'measurement'
[03:39:29][C][atm90e32:135]:     Unit of Measurement: 'V'
[03:39:29][C][atm90e32:130]:   CS Pin: GPIO4
[03:39:29][C][atm90e32:134]:   Update Interval: 10.0s
[03:39:29][C][atm90e32:135]:   Voltage A '6C-energy-meter-alpha Volts B'
[03:39:29][C][atm90e32:135]:     Device Class: 'voltage'
[03:39:29][C][atm90e32:135]:     State Class: 'measurement'
[03:39:29][C][atm90e32:135]:     Unit of Measurement: 'V'
[03:39:29][C][atm90e32:135]:     Accuracy Decimals: 1
[03:39:29][C][atm90e32:136]:   Current A '6C-energy-meter-alpha CT4 Amps'
[03:39:29][C][atm90e32:136]:     Device Class: 'current'
[03:39:29][C][atm90e32:136]:     State Class: 'measurement'
[03:39:29][C][atm90e32:136]:     Unit of Measurement: 'A'
[03:39:30][C][atm90e32:136]:     Accuracy Decimals: 2
[03:39:30][C][atm90e32:137]:   Power A '6C-energy-meter-alpha CT4 Watts'
[03:39:30][C][atm90e32:137]:     Device Class: 'power'
[03:39:30][C][atm90e32:137]:     State Class: 'measurement'
[03:39:30][C][atm90e32:137]:     Unit of Measurement: 'W'
[03:39:30][C][atm90e32:137]:     Accuracy Decimals: 2
[03:39:30][C][atm90e32:143]:   Current B '6C-energy-meter-alpha CT5 Amps'
[03:39:30][C][atm90e32:143]:     Device Class: 'current'
[03:39:30][C][atm90e32:143]:     State Class: 'measurement'
[03:39:30][C][atm90e32:143]:     Unit of Measurement: 'A'
[03:39:30][C][atm90e32:143]:     Accuracy Decimals: 2
[03:39:30][C][atm90e32:144]:   Power B '6C-energy-meter-alpha CT5 Watts'
[03:39:30][C][atm90e32:144]:     Device Class: 'power'
[03:39:30][C][atm90e32:144]:     State Class: 'measurement'
[03:39:30][C][atm90e32:144]:     Unit of Measurement: 'W'
[03:39:30][C][atm90e32:144]:     Accuracy Decimals: 2
[03:39:30][C][atm90e32:150]:   Current C '6C-energy-meter-alpha CT6 Amps'
[03:39:30][C][atm90e32:150]:     Device Class: 'current'
[03:39:30][C][atm90e32:150]:     State Class: 'measurement'
[03:39:30][C][atm90e32:150]:     Unit of Measurement: 'A'
[03:39:30][C][atm90e32:150]:     Accuracy Decimals: 2
[03:39:30][C][atm90e32:151]:   Power C '6C-energy-meter-alpha CT6 Watts'
[03:39:30][C][atm90e32:151]:     Device Class: 'power'
[03:39:30][C][atm90e32:151]:     State Class: 'measurement'
[03:39:30][C][atm90e32:151]:     Unit of Measurement: 'W'
[03:39:30][C][atm90e32:151]:     Accuracy Decimals: 2
[03:39:30][C][atm90e32:156]:   Frequency '6C-energy-meter-alpha Freq B'
[03:39:30][C][atm90e32:156]:     State Class: 'measurement'
[03:39:30][C][atm90e32:156]:     Unit of Measurement: 'Hz'
[03:39:30][C][atm90e32:156]:     Accuracy Decimals: 1
[03:39:30][C][atm90e32:156]:     Icon: 'mdi:current-ac'
[03:39:30][C][total_daily_energy:024]: Total Daily Energy '6C-energy-meter-alpha Total kWh'
[03:39:30][C][total_daily_energy:024]:   Device Class: 'energy'
[03:39:30][C][total_daily_energy:024]:   State Class: 'total_increasing'
[03:39:30][C][total_daily_energy:024]:   Unit of Measurement: 'kWh'
[03:39:30][C][total_daily_energy:024]:   Accuracy Decimals: 3
[03:39:30][C][total_daily_energy:024]:   Icon: 'mdi:flash-circle'
[03:39:30][C][restart:022]: Restart Switch '6C-energy-meter-alpha Restart'
[03:39:30][C][restart:022]:   Icon: 'mdi:restart'
[03:39:30][C][captive_portal:144]: Captive Portal:
[03:39:30][C][ota:082]: Over-The-Air Updates:
[03:39:30][C][ota:083]:   Address: 6-channel-energy-meter-alpha.local:3232
[03:39:30][C][ota:086]:   Using Password.
[03:39:30][C][api:134]: API Server:
[03:39:30][C][api:135]:   Address: 6-channel-energy-meter-alpha.local:6053
[03:39:30][C][api:139]:   Using noise encryption: NO
[03:39:30][C][wifi_signal.sensor:009]: WiFi Signal '6C-energy-meter-alpha WiFi'
[03:39:30][C][wifi_signal.sensor:009]:   Device Class: 'signal_strength'
[03:39:30][C][wifi_signal.sensor:009]:   State Class: 'measurement'
[03:39:30][C][wifi_signal.sensor:009]:   Unit of Measurement: 'dBm'
[03:39:30][C][wifi_signal.sensor:009]:   Accuracy Decimals: 0
[03:39:30][V][wifi_signal.sensor:009]:   Unique ID: '7821847c5638-wifisignal'
[03:39:30][C][sntp:050]: SNTP Time:
[03:39:30][C][sntp:051]:   Server 1: '0.pool.ntp.org'
[03:39:30][C][sntp:052]:   Server 2: '1.pool.ntp.org'
[03:39:30][C][sntp:053]:   Server 3: '2.pool.ntp.org'
[03:39:30][C][sntp:054]:   Timezone: 'EST5EDT,M3.2.0,M11.1.0'
[03:39:30][C][mdns:084]: mDNS:
[03:39:30][C][mdns:085]:   Hostname: 6-channel-energy-meter-alpha
[03:39:30][V][mdns:086]:   Services:
[03:39:30][V][mdns:088]:   - _esphomelib, _tcp, 6053
[03:39:30][V][mdns:090]:     TXT: version = 2021.12.3
[03:39:30][V][mdns:090]:     TXT: mac = 7821847c5638
[03:39:30][V][mdns:090]:     TXT: platform = ESP32
[03:39:30][V][mdns:090]:     TXT: board = nodemcu-32s
[03:39:30][VV][scheduler:185]: Running interval 'update' with interval=10000 last_execution=498727 (now=508727)
[03:39:30][V][sensor:062]: '6C-energy-meter-alpha Total Amps': Received new state 0.006000
[03:39:30][D][sensor:113]: '6C-energy-meter-alpha Total Amps': Sending state 0.00600 A with 2 decimals of accuracy
[03:39:30][VV][scheduler:185]: Running interval 'update' with interval=10000 last_execution=498922 (now=508922)
[03:39:30][VV][atm90e32:176]: read16_ 0x0000 output 0x0001
[03:39:30][VV][atm90e32:176]: read16_ 0x00D9 output 0x0001
[03:39:30][V][sensor:062]: '6C-energy-meter-alpha Volts B': Received new state 0.010000
[03:39:30][D][sensor:113]: '6C-energy-meter-alpha Volts B': Sending state 0.01000 V with 1 decimals of accuracy
[03:39:30][VV][atm90e32:176]: read16_ 0x00DD output 0x0001
[03:39:30][V][sensor:062]: '6C-energy-meter-alpha CT4 Amps': Received new state 0.001000
[03:39:30][D][sensor:113]: '6C-energy-meter-alpha CT4 Amps': Sending state 0.00100 A with 2 decimals of accuracy
[03:39:30][VV][atm90e32:176]: read16_ 0x00DE output 0x0001
[03:39:30][V][sensor:062]: '6C-energy-meter-alpha CT5 Amps': Received new state 0.001000
[03:39:30][D][sensor:113]: '6C-energy-meter-alpha CT5 Amps': Sending state 0.00100 A with 2 decimals of accuracy
[03:39:30][VV][atm90e32:176]: read16_ 0x00DF output 0x0001

[missmah]

I found my own answer:

First, I plugged in the 9V AC adapter and hooked up a single CT (to the AC adapter's wire.. which should cancel itself out and read almost 0W), but at least be hooked up...

Then you need to go to Configuration -> Devices & Services -> Integrations -> Add Integration

Then add the DNS name of your energy meter device.

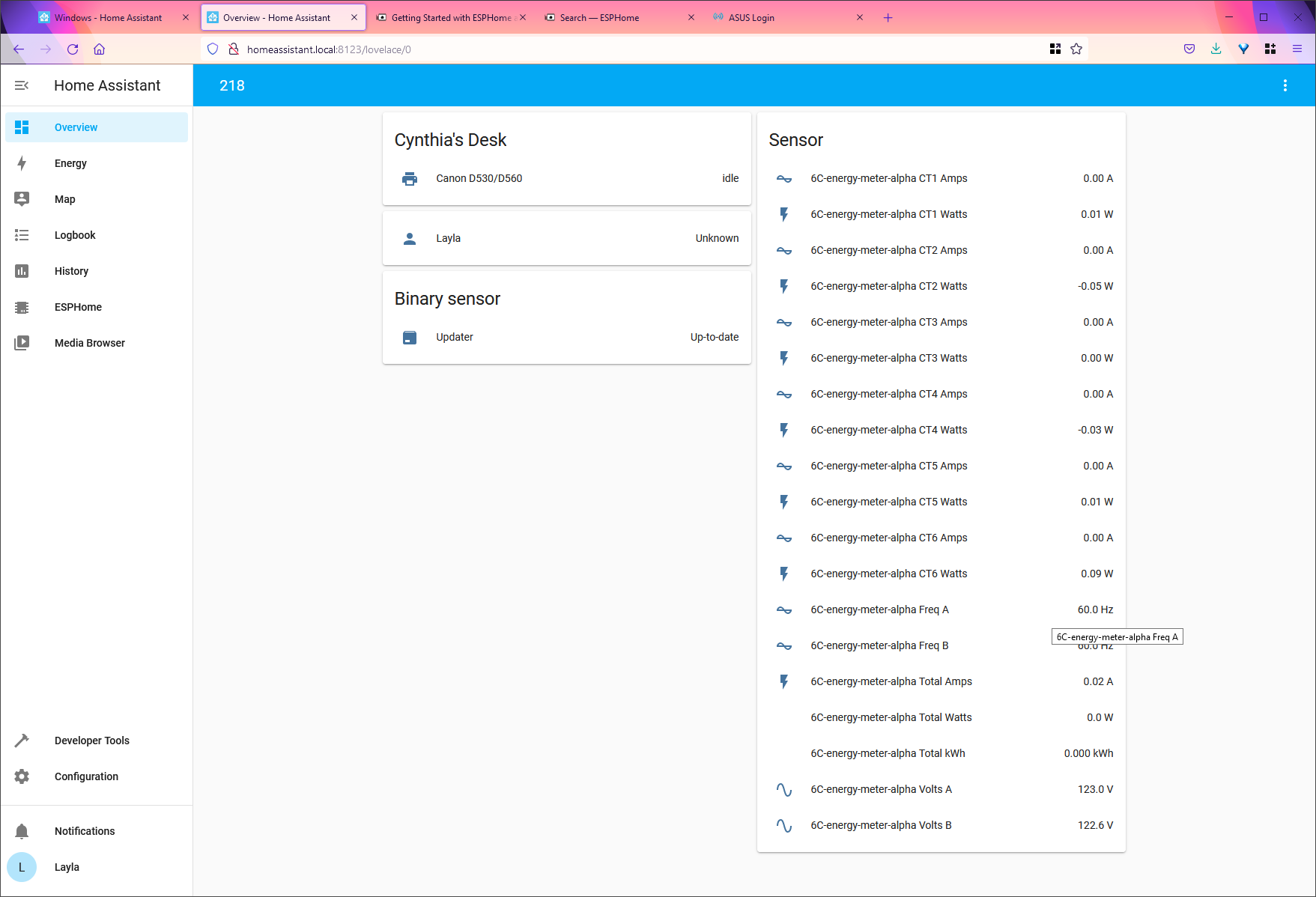

After that, it added the integration and I can see the device on my dashboard:

I'm quite surprised that this isn't automatic...
