Snap Zone Initial or default object

[agupta2000]

Hello, how do you set the default or initial object in the snap zone? I spent hours and can't figure it out. Please help.

[thestonefox]

To set an interactable object to be the default snapped object use a Behaviour Enabled Observer component:

1. Add Snap Zone to scene
2. Add Interactable object to scene

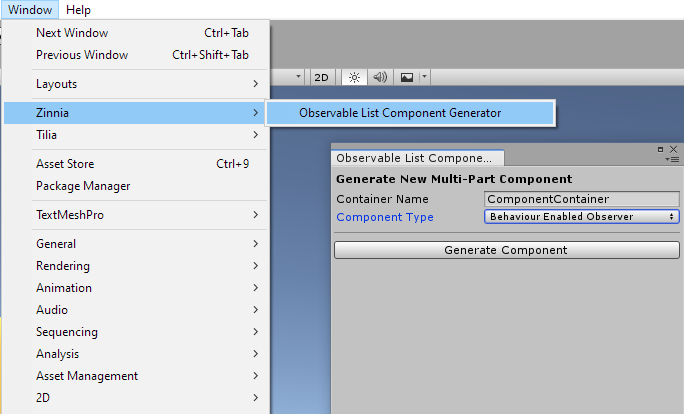

3. Add a Behaviour Enabled Observer via the Zinnia menu option Main Menu -> Window -> Zinnia -> Observable List Component Generator

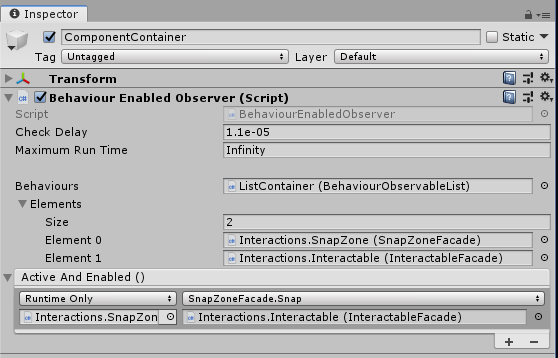

4. In the Elements list on the Behaviour Enabled Observer, listen for the Snap Zone and the Interactable to be snapped to be enabled then in the Active And Enabled event call the Snap method on the SnapZoneFacade passing in the Interactable you want to snap by default.


This will now snap an object to the snap zone when the snap zone and the object are both enabled.

[agupta2000]

Thank you. This worked for me. On Mar 23, 2021, at 7:19 AM, The Stonefox ***@***.***> wrote:  To set an interactable object to be the default snapped object use a Behaviour Enabled Observer component: 1. Add Snap Zone to scene 2. Add Interactable object to scene 3. Add a Behaviour Enabled Observer via the Zinnia menu option Main Menu -> Window -> Zinnia -> Observable List Component Generator [image]<https://user-images.githubusercontent.com/1029673/112138280-3e9b8900-8bc9-11eb-9968-265903e72d9c.png> 4. In the Elements list on the Behaviour Enabled Observer, listen for the Snap Zone and the Interactable to be snapped to be enabled then in the Active And Enabled event call the Snap method on the SnapZoneFacade passing in the Interactable you want to snap by default. [image]<https://user-images.githubusercontent.com/1029673/112138517-815d6100-8bc9-11eb-8a83-4625c8c8a15c.png> This will now snap an object to the snap zone when the snap zone and the object are both enabled. — You are receiving this because you authored the thread. Reply to this email directly, view it on GitHub<#98 (comment)>, or unsubscribe<https://github.com/notifications/unsubscribe-auth/AAEXJQT2PRNF7GMINJJQ6JLTFB2LVANCNFSM4ZUHZSAQ>.
