Before we dive into creating an important and vital part of any game, lets recap from the previous tutorial, to provide a foundation of what we'll need before continuing:
- Window setup:
- Using the function of opening a window, with the title and x and y dimensions (Shown as "Your Game Title" and the dimensions 800x600px in Tutorial 2)
- Although a game can be made entirely within a terminal, using clever characters and story telling to create a narrative and gameplay, we're relying on a window and visual aides to create a metroid/castlevania (Metroidvania) style game.
- Drawing rectangles.
- Using the function fill_rectangle, with the parameters of colour, x position, y position, width and height, is our starting point for character basics. You can use the function of drawing a rectangle (Or other shapes, for that matter) for other aspects too such as environments, enemies, items, etc.
- Simple Backgrounds (Drawing and Loading bitmaps)
- Although we can utilize the use of the fill_rectangle function to draw ourselves a background, it can become confusing and difficult to follow which line of code represents your background, environment and character. This is where we can use the function of bitmaps to differentiate our sections of game.
- To use the bitmap function, first load in your bitmap file with the function 'load_bitmap'. It will use the parameters of a string name (To name your bitmap in future references to it), and the filename (This will be in your resources folder).
- Then you can draw your bitmap with draw_bitmap, with its respected name and the x and y parameters.
- With the above lines of code in mind, you can affective use bitmaps and the basic functions of a looping window to create the beginning of your game. Whilst there is no user input, or much functionality besides visual elements, this can provide a foundation of your first level, and what you'd like to invision and embiggen your game idea.
Creating a character can involve multiple parameters and can include multiple moving parts. This is dependent on how many characters you want playable (Will this be a multiplayer game? Or will it be capable of both solo, and multiplayer capabilities?), customization, and other features shown in modern games. However, for beginner and testing purposes, we will use the recapped function of drawing a rectangle. This tutorial, and introduction, will show you the basics of using a rectangle as your placeholder character, as well as understanding the user's input functions within Splashkit's C++. Further introductions will show how to replace your character's rectangle with a sprite and animations, as well as executing new features such as power ups, items/advantages (or disadvantages), enemies, and other features of a functioning game.
An important part of game design and concept is coming up with your basis ideas. This being your themes, what you'd like to begin with (Characters, maps, enemies, items/powerups, etc), colour schemes and your preferred language.
Before implementing your character's rectangle, we will establish and create a new window with a new background.
Depending on your style of gameplay, you may require more, or less user inputs. For a top down style of gameplay (Such as Undertale)
Keep in mind the style, and how you want your character to move - Are they moving left to right in a side scroller, can they go up and enter new rooms? These are things to keep in mind.
For this tutorial, we will use the basic left and right side scrolling pattern for our user inputs, and using a rectangle to represent our character. Please keep in mind that when drawing your character to make them still visible.
You have created your window, you have a bitmap loaded, and you have drawn yourself a rectangle from the previous tutorial.
🎉 Congratulations. 🎉
You're on your way to making your first game. Although this is just the beginning, take a chance to appreciate the hard work you've put in into learning a new coding language and embiggen your creativity. Celebrate every little victory, even this one.
Let's make some minor adjustments to our coding.
A good general rule of thumb for characters and scaling is not to search for a specific ratio for your character's size. This is entirely dependent on what type of game your making. Size, feelings and environments all play a role in how your player is going to feel of each level. If you're making a horror game, you may choose to have your character 'big' or close to the screen, to envision a claustrophobic feeling. If you want an open world, exploration, Legend of Zelda style, you would choose your character to be smaller but still visible, to emphasise the vastness and wide world you're exploring.
For a simple side scroller, you may find (In a 800x600 window) that a comfortable size is 32W by 64H.
We will begin by using the basis code snippet provided in Tutorial 2.
#include "splashkit.h"
int main()
{
// Declare variables for window dimensions
int width = 800;
int height = 600;
// Open a game window with specified title and dimensions
open_window("Voidbound", width, height);
// Load the background image from the specified path
bitmap background = load_bitmap("sky", "Resources/images/sky.png");
// Clear the screen with the loaded background image
clear_screen();
draw_bitmap(background, 0, 0);
// Declare variables for rectangle dimensions
double w = 400;
double h = 200;
// Calculate the position to center the rectangle
double x = width / 2 - w / 2;
double y = height / 2 - h / 2;
// Draw a filled red rectangle using calculated dimensions and position
fill_rectangle(COLOR_RED, x, y, w, h);
// Refresh the screen to display the drawn rectangle
refresh_screen();
// Pause execution for 2.5 seconds to observe the result
delay(2500);
// Close the game window
close_all_windows();
// Indicate successful program completion and return 0
return 0;
}
We will make some minor adjustments to this code. We will include these following lines:
'double move_speed = 0.5;'
while (!window_close_requested("Voidbound"))
{
process_events();
// Check for arrow key inputs
if (key_down(S_KEY))
y += move_speed;
else if (key_down(A_KEY))
x -= move_speed;
else if (key_down(D_KEY))
x += move_speed;
else if (key_down(W_KEY))
y-= move_speed;
clear_screen();
draw_bitmap(background, 0, 0);
fill_rectangle(COLOR_RED, x, y, w, h);
refresh_screen();
}
Let's go through line by line what's happening.
This line of code is somewhat self explained; Double is used to express decimal places. We're using double so we can go as slow as 0.1, or faster, such as 5.0.
Just like our other functions like clear_screen, draw_bitmap, we use a name derived of underscores (_) to give it a name. This is much easier to call upon rather than re-writing each individual function and its intended purpose.
To put this simply, we're saying "While the window is not requested to be closed, titled 'voidbound', do this:" The use of the ! exclamation mark is coding language of saying not. This allows us to use the loop function of while, where we can input all desired lines of code for the window being open.
Process_events() is used in SplashKit to handle numerous events that occur in a graphical programme, including as window events, keyboard input, mouse input, and more. For this tutorial, it is the use of keyboard events.
"If this occurs, produce this output, but if this occurs, do this!" Our key inputs are registered as WASD. This is traditional in a lot of games, but can be adjusted for personal preference. We're saying if the W button, for example, is held, then the rectangle (Our character) will move up along the y axis. This is coded as y-. Decreasing y means moving the rectangle upwards because the vertical coordinate system typically has its origin (0,0) at the top-left corner of the screen, with positive values increasing downward. By subtracting the values of y by our move speed, we're moving the reactangle up, essentially going up along our y axis. If the S button is held, then the rectangle will move down along the y axis. Just as we have put in above, instead of y-, we're using y+, to demonstrate that we're going down the y axis.
This same principle is applied to our A and D keys for left and right, respectively. This means we will have x- and x+.
You'll also notice we're reusing the move speed function in each instance of key_down. The move speed tells us how fast we move across, and because we're using a double function, you can be as specific as you'd like for your speed (examples: 0.25, 0.01, 0.37, etc)
Now that we've established our new lines of code, their importance and functionality, and why we're using them, let's apply our new knowledge to the test.
Here is the complete code to demonstrate the combined code from tutorial 2, and your newly acquired knowledge in this tutorial:
#include "splashkit.h"
int main()
{
// Declare variables for window dimensions
int width = 800;
int height = 600;
// Open a game window with specified title and dimensions
open_window("Voidbound", width, height);
// Load the background image from the specified path
bitmap background = load_bitmap("sky", "images/sky.png");
// Clear the screen with the loaded background image
clear_screen();
draw_bitmap(background, 0, 0);
// Declare variables for rectangle dimensions
double w = 32;
double h = 64;
// Calculate the position to center the rectangle
double x = width / 2 - w / 2;
double y = height / 2 - h / 2;
double move_speed = 0.01; // Adjust this as needed
// Draw a filled red rectangle using calculated dimensions and position
while (!window_close_requested("Voidbound"))
{
process_events();
// Check for arrow key inputs
if (key_down(S_KEY))
y += move_speed;
else if (key_down(A_KEY))
x -= move_speed;
else if (key_down(D_KEY))
x += move_speed;
else if (key_down(W_KEY))
y-= move_speed;
clear_screen();
draw_bitmap(background, 0, 0);
fill_rectangle(COLOR_RED, x, y, w, h);
refresh_screen();
}
// Refresh the screen to display the drawn rectangle
refresh_screen();
// Indicate successful program completion and return 0
return 0;
}

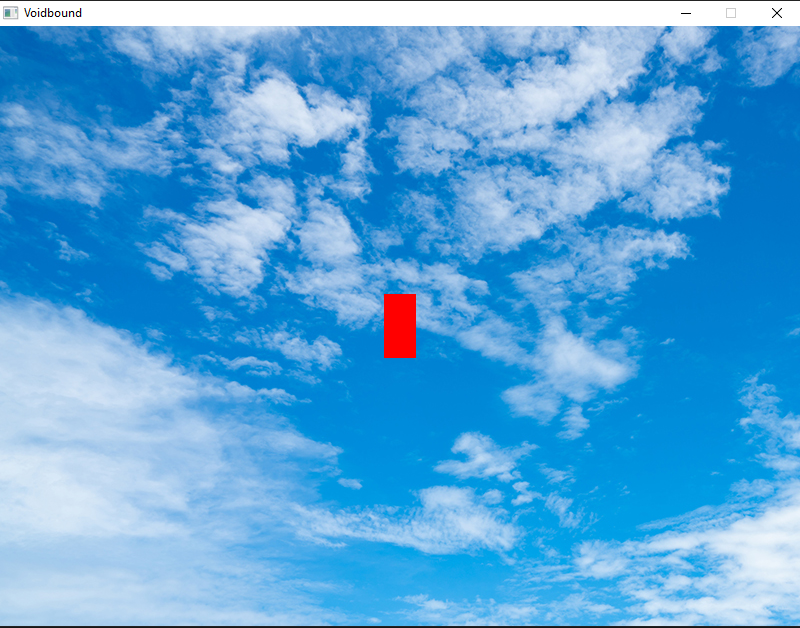

Once you've used this code, remember to compile your finished code, and run it! You should now be able to have a moving rectangle across your screen.
🎉🎉🎉 Congratulations 🎉🎉🎉
You're on your way to making a functioning, fun game that can be expanded upon and one day shared with the world.
