Replies: 6 comments 8 replies
-
|
I tried to modify It seems to related with But I cannot realize reason?? Any idea?? |
Beta Was this translation helpful? Give feedback.
-
|
Editors Error log is that: |
Beta Was this translation helpful? Give feedback.
-
|
Now C130 implemented.
|
Beta Was this translation helpful? Give feedback.
-
|
Main issue is engines not have same throttle. I dont know where it is came from.
|
Beta Was this translation helpful? Give feedback.
-
|
I agree the engines do not work for the C130 aircraft. The engine file t56.xml is slightly outdated and does not function correctly. As a test I used newer turboprop engine PW125BX.xml and the C130 works correctly in UE5. I also used your fix for NumGear (good work!) and edited the C130.xml file to use the PW125BX for engines. Everything appears to work after doing this. In addition to the t56 engine needing fixed/updating, the t56_prop.xml is probably also outdated but it at least works and can fly. |
Beta Was this translation helpful? Give feedback.
-
|
Plugin is very unstable. I changed engine to Pw125bx and them I revert change back has no effect on plane. I changed its model to another Model (f.e. 787-8) it worked but c130 stucked on Pw125bx motor. |
Beta Was this translation helpful? Give feedback.
-
|

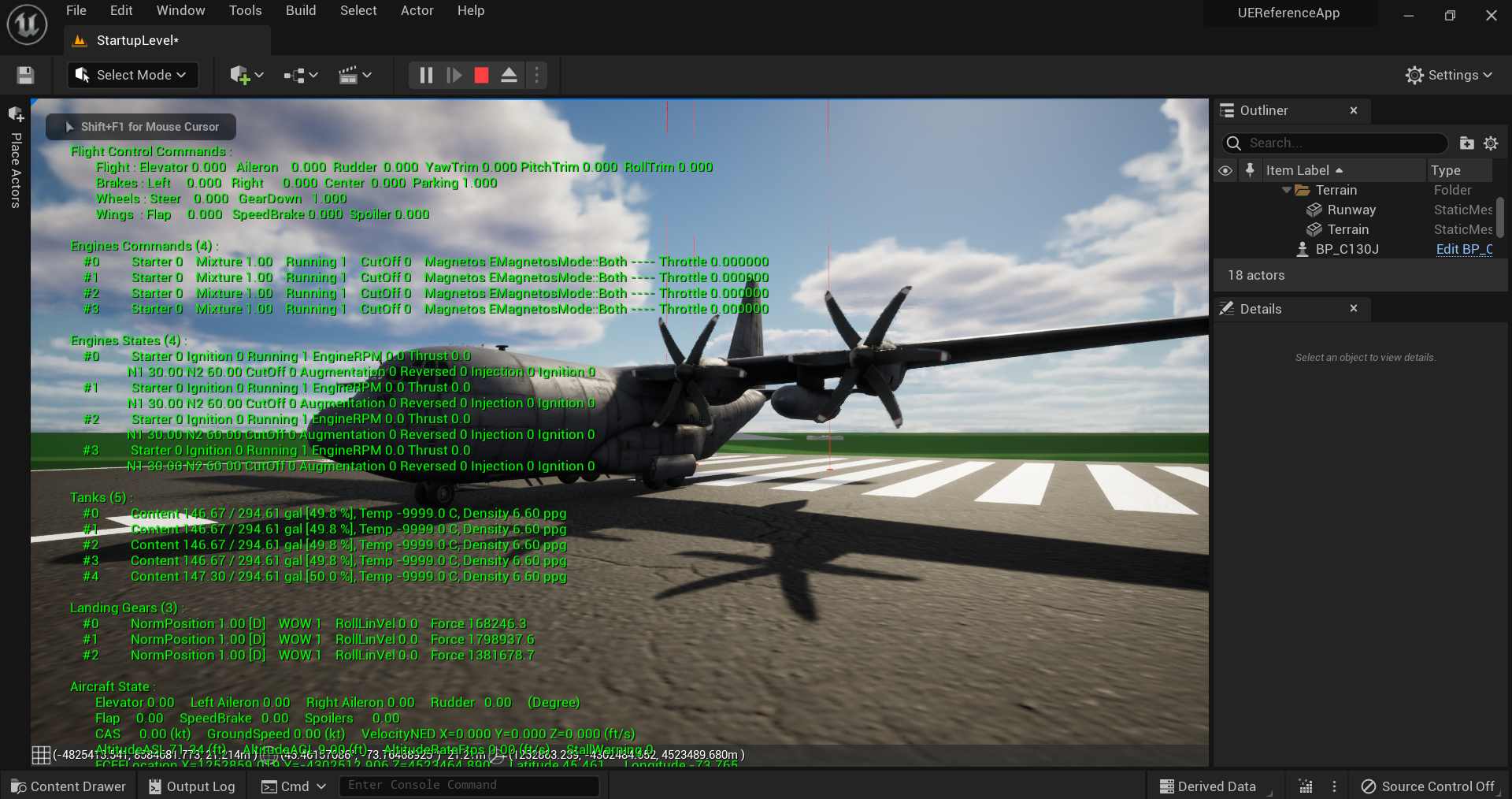

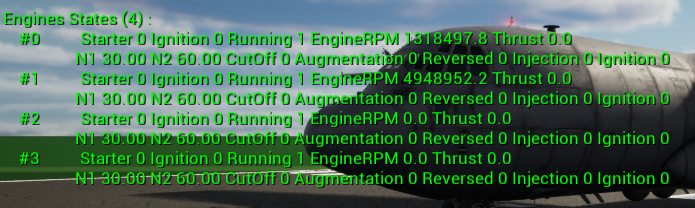

It is c130 behaviour with t56 motor and t56_prop thrustler. document_5978730905668161238.mp4I'm trying OpRedFlag's AE2100D3 motor and R391 thrustler. It behaviour look like that. document_5978730905668161237.mp4For the propellar speed, N1 or N2 is gives 0 (I dont know its cause.). So I made propellar speed with engine RPM. In this time plane can't hold in the air. |
Beta Was this translation helpful? Give feedback.
-
|

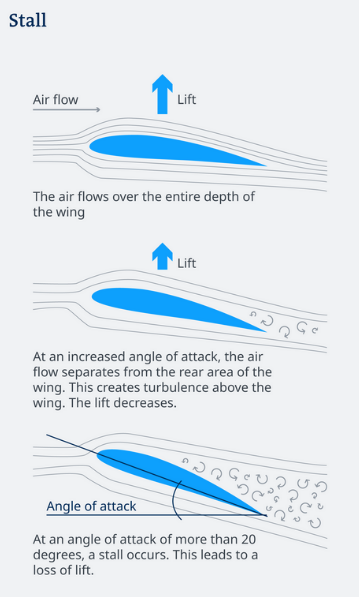

Yes that's normal, if you have too high an Angle of Attack, the airplane will Stall. Use less Elevator Input during Take Off. For N1 and N2, I'm not sure either. Woud need to look more into JSBSim code and Unreal Engine to find cause. You can try searching all engine or propeller properties while the simulation is running. In blueprint there is a JSBSim node called Property Manager Get Catalog and you "watch value" while simulation is live, then type in the search box engine or prop to maybe find speed. |
Beta Was this translation helpful? Give feedback.
-
|
Ok Got it. I will try Property manager and will see variables. As I Said Unreal Engine plugin is really unstable but I thing it would be more stable while use it. I mainly working to test all engine types and other models one by one and each one of them I will implement. (currently I implemented turboprop engine and working for rocket engine and them simulated atmospher effects) I'm planning to create an open source simulator. Next steps will be simulating some rockets that will fired from plane. |
Beta Was this translation helpful? Give feedback.
-
|
Worked with that PR |
Beta Was this translation helpful? Give feedback.
-
|
Hey,Zaryob.I think your work is very interesting and cool, could you explain in detail how to change BP_Airline to BP_C130J? Like what part of the program to change. The model of C130J I found in Unreal Marketplace only supports UE4.27. How did you import it into UE5？Thanks！ |
Beta Was this translation helpful? Give feedback.
Uh oh!
There was an error while loading. Please reload this page.
-
I'm trying to modular plane selector. Ain idea is that:
I create different pawns for different aircrafts. (BP_Airliner already present. I added BP_Eurofighter, BP_Rafale...)
I put a PlayerStart on StartupLevel and removed BP_Airliner from map.

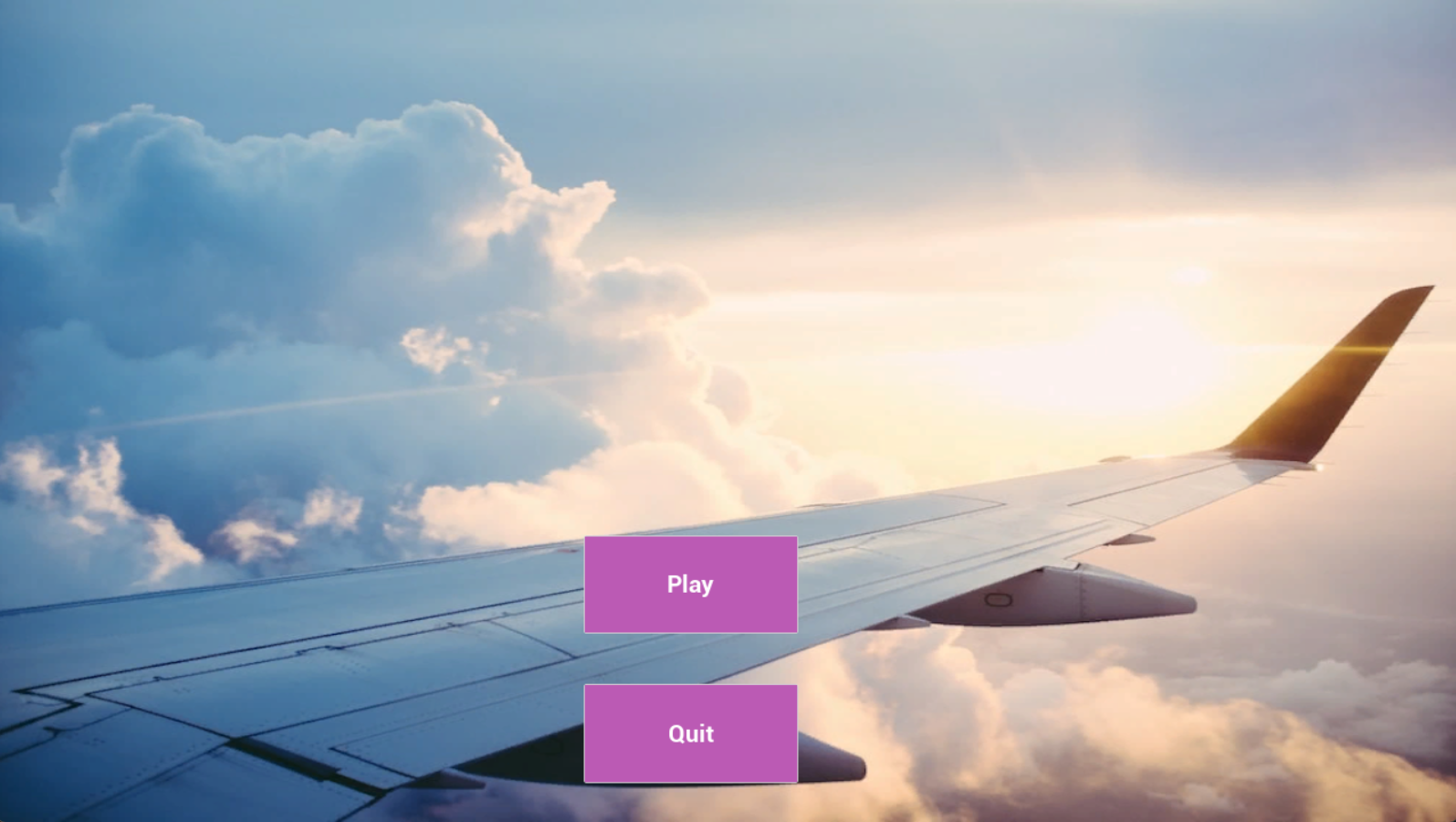

I create a Window for starter
Something like that for first tries:
It spawns but I gather following error.
What is the cause any idea??
