What is the proper "batch_size" value to pass to self.log in DDP mode?

[dlnp2]

Hello there, I came across a warning:

UserWarning: Trying to infer the batch_size from an ambiguous collection. The batch size we found is 1. To avoid any miscalculations, use self.log(..., batch_size=batch_size).

But I'm not sure what value to pass to batch_size in self.log. I searched for similar discussions, however, could not clearly understand what to do in my situation.

The code is running in DDP mode with pl.Trainer(..., gpus=8, accumulate_grad_batches=16, replace_sampler_ddp=True), and the batch size specified in my DataModule is 2, which is in turn passed to each DataLoaders. So, in my understanding, the total batch size over all processes is 2 * 8 = 16 and the effective batch size is 2 * 8 * 16 = 256.

Should I pass 2, 16, 256, or another value?

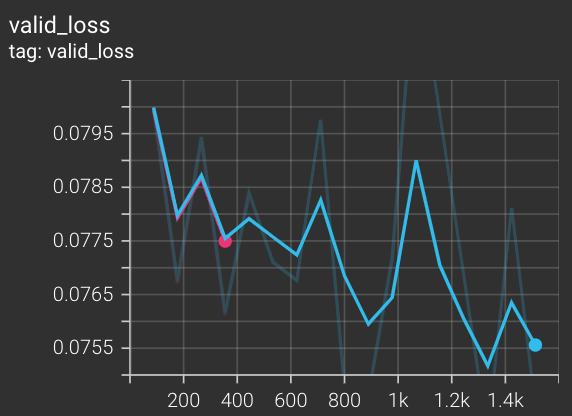

Another question is, the results seem to be exactly the same for both cases when batch_size in self.log is manually specified to 2 and inferred by Lightning (figure below: cyan for the former, pink for the latter case). Is this a correct behavior?

The loss is MSE, Lighting version is 1.6.4.

Thank you.
