Sub-60 FPS frame pacing and stuttering issues with 4K stream. Host keeps locked 60 FPS. #193

SaltyBet · 2023-03-03T00:00:09Z

SaltyBet
Mar 3, 2023

Is there an existing issue for this?

I have searched the existing issues

Is your issue described in the documentation?

I have read the documentation

Is your issue present in the nightly release?

This issue is present in the nightly release

Describe the Bug

Details:

Host PC keeps locked 60 FPS gameplay.
On client:
- Experiencing borked frame pacing and stuttering.
- gamescope overlay frame-time graph shows constant oscillation between 55 and 59 FPS.
- Moonlight overlay metric "Incoming frame rate from network" shows sub-60 FPS; visibly averaging ~57 FPS.
- Moonlight overlay metric "Frames dropped by your network connection" shows 0.00%.
- Moonlight overlay metric "Frames dropped due to network jitter" shows 0.00%.
- Sub-4K streams do not exhibit this issue.

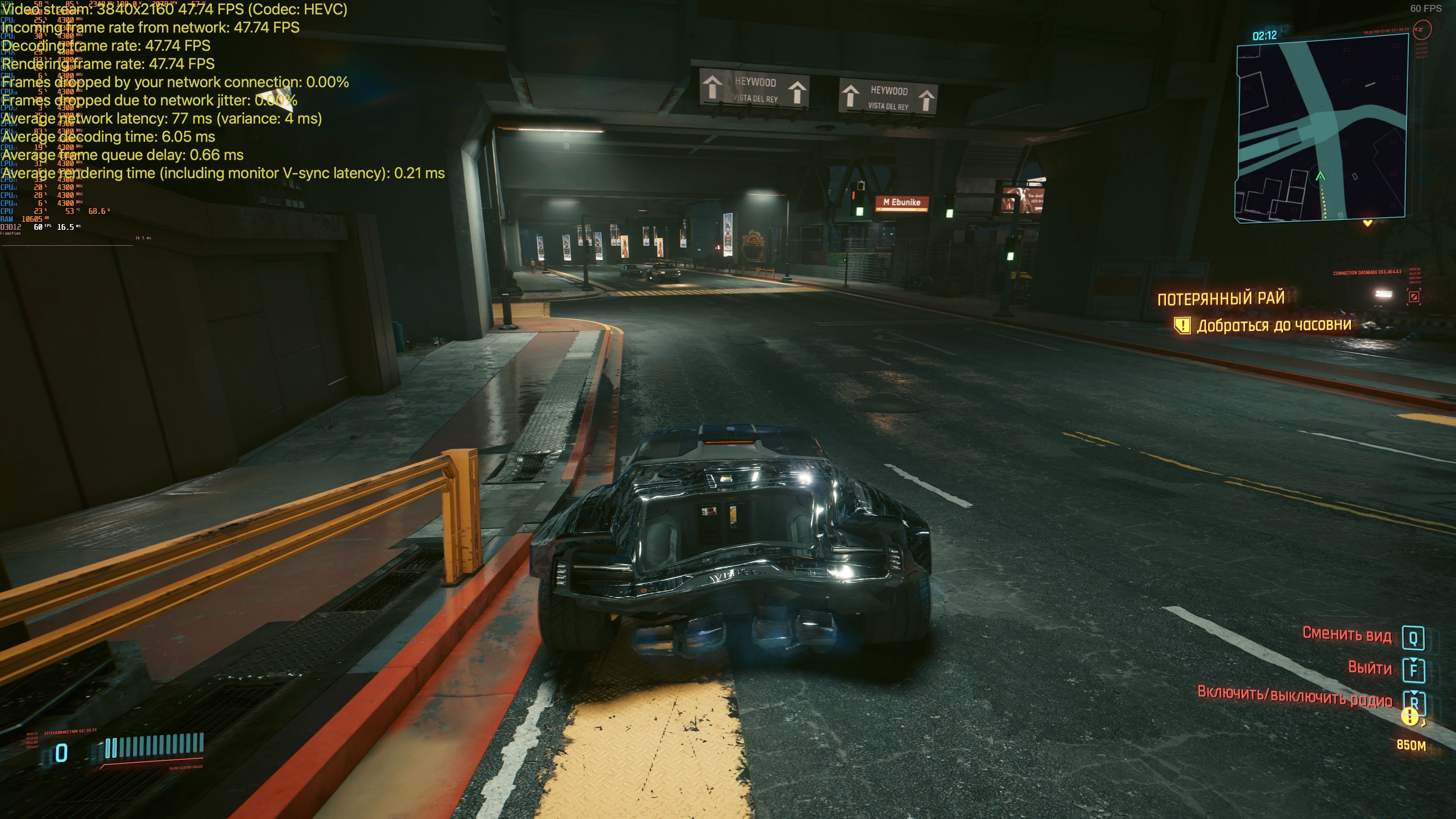

Screen capture:

Expected Behavior

Sustained/Locked 60 FPS stream; no stutters.

Additional Context

Host:
- PC.
- Windows 10.
- Sunshine v0.18.4.
- Hardware Encoding (GPU HEVC).
- GigE.
Client:
- Steam Deck.
- Latest Stable SteamOS.
- Latest Stable Moonlight.
- Hardware Decoding Enabled.
- WiFi 802.11 ac.
Stream Test:
- 4K.
- 60 FPS.
- 80 Mbps.

Also tested VCEEncC 4K transcoding (VCEEncC64.exe --codec hevc --preset [slow/fast] --audio-copy -i "4K-src-h264.mkv" -o "4K-dest-h265.mkv"), while gaming; results:

slow: 88.96 fps.
fast: 108.69 fps.
host keeps a locked 4K 60 FPS in-game.

Also tested ReLive 4K gameplay recording; results:

~ 2 min 4K 60FPS video captured successfully.
host keeps a locked 4K 60 FPS in-game.

github shows: v0.18.4 is up to date with all commits from nightly-dev.

Host Operating System

Windows

Operating System Version

Windows 10

Architecture

64 bit

Sunshine commit or version

0.18.4

Package

Windows - installer

GPU Type

AMD

GPU Model

RX 6800 XT

GPU Driver/Mesa Version

22.40.33.01-230217a-388646C-AMD-Software-Adrenalin-Edition

Capture Method (Linux Only)

No response

Config

dwmflush = disabled
nv_rc = cbr
min_log_level = 2
vt_realtime = enabled
hevc_mode = 0
sw_preset = ultrafast
key_rightalt_to_key_win = disabled
amd_vbaq = disabled
origin_pin_allowed = pc
amd_usage = ultralowlatency
resolutions = [
    352x240,
    480x360,
    858x480,
    1280x720,
    1920x1080,
    2560x1080,
    3440x1440,
    1920x1200,
    3860x2160,
    3840x1600
]
nv_preset = p1
gamepad = x360
amd_rc = cbr
qsv_coder = auto
amd_quality = speed
min_threads = 4
amd_coder = auto
origin_web_ui_allowed = lan
vt_software = auto
channels = 4
upnp = enabled
sw_tune = zerolatency
fps = [10,30,60,90,120,"144"]
qsv_preset = veryfast
nv_tune = ull
back_button_timeout = 1000
vt_coder = auto
amd_preanalysis = disabled
nv_coder = auto

Apps

No response

Relevant log output

[2023:03:02:18:55:38]: Info: Compiling shaders...
[2023:03:02:18:55:38]: Info: Compiled shaders
[2023:03:02:18:55:38]: Info: // Testing for available encoders, this may generate errors. You can safely ignore those errors. //
[2023:03:02:18:55:38]: Info: Trying encoder [nvenc]
[2023:03:02:18:55:38]: Info: ddprobe.exe [1] [] returned: 0x00000000
[2023:03:02:18:55:38]: Info: Set GPU preference: 1
[2023:03:02:18:55:38]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:38]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:38]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:38]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:38]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:38]: Info: Color range: [JPEG]
[2023:03:02:18:55:38]: Error: Could not open codec [h264_nvenc]: Operation not permitted
[2023:03:02:18:55:38]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:38]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:38]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:38]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:39]: Error: Could not open codec [h264_nvenc]: Operation not permitted
[2023:03:02:18:55:39]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:39]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:39]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:39]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:39]: Error: Could not open codec [h264_nvenc]: Operation not permitted
[2023:03:02:18:55:39]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:39]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:39]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:39]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:39]: Error: Could not open codec [h264_nvenc]: Operation not permitted
[2023:03:02:18:55:39]: Info: Encoder [nvenc] failed
[2023:03:02:18:55:39]: Info: Trying encoder [quicksync]
[2023:03:02:18:55:39]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:39]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:39]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:39]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:39]: Error: Failed to derive device context: Unknown error occurred
[2023:03:02:18:55:39]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:39]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:39]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:39]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:39]: Error: Failed to derive device context: Unknown error occurred
[2023:03:02:18:55:39]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:39]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:39]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:39]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:39]: Error: Failed to derive device context: Unknown error occurred
[2023:03:02:18:55:39]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:39]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:39]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:39]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:39]: Error: Failed to derive device context: Unknown error occurred
[2023:03:02:18:55:39]: Info: Encoder [quicksync] failed
[2023:03:02:18:55:39]: Info: Trying encoder [amdvce]
[2023:03:02:18:55:39]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:39]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:39]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:39]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:39]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:39]: Info: Color range: [JPEG]
[2023:03:02:18:55:40]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:40]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:40]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:40]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:40]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:40]: Info: Color range: [JPEG]
[2023:03:02:18:55:40]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:40]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:40]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:40]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:40]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:40]: Info: Color range: [JPEG]
[2023:03:02:18:55:40]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:40]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:40]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:40]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:40]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:40]: Info: Color range: [JPEG]
[2023:03:02:18:55:40]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:40]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:40]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:40]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:40]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:40]: Info: Color range: [JPEG]
[2023:03:02:18:55:40]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:40]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:40]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:40]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:40]: Info: SDR color coding [Rec. 709]
[2023:03:02:18:55:40]: Info: Color range: [JPEG]
[2023:03:02:18:55:41]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:41]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:41]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:41]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:41]: Info: SDR color coding [Rec. 709]
[2023:03:02:18:55:41]: Info: Color range: [JPEG]
[2023:03:02:18:55:41]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:41]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:41]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:41]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:41]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:41]: Info: Color range: [JPEG]
[2023:03:02:18:55:41]: Info:
Device Description : AMD Radeon RX 6800 XT
Device Vendor ID   : 0x00001002
Device Device ID   : 0x000073BF
Device Video Mem   : 16337 MiB
Device Sys Mem     : 0 MiB
Share Sys Mem      : 16326 MiB
Feature Level      : 0x0000B100
Capture size       : 3840x2160
Offset             : 2560x0
Virtual Desktop    : 6400x2160
[2023:03:02:18:55:41]: Info: Desktop resolution [3840x2160]
[2023:03:02:18:55:41]: Info: Desktop format [DXGI_FORMAT_B8G8R8A8_UNORM]
[2023:03:02:18:55:41]: Info:
Colorspace         : DXGI_COLOR_SPACE_RGB_FULL_G22_NONE_P709
Bits Per Color     : 8
Red Primary        : [0.639648,0.339844]
Green Primary      : [0.299805,0.69043]
Blue Primary       : [0.137695,0.0380859]
White Point        : [0.282227,0.296875]
Min Luminance      : 0.5 nits
Max Luminance      : 270 nits
Max Full Luminance : 270 nits
[2023:03:02:18:55:41]: Info: SDR color coding [Rec. 601]
[2023:03:02:18:55:41]: Info: Color range: [JPEG]
[2023:03:02:18:55:41]: Info:
[2023:03:02:18:55:41]: Info: // Ignore any errors mentioned above, they are not relevant. //
[2023:03:02:18:55:41]: Info:
[2023:03:02:18:55:41]: Info: Found encoder amdvce: [h264_amf, hevc_amf]
[2023:03:02:18:55:41]: Info: Configuration UI available at [https://localhost:47990]
[2023:03:02:18:55:42]: Info: Web UI: [127.0.0.1] -- not authorized
[2023:03:02:18:55:42]: Info: Registered Sunshine mDNS service

Answered by SaltyBet

Apr 5, 2023

Just tested fixing 4K resolution based on this nugget: LizardByte/Sunshine@809d7f9

Can confirm it completely fixes the weird ~57 FPS average stutter.

Cheers.

View full answer

SaltyBet · 2023-03-10T02:24:36Z

SaltyBet
Mar 10, 2023
Author

This issue was moved to discussions, but there was no followup?

Can anyone chime in?

4 replies

ReenigneArcher Mar 10, 2023
Maintainer

Since this is most likely a support request and not a bug report it belongs in discussion.

SaltyBet Mar 10, 2023
Author

Thanks for replying.

I initially thought it was some kind of VCN overload, but I tested transcoding+gaming and recording+gaming without problems, so not sure where to go from here.

Is there any other kind of info I could capture and share in this discussion thread to maybe help pinpoint what could be the issue?

SaltyBet Mar 19, 2023
Author

Tested updating the following:

Windows 10 latest cumulative patch.
GPU latest drivers.
SteamOS latest stable release.
Steam client latest stable release.

The issue persists.

SaltyBet Mar 30, 2023
Author

Using Spider-Man Remastered at 4K Max Settings with RayTracing enabled, I tried checking GPU/VCE usage in Task Manager.

Results:

Game (4K maxed with RT) + VCEEncC (fast preset):
- GPU: 99%-100% usage.
- VCE: 99%-100% usage.
Game (4K maxed with RT) + VCEEncC (slow preset):
- GPU: 99%-100% usage.
- VCE: 99%-100% usage.
Game (4K maxed with RT) + Sunshine:
- GPU: 99%-100% usage.
- VCE: 70%-80% usage.

proilyxa · 2023-03-30T08:20:58Z

proilyxa
Mar 30, 2023

I have the same issue. Ryzen 5900x, rx 6800xt, 32 ram.
Could you check Cyberpunk 4k ultra without RT, in this game I sometimes can see drops to ~40fps (Bitrate 85, game and translation in 4K). Spiderman remastered I have the same results ~57 FPS. My client is Macbook m1 pro .

2 replies

proilyxa Mar 30, 2023

SaltyBet Apr 1, 2023
Author

I have the same issue. Ryzen 5900x, rx 6800xt, 32 ram.

Thanks for you comment. At least this means that whatever I'm experiencing does not seem to be a one-off issue.

Could you check Cyberpunk 4k ultra without RT, in this game I sometimes can see drops to ~40fps (Bitrate 85, game and translation in 4K).

Don't have CP77, sorry.

Spiderman remastered I have the same results ~57 FPS.

I get the same results no matter what I'm streaming; at 4K, stuttering FPS, averaging ~57 FPS.

proilyxa · 2023-03-30T09:23:58Z

proilyxa
Mar 30, 2023

I made a record
https://www.youtube.com/watch?v=L1aP2_F7rDM&ab_channel=%D0%98%D0%BB%D1%8C%D1%8F

0 replies

SaltyBet · 2023-04-01T05:31:10Z

SaltyBet
Apr 1, 2023
Author

Based on my experience and that of @proilyxa, there seems to be some kind of underutilization of the VCE component, but only when using Sunshine; VCEEncC tests show full VCE component utilization; would this behavior be considered a bug?

0 replies

SaltyBet · 2023-04-02T04:45:04Z

SaltyBet
Apr 2, 2023
Author

Retested and added VCN usage when recording 4K60 using Radeon ReLive.

Consolidated all results below.

Sunshine Settings

channels = 4
vt_software = auto
amd_usage = ultralowlatency
origin_pin_allowed = pc
amd_vbaq = enabled
vt_realtime = enabled
key_rightalt_to_key_win = disabled
hevc_mode = 0
nv_rc = cbr
min_log_level = 1
vt_coder = auto
back_button_timeout = 1000
fps = [10,30,60,90,120,"144"]
qsv_preset = medium
nv_tune = ull
resolutions = [
    352x240,
    480x360,
    858x480,
    1280x720,
    1920x1080,
    2560x1080,
    3440x1440,
    1920x1200,
    3860x2160,
    3840x1600
]
nv_preset = p4
upnp = enabled
amd_preanalysis = disabled
nv_coder = auto
dwmflush = disabled
gamepad = x360
amd_rc = vbr_latency
qsv_coder = auto
amd_quality = speed
min_threads = 4
amd_coder = auto
origin_web_ui_allowed = lan

Game Settings

4K resolution
60 FPS

Test results

Scenario	Test	Settings	GPU Usage	VCN Usage	In-Game Stutter	Video Stutter
transcoding	VCEEncC	fast preset	70%-95%	99%-100%	No	N/A (108.69 FPS)
transcoding	VCEEncC	slow preset	70%-95%	99%-100%	No	N/A (88.96 FPS)
recording	Radeon ReLive	max settings	70%-95%	60%-80%	No	No (60 FPS)
streaming	Sunshine	(see above)	70%-95%	70%-80%	No	Yes (~57 FPS)

0 replies

SaltyBet · 2023-04-05T18:58:55Z

SaltyBet
Apr 5, 2023
Author

Just tested fixing 4K resolution based on this nugget: LizardByte/Sunshine@809d7f9

Can confirm it completely fixes the weird ~57 FPS average stutter.

Cheers.

0 replies

LizardByte

Sub-60 FPS frame pacing and stuttering issues with 4K stream. Host keeps locked 60 FPS. #193

Uh oh!

Uh oh!

SaltyBet Mar 3, 2023

Is there an existing issue for this?

Is your issue described in the documentation?

Is your issue present in the nightly release?

Describe the Bug

Expected Behavior

Additional Context

Host Operating System

Operating System Version

Architecture

Sunshine commit or version

Package

GPU Type

GPU Model

GPU Driver/Mesa Version

Capture Method (Linux Only)

Config

Apps

Relevant log output

Replies: 0 comments · 12 replies

Uh oh!

SaltyBet Mar 10, 2023 Author

Uh oh!

ReenigneArcher Mar 10, 2023 Maintainer

Uh oh!

SaltyBet Mar 10, 2023 Author

Uh oh!

Uh oh!

SaltyBet Mar 19, 2023 Author

Uh oh!

Uh oh!

SaltyBet Mar 30, 2023 Author

Uh oh!

Uh oh!

proilyxa Mar 30, 2023

Uh oh!

proilyxa Mar 30, 2023

Uh oh!

SaltyBet Apr 1, 2023 Author

Uh oh!

Uh oh!

proilyxa Mar 30, 2023

Uh oh!

Uh oh!

SaltyBet Apr 1, 2023 Author

Uh oh!

Uh oh!

SaltyBet Apr 2, 2023 Author

Sunshine Settings

Game Settings

Test results

Uh oh!

SaltyBet Apr 5, 2023 Author

SaltyBet
Mar 3, 2023

Replies: 0 comments 12 replies

SaltyBet
Mar 10, 2023
Author

ReenigneArcher Mar 10, 2023
Maintainer

SaltyBet Mar 10, 2023
Author

SaltyBet Mar 19, 2023
Author

SaltyBet Mar 30, 2023
Author

proilyxa
Mar 30, 2023

SaltyBet Apr 1, 2023
Author

proilyxa
Mar 30, 2023

SaltyBet
Apr 1, 2023
Author

SaltyBet
Apr 2, 2023
Author

SaltyBet
Apr 5, 2023
Author
