ClickID

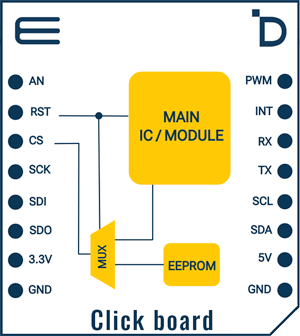

ClickID demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

---

Click Library

• Author : Stefan Filipovic
• Date : Aug 2023.
• Type : One Wire type

Software Support

Example Description

This example reads the information from ClickID permanent memory.

Example Libraries

• MikroSDK.Board
• MikroSDK.Log
• Click.ClickID

Example Key Functions

• clickid_cfg_setup This function initializes Click configuration structure to initial values.

void clickid_cfg_setup ( clickid_cfg_t *cfg );

• clickid_init This function initializes all necessary pins and peripherals used for this Click board.

err_t clickid_init ( clickid_t *ctx, clickid_cfg_t *cfg );

• clickid_check_communication This function checks the communication by reading the ROM address as well as verifying family code and CRC 8.

err_t clickid_check_communication ( clickid_t *ctx );

• clickid_read_memory This function reads a desired number of data bytes starting from the selected address of the EEPROM memory using One Wire communication protocol.

err_t clickid_read_memory ( clickid_t *ctx, uint16_t address, uint8_t *data_out, uint16_t len );

• clickid_read_information This function reads the Click board information from the permanent data memory.

err_t clickid_read_information ( clickid_t *ctx, clickid_information_t *info );

Application Init

Initializes the driver and checks the communication with the Click board.

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    clickid_cfg_t clickid_cfg;  /**< ClickID config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // ClickID initialization.
    clickid_cfg_setup( &clickid_cfg );
    CLICKID_MAP_MIKROBUS( clickid_cfg, MIKROBUS_1 );
    if ( ONE_WIRE_ERROR == clickid_init( &clickid, &clickid_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( CLICKID_ERROR == clickid_check_communication ( &clickid ) )
    {
        log_error( &logger, " Communication fail." );
        log_printf( &logger, "Check if the Click is attached to the correct " );
        log_printf( &logger, "MIKROBUS socket, and try again.\r\n" );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

Application Task

Reads the information from ClickID permanent manifest every 5 seconds.

void application_task ( void )
{
    clickid_information_t info;
    if ( CLICKID_OK == clickid_read_information ( &clickid, &info ) )
    {
        log_printf ( &logger, "\r\n --- Click info ---\r\n" );
        log_printf ( &logger, " Name: %s\r\n", info.name );
        log_printf ( &logger, " PID: MIKROE-%u\r\n", info.serial );
        log_printf ( &logger, " HW REV.: %u.%.2u\r\n",
                     ( uint16_t ) info.hw_rev.major, ( uint16_t ) info.hw_rev.minor );
        log_printf ( &logger, " Type: 0x%.4X\r\n", info.type );
        log_printf ( &logger, " Custom: 0x%.2X\r\n", ( uint16_t ) info.custom );
    }

    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
}

Application Output

This Click board can be interfaced and monitored in two ways:

• Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
• UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.

Additional Notes and Information

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

---
