Securely storing offline data in browsers

The need for secure offline storage

Our application allows School Age Immunisation Services (SAIS) nurses to run vaccination programmes in schools. The nurses do not always have access to internet in these schools.

As such, our application needs offline capabilities, and the offline data needs to be stored securely.

The options for offline storage

These are the main places where browsers store website data:

Store name	How to access it	Is it stored securely	Caveats
Navigation cache	Browsers automatically save pages into the navigation cache as a user navigates. When you use the back button, you're using this cache.	No, plaintext on disk	Can be disabled by setting a Cache-Control: no-store header.
Cookies	Can be written to by servers, or client-side JS, with various flags to restrict access.	Almost... more on this later	Small size limit, potentially sent on every request
WebStorage API	LocalStorage and SessionStorage, trivially using client-side JS	No, plaintext on disk	SessionStorage is probably in-memory, but ephemeral
IndexedDB	Written to by our JS code using IndexedDB API, or a wrapper like idb; it's pretty much a full database	No, plaintext on disk
Cache API	Cache API, widely used for creating offline proxies using ServiceWorkers, in libraries such as Workbox	No, plaintext on disk

The navigation cache is populated automatically when a user navigates. We need to disable it using the Cache-Control header so that we don't accidentally save pages with patient data to disk in plaintext.

Cookies are stored securely (sometimes... discussed later), but have a size limit that prevents their use for larger blobs of data.

WebStorage is plaintext and can't be accessed from a ServiceWorker, so they wouldn't work as storage in an offline-capable app.

Cache API is also plaintext and only suitable for storing Request type objects, while we'd also store other things, such as vaccination data that hasn't been uploaded yet, that wouldn't fit that mold.

The main suitable store is IndexedDB, but we need to enhance it with encryption to make it viable.

To highlight why plaintext offline storage isn't appropriate, let's highlight what threats we're modelling for.

Threat vectors for offline data

Any sensitive data that's pushed into IndexedDB, or the other APIs, will show up when running a grep -R "sensitive-data" from a user's home folder.

Here is an example using LocalStorage:

$ grep -iR "sensitive-data" ./.config/BraveSoftware/
$ # No matches
$ # Now open Brave, execute `localStorage.setItem("secret", "sensitive-data");`
$ grep -iR "sensitive-data" ./.config/BraveSoftware/
grep: ./.config/BraveSoftware/Brave-Browser/Default/Local Storage/leveldb/000012.log: binary file matches

The database is a binary file, but the string is there, and can be trivially extracted with STRINGS(1).

Fundamentally, using those storage backends as-is can be thought of like having a CSV of patient data in your downloads folder. A few potential threats to that are:

1. If your laptop isn't encrypted, someone that gains physical access can read the content of your home folder and extract the data. This can happen if a user has their laptop stolen
2. A piece of malware running without root can exfiltrate all data it finds in the home folder. This can happen if a user downloads and runs a malicious program, but given that it doesn't require root, it's a very low barrier

As such, storing offline data in plaintext is a no-go. One possible solution is to encrypt it.

Encrypting offline data

Using the SubtleCrypto API, we have access to fast and secure key derivation, hashing, and encryption methods.

We're deriving a key using PBKDF2, salting it, and then using it to encrypt data using AES-GCM and SHA-256.

We can use this with an IndexedDB wrapper that encrypts/decrypts data on the fly as it's written and read.

This mitigates both threats mentioned in the previous section:

1. Someone that obtains physical access to a device, even with unencrypted storage, won't be able to get to the patient data. They'd now have to (at the minimum) log in as the user, which requires knowing their password
2. A piece of malware running without root will only find encrypted data, as now the only place that decrypted data exists is in the browser memory, which is protected by OS sandboxing features

With one caveat. To encrypt and decrypt something, the ServiceWorker needs a passphrase or key.

We can generate one on the server, or the client, but where do we store it? We're back to the first issue: that browsers do not have a secure store that's accessible from client-side JavaScript.

Detour: The secure storage proposal

Applications such as password manager extensions (1Password, LastPass), or crypto wallets (MetaMask) have similar encryption requirements, and the 1Password team has submitted a W3C WebExtension proposal for browser.secureStorage.

This is an API that allows access to the platform-specific sensitive data store, most commonly a keychain, trusted platform module, and commonly protected by requiring root access or biometrics.

This is an ideal solution, but there is no way to know if this proposal will ever ship.

So today, we have to rely on other means of storing the main encryption key. We've considered two options.

Option 1: Store the passphrase with the user

The first option we explored is one in which we ask the user for a password, or generate one on their behalf and ask them to store it. We keep this password in memory for as long as we can.

When the password is cleared from memory, we have to prompt the user to re-enter it. Here is a flowchart of the various scenarios where the user would have to enter a password:

The exact design for generating the password and prompting the user is still being explored, to strike a balance between security concerns and ease of remembering or safe storage. We consider it a best-case scenario if the user has a password manager set up, and stores their password in that, but we can't assume this to be the case.

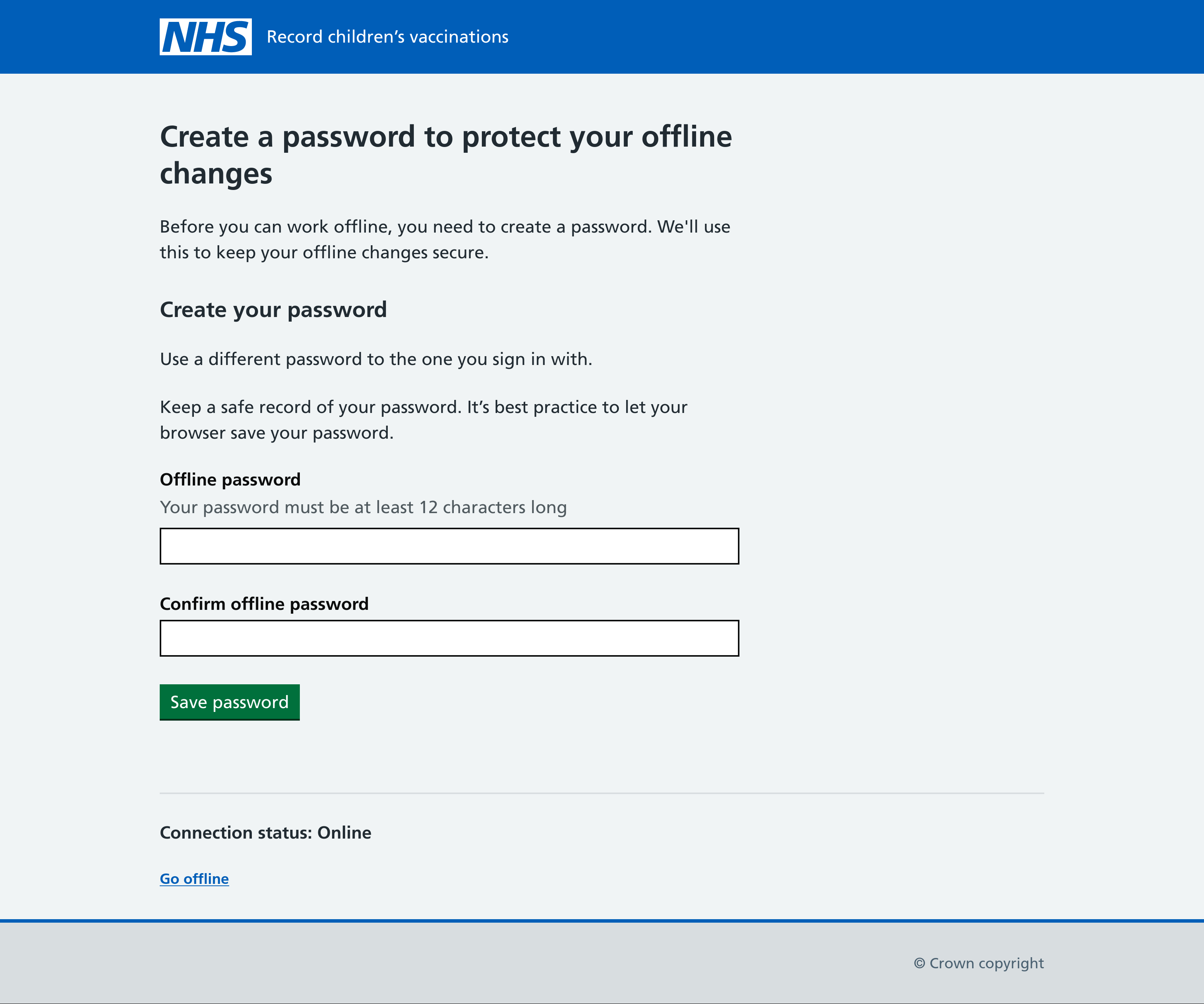

One design we're currently exploring:

The main downside to this approach is that it relies on users to constantly type in passwords, store them securely, and recall and remember them. This is a big detriment to the overall user experience.

It also introduces possible edge cases where users work offline, but then forget the password, and would need help recovering it to be able to sync their work.

Option 2: Store the passphrase in a cookie

The second option is to generate a password on the user's behalf and then store it in a cookie. The cookie can be set up with an appropriate configuration:

• A path that isn't used, so it's never sent to the server unintentionally
• The secure flag and samesite=strict
• An expiry of our choice

This would make it always accessible from client-side JS, and the flowchart would now look like this:

Effectively, storing it in the cookie saves the user from ever having to type the decryption passphrase in, as we can just get it programatically. It's a great improvement to the overall user experience.

The downsides are:

1. So long as the device is unlocked, an attacker will be able to access the patient data.
2. ... Cookies are stored securely only some of the time.

Let's detour to talk about cookie security.

Detour: Why cookies are stored almost securely, and not always

This is a section that will not age well. Browsers and operating systems are a moving target, and they can and do iterate their security.

As of May 2023, our investigation into cookie security has revealed that while some browsers store cookies securely by encrypting them at rest and storing a passphrase in the OS keychain, this isn't universally true, and for Windows at least, the security appears to be trivial to break.

Of the combinations we investigated and tested:

• Chrome on MacOS: Secure. Encrypted cookies, Keychain used
• Chrome on Windows: Insecure. Encrypted cookies, Keychain used, but...
  • ... since Chrome 80, the Local Machine scope is used to hide the master key, which means any Windows user can access it, privileged or not
  • And even if this wasn't the case, and it required root privileges, those are governed by UAC which is commonly bypassed and has a checkered past of being acknowledged by Microsoft as a valid security vulnerability
• Chrome on Linux: Secure. Encrypted cookies, GNOME keyring used ¹
• Firefox on Everything: Insecure. Cookies stored in plaintext

Statistically our users are most likely to use a Chrome-based browser on Windows, which would mean a high likelihood of cookies being accessible to an attacker through easily accessible software.

Going native

There is a third option which involves accessing a native OS keychain.

Possibilities include:

• Creating an Electron (or similar) desktop webview application which wraps the main website and provides access to the OS keychain
  • This could be done later as a progressive enhancement, where the application can detect if it's running inside our webview and upgrade to a user journey that keeps the encryption key in the keychain
• Creating a companion mobile app with the explicit purpose of storing the key

These could be explored at a later stage, as a progressive enhancement. It's possible that our users won't have admin rights to install applications on their devices.

Footnotes

1. This didn't use to be the case, and back in v10, cookies on Chrome for Linux were protected by the password "peanuts" and the salt "saltysalt" ↩
