Add Unity Slider type Prefab/Script

[j7j7]

Create a script/prefab similar to the scroller prefab - which is based on the unity slider - have the option to set max/min values with whole numbers and a draggable slider.

[adgray1]

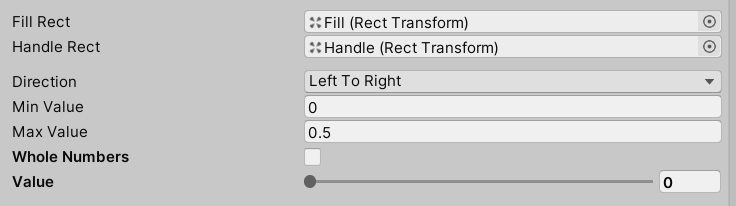

While there are a couple of configuration deltas, namely Whole Numbers and Direction, the Slider script along with Slider Visuals is already there - min/max included :)

If you check out the UIControls scene (full path: Nova/Sample/UIControls/UIControls.unity), there are multiple slider prefabs set up in a variety of styles! The "Simple" style is closest to Unity's slider control. In the same scene there are also buttons, toggles, dropdowns, and text fields - all in the range of styles.

[j7j7]

Got it! thanks - I will see if I can add a 'whole number' tickbox - as that would then meet my requirements!

[j7j7]

Well, i used ChatGTP to ask it to alter the script to add a whole-number element...

Here is the output - which works.

using Nova;
using UnityEngine;
using UnityEngine.Events;

namespace NovaSamples.UIControls
{
    /// <summary>
    /// A UI control which reacts to user input and updates an underlying float value as it receives drag events.
    /// </summary>
    public class Slider : UIControl<SliderVisuals>
    {
        [Tooltip("Event fired when the slider value changes. Provides the new value.")]
        public UnityEvent<float> OnValueChanged = null;

        [Tooltip("If true, pressing anywhere in the draggable region will update the slider value (common on Desktop).\nIf false, the user must drag within the draggable region for the slider to update (common on Mobile).")]
        public bool UpdateOnPress = true;

        [SerializeField]
        [Tooltip("If true, the slider value will be restricted to whole numbers.")]
        private bool wholeNumbersOnly = false;

        /// <summary>
        /// If true, the slider value will be restricted to whole numbers.
        /// </summary>
        public bool WholeNumbersOnly
        {
            get
            {
                return wholeNumbersOnly;
            }
            set
            {
                wholeNumbersOnly = value;
            }
        }


        [SerializeField]
        [Tooltip("The numeric value associated with the slider.")]
        private float value;

        [SerializeField]
        [Range(0, 1)]
        [Tooltip("The percent of the Min/Max range to adjust the slider value by when using the Navigation API.")]
        private float DPadPercentAdjustment = 0.1f;

        /// <summary>
        /// The numeric value associated with the slider.
        /// </summary>
        public float Value
        {
            get
            {
                return value;
            }
            set
            {
                // Clamp within range before assigning
                float clampedValue = Mathf.Clamp(value, Min, Max);

                if (WholeNumbersOnly)
                {
                    clampedValue = Mathf.Round(clampedValue);
                }

                if (this.value == clampedValue)
                {
                    return;
                }

                this.value = clampedValue;

                UpdateFillBar();

                // Notify listeners
                OnValueChanged?.Invoke(this.value);
            }
        }

        [SerializeField]
        [Tooltip("The mininum value for the given slider.")]
        private float Min = 0;
        [SerializeField]
        [Tooltip("The maximum value for the given slider.")]
        private float Max = 100;

        [SerializeField]
        [Tooltip("The string format to use when displaying the slider value to the end user.")]
        private string unitsFormat = "{0:0.00}";

        private void OnEnable()
        {
            if (View.TryGetVisuals(out SliderVisuals visuals))
            {
                // Set default state
                visuals.UpdateVisualState(VisualState.Default);
            }

            // Subscribe to desired events
            View.UIBlock.AddGestureHandler<Gesture.OnHover, SliderVisuals>(SliderVisuals.HandleHovered);
            View.UIBlock.AddGestureHandler<Gesture.OnUnhover, SliderVisuals>(SliderVisuals.HandleUnhovered);
            View.UIBlock.AddGestureHandler<Gesture.OnPress, SliderVisuals>(HandleSliderPressed);
            View.UIBlock.AddGestureHandler<Gesture.OnRelease, SliderVisuals>(SliderVisuals.HandleReleased);
            View.UIBlock.AddGestureHandler<Gesture.OnDrag, SliderVisuals>(HandleSliderDragged);
            View.UIBlock.AddGestureHandler<Gesture.OnCancel, SliderVisuals>(SliderVisuals.HandlePressCanceled);
            View.UIBlock.AddGestureHandler<Navigate.OnDirection, SliderVisuals>(HandleSliderAdjusted);

            UpdateFillBar();
        }

        private void OnDisable()
        {
            // Unsubscribe from events
            View.UIBlock.RemoveGestureHandler<Gesture.OnHover, SliderVisuals>(SliderVisuals.HandleHovered);
            View.UIBlock.RemoveGestureHandler<Gesture.OnUnhover, SliderVisuals>(SliderVisuals.HandleUnhovered);
            View.UIBlock.RemoveGestureHandler<Gesture.OnPress, SliderVisuals>(HandleSliderPressed);
            View.UIBlock.RemoveGestureHandler<Gesture.OnRelease, SliderVisuals>(SliderVisuals.HandleReleased);
            View.UIBlock.RemoveGestureHandler<Gesture.OnDrag, SliderVisuals>(HandleSliderDragged);
            View.UIBlock.RemoveGestureHandler<Gesture.OnCancel, SliderVisuals>(SliderVisuals.HandlePressCanceled);
            View.UIBlock.RemoveGestureHandler<Navigate.OnDirection, SliderVisuals>(HandleSliderAdjusted);
        }

        /// <summary>
        /// Update the visual state to indicate a press is being received.
        /// Moves the slider value to the pressed position if configured to do so.
        /// </summary>
        /// <param name="evt">The press event data.</param>
        /// <param name="sliderVisuals">The visuals being pressed.</param>
        private void HandleSliderPressed(Gesture.OnPress evt, SliderVisuals sliderVisuals)
        {
            // Update the knob color
            sliderVisuals.Knob.Color = sliderVisuals.PressedColor;

            if (!UpdateOnPress)
            {
                // Exit early because we've configured this to explicitly wait for drag events
                return;
            }

            // Update the slider
            UpdateSliderPosition(sliderVisuals, evt.PointerWorldPosition);
        }

        /// <summary>
        /// Update the slider based on the amount it's been dragged.
        /// </summary>
        /// <param name="evt">The drag event data.</param>
        /// <param name="sliderVisuals">The visuals associated with the drag event.</param>
        private void HandleSliderDragged(Gesture.OnDrag evt, SliderVisuals sliderVisuals)
        {
            UpdateSliderPosition(sliderVisuals, evt.PointerPositions.Current);
        }

        /// <summary>
        /// Update the slider based on DPad (Navigation) input.
        /// </summary>
        /// <param name="evt">The direction event data.</param>
        /// <param name="sliderVisuals">The visuals associated with the direction event.</param>
        private void HandleSliderAdjusted(Navigate.OnDirection evt, SliderVisuals sliderVisuals)
        {
            if (evt.Direction.x == 0)
            {
                // Direct not along draggable axis
                return;
            }

            Transform sliderTransform = sliderVisuals.DraggableRange.transform;

            // Convert the current knob position into a local position of the slider
            Vector3 previousLocalPosition = sliderTransform.InverseTransformPoint(sliderVisuals.Knob.transform.position);

            // Use the padded width because the visuals will be updated relative to the padded parent width
            float draggableWidth = sliderVisuals.DraggableRange.PaddedSize.x;

            // Shift position accordingly
            Vector3 currentLocalPosition = previousLocalPosition + new Vector3(evt.Direction.x * draggableWidth * DPadPercentAdjustment, 0, 0);

            // Convert the adjusted position into world space
            Vector3 currentWorldPosition = sliderTransform.TransformPoint(currentLocalPosition);

            UpdateSliderPosition(sliderVisuals, currentWorldPosition);
        }

        /// <summary>
        /// Update the <see cref="Value"/> and visuals according to the slider position.
        /// </summary>
        /// <param name="sliderVisuals">The visuals to update.</param>
        /// <param name="updatedWorldPosition">The position used to determine the new <see cref="Value"/>.</param>
        private void UpdateSliderPosition(SliderVisuals sliderVisuals, Vector3 updatedWorldPosition)
        {
            // Convert the current drag position into slider local space
            Vector3 pointerLocalPosition = sliderVisuals.DraggableRange.transform.InverseTransformPoint(updatedWorldPosition);

            // Use the padded width because the visuals will be updated relative to the padded parent width
            float draggableWidth = sliderVisuals.DraggableRange.PaddedSize.x;

            // Get the pointer's distance from the left edge of the control
            float sliderPositionFromLeft = pointerLocalPosition.x + 0.5f * draggableWidth;

            // Convert the distance from the left edge into a percent from the left edge
            float sliderPercent = Mathf.Clamp01(sliderPositionFromLeft / draggableWidth);

            // Update the slider control to the new value within its min/max range
            Value = Mathf.Lerp(Min, Max, sliderPercent);
        }

        /// <summary>
        /// Update the fill bar width to match the <see cref="Value"/>.
        /// </summary>
        private void UpdateFillBar()
        {
            SliderVisuals sliderVisuals = View.Visuals as SliderVisuals;

            // Calculate the new percentage
            float percentFilled = Mathf.Clamp01((this.value - Min) / (Max - Min));

            // Update the control's fillbar to reflect its new slider value
            sliderVisuals.FillBar.Size.X.Percent = Mathf.Clamp01(percentFilled * (1 - sliderVisuals.FillBar.CalculatedMargin.X.Sum().Percent));

            if (sliderVisuals.Units != null)
            {
                // Update the control's unit text to display the numeric
                // value associated with the slider control
                sliderVisuals.Units.Text = string.Format(unitsFormat, Value);
            }
        }
    }
}

[adgray1]

That's awesome and hilarious. Thanks for sharing! I've been quite impressed with ChatGPT myself. With a little bit of guidance, it is quite capable of non-trivial Unity scripting.

Can confirm this ^^ looks correct. The only call out is if Max was, say, 99.5, then this would round the clamped value up to 100. The same goes for Min values that would be rounded down (e.g. Min == 0.4 would round to 0). But as long as Min/Max are also whole numbers, then this does exactly what you'd expect!

[j7j7]

Yes, it's incredible what ChatGPT can do - I've only just started to use it.
I said "here is a unity script"
I then cut/pasted your code to it. It then understood the code, and replayed back to me, what it was intended to do.
I then typed "alter the script to have a option to have whole numbers"
and it proceeded to give me the small snippets of code changes.

Pretty impressive huh.

With regards to the whole numbers for max/min values - I guess there could be an improvement to make sure they too are whole numbers. But it works for what I need. :)

[adgray1]

Yeah, wow. Very cool input/prompts to get that output. I haven't played with ChatGPT in a couple of weeks, but you've rekindled my interest to experiment with it. Haha.

Glad you have a solution for your project! I'm gonna mark this request as "resolved"/"feature added", since the slider scripts/prefabs are there and you were able to add the Whole Numbers toggle.
