Nova not respecting ui sprite border

[RyanJVR]

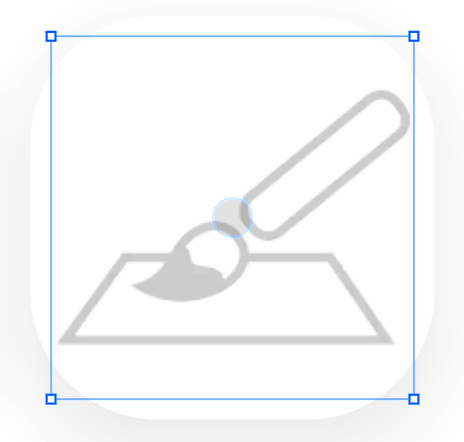

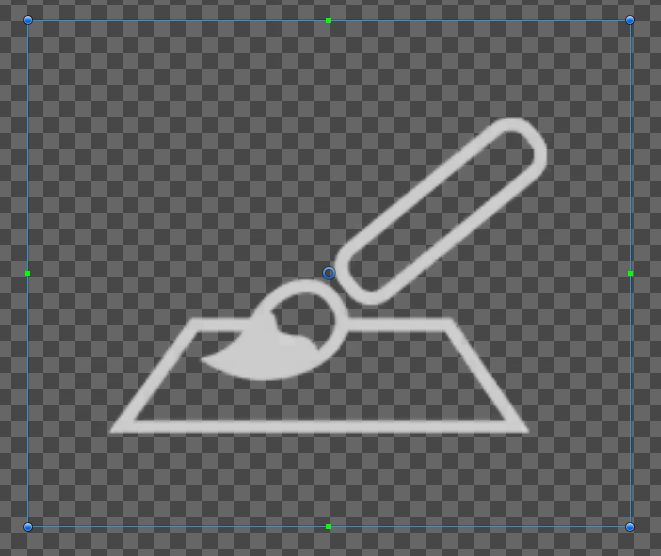

Recently Nova has stopped respecting the border of my sprites (sprite sheet). It used to work fine and I cant recreate the problem in unity's ui so think it might be a Nova issue.

Normally I would trim the image so there is little to no transparent space around it but for this image I need the extra padding.

Occuring in Unity 2022.2.14 & 2022.2.15 using Nova 1.2.1 & 1.2.2
Tried Setting pack mode to unpacked and turning off soft edges.

[dkonik]

Unfortunately, we aren't able to reproduce this issue, so a couple of follow ups:

1. Is the issue consistent? For example, if you have an empty scene with just the UIBlock2D that has that sprite, does it still happen?

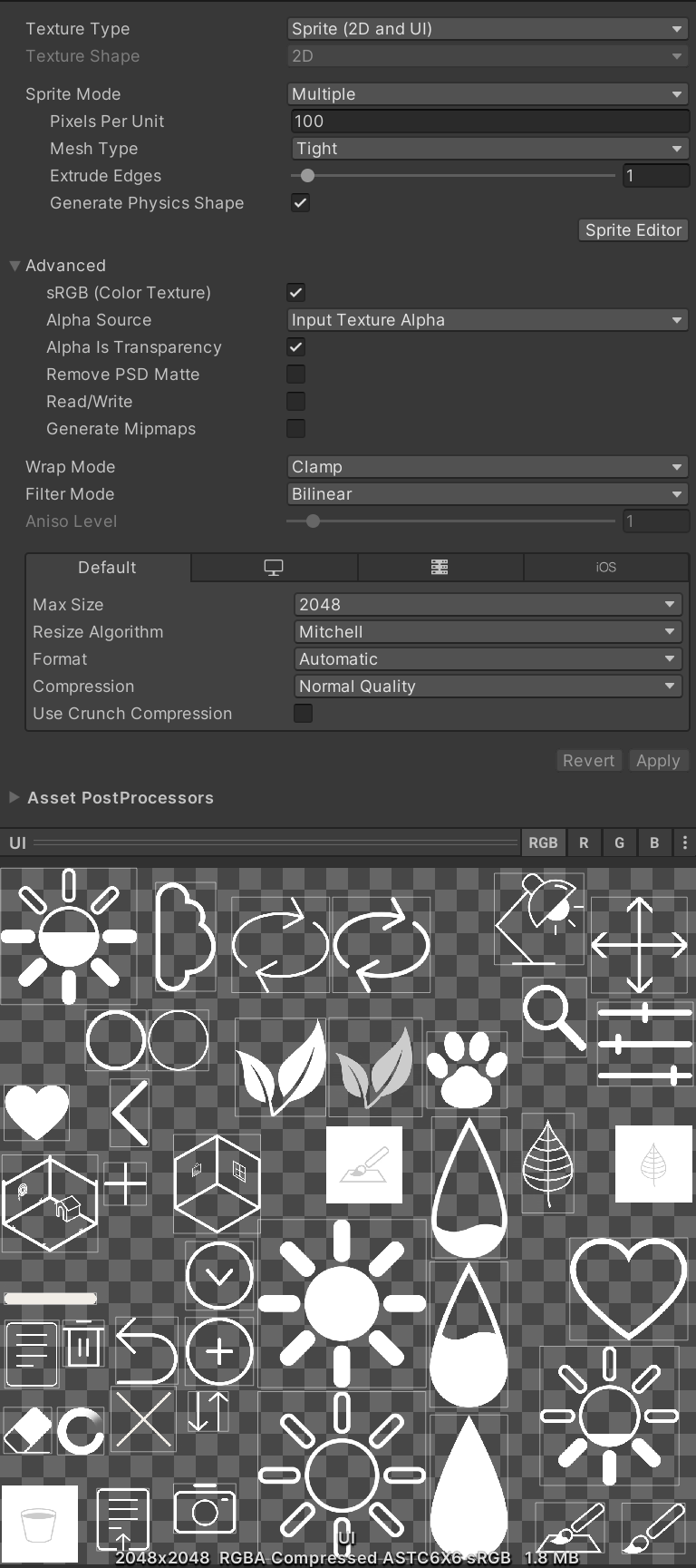

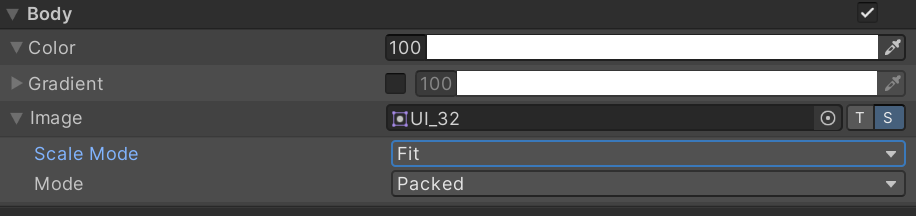

2. Would you mind providing the sprite sheet you are using, a screenshot of the settings for the sprite, and the values you have set for the example sprite's rect (position and size)?

[RyanJVR]

My current work around is just to add a white background to the ui ellements that need the padding, not ideal but does the job. Tried in an empty scene and still happens.

[RyanJVR]

I think it could be Unity glitch now. I changed the Sprite mesh type to full rect from what I normally had which was tight and then things looked right. I saved and changed the sprite type back to tight and it seems to be fine until I reload the scene then the same issue appears. Unity ui looks fine though.

[dkonik]

We managed to reproduce the issue and figure out that it is in fact a Nova bug, so thanks for bringing this to our attention! We have a fix and will follow up here when it's published, but if you want the fix sooner you can change line 88 of InternalScript_153.cs from:

InternalVar_1.InternalField_1024 = InternalParameter_2216.textureRect;

to:

Rect InternalVar_3 = InternalParameter_2216.textureRect;

Vector4 InternalVar_4 = UnityEngine.Sprites.DataUtility.GetPadding(InternalParameter_2216);
InternalVar_3.xMin -= InternalVar_4.x;
InternalVar_3.yMin -= InternalVar_4.y;
InternalVar_3.width += InternalVar_4.z;
InternalVar_3.height += InternalVar_4.w;

InternalVar_1.InternalField_1024 = InternalVar_3;

[RyanJVR]

Awesome thank you.

[dkonik]

v1.2.3 has been published with the fix for this!

[LiuhuanQing001]

The above modification method still has issues in "SpriteAtlas".
#214 (reply in thread)

[dkonik]

We are aware of that issue (which is why we moved it to the feedback repo and re-classified it as a bug). We're currently working on a fix and will follow up in that thread when it's released/have updates.
