Inconsistent Texture and Sprite options displayed in Image settings.

[LiuhuanQing001]

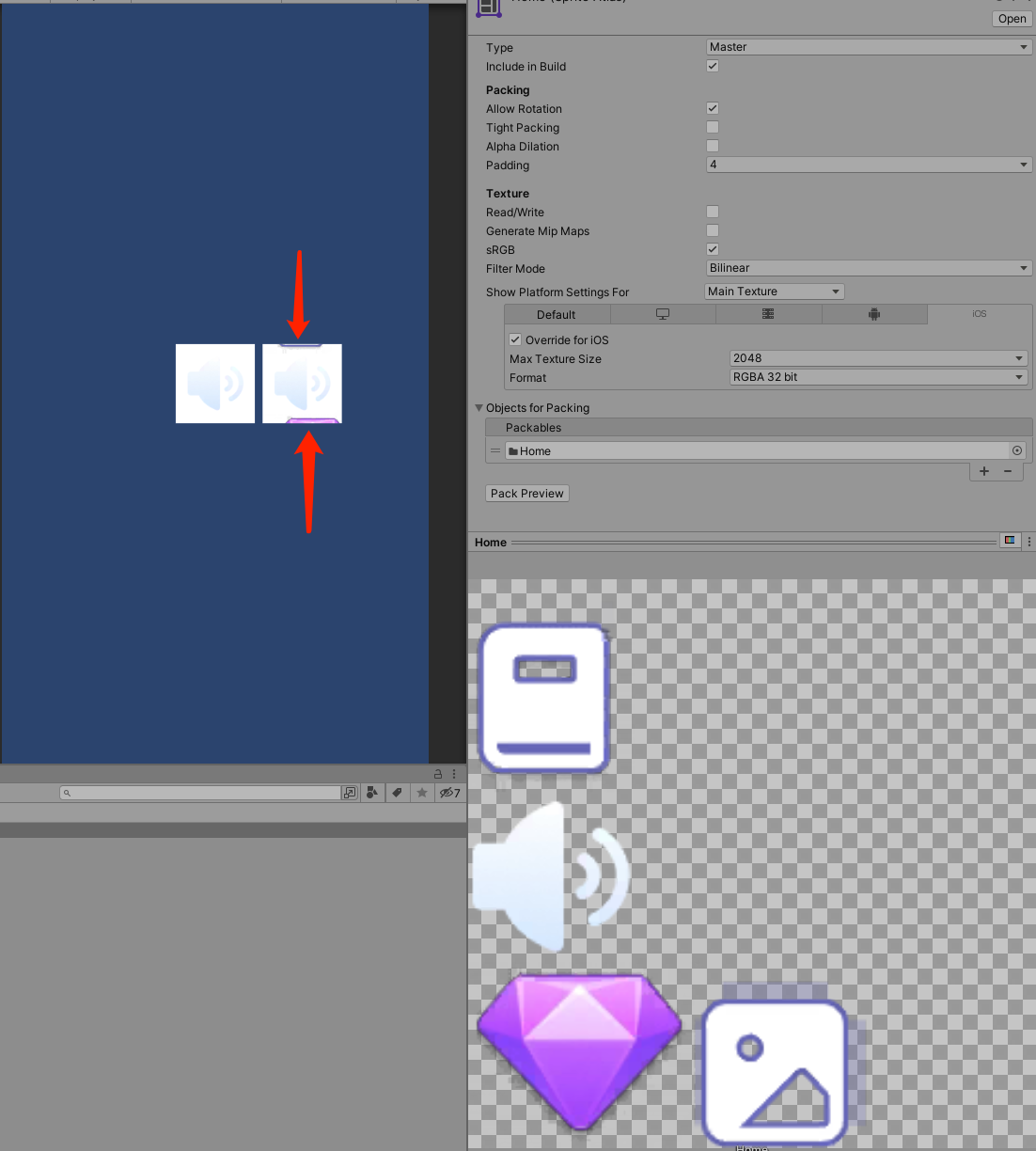

In the Image settings of UIBlock 2D, the results displayed for Texture and Sprite options are inconsistent, as shown in the following image.

Left:

Right:

[dkonik]

The issue you are hitting appears to be the same as this one. The fix for this is currently pending approval to be released, but in the meantime, if you are using the full version of Nova (i.e., not the free trial) you can apply the patch yourself as described here.

[LiuhuanQing001]

I attempted to make the modifications suggested in the prompt to the code in 'InternalScript_153.cs', but it did not solve my issue. This is because I am using a 'SpriteAtlas'. The modifications work as expected when not using a 'SpriteAtlas'. The error I am getting is as shown in the following image

[dkonik]

As mentioned in the other thread, we believe we know what the issue is. As a temporary workaround, if you set the Mesh Type on the sprites being packed into the SpriteAtlas to Full Rect (instead of Tight) that should resolve the issue.
