Shape render for bagpart

[sayyad84]

Hi,
How can I access specific widget from flow widget by widget name or index? I have multiple widget in flow and I need access in different places of template not with {% for %}.
Thanks.

[ns8482e]

You can customize and design BagPart template with alternates the way you need .

• Use console_log to see Shape properties
• Use shape_build_display to create a shape for content item of BagPart
• Use shape_render to render the shape at place you desire within template you customize

[ns8482e]

Availability of ContentItem property is depends on shape template being rendered and it's model

Here you are in template of typed part (BagPart) and the shape HomePage_Detail__BagPart. The Model that is represented by shape is BagPartViewModel see , Here ContentItem can be accessed using Model.BagPart.ContentItem

[dodyg]

OK so

{{ Model.BagPart.Content }} returns the content of the BagPart itself.
{{ Model.BagPart.ContentItem }} returns the whole ContentItem from the parent.

[dodyg]

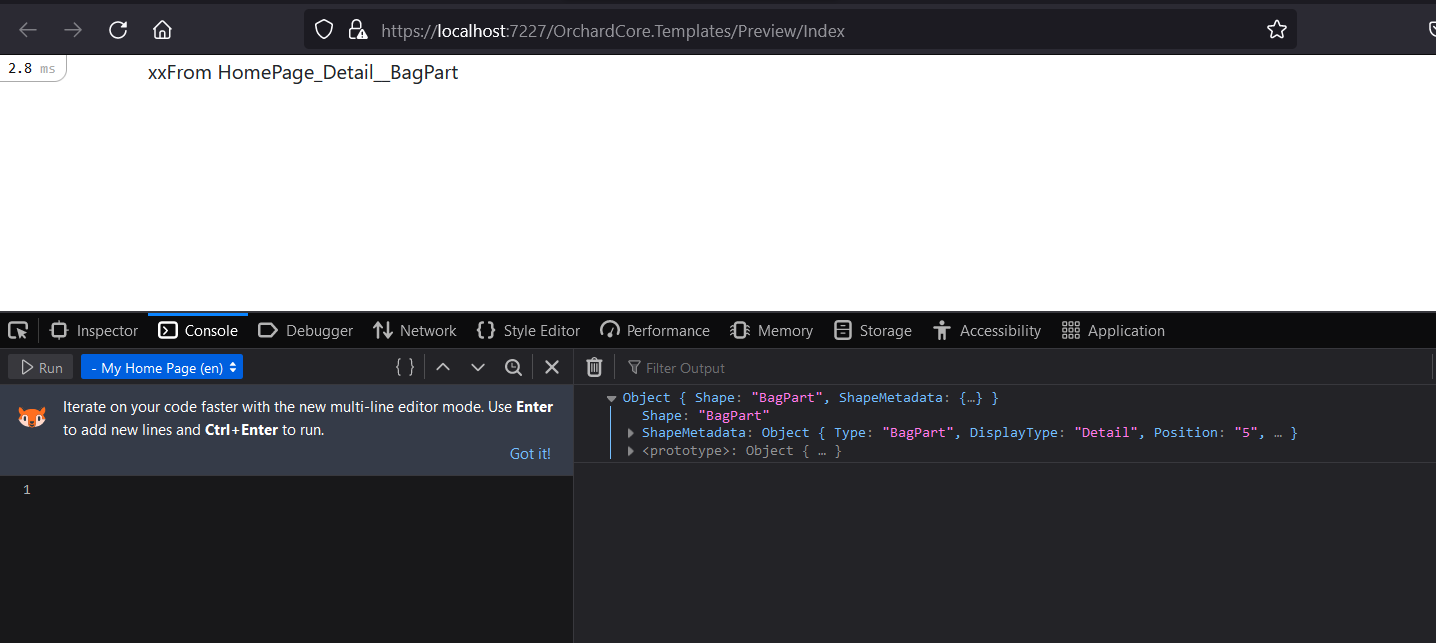

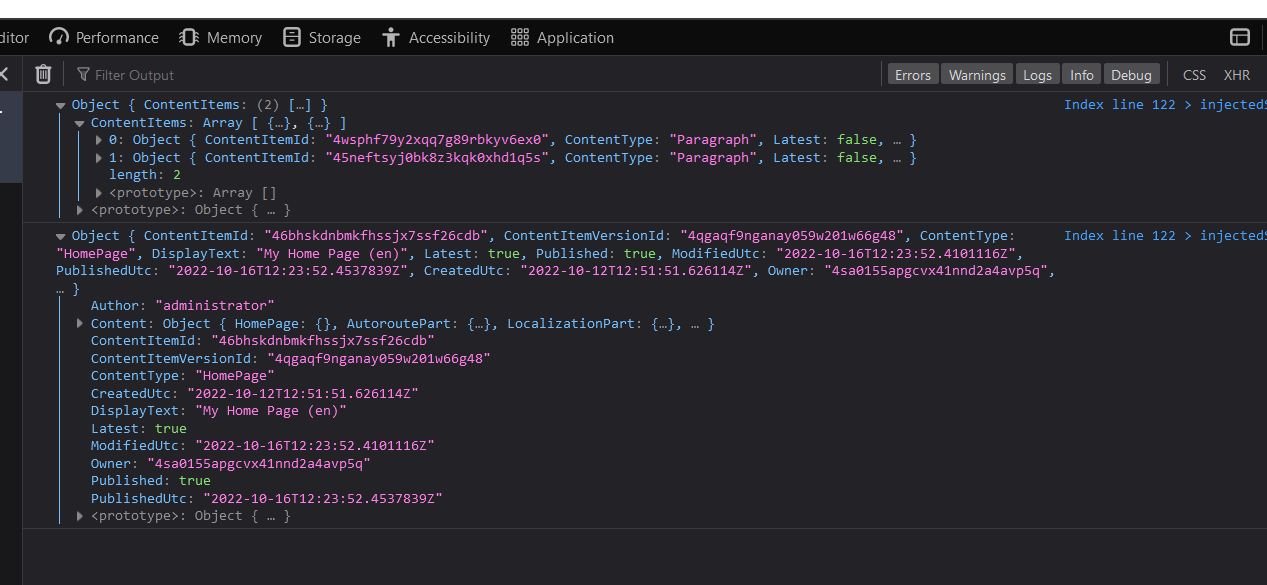

{{ Model }} returns the shape of the BagPart

[dodyg]

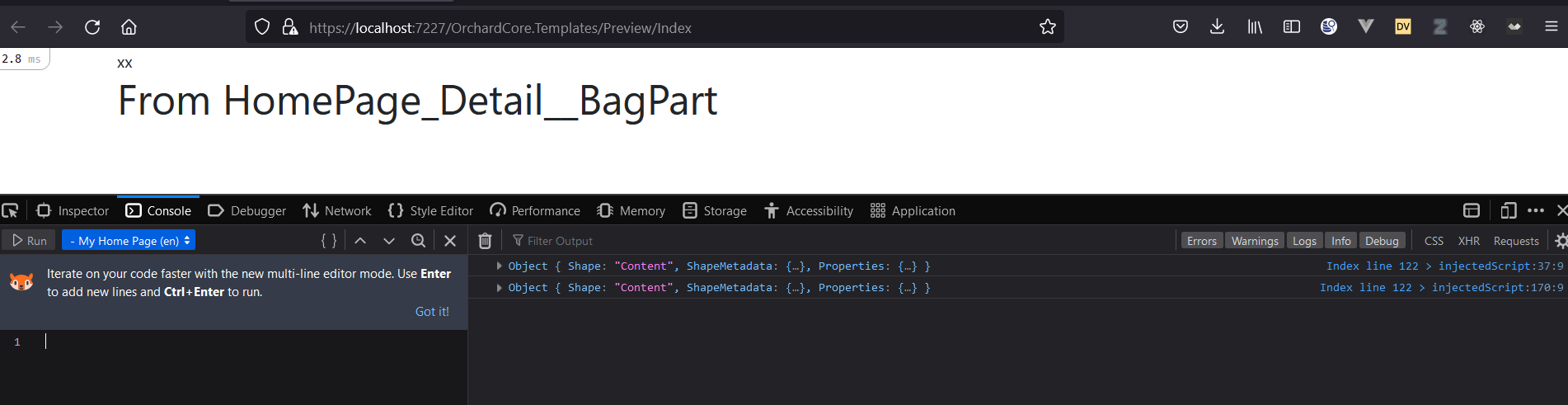

@ns8482e My question is how do I access the shape of the items contained in the BagPart?

[ns8482e]

That’s the original answer, Use shape_build_display for each item,

The default implementation of BagPart creates shapes in view, so if you are overriding default then you also need to build shapes for each item

[ns8482e]

@dodyg From the docs https://docs.orchardcore.net/en/latest/docs/reference/modules/Flow/BagPart/#templating-with-display-management

[dodyg]

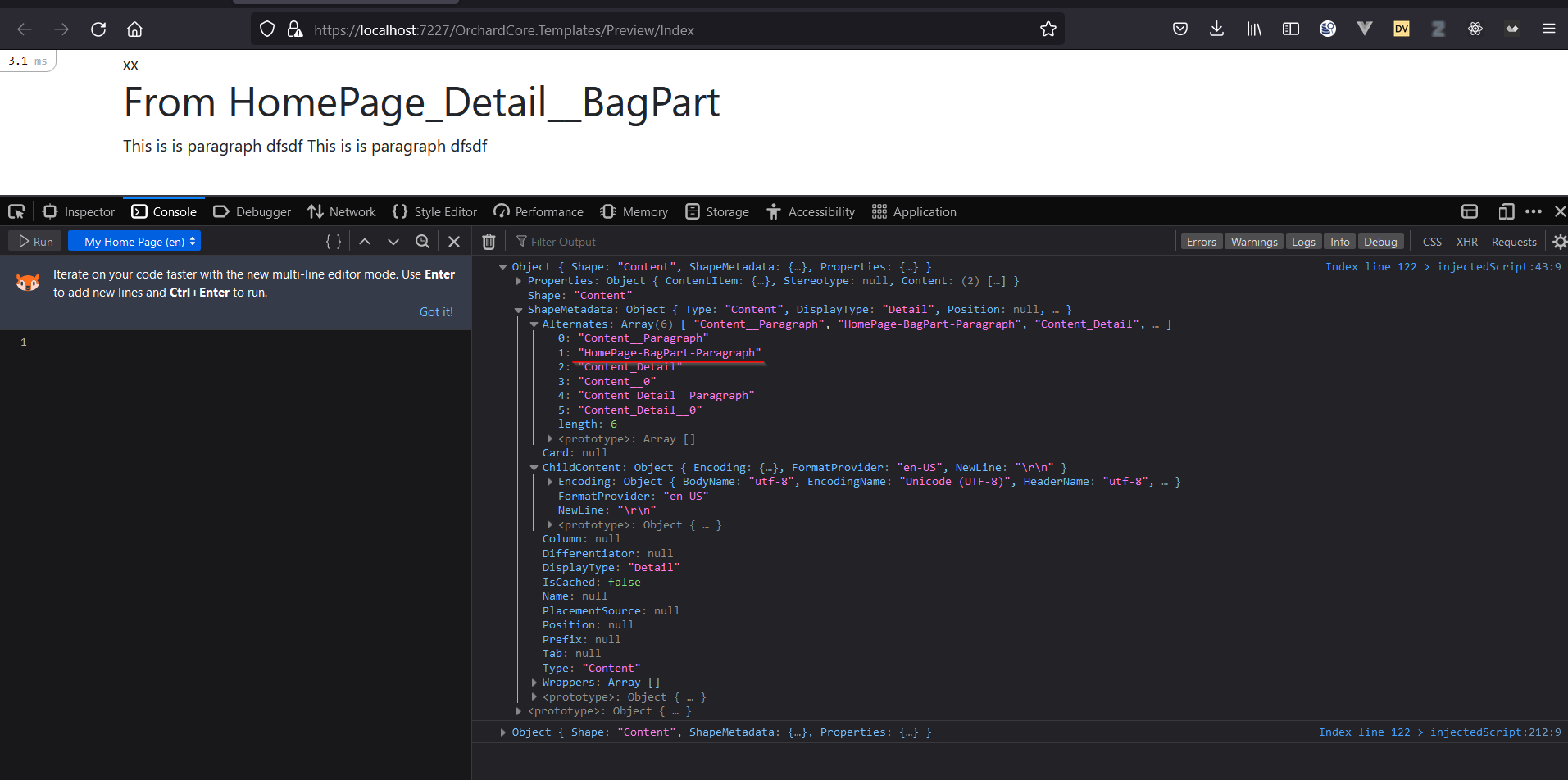

Ok perhaps DisplayType:Detail is a very specific value. The problem here right now is that the Alternate is Content__Paragraph. The next logical step is to add another alternate via shape_add_alternates so we can provide a custom template of the content.

[dodyg]

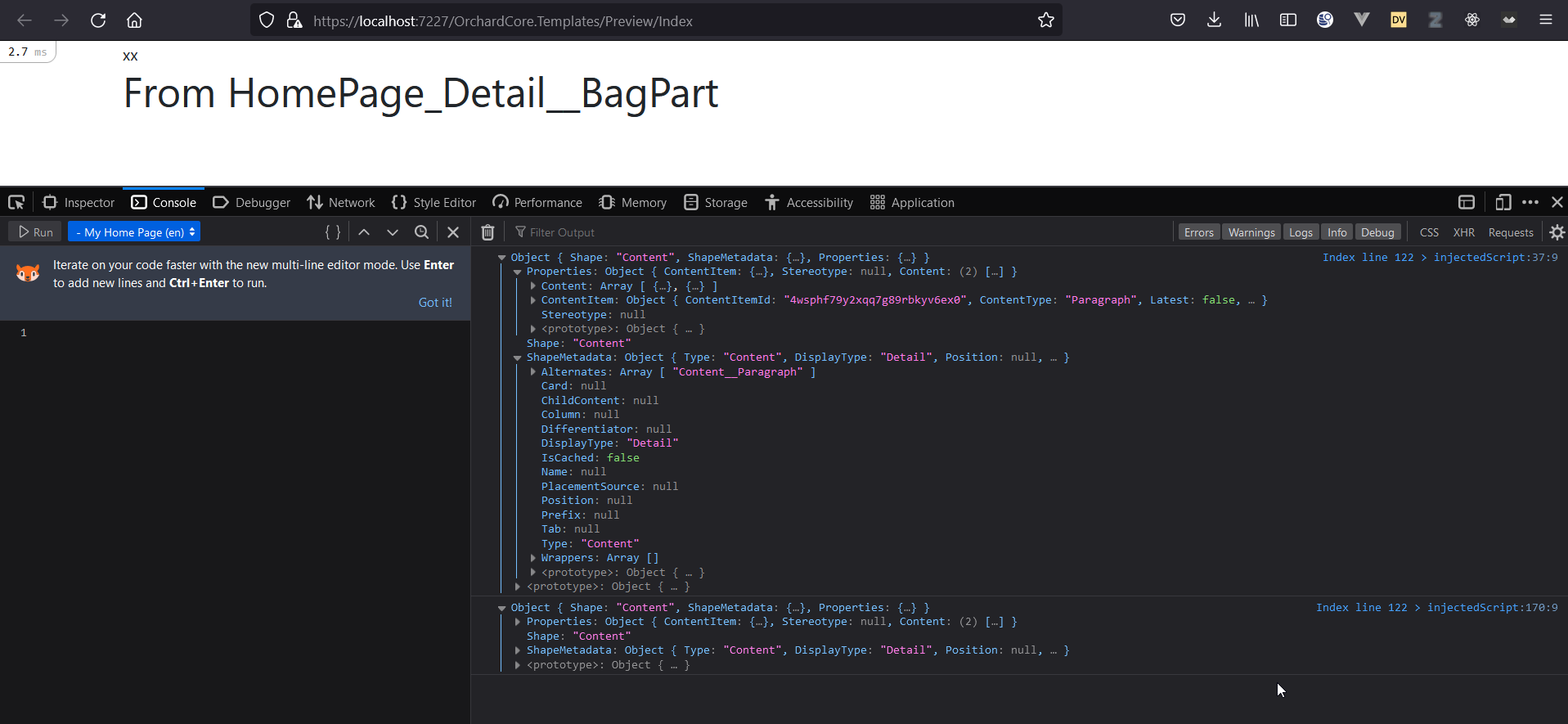

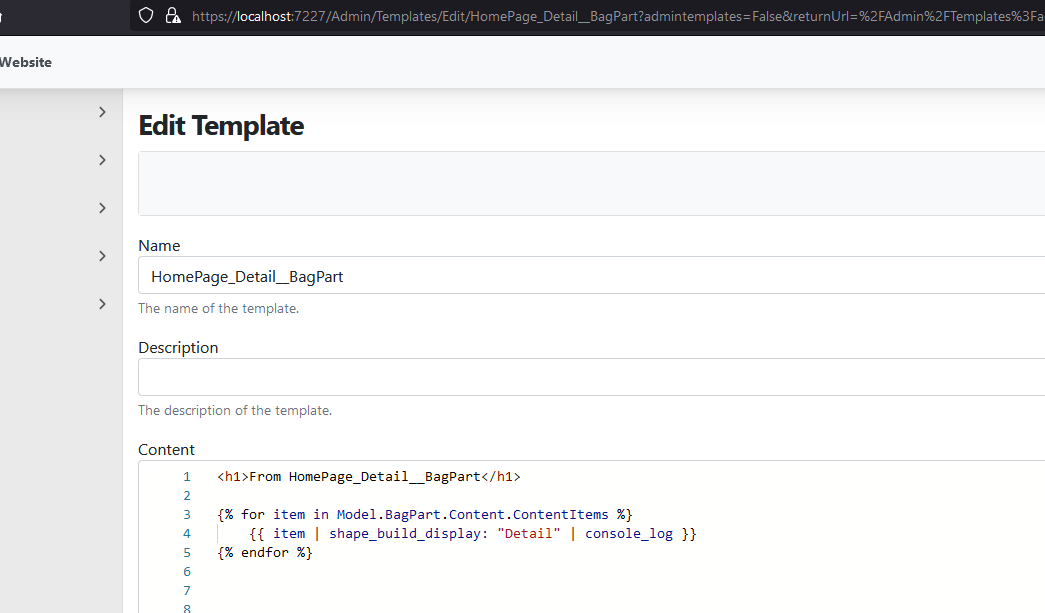

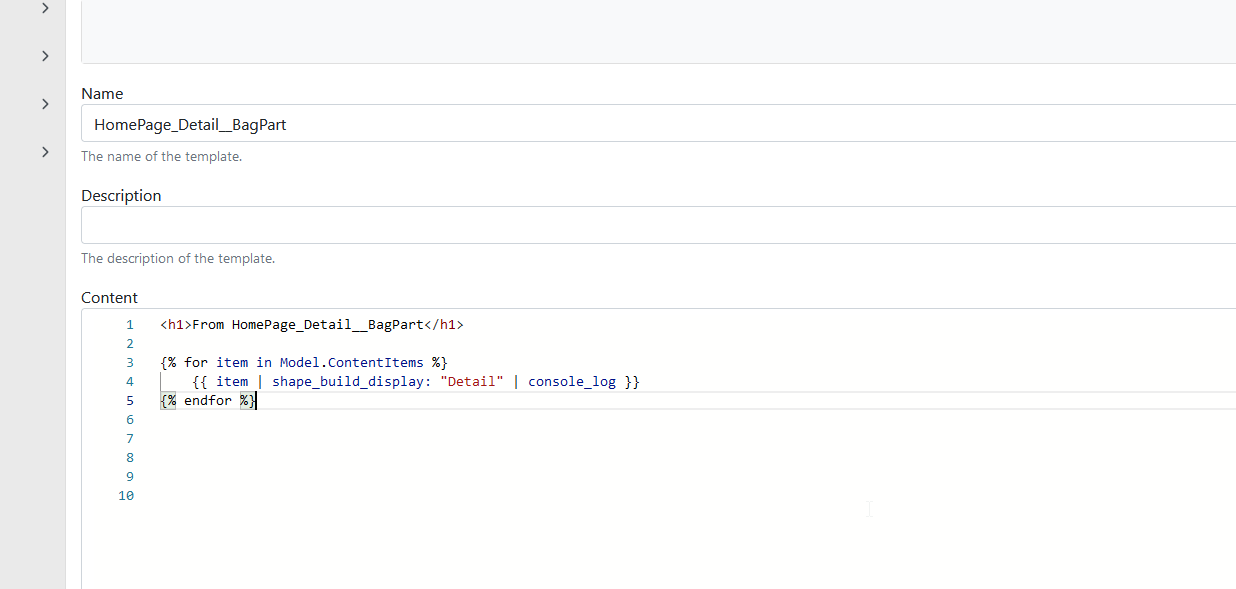

OK for BagPart Model.ContentItems also works

[dodyg]

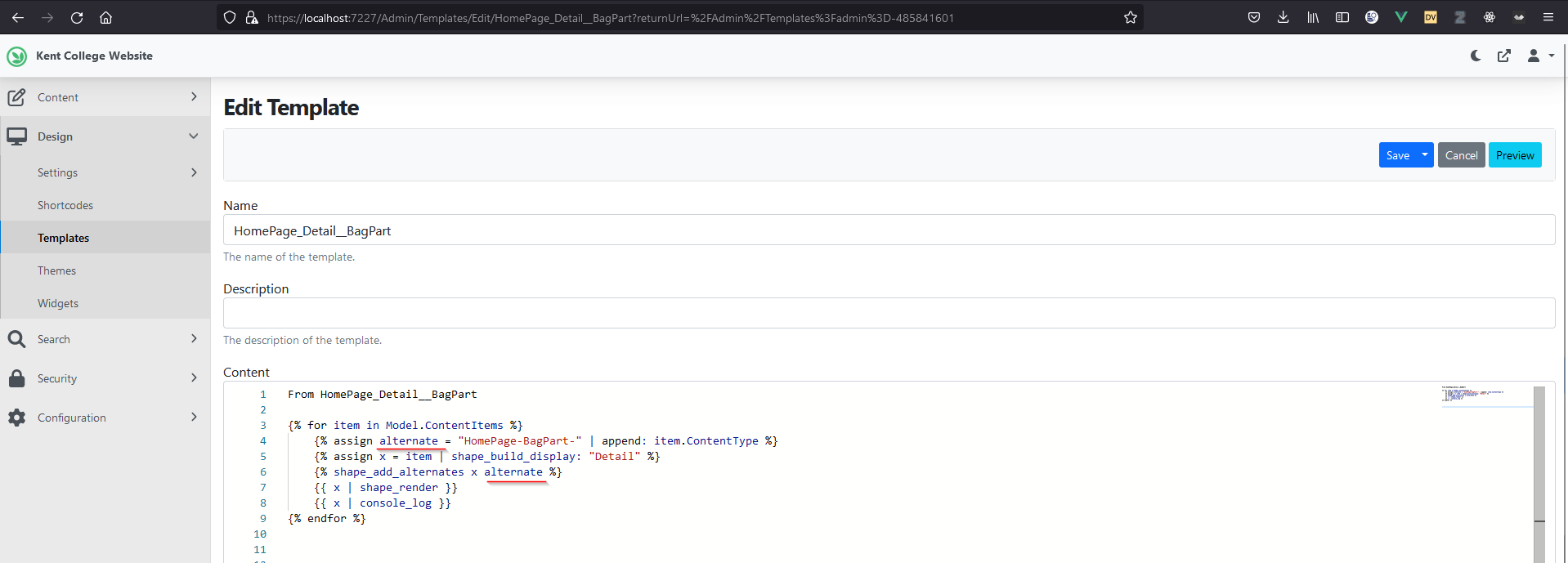

We can assign a specific alternate for the item contained within BagPart inside HomePage Content Type this way.

[ns8482e]

Yes Detail is DisplayType. In ootb it’s based on your settings of BagPart

[dodyg]

@ns8482e thank your patient and for all your help.

For others, this is the complete example on how to render a BagPart.

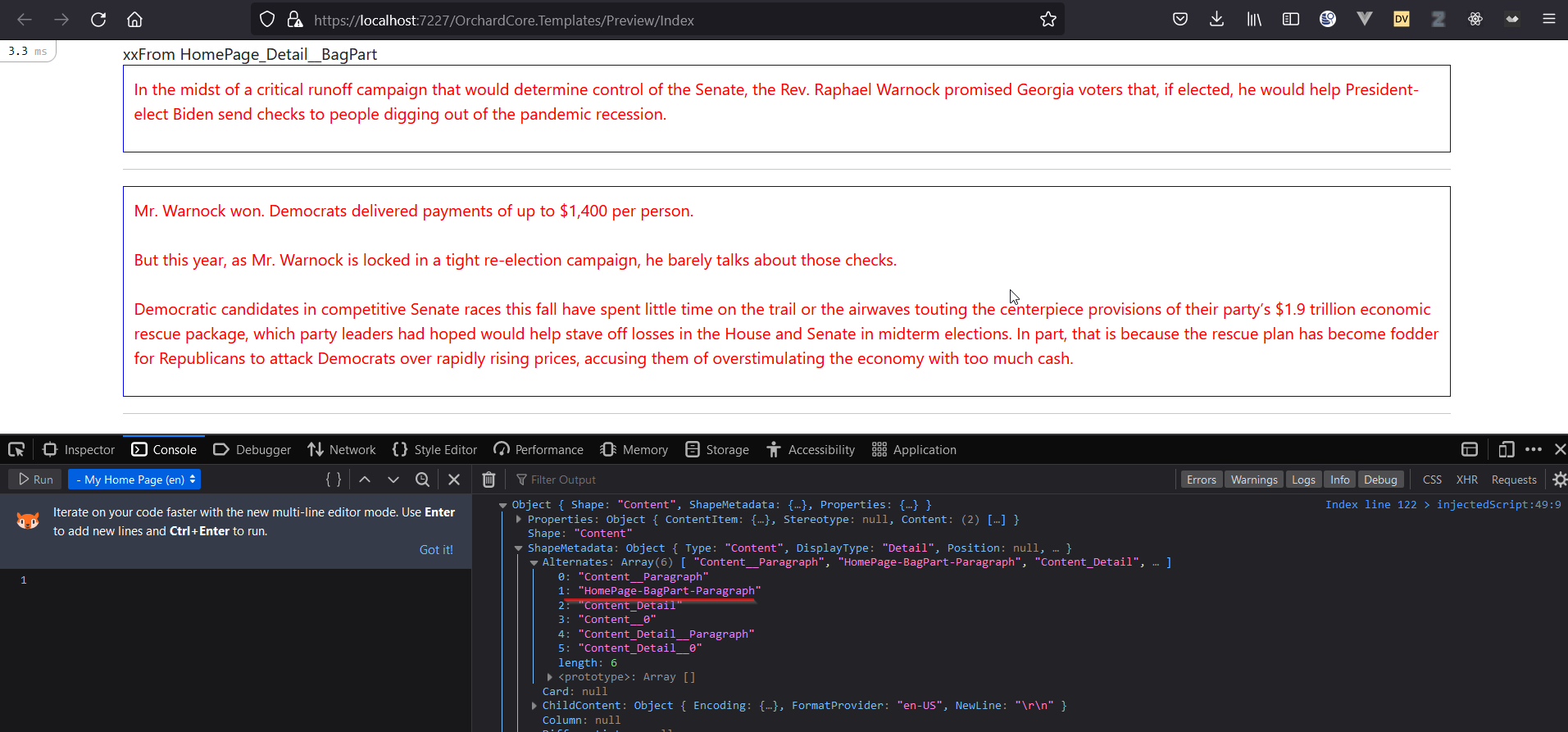

This is the final result. We specify a custom alternate to render instead of using the ones suggested by OC.

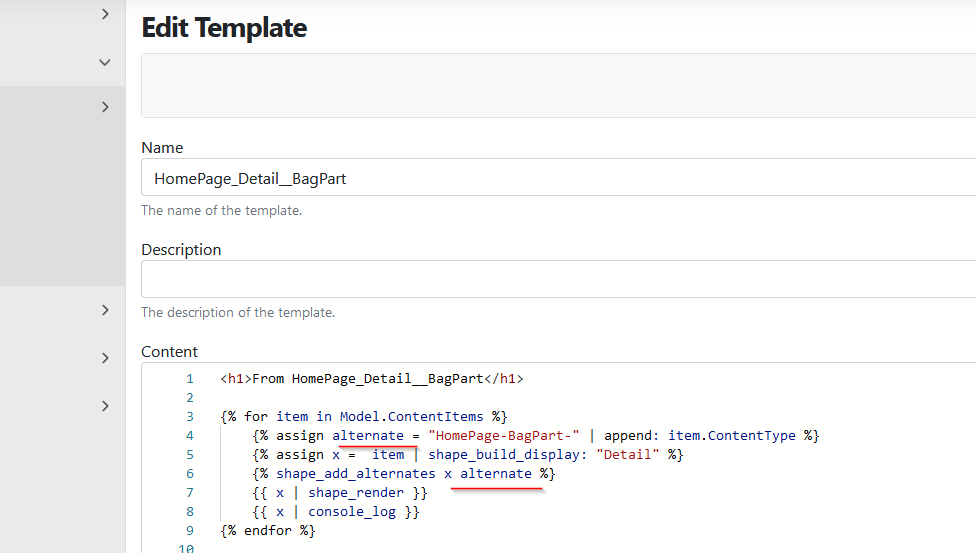

This is how to build the alternate name. You can use your own convention on how name your alternate for this purpose.

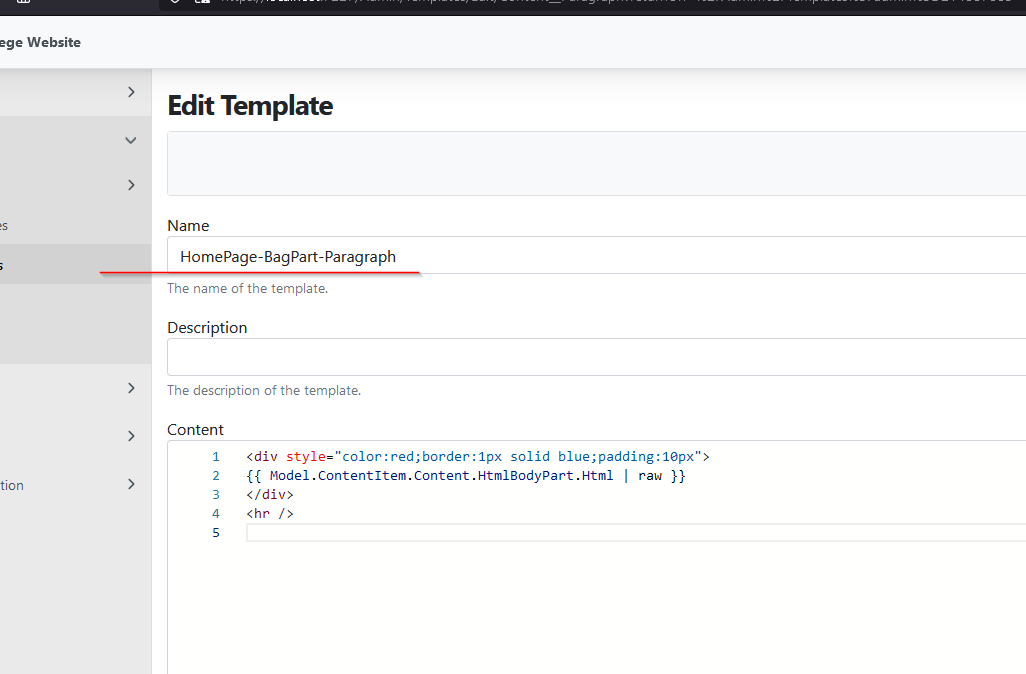

This is the details of this alternate.
