Workflow notes

[dodyg]

I need to do some work that requires workflow so I am going to keep notes here.

[dodyg]

The problem with workflow task designer is that it's not very clear what is produced on each step. Outcomes has visual indication but there's no way to figure out what inside Input, Output or Properties.

For example, what will be the output of Content Updated event. Documentation will solve this issue but I think if there's a way for the designer to be able to read some metadata with these type of information it will be splendid.

[dodyg]

This seems important in figuring out the output/properties set by Content Updated.

https://github.com/OrchardCMS/OrchardCore/blob/12417a2629f3719a393d35789a5f9a45add8ee6d/src/OrchardCore.Modules/OrchardCore.Contents/Workflows/Handlers/ContentsHandler.cs

[dodyg]

If the workflow was initiated by a content-related event (such as Published), then the content item will be available via the Content property, which you can then access from activities in your workflow (via both Liquid and JavaScript expressions).

#2240 (comment)

So it should be available via {{ Workflow.Input.ContentItem.Content }}

[jtkech]

I'm curently working on this, if your activity is directly after a content event e.g. ContentCreatedEvent it is available in workflowContext.Input["ContentItem"], otherwise a previous activity may have set it in the workflowContext.Properites["ContentItem"] and / or workflowContext.LastResult.

As i remember e.g. through a javascript expression input("ContentItem"), didn't re-tried with a liquid expression

[dodyg]

I wish there's a Content shape viewer. Working with content with the workflow is quite cumbersome because you need to figure out the JSON structure. It's a trial and error process.

[dodyg]

The workflow is missing the ability to perform query. I will try to implement this.

[dodyg]

I'm curently working on this, if your activity is directly after a content event e.g. ContentCreatedEvent it is available in workflowContext.Input["ContentItem"], otherwise a previous activity may have set it in the workflowContext.Properites["ContentItem"] and / or workflowContext.LastResult.

@jtkech

Workflow.Input.ContentItem is available beyond immediate activity.

[dodyg]

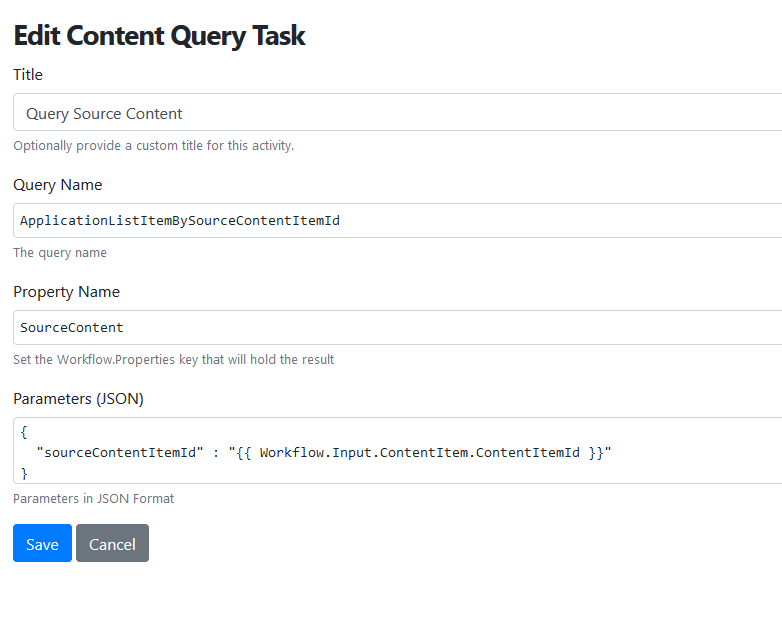

Content Query Task

This is a activity task that allows you to perform query, pass parameters and set the result into specific Workflow.Properties. It's very useful to check for content duplication, etc. Important when you need to decide whether to insert a new content or update an existing content.

This is the source code

  public class ContentQueryTask : TaskActivity
    {
        protected readonly IStringLocalizer S;
        private readonly IWorkflowExpressionEvaluator _expressionEvaluator;
        private readonly OrchardCore.IOrchardHelper _helper;

        public ContentQueryTask(
            IStringLocalizer<ContentQueryTask> localizer,
            IWorkflowExpressionEvaluator expressionEvaluator,
            OrchardCore.IOrchardHelper helper)
        {
            S = localizer;
            _expressionEvaluator = expressionEvaluator;
            _helper = helper;
        }

        public override string Name => nameof(ContentQueryTask);

        public override LocalizedString DisplayText => S["Content Query Task"];

        public override LocalizedString Category => S["Content"];

        public override IEnumerable<Outcome> GetPossibleOutcomes(WorkflowExecutionContext workflowContext, ActivityContext activityContext)
        {
            return Outcomes(S["Done"]);
        }

        public override async Task<ActivityExecutionResult> ExecuteAsync(WorkflowExecutionContext workflowContext, ActivityContext activityContext)
        {
            var queryName = string.Empty;
            if (!string.IsNullOrWhiteSpace(QueryName.Expression))
                queryName = await _expressionEvaluator.EvaluateAsync(QueryName, workflowContext);

            var propertyName = "ContentQuery";
            if (!string.IsNullOrWhiteSpace(PropertyName.Expression))
                propertyName = await _expressionEvaluator.EvaluateAsync(PropertyName, workflowContext);

            var paramaters = "";
            if (!string.IsNullOrWhiteSpace(Parameters.Expression))
                paramaters = await _expressionEvaluator.EvaluateAsync(Parameters, workflowContext);

            IDictionary<string, object> @params = new Dictionary<string, object>();

            if (!string.IsNullOrWhiteSpace(paramaters))
                @params = JObject.Parse(paramaters).ToDictionary();

            var result = await _helper.ContentQueryAsync(queryName, @params);

            workflowContext.Properties[propertyName] = result;

            return Outcomes("Done");
        }

        public WorkflowExpression<string> QueryName
        {
            get => GetProperty(() => new WorkflowExpression<string>(""));
            set => SetProperty(value);
        }

        public WorkflowExpression<string> PropertyName
        {
            get => GetProperty(() => new WorkflowExpression<string>(""));
            set => SetProperty(value);
        }

        public WorkflowExpression<string> Parameters
        {
            get => GetProperty(() => new WorkflowExpression<string>(""));
            set => SetProperty(value);
        }
    }

    public class ContentQueryViewModel
    {
        public string QueryNameExpression { get; set; }

        public string PropertyNameExpression { get; set; }

        public string ParametersExpression { get; set; }
    }

    public class ContentQueryTaskDisplay: ActivityDisplayDriver<ContentQueryTask, ContentQueryViewModel>
    {
        protected override void EditActivity(ContentQueryTask activity, ContentQueryViewModel model)
        {
            model.QueryNameExpression = activity.QueryName.Expression;
            model.PropertyNameExpression = activity.PropertyName.Expression;
            model.ParametersExpression = activity.Parameters.Expression;
        }

        protected override void UpdateActivity(ContentQueryViewModel model, ContentQueryTask activity)
        {
            activity.QueryName = new WorkflowExpression<string>(model.QueryNameExpression);
            activity.PropertyName = new WorkflowExpression<string>(model.PropertyNameExpression);
            activity.Parameters = new WorkflowExpression<string>(model.ParametersExpression);
        }
    }

[dodyg]

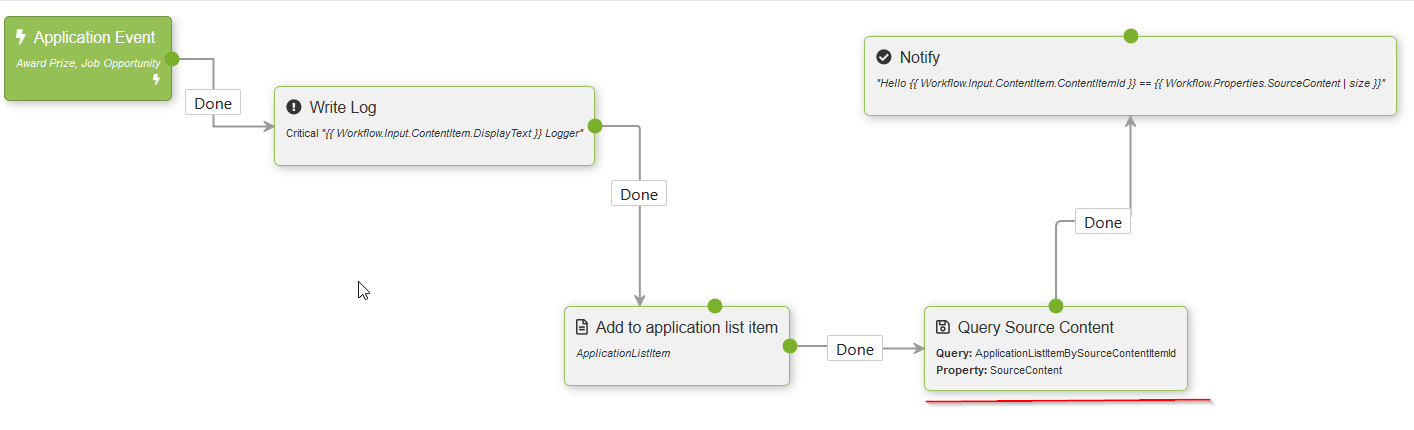

Content Query Task part 2

You can see here how ContentQueryTask can be used as an input for an IfTask.

[deanmarcussen]

I wish there's a Content shape viewer. Working with content with the workflow is quite cumbersome because you need to figure out the JSON structure. It's a trial and error process.

See over here @dodyg #5862 it should add a View as JSON button to the admin list, to make it a little easier to see the shape of what you're working with

[yash1529]

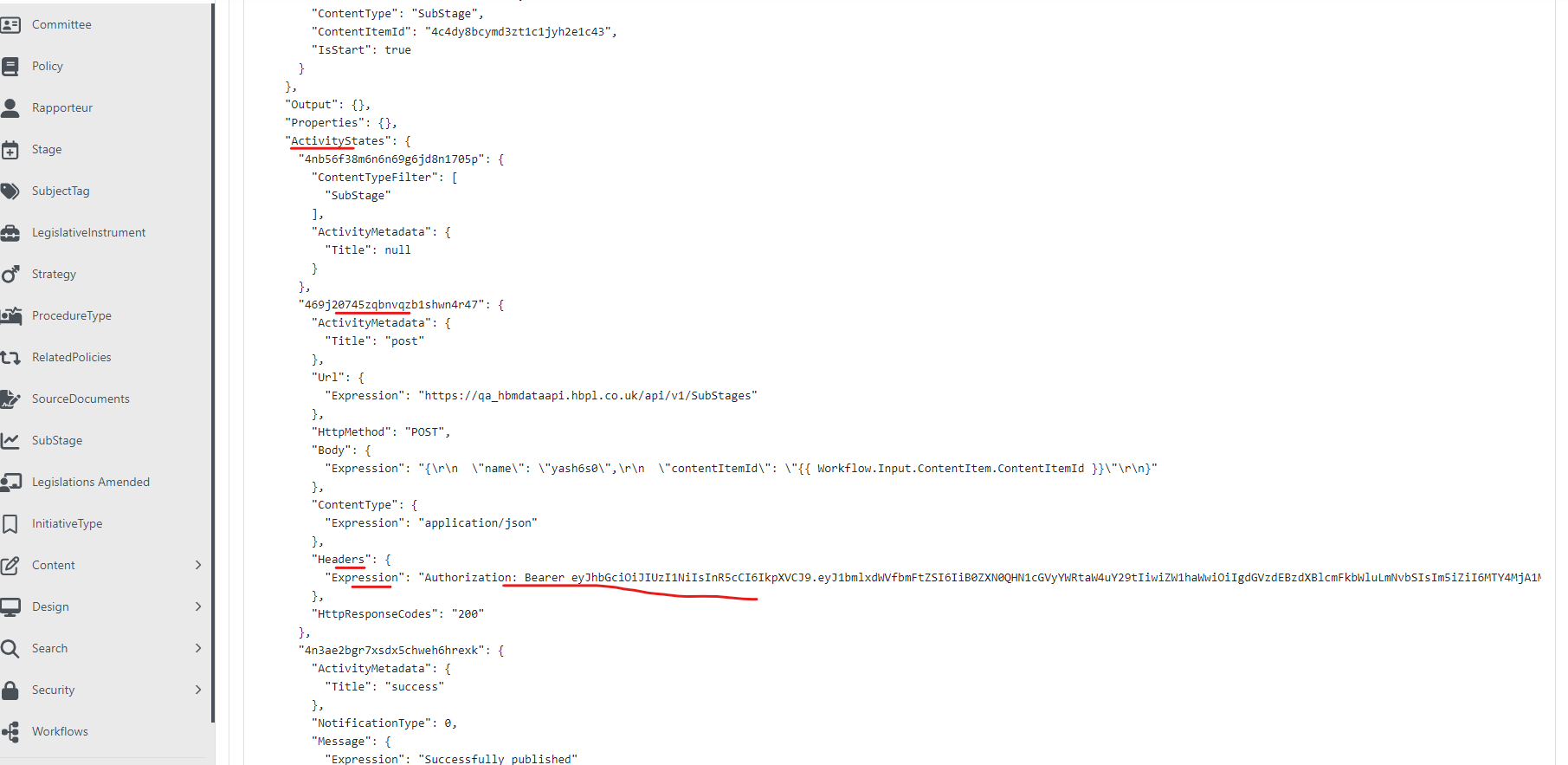

I want to access the highlighted field but i am unable to . I am only able to acceess CorrelationId,Input,output and properties. Can any1 please help me out with this?
If possible i want to access whole json object and forwaRD IF POSSIBLE? THANKS IN ADVANCE

[sebastienros]

@yash1529 you may have more answers by creating a new discussion, nobody will see this here.
