Build err [Resolved] #12

Unclerojelio · 2021-10-04T03:20:37Z

Unclerojelio
Oct 4, 2021

Compiling .pio/build/demo/lib321/IRremoteESP8266/IRtext.cpp.o
src/main.cpp:223:21: error: gRingSizeTable causes a section type conflict with g_SocketServer
 DRAM_ATTR const int gRingSizeTable[MAX_RINGS] =
                     ^
src/main.cpp:247:28: note: 'g_SocketServer' was declared here
     DRAM_ATTR SocketServer g_SocketServer(49152, STRAND_LEDS);  // $C000 is free RAM on the C64, fwiw!

Can I get a clue?

Answered by BeldrothTheGold

Oct 5, 2021

Maybe try and update your platform IO platforms?

View full answer

rbergen · 2021-10-04T09:08:39Z

rbergen
Oct 4, 2021
Maintainer

What exactly are you trying to build? In other words, what's the build command you're issuing?

3 replies

Unclerojelio Oct 4, 2021
Author

> Executing task: platformio run <

Processing demo (platform: espressif32; board: esp32dev; framework: arduino)

On src/main.cpp

rbergen Oct 4, 2021
Maintainer

I can't reproduce this locally, on the x86_64 system I'm using. It's an error related to the placement of variables in object file sections, which are not manipulated in the relevant source code, as far as I can tell.

What system/architecture and OS/distribution are you building on?

Unclerojelio Oct 4, 2021
Author

$ sw_vers
ProductName:	Mac OS X
ProductVersion:	10.15.7
BuildVersion:	19H1323

rmd6502 · 2021-10-04T18:40:56Z

rmd6502
Oct 4, 2021

I'm getting the same error on a PopOS (ubuntu) 21.04, VSCode v1.60.2, latest PlatformIO, basically "git clone" and "platformio->build"

PLATFORM: Espressif 32 (1.12.4) > Espressif ESP32 Dev Module
HARDWARE: ESP32 240MHz, 320KB RAM, 4MB Flash
DEBUG: Current (esp-prog) External (esp-prog, iot-bus-jtag, jlink, minimodule, olimex-arm-usb-ocd, olimex-arm-usb-ocd-h, olimex-arm-usb-tiny-h, olimex-jtag-tiny, tumpa)
PACKAGES:
 - framework-arduinoespressif32 3.10004.200129 (1.0.4)
 - tool-esptoolpy 1.20600.0 (2.6.0)
 - toolchain-xtensa32 2.50200.80 (5.2.0)
LDF: Library Dependency Finder -> http://bit.ly/configure-pio-ldf
LDF Modes: Finder ~ chain, Compatibility ~ soft
Found 37 compatible libraries
Scanning dependencies...
Dependency Graph
|-- <IRremoteESP8266> 2.7.20
|-- <FastLED> 3.4.0
|   |-- <SPI> 1.0
|-- <Adafruit BusIO> 1.9.3
|   |-- <Wire> 1.0.1
|   |-- <SPI> 1.0
|-- <Adafruit GFX Library> 1.10.12
|   |-- <Adafruit BusIO> 1.9.3
|   |   |-- <Wire> 1.0.1
|   |   |-- <SPI> 1.0
|   |-- <Wire> 1.0.1
|   |-- <SPI> 1.0
|-- <ArduinoJson> 6.17.2
|-- <U8g2> 2.28.8
|   |-- <SPI> 1.0
|   |-- <Wire> 1.0.1
|-- <RemoteDebug> 3.0.5
|   |-- <SPI> 1.0
|   |-- <WiFi> 1.0
|   |-- <WiFiClientSecure> 1.0
|   |   |-- <WiFi> 1.0
|-- <arduinoFFT> 1.5.6
|-- <AsyncTCP> 1.1.1
|-- <Bounce2> 2.70.0
|-- <ESP Async WebServer> 1.2.3
|   |-- <AsyncTCP> 1.1.1
|   |-- <ArduinoJson> 6.17.2
|   |-- <FS> 1.0
|   |-- <WiFi> 1.0
|-- <ArduinoOTA> 1.0
|   |-- <Update> 1.0
|   |-- <WiFi> 1.0
|   |-- <ESPmDNS> 1.0
|   |   |-- <WiFi> 1.0
|-- <SD(esp32)> 1.0.5
|   |-- <FS> 1.0
|   |-- <SPI> 1.0
|-- <SPI> 1.0
|-- <WiFi> 1.0
|-- <FS> 1.0
|-- <SPIFFS> 1.0
|   |-- <FS> 1.0
Building in debug mode```

```$ uname -a
Linux rmd-linux 5.13.0-7614-generic #14~1631647151~21.04~930e87c-Ubuntu SMP Fri Sep 17 00:24:58 UTC  x86_64 x86_64 x86_64 GNU/Linux```

```src/main.cpp:223:22: error: gRingSizeTable causes a section type conflict with g_SocketServer
 DRAM_ATTR2 const int gRingSizeTable[MAX_RINGS] =
                      ^
src/main.cpp:247:28: note: 'g_SocketServer' was declared here
     DRAM_ATTR SocketServer g_SocketServer(49152, STRAND_LEDS);  // $C000 is free RAM on the C64, fwiw!```

3 replies

rmd6502 Oct 4, 2021

I was able to get a successful build by going to esp_attr.h and duplicating DRAM_ATTR:
// Forces data into DRAM instead of flash
#define DRAM_ATTR attribute((section(".dram1")))
#define DRAM_ATTR2 attribute((section(".dram2")))

and then setting g_socketserver to have the DRAM_ATTR2, but that's a) modifying a platformio builtin header, and b) throwing a random guess at a wall based on stackoverflow answers that I didn't fully understand.

jmarevans Oct 4, 2021

I tried your solution but it just caused the error to move to a different declaration.

in esp_attr.h:

// Forces data into DRAM instead of flash
#define DRAM_ATTR __attribute__((section(".dram1")))
#define DRAM_ATTR2 __attribute__((section(".dram2")))

in main.cpp:

#if ENABLE_WEBSERVER
    DRAM_ATTR CSPIFFSWebServer g_WebServer;
#endif

#if INCOMING_WIFI_ENABLED
    DRAM_ATTR2 SocketServer g_SocketServer(49152, STRAND_LEDS);  // $C000 is free RAM on the C64, fwiw!
#endif

#if ENABLE_REMOTE
    DRAM_ATTR RemoteControl g_RemoteControl;
#endif

build output:

Compiling .pio\build\demo\lib753\IRremoteESP8266\IRtimer.cpp.o
src\main.cpp:225:21: error: gRingSizeTable causes a section type conflict with g_WebServer
 DRAM_ATTR const int gRingSizeTable[MAX_RINGS] =
                     ^
src\main.cpp:245:32: note: 'g_WebServer' was declared here
     DRAM_ATTR CSPIFFSWebServer g_WebServer;
                                ^
*** [.pio\build\demo\src\main.cpp.o] Error 1

rmd6502 Oct 5, 2021

Yeah, like I said it was throwing a guess at the wall without much understanding of the underlying issue.

jmarevans · 2021-10-05T00:27:43Z

jmarevans
Oct 5, 2021

Interesting that your guess worked, though.

…

On Mon, Oct 4, 2021 at 5:22 PM Robert Diamond ***@***.***> wrote: Yeah, like I said it was throwing a guess at the wall without much understanding of the underlying issue. — You are receiving this because you commented. Reply to this email directly, view it on GitHub <#12 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AM3VGHESN5UTD75XAQ3IFYTUFJAMZANCNFSM5FILVYCQ> . Triage notifications on the go with GitHub Mobile for iOS <https://apps.apple.com/app/apple-store/id1477376905?ct=notification-email&mt=8&pt=524675> or Android <https://play.google.com/store/apps/details?id=com.github.android&referrer=utm_campaign%3Dnotification-email%26utm_medium%3Demail%26utm_source%3Dgithub>.

1 reply

rmd6502 Oct 5, 2021

Here's the relevant SO link: https://stackoverflow.com/questions/30076949/gcc-error-variable-causes-a-section-type-conflict
and a bonus GCC forum link: https://gcc.gnu.org/bugzilla/show_bug.cgi?id=41091
Something about the compiler inferring different types of section variables in the same section, for (reasons). I think my "solution" sort of worked because the DRAM_ATTR2 didn't have a correspondence in the linker files for Platformio, so it worked out to be a totally different section type. Not sure why it didn't work for you, maybe I had an additional change in there that I forgot to write down? Or different compiler/linker/phase of moon environments?

jmarevans · 2021-10-05T01:56:04Z

jmarevans
Oct 5, 2021

:-)

…

On Mon, Oct 4, 2021 at 5:41 PM Robert Diamond ***@***.***> wrote: Here's the relevant SO link: https://stackoverflow.com/questions/30076949/gcc-error-variable-causes-a-section-type-conflict and a bonus GCC forum link: https://gcc.gnu.org/bugzilla/show_bug.cgi?id=41091 Something about the compiler inferring different types of section variables in the same section, for (reasons). I think my "solution" sort of worked because the DRAM_ATTR2 didn't have a correspondence in the linker files for Platformio, so it worked out to be a totally different section type. Not sure why it didn't work for you, maybe I had an additional change in there that I forgot to write down? Or different compiler/linker/phase of moon environments? — You are receiving this because you commented. Reply to this email directly, view it on GitHub <#12 (reply in thread)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AM3VGHB4CXUET2BYNAI4VM3UFJCVFANCNFSM5FILVYCQ> . Triage notifications on the go with GitHub Mobile for iOS <https://apps.apple.com/app/apple-store/id1477376905?ct=notification-email&mt=8&pt=524675> or Android <https://play.google.com/store/apps/details?id=com.github.android&referrer=utm_campaign%3Dnotification-email%26utm_medium%3Demail%26utm_source%3Dgithub>.

0 replies

BeldrothTheGold · 2021-10-05T14:38:35Z

BeldrothTheGold
Oct 5, 2021

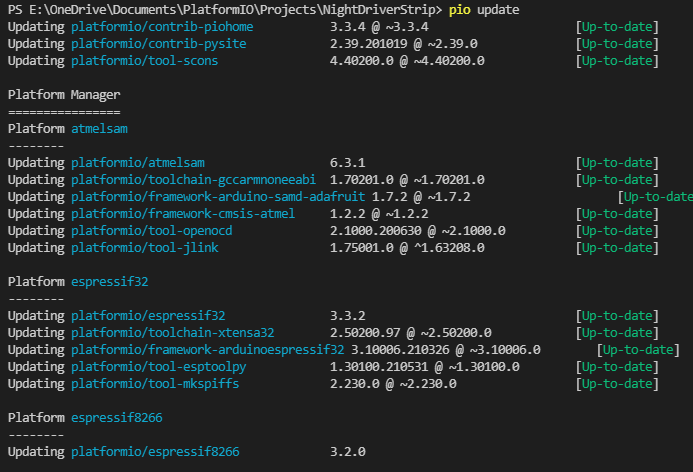

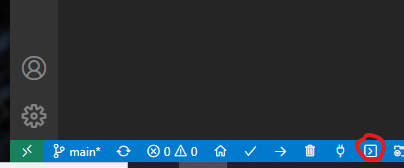

Maybe try and update your platform IO platforms?

3 replies

jmarevans Oct 5, 2021

Thanks! That seems to have done the trick. There was one module listed as incompatible, but otherwise the update has allowed for a successful build.

Updating platformio/contrib-piohome           3.3.4 @ ~3.3.4                     [Up-to-date]
Updating platformio/contrib-pysite            2.37.191020 @ ~2.37.0              [Incompatible 2.39.201019]
Updating platformio/tool-unity                1.20500.200612 @ ~1.20500.0        [Up-to-date]
Updating platformio/tool-scons                4.40200.0 @ ~4.40200.0             [Up-to-date]

Platform Manager
================
Platform espressif32
--------
Updating platformio/espressif32               3.0.0                              [Updating to 3.3.2]
Platform Manager: Installing platformio/espressif32 @ 3.3.2
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Platform Manager: espressif32 @ 3.3.2 has been installed!
Tool Manager: toolchain-xtensa32 @ 2.50200.80 is already installed
Tool Manager: Installing platformio/tool-esptoolpy @ ~1.30100.0
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Tool Manager: tool-esptoolpy @ 1.30100.210531 has been installed!
Platform Manager: Removing espressif32 @ 3.0.0
Platform Manager: espressif32 @ 3.0.0 has been removed!
Updating platformio/toolchain-xtensa32        2.50200.80 @ ~2.50200.0            [Updating to 2.50200.97]
Tool Manager: Installing platformio/toolchain-xtensa32 @ 2.50200.97
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Tool Manager: toolchain-xtensa32 @ 2.50200.97 has been installed!
Tool Manager: Removing toolchain-xtensa32 @ 2.50200.80
Tool Manager: toolchain-xtensa32 @ 2.50200.80 has been removed!
Updating platformio/tool-esptoolpy            1.30100.210531 @ ~1.30100.0        [Up-to-date]
Updating platformio/tool-openocd-esp32        2.1000.20201202 @ ~2.1000.0        [Updating to 2.1000.20210721]
Tool Manager: Installing platformio/tool-openocd-esp32 @ 2.1000.20210721
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Tool Manager: tool-openocd-esp32 @ 2.1000.20210721 has been installed!
Tool Manager: Removing tool-openocd-esp32 @ 2.1000.20201202
Tool Manager: tool-openocd-esp32 @ 2.1000.20201202 has been removed!
Updating platformio/tool-mkspiffs             2.230.0 @ ~2.230.0                 [Up-to-date]
Tool Manager: Installing platformio/framework-arduinoespressif32 @ ~3.10006.0
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Tool Manager: framework-arduinoespressif32 @ 3.10006.210326 has been installed!

Platform espressif8266
--------
Updating platformio/espressif8266             2.6.3                              [Updating to 3.2.0]
Platform Manager: Installing platformio/espressif8266 @ 3.2.0
Platform Manager: espressif8266 @ 3.2.0 has been installed!
Tool Manager: Installing platformio/toolchain-xtensa @ ~2.100300.0
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Tool Manager: toolchain-xtensa @ 2.100300.210717 has been installed!
Tool Manager: tool-esptool @ 1.413.0 is already installed
Tool Manager: tool-esptoolpy @ 1.30000.201119 is already installed
Platform Manager: espressif8266 @ 2.6.3 has been removed!
Updating platformio/toolchain-xtensa          2.100300.210717 @ ~2.100300.0      [Up-to-date]
Updating platformio/tool-esptool              1.413.0 @ <2                       [Up-to-date]
Updating platformio/tool-esptoolpy            1.30000.201119 @ ~1.30000.0        [Up-to-date]
Updating platformio/tool-mkspiffs             1.200.0 @ ~1.200.0                 [Up-to-date]
Updating platformio/tool-mklittlefs           1.203.210203 @ ~1.203.0            [Updating to 1.203.210628]
Tool Manager: Installing platformio/tool-mklittlefs @ 1.203.210628
Downloading  [####################################]  100%
Tool Manager: tool-mklittlefs @ 1.203.210628 has been installed!
Tool Manager: Removing tool-mklittlefs @ 1.203.210203
Tool Manager: tool-mklittlefs @ 1.203.210203 has been removed!
Tool Manager: Installing platformio/framework-arduinoespressif8266 @ ~3.30002.0
Downloading  [####################################]  100%
Unpacking  [####################################]  100%
Tool Manager: framework-arduinoespressif8266 @ 3.30002.0 has been installed!


Library Manager
===============
Library Storage: C:\Users\Jesse\.platformio\lib
PS C:\Users\Jesse\Documents\PlatformIO\Projects\nightdriver>

BeldrothTheGold Oct 5, 2021

nice

Unclerojelio Oct 6, 2021
Author

Worked for me too. Thanks!

davepl · 2021-10-06T00:57:57Z

davepl
Oct 6, 2021
Maintainer

Looks like it builds now!

0 replies

jmarevans · 2021-10-06T01:17:44Z

jmarevans
Oct 6, 2021

Yup! Played around with it a bit today; looking forward to more videos in this series. I watched your first LED strip series and really learned a lot. Actually, I’ve been enjoying all your videos. They’re very entertaining and informative. Thanks for doing what you do!

…

On Tue, Oct 5, 2021 at 5:58 PM David W Plummer ***@***.***> wrote: Looks like it builds now! — You are receiving this because you commented. Reply to this email directly, view it on GitHub <#12 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AM3VGHGEK3ZLT72GLIKQBRDUFONJ7ANCNFSM5FILVYCQ> . Triage notifications on the go with GitHub Mobile for iOS <https://apps.apple.com/app/apple-store/id1477376905?ct=notification-email&mt=8&pt=524675> or Android <https://play.google.com/store/apps/details?id=com.github.android&referrer=utm_campaign%3Dnotification-email%26utm_medium%3Demail%26utm_source%3Dgithub>.

0 replies
