trying to standardize image orientation using Orientationd transform

[jakubMitura14]

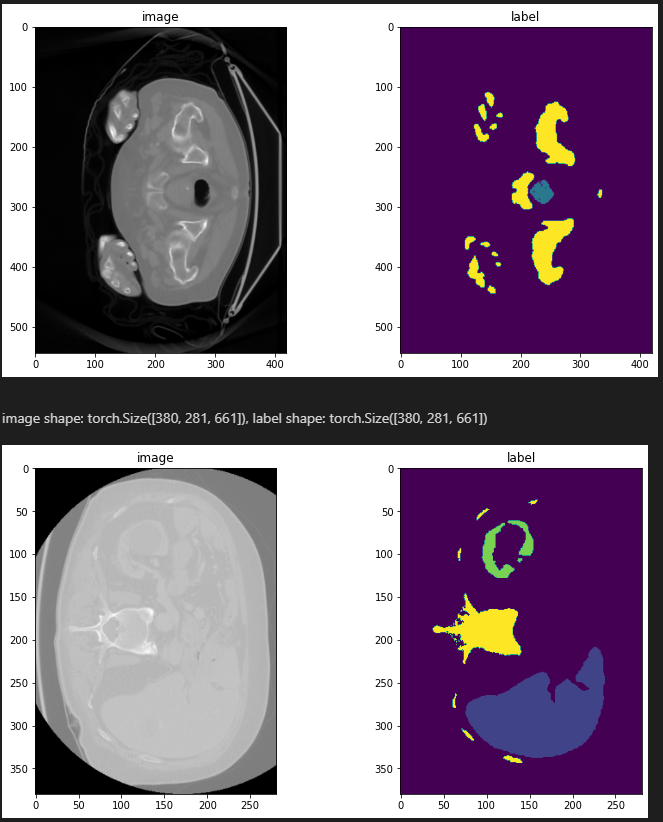

Hello I am preprocessing CT-ORG [1] dataset - and I want to make orientation of all images uniform. As far as I understand this should be achievable using Orientationd Transform - However as I will show above for my case once the bed is on the left and other time on the right side of image. For this example I am loading just patient number 20 and 21.

defined transforms

val_transforms = Compose(
    [
        LoadImaged(keys=["image", "label"]),
        EnsureChannelFirstd(keys=["image", "label"]),
        Orientationd(keys=["image", "label"], axcodes="RAS"),
        Spacingd(keys=["image", "label"], pixdim=(
            1.0, 1.0, 1.0), mode=("bilinear", "nearest")),
        CropForegroundd(keys=["image", "label"], source_key="image"),
        EnsureTyped(keys=["image", "label"]),
    ]
)

visualization code

check_ds = Dataset(data=data_dicts, transform=val_transforms)
check_loader = DataLoader(check_ds, batch_size=1)
for dat in check_loader:
    image= dat['image'][0,0,:,:]
    label=  dat['label'][0,0,:,:]
    middleSlice = round(label.size()[2]/2)
    print(f"image shape: {image.shape}, label shape: {label.shape}")
    # plot the slice [:, :, 80]
    plt.figure("check", (12, 6))
    plt.subplot(1, 2, 1)
    plt.title("image")
    plt.imshow(image[:, :, middleSlice], cmap="gray")
    plt.subplot(1, 2, 2)
    plt.title("label")
    plt.imshow(label[:, :, middleSlice])
    plt.show()

Python 3.7
MONAI version: 0.9.dev2210
Numpy version: 1.21.5
Pytorch version: 1.10.2+cu113
MONAI flags: HAS_EXT = False, USE_COMPILED = False
MONAI rev id: 1a660e6a7a50e985af5ff76b559baab44175438c
MONAI __file__: d:\projects\vsCode\pythonForHtests\venv\lib\site-packages\monai\__init__.py

Optional dependencies:
Pytorch Ignite version: 0.4.8
Nibabel version: 3.2.2
scikit-image version: 0.19.2
Pillow version: 9.0.1
Tensorboard version: 2.8.0
gdown version: 4.4.0
TorchVision version: 0.11.3+cu113
tqdm version: 4.63.0
lmdb version: 1.3.0
psutil version: 5.9.0
pandas version: 1.1.5
einops version: 0.4.1
transformers version: 4.17.0
mlflow version: 1.24.0

full code
https://github.com/jakubMitura14/pythonForHtests/blob/master/loadOnlyLiver.ipynb

[1] https://wiki.cancerimagingarchive.net/display/Public/CT-ORG%3A+CT+volumes+with+multiple+organ+segmentations

Thank you for Help !

[wyli]

thanks for the detailed report, I can replicate it with volume 20 and 21, the issue seems to be in the original metadata.

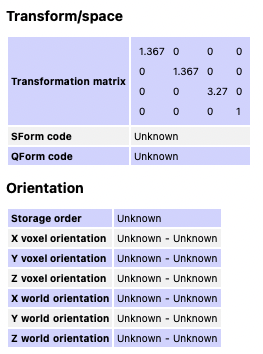

volume-20.nii.gz doesn't have the metadata about orientations (possibly not handled properly when converting from the source into a nifti file)

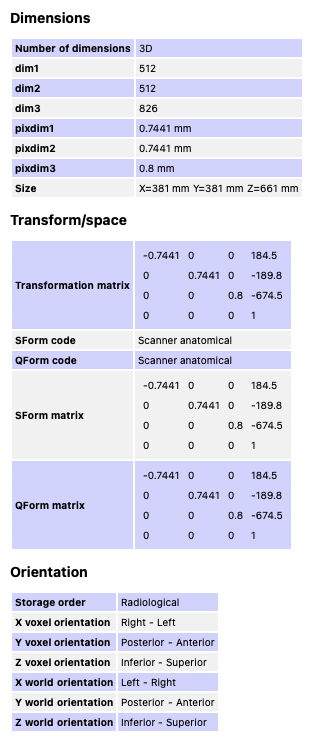

while volume-21.nii.gz looks fine:

[jakubMitura14]

Thank you for help !!! - Is there a way to filter out the images that do not hold proper spacing and orientation metadata ?

[wyli]

sure, you can use the sform_code and qform_code fields, if both of them are zeros, probably the metadata is not valid:

>>> from monai.transforms import LoadImaged
>>> data_dict = LoadImaged(keys="img")({"img": "./volume-20.nii.gz"})
>>> (data_dict["img_meta_dict"]["qform_code"], data_dict["img_meta_dict"]["sform_code"])
(array(0, dtype=int16), array(0, dtype=int16))

>>> data_dict = LoadImaged(keys="img")({"img": "./volume-21.nii.gz"})
>>> (data_dict["img_meta_dict"]["qform_code"], data_dict["img_meta_dict"]["sform_code"])
(array(1, dtype=int16), array(1, dtype=int16))

[jakubMitura14]

Thank You so much !!
