How to use matplotlib for image drawing in MapTransform?

[Minxiangliu]

I love using MONAI's great modules, but have problems writing my own code. I want to convert the data into an image in Transform. I refer to some monai practices, but I encounter difficulties in matplotlib. If AxesSubplot.clear() is not executed, the data will be repeated on the figure. If executed, it will be something went wrong, how can I improve my code?
Thanks in advance!

Code:

import torch
import numpy as np
from monai.transforms.transform import MapTransform
from monai.data import CacheDataset, ThreadDataLoader
from monai.transforms import Compose
import matplotlib.pyplot as plt
from matplotlib.backends.backend_agg import FigureCanvasAgg as FigureCanvas

class convertImage(MapTransform):
    def __init__(self,keys):
        super().__init__(keys)
        self.fig = plt.figure(figsize=(12,7), tight_layout=True, dpi=20)
        self.FigLits = list()
        for i in range(5,-1,-1):
            self.FigLits.append(self.fig.add_subplot(6,1,i+1))
        self.canvas = FigureCanvas(self.fig)

    def convertIMG(self, data):
        for i,graph in enumerate(self.FigLits):
            graph.clear()   #There is a problem here...
            graph.plot(np.arange(len(data)), data[:,i], linewidth=3)
            graph.axis('off')

        self.canvas.draw()
        width, height = self.fig.get_size_inches()*self.fig.get_dpi()
        image = np.frombuffer(self.canvas.tostring_rgb(), dtype='uint8').reshape(int(height), int(width), 3)
        R, G, B = image[:,:,0], image[:,:,1], image[:,:,2]
        imgGray = 0.2989 * R + 0.5870 * G + 0.1140 * B
        imgGray = imgGray.max() - imgGray
        return torch.tensor(imgGray).to(torch.int32)

    def __call__(self, data):
        d = dict(data)
        for key in self.key_iterator(d):
            d[key] = self.convertIMG(d[key].squeeze(0))
        return d

train_loader = ThreadDataLoader(CacheDataset(data=[{'img':torch.rand(1,200,6)},
                                                   {'img':torch.rand(1,200,6)},
                                                   {'img':torch.rand(1,200,6)},
                                                   {'img':torch.rand(1,200,6)}],
                                             transform=Compose(convertImage(keys=['img']))),
                                num_workers=0,
                                batch_size=2,
                                shuffle=True,
                                drop_last=True)
for d in train_loader:
    d

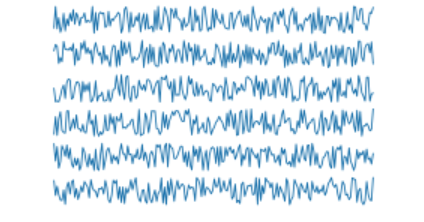

If AxesSubplot.clear() is not executed:

Otherwise

Traceback (most recent call last):
  File "D:\Anaconda3\envs\monai\lib\site-packages\monai\transforms\transform.py", line 82, in apply_transform
    return _apply_transform(transform, data, unpack_items)
  File "D:\Anaconda3\envs\monai\lib\site-packages\monai\transforms\transform.py", line 53, in _apply_transform
    return transform(parameters)
  File ".\testimg.py", line 35, in __call__
    d[key] = self.convertIMG(d[key].squeeze(0))
  File ".\testimg.py", line 20, in convertIMG
    graph.clear()   #There is a problem here...
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axes\_base.py", line 1475, in clear
    self.cla()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axes\_base.py", line 1199, in cla
    spine.clear()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 223, in clear
    self.axis.clear()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 818, in clear
    self.reset_ticks()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 846, in reset_ticks
    self.set_clip_path(self.axes.patch)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 936, in set_clip_path
    for child in self.majorTicks + self.minorTicks:
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 592, in __get__
    tick = instance._get_tick(major=True)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 2057, in _get_tick
    return XTick(self.axes, 0, major=major, **tick_kw)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 419, in __init__
    data=([0], [0]), transform=ax.get_xaxis_transform("tick1"))
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axes\_base.py", line 856, in get_xaxis_transform
    return self.spines.bottom.get_spine_transform()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 332, in get_spine_transform
    self._ensure_position_is_set()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 204, in _ensure_position_is_set
    self.set_position(self._position)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 322, in set_position
    self.axis.reset_ticks()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 846, in reset_ticks
    self.set_clip_path(self.axes.patch)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 936, in set_clip_path
    for child in self.majorTicks + self.minorTicks:
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 592, in __get__
    tick = instance._get_tick(major=True)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 2057, in _get_tick
    return XTick(self.axes, 0, major=major, **tick_kw)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 419, in __init__
    data=([0], [0]), transform=ax.get_xaxis_transform("tick1"))
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axes\_base.py", line 856, in get_xaxis_transform
    return self.spines.bottom.get_spine_transform()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 332, in get_spine_transform
    self._ensure_position_is_set()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 204, in _ensure_position_is_set
    self.set_position(self._position)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 322, in set_position
    self.axis.reset_ticks()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 846, in reset_ticks
    self.set_clip_path(self.axes.patch)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 936, in set_clip_path
    for child in self.majorTicks + self.minorTicks:
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 597, in __get__
    tick = instance._get_tick(major=False)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 2057, in _get_tick
    return XTick(self.axes, 0, major=major, **tick_kw)
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axis.py", line 421, in __init__
    data=([0], [1]), transform=ax.get_xaxis_transform("tick2"))
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\axes\_base.py", line 859, in get_xaxis_transform
    return self.spines.top.get_spine_transform()
  File "D:\Anaconda3\envs\monai\lib\site-packages\matplotlib\spines.py", line 340, in get_spine_transform
    assert len(position) == 2, 'position should be 2-tuple'
TypeError: object of type 'NoneType' has no len()

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
  File ".\testimg.py", line 42, in <module>
    transform=Compose(convertImage(keys=['img']))),
  File "D:\Anaconda3\envs\monai\lib\site-packages\monai\data\dataset.py", line 607, in __init__
    self._cache: List = self._fill_cache()
  File "D:\Anaconda3\envs\monai\lib\site-packages\monai\data\dataset.py", line 632, in _fill_cache
    desc="Loading dataset",
  File "D:\Anaconda3\envs\monai\lib\site-packages\tqdm\std.py", line 1180, in __iter__
    for obj in iterable:
  File "D:\Anaconda3\envs\monai\lib\multiprocessing\pool.py", line 748, in next
    raise value
  File "D:\Anaconda3\envs\monai\lib\multiprocessing\pool.py", line 121, in worker
    result = (True, func(*args, **kwds))
  File "D:\Anaconda3\envs\monai\lib\site-packages\monai\data\dataset.py", line 648, in _load_cache_item
    item = apply_transform(_xform, item)
  File "D:\Anaconda3\envs\monai\lib\site-packages\monai\transforms\transform.py", line 106, in apply_transform
    raise RuntimeError(f"applying transform {transform}") from e
RuntimeError: applying transform <__main__.convertImage object at 0x0000024C88D4DB08>
