Replies: 3 comments 5 replies
-
HWInfo only gives sensor data as read-only, there is no control from it. |
Beta Was this translation helpful? Give feedback.
-
|
Thank you for your reply. Is it possible for me to control System 7/8 pump as I can through BIOS or do I need to use different headers to enable that function within FanControl? I'm assuming my MB isn't fully supported by the program, which is why it's not able to auto detect the controls? |
Beta Was this translation helpful? Give feedback.
-
You got it. |
Beta Was this translation helpful? Give feedback.
-
|
Ok thanks for confirming. Now I know I can't do anything on my end :) If you have any spare time, would you mind adding support for the Aorus Master X570s in a future update? Your program is by far the best in terms of features and I hope to be one of the many happy users soon. |
Beta Was this translation helpful? Give feedback.
-
|
Seconding this. I have an x570 rev1 and had my gpu pump on sysfan6_pump. It seems to work on sysfan2 though, so I moved it there for now. If I understand this correctly, it's not an issue of the fan/pump being voltage controlled, it's lack of drivers (if you will) for controlling a given fan header? |
Beta Was this translation helpful? Give feedback.
-
|
@FinalDoom yea I think this is the reason: LibreHardwareMonitor/LibreHardwareMonitor#731 |
Beta Was this translation helpful? Give feedback.
-
|
Hey, i have the Aorus x570 Ultra. And the same Issue. The problem for me is thogh SIV From Aours doesn't seem to be working for me either anymore. I can install it but it won't show. I used to be able to run it but not anymore. Do you have another Solution for me? |
Beta Was this translation helpful? Give feedback.
-
|
I have a X570S Aero G. I can control 2 of my 4 fans when I go to identity fans but the other two, even when linked, dont seem to get effected. |
Beta Was this translation helpful? Give feedback.
Uh oh!
There was an error while loading. Please reload this page.
Uh oh!
There was an error while loading. Please reload this page.
-

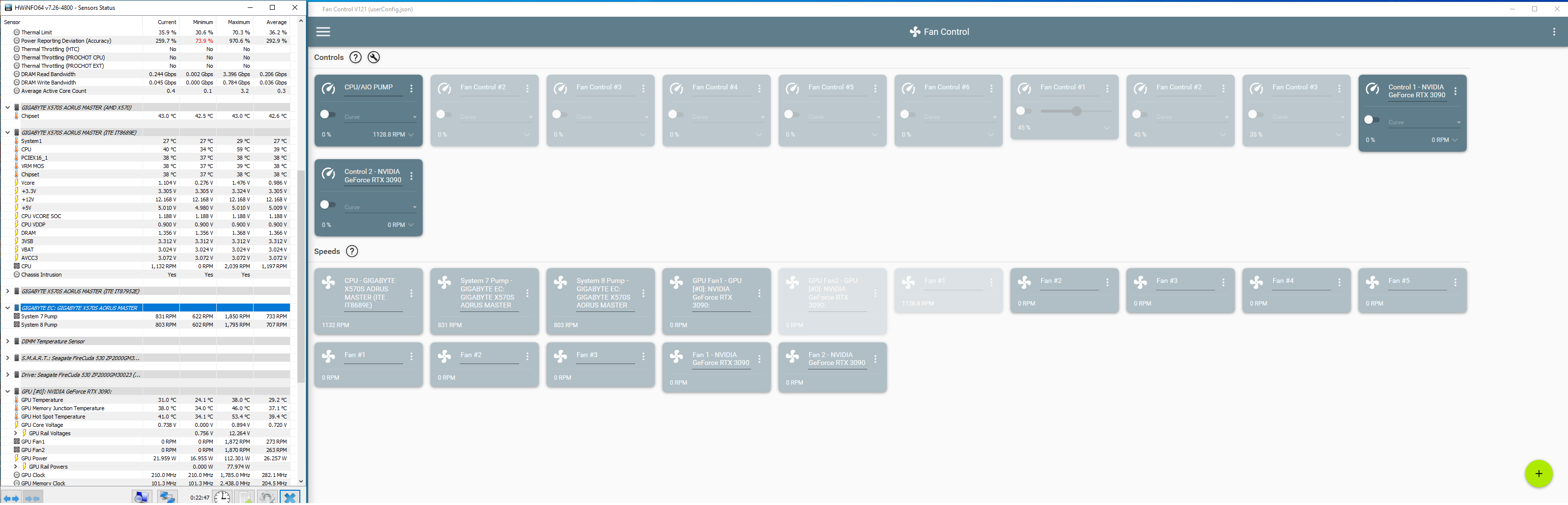

FanControl is able to display rpm values of my case fans (System 7/8 Pump) through the HWINFO plugin, but I am unable to pair with a control card. I can only control the CPU/AIO fan and GPU fans as seen in the following screenshot.
I can control the case fans through the BIOS so it's not an issue of them not responding.
Is there any way I can manually assign a control card or pair the System 7/8 Pump? I've attached a copy of the log and hope it might help in finding a solution.
Any help would be greatly appreciated. Thank you!
LibreHardwareMonitor Report
Version: 0.9.0.0
Common Language Runtime: 4.0.30319.42000
Operating System: Microsoft Windows NT 6.2.9200.0
Process Type: 64-Bit
Sensors
|
+- Gigabyte X570S AORUS MASTER (/motherboard)
| |
| +- ITE IT8689E (/lpc/it8689e)
| | +- Voltage #1 : 1.212 0.276 1.488 (/lpc/it8689e/voltage/0)
| | +- Voltage #2 : 2.004 1.992 2.016 (/lpc/it8689e/voltage/1)
| | +- Voltage #3 : 2.028 2.028 2.028 (/lpc/it8689e/voltage/2)
| | +- Voltage #4 : 2.004 1.992 2.004 (/lpc/it8689e/voltage/3)
| | +- Voltage #5 : 1.188 1.188 1.188 (/lpc/it8689e/voltage/4)
| | +- Voltage #6 : 0.9 0.9 0.9 (/lpc/it8689e/voltage/5)
| | +- Voltage #7 : 1.356 1.356 1.368 (/lpc/it8689e/voltage/6)
| | +- 3VSB : 3.312 3.312 3.312 (/lpc/it8689e/voltage/7)
| | +- VBat : 3.024 3.024 3.024 (/lpc/it8689e/voltage/8)
| | +- Temperature #1 : 27 27 29 (/lpc/it8689e/temperature/0)
| | +- Temperature #3 : 44 34 59 (/lpc/it8689e/temperature/2)
| | +- Temperature #4 : 38 37 38 (/lpc/it8689e/temperature/3)
| | +- Temperature #5 : 38 37 39 (/lpc/it8689e/temperature/4)
| | +- Temperature #6 : 38 37 38 (/lpc/it8689e/temperature/5)
| | +- Fan #1 : 1250 0 2566.54 (/lpc/it8689e/fan/0)
| | +- Fan #2 : 0 0 0 (/lpc/it8689e/fan/1)
| | +- Fan #3 : 0 0 0 (/lpc/it8689e/fan/2)
| | +- Fan #4 : 0 0 0 (/lpc/it8689e/fan/3)
| | +- Fan #5 : 0 0 0 (/lpc/it8689e/fan/4)
| | +- Fan Control #1 : 0 90 (/lpc/it8689e/control/0)
| | +- Fan Control #2 : 20 60 (/lpc/it8689e/control/1)
| | +- Fan Control #3 : 20 60 (/lpc/it8689e/control/2)
| | +- Fan Control #4 : 20 60 (/lpc/it8689e/control/3)
| | +- Fan Control #5 : 20 60 (/lpc/it8689e/control/4)
| | +- Fan Control #6 : 20 60 (/lpc/it8689e/control/5)
| |
| +- ITE IT8695E (/lpc/it8695e)
| | +- Voltage #1 : 1.826 1.804 1.837 (/lpc/it8695e/voltage/0)
| | +- Voltage #2 : 2.805 2.805 2.805 (/lpc/it8695e/voltage/1)
| | +- Voltage #3 : 0.946 0.946 0.946 (/lpc/it8695e/voltage/2)
| | +- Voltage #4 : 0.088 0.088 0.099 (/lpc/it8695e/voltage/3)
| | +- Voltage #5 : 1.826 1.826 1.826 (/lpc/it8695e/voltage/4)
| | +- Voltage #6 : 1.199 1.199 1.199 (/lpc/it8695e/voltage/5)
| | +- Temperature #1 : 34 34 35 (/lpc/it8695e/temperature/0)
| | +- Temperature #3 : 29 28 30 (/lpc/it8695e/temperature/2)
| | +- Fan #1 : 0 0 0 (/lpc/it8695e/fan/0)
| | +- Fan #2 : 0 0 0 (/lpc/it8695e/fan/1)
| | +- Fan #3 : 0 0 0 (/lpc/it8695e/fan/2)
| | +- Fan Control #1 : 49 20 89 (/lpc/it8695e/control/0)
| | +- Fan Control #2 : 49 39 89 (/lpc/it8695e/control/1)
| | +- Fan Control #3 : 35 35 35 (/lpc/it8695e/control/2)
|
+- AMD Ryzen 9 5950X 1 (/amdcpu/0)
| +- Core (SVI2 TFN) : 1.01875 1.00625 1.55 (/amdcpu/0/voltage/0)
| +- SoC (SVI2 TFN) : 1.175 1.175 1.55 (/amdcpu/0/voltage/1)
| +- Core #1 VID : 1 0.1875 1.5 (/amdcpu/0/voltage/2)
| +- Core #2 VID : 1 0.1875 1.5 (/amdcpu/0/voltage/3)
| +- Core #3 VID : 1 0.1875 1.5 (/amdcpu/0/voltage/4)
| +- Core #4 VID : 1 0.1875 1.5 (/amdcpu/0/voltage/5)
| +- Core #5 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/6)
| +- Core #6 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/7)
| +- Core #7 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/8)
| +- Core #8 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/9)
| +- Core #9 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/10)
| +- Core #10 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/11)
| +- Core #11 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/12)
| +- Core #12 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/13)
| +- Core #13 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/14)
| +- Core #14 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/15)
| +- Core #15 VID : 1 0.1875 1.50625 (/amdcpu/0/voltage/16)
| +- Core #16 VID : 1 0.19375 1.50625 (/amdcpu/0/voltage/17)
| +- Package : 44.337 35.264 90.3777 (/amdcpu/0/power/0)
| +- Core #1 (SMU) : 0.411498 0.0639235 6.90146 (/amdcpu/0/power/1)
| +- Core #2 (SMU) : 0.218286 0.0301777 2.05754 (/amdcpu/0/power/2)
| +- Core #3 (SMU) : 0.929767 0.178813 11.4631 (/amdcpu/0/power/3)
| +- Core #4 (SMU) : 0.0480197 0.0273678 2.42176 (/amdcpu/0/power/4)
| +- Core #5 (SMU) : 0.952689 0.22456 11.6507 (/amdcpu/0/power/5)
| +- Core #6 (SMU) : 0.0516152 0.0279544 3.109 (/amdcpu/0/power/6)
| +- Core #7 (SMU) : 0.0747014 0.0436964 4.93082 (/amdcpu/0/power/7)
| +- Core #8 (SMU) : 0.06846 0.0314044 3.74263 (/amdcpu/0/power/8)
| +- Core #9 (SMU) : 0.0158249 0.00758059 0.937446 (/amdcpu/0/power/9)
| +- Core #10 (SMU) : 0.0203779 0.00802948 1.94348 (/amdcpu/0/power/10)
| +- Core #11 (SMU) : 0.0206204 0.00672913 0.91036 (/amdcpu/0/power/11)
| +- Core #12 (SMU) : 0.0158852 0.00755837 1.62802 (/amdcpu/0/power/12)
| +- Core #13 (SMU) : 0.0161143 0.00696763 0.934374 (/amdcpu/0/power/13)
| +- Core #14 (SMU) : 0.0199785 0.00808907 0.967365 (/amdcpu/0/power/14)
| +- Core #15 (SMU) : 0.0418049 0.00677479 1.12853 (/amdcpu/0/power/15)
| +- Core #16 (SMU) : 0.38938 0.0139879 4.57528 (/amdcpu/0/power/16)
| +- Bus Speed : 100.007 100.007 100.007 (/amdcpu/0/clock/0)
| +- Core #1 : 3600.24 3600.24 5050.34 (/amdcpu/0/clock/20)
| +- Core #2 : 3600.24 3600.24 4900.33 (/amdcpu/0/clock/21)
| +- Core #3 : 3600.24 3600.24 5050.34 (/amdcpu/0/clock/22)
| +- Core #4 : 3600.24 3600.24 4900.33 (/amdcpu/0/clock/23)
| +- Core #5 : 3600.24 2880.19 5050.34 (/amdcpu/0/clock/24)
| +- Core #6 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/25)
| +- Core #7 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/26)
| +- Core #8 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/27)
| +- Core #9 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/28)
| +- Core #10 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/29)
| +- Core #11 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/30)
| +- Core #12 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/31)
| +- Core #13 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/32)
| +- Core #14 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/33)
| +- Core #15 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/34)
| +- Core #16 : 3600.24 2880.19 4900.33 (/amdcpu/0/clock/35)
| +- Core (Tctl/Tdie) : 44.375 34.875 59.5 (/amdcpu/0/temperature/2)
| +- CCD1 (Tdie) : 29.5 26.5 67.75 (/amdcpu/0/temperature/4)
| +- CCD2 (Tdie) : 25.25 22.75 41.75 (/amdcpu/0/temperature/5)
| +- CCDs Max (Tdie) : 29.5 26.5 67.75 (/amdcpu/0/temperature/6)
| +- CCDs Average (Tdie) : 27.375 24.625 50 (/amdcpu/0/temperature/7)
| +- CPU Total : 0.0984311 0 8.75 (/amdcpu/0/load/0)
| +- CPU Core #1 : 0 0 98.4849 (/amdcpu/0/load/1)
| +- CPU Core #2 : 0 0 26.1538 (/amdcpu/0/load/2)
| +- CPU Core #3 : 0 0 10.9375 (/amdcpu/0/load/3)
| +- CPU Core #4 : 1.5873 0 20 (/amdcpu/0/load/4)
| +- CPU Core #5 : 1.5625 0 71.875 (/amdcpu/0/load/5)
| +- CPU Core #6 : 0 0 42.1875 (/amdcpu/0/load/6)
| +- CPU Core #7 : 0 0 9.375 (/amdcpu/0/load/7)
| +- CPU Core #8 : 0 0 3.07692 (/amdcpu/0/load/8)
| +- CPU Core #9 : 0 0 73.3333 (/amdcpu/0/load/9)
| +- CPU Core #10 : 0 0 60.9375 (/amdcpu/0/load/10)
| +- CPU Core #11 : 0 0 9.375 (/amdcpu/0/load/11)
| +- CPU Core #12 : 0 0 3.07692 (/amdcpu/0/load/12)
| +- CPU Core #13 : 0 0 26.1538 (/amdcpu/0/load/13)
| +- CPU Core #14 : 0 0 3.125 (/amdcpu/0/load/14)
| +- CPU Core #15 : 0 0 23.0769 (/amdcpu/0/load/15)
| +- CPU Core #16 : 0 0 4.61538 (/amdcpu/0/load/16)
| +- CPU Core #17 : 0 0 3.125 (/amdcpu/0/load/17)
| +- CPU Core #18 : 0 0 3.125 (/amdcpu/0/load/18)
| +- CPU Core #19 : 0 0 6.15385 (/amdcpu/0/load/19)
| +- CPU Core #20 : 0 0 7.69231 (/amdcpu/0/load/20)
| +- CPU Core #21 : 0 0 3.125 (/amdcpu/0/load/21)
| +- CPU Core #22 : 0 0 3.07692 (/amdcpu/0/load/22)
| +- CPU Core #23 : 0 0 7.69231 (/amdcpu/0/load/23)
| +- CPU Core #24 : 0 0 3.0303 (/amdcpu/0/load/24)
| +- CPU Core #25 : 0 0 4.6875 (/amdcpu/0/load/25)
| +- CPU Core #26 : 0 0 3.07692 (/amdcpu/0/load/26)
| +- CPU Core #27 : 0 0 4.6875 (/amdcpu/0/load/27)
| +- CPU Core #28 : 0 0 3.07692 (/amdcpu/0/load/28)
| +- CPU Core #29 : 0 0 6.25 (/amdcpu/0/load/29)
| +- CPU Core #30 : 0 0 3.1746 (/amdcpu/0/load/30)
| +- CPU Core #31 : 0 0 75 (/amdcpu/0/load/31)
| +- CPU Core #32 : 0 0 6.25 (/amdcpu/0/load/32)
| +- Core #1 : 36 36 50.5 (/amdcpu/0/factor/0)
| +- Core #2 : 36 36 49 (/amdcpu/0/factor/1)
| +- Core #3 : 36 36 50.5 (/amdcpu/0/factor/2)
| +- Core #4 : 36 36 49 (/amdcpu/0/factor/3)
| +- Core #5 : 36 28.8 50.5 (/amdcpu/0/factor/4)
| +- Core #6 : 36 28.8 49 (/amdcpu/0/factor/5)
| +- Core #7 : 36 28.8 49 (/amdcpu/0/factor/6)
| +- Core #8 : 36 28.8 49 (/amdcpu/0/factor/7)
| +- Core #9 : 36 28.8 49 (/amdcpu/0/factor/8)
| +- Core #10 : 36 28.8 49 (/amdcpu/0/factor/9)
| +- Core #11 : 36 28.8 49 (/amdcpu/0/factor/10)
| +- Core #12 : 36 28.8 49 (/amdcpu/0/factor/11)
| +- Core #13 : 36 28.8 49 (/amdcpu/0/factor/12)
| +- Core #14 : 36 28.8 49 (/amdcpu/0/factor/13)
| +- Core #15 : 36 28.8 49 (/amdcpu/0/factor/14)
| +- Core #16 : 36 28.8 49 (/amdcpu/0/factor/15)
|
+- Generic Memory (/ram)
| +- Memory : 15.6398 14.9993 16.6026 (/ram/load/0)
| +- Virtual Memory : 19.7759 19.0881 21.022 (/ram/load/1)
| +- Memory Used : 4.98893 4.78462 5.29607 (/ram/data/0)
| +- Memory Available : 26.91 26.6029 27.1144 (/ram/data/1)
| +- Virtual Memory Used : 7.24765 6.9956 7.70435 (/ram/data/2)
| +- Virtual Memory Available : 29.4013 28.9446 29.6534 (/ram/data/3)
|
+- Seagate FireCuda 530 ZP2000GM30023 (/nvme/0)
| +- Temperature : 28 0 29 (/nvme/0/temperature/0)
| +- Used Space : (/nvme/0/load/0)
| +- Write Activity : (/nvme/0/load/32)
| +- Total Activity : (/nvme/0/load/33)
| +- Available Spare : 100 0 100 (/nvme/0/level/1)
| +- Available Spare Threshold : 5 0 5 (/nvme/0/level/2)
| +- Percentage Used : 0 0 0 (/nvme/0/level/3)
| +- Data Read : 312 0 312 (/nvme/0/data/4)
| +- Data Written : 294 0 294 (/nvme/0/data/5)
| +- Read Rate : (/nvme/0/throughput/34)
| +- Write Rate : (/nvme/0/throughput/35)
Parameters
|
+- Gigabyte X570S AORUS MASTER (/motherboard)
| |
| +- ITE IT8689E (/lpc/it8689e)
| | |
| | +- Voltage #1 (/lpc/it8689e/voltage/0)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #2 (/lpc/it8689e/voltage/1)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #3 (/lpc/it8689e/voltage/2)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #4 (/lpc/it8689e/voltage/3)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #5 (/lpc/it8689e/voltage/4)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #6 (/lpc/it8689e/voltage/5)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #7 (/lpc/it8689e/voltage/6)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- 3VSB (/lpc/it8689e/voltage/7)
| | | +- Ri [kΩ] : 10 : 10
| | | +- Rf [kΩ] : 10 : 10
| | | +- Vf [V] : 0 : 0
| | |
| | +- VBat (/lpc/it8689e/voltage/8)
| | | +- Ri [kΩ] : 10 : 10
| | | +- Rf [kΩ] : 10 : 10
| | | +- Vf [V] : 0 : 0
| | |
| | +- Temperature #1 (/lpc/it8689e/temperature/0)
| | | +- Offset [°C] : 0 : 0
| | |
| | +- Temperature #3 (/lpc/it8689e/temperature/2)
| | | +- Offset [°C] : 0 : 0
| | |
| | +- Temperature #4 (/lpc/it8689e/temperature/3)
| | | +- Offset [°C] : 0 : 0
| | |
| | +- Temperature #5 (/lpc/it8689e/temperature/4)
| | | +- Offset [°C] : 0 : 0
| | |
| | +- Temperature #6 (/lpc/it8689e/temperature/5)
| | | +- Offset [°C] : 0 : 0
| |
| +- ITE IT8695E (/lpc/it8695e)
| | |
| | +- Voltage #1 (/lpc/it8695e/voltage/0)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #2 (/lpc/it8695e/voltage/1)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #3 (/lpc/it8695e/voltage/2)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #4 (/lpc/it8695e/voltage/3)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #5 (/lpc/it8695e/voltage/4)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Voltage #6 (/lpc/it8695e/voltage/5)
| | | +- Ri [kΩ] : 0 : 0
| | | +- Rf [kΩ] : 1 : 1
| | | +- Vf [V] : 0 : 0
| | |
| | +- Temperature #1 (/lpc/it8695e/temperature/0)
| | | +- Offset [°C] : 0 : 0
| | |
| | +- Temperature #3 (/lpc/it8695e/temperature/2)
| | | +- Offset [°C] : 0 : 0
|
+- AMD Ryzen 9 5950X 1 (/amdcpu/0)
|
+- Generic Memory (/ram)
|
+- Seagate FireCuda 530 ZP2000GM30023 (/nvme/0)
Motherboard
SMBios Version: 3.3
BIOS Vendor: American Megatrends International, LLC.
BIOS Version: F4d
BIOS Date: 12/05/2022
BIOS Size: 32 MB
System Manufacturer: Gigabyte Technology Co., Ltd.
System Name: X570S AORUS MASTER
System Version: -CF
System Wakeup: PowerSwitch
Motherboard Manufacturer: Gigabyte Technology Co., Ltd.
Motherboard Name: X570S AORUS MASTER
Motherboard Version: x.x
Motherboard Serial: Default string
System Enclosure Type: Desktop
System Enclosure Manufacturer: Default string
System Enclosure Version: Default string
System Enclosure Serial: Default string
System Enclosure Asset Tag: Default string
System Enclosure SKU: Default string
System Enclosure Boot Up State: Safe
System Enclosure Power Supply State: Safe
System Enclosure Thermal State: Safe
System Enclosure Power Cords: 1
System Enclosure Lock Detected: No
System Enclosure Security Status: None
Processor Manufacturer: Advanced Micro Devices, Inc.
Processor Type: CentralProcessor
Processor Version: AMD Ryzen 9 5950X 16-Core Processor
Processor Serial: Unknown
Processor Socket Destignation: AM4
Processor Socket: AM4
Processor Version: AMD Ryzen 9 5950X 16-Core Processor
Processor Family: AmdZen
Processor Core Count: 16
Processor Core Enabled: 16
Processor Thread Count: 32
Processor External Clock: 100 Mhz
Processor Max Speed: 5050 Mhz
Processor Current Speed: 3400 Mhz
Cache [L1] Size: 1024
Cache [L1] Associativity: 8Way
Cache [L2] Size: 8192
Cache [L2] Associativity: 8Way
Cache [L3] Size: 33792
Cache [L3] Associativity: 16Way
Memory Device [0] Manufacturer: Unknown
Memory Device [0] Part Number: Unknown
Memory Device [0] Device Locator: DIMM 0
Memory Device [0] Bank Locator: P0 CHANNEL A
Memory Device [0] Speed: 0
Memory Device [0] Size: 0 MB
Memory Device [1] Manufacturer: Unknown
Memory Device [1] Part Number: F4-3600C16-16GTZN
Memory Device [1] Device Locator: DIMM 1
Memory Device [1] Bank Locator: P0 CHANNEL A
Memory Device [1] Speed: 3600
Memory Device [1] Size: 16384 MB
Memory Device [2] Manufacturer: Unknown
Memory Device [2] Part Number: Unknown
Memory Device [2] Device Locator: DIMM 0
Memory Device [2] Bank Locator: P0 CHANNEL B
Memory Device [2] Speed: 0
Memory Device [2] Size: 0 MB
Memory Device [3] Manufacturer: Unknown
Memory Device [3] Part Number: F4-3600C16-16GTZN
Memory Device [3] Device Locator: DIMM 1
Memory Device [3] Bank Locator: P0 CHANNEL B
Memory Device [3] Speed: 3600
Memory Device [3] Size: 16384 MB
SMBios Table
AAMDALcJAAAAGgAAAQIA8AP/gJj7dwEAAAADDQUR//8gAEFtZXJpY2FuIE1lZ2F0
cmVuZHMgSW50ZXJuYXRpb25hbCwgTExDLgBGNGQAMDUvMTIvMjAyMgAAARsBAAEC
AwTYAl4D0wQNBfcG9wcACAAJBgUGR2lnYWJ5dGUgVGVjaG5vbG9neSBDby4sIEx0
ZC4AWDU3MFMgQU9SVVMgTUFTVEVSAC1DRgBEZWZhdWx0IHN0cmluZwBEZWZhdWx0
IHN0cmluZwBYNTcwIE1CAAACDwIAAQIDBAUJBgMACgBHaWdhYnl0ZSBUZWNobm9s
b2d5IENvLiwgTHRkLgBYNTcwUyBBT1JVUyBNQVNURVIAeC54AERlZmF1bHQgc3Ry
aW5nAERlZmF1bHQgc3RyaW5nAERlZmF1bHQgc3RyaW5nAAADFgMAAQMCAwQDAwMD
AAAAAAABAAMFRGVmYXVsdCBzdHJpbmcARGVmYXVsdCBzdHJpbmcARGVmYXVsdCBz
dHJpbmcARGVmYXVsdCBzdHJpbmcARGVmYXVsdCBzdHJpbmcAAAoGBACDASAgIFRv
IEJlIEZpbGxlZCBCeSBPLkUuTS4AAAsFBQABRGVmYXVsdCBzdHJpbmcAAAwFBgAB
RGVmYXVsdCBzdHJpbmcAACAUBwAAAAAAAAAAAAAAAAAAAAAAAAAsCQgA//8BAQAA
ACsfCQBBTUQAAgBUAAMABQAAAAIQAAAAAAAAAAAAAABUUE0gMi4wAEFNRAAAEhcK
AAMCAgAAAAAAAACAAAAAgAAAAIAAABAXCwADAwMAAAAICgAEAAAAAAAAAAAAAAAT
HwwAAAAAAP//LwALAAIAAAAAAAAAAAAAAAAAAAAAAAATHw0AAABAAP//DwILAAIA
AAAAAAAAAAAAAAAAAAAAAAAHGw4AAYABAAQABBAAEAABBgUHAAQAAAAEAABMMSAt
IENhY2hlAAAHGw8AAYEBACAAIBAAEAABBgUHACAAAAAgAABMMiAtIENhY2hlAAAH
GxAAAYIBAIQAhBAAEAABBgUIAAQAgAAEAIBMMyAtIENhY2hlAAAEMBEAAQNrAhAP
ogD/+4sXA4tkALoTSA1BMQ4ADwAQAAQFBhAQIPwAawAQABAAIABBTTQAQWR2YW5j
ZWQgTWljcm8gRGV2aWNlcywgSW5jLgBBTUQgUnl6ZW4gOSA1OTUwWCAxNi1Db3Jl
IFByb2Nlc3NvciAgICAgICAgICAgIABVbmtub3duAFVua25vd24AVW5rbm93bgAA
EhcSAAMCAgAAAAAAAACAAAAAgAAAAIAAABFcEwALABIA/////wAAAgABAgIEAAAA
AwQABQAAAAAAAAAAAAAAAAACBAAGAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAARElNTSAwAFAwIENIQU5ORUwgQQBVbmtub3du
AFVua25vd24AVW5rbm93bgBVbmtub3duAAASFxQAAwICAAAAAAAAAIAAAACAAAAA
gAAAEVwVAAsAFABAAEAAAEAJAAECGoBAEA4DBAAFAgAAAAAQDrAEsASwBAMIAAYE
zQAAAAAAAAAAAAAAAAAAAAAAAAQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAABE
SU1NIDEAUDAgQ0hBTk5FTCBBAFVua25vd24AMDAwMDAwMDAARjQtMzYwMEMxNi0x
NkdUWk4AVW5rbm93bgAAFCMWAAAAAAD///8BFQANAP///wAAAAAAAAAAAAAAAAAA
AAAAABIXFwADAgIAAAAAAAAAgAAAAIAAAACAAAARXBgACwAXAP////8AAAIAAQIC
BAAAAAMEAAUAAAAAAAAAAAAAAAAAAgQABgAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAERJTU0gMABQMCBDSEFOTkVMIEIAVW5r
bm93bgBVbmtub3duAFVua25vd24AVW5rbm93bgAAEhcZAAMCAgAAAAAAAACAAAAA
gAAAAIAAABFcGgALABkAQABAAABACQABAhqAQBAOAwQABQIAAAAAEA6wBLAEsAQD
CAAGBM0AAAAAAAAAAAAAAAAAAAAAAAAEAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA
AAAARElNTSAxAFAwIENIQU5ORUwgQgBVbmtub3duADAwMDAwMDAwAEY0LTM2MDBD
MTYtMTZHVFpOAFVua25vd24AABQjGwAAAAAA////ARoADQD///8AAAAAAAAAAAAA
AAAAAAAAAAAICRwAAQACEhBKMTUwMABVU0IgMy4wAAAICR0AAQACEhBKMTUwMQBV
U0IgMy4wAAAICR4AAQACEhBKMTUwMgBVU0ItQwAACAkfAAEAAhIQSjE1MDgAVVNC
LUMAAAgJIAABAAISEEoxNTA2AFVTQiAzLjEAAAgJIQABAAISEEoxNTA0AFVTQiAz
LjEAAAgJIgABAAILH0oxMzAxAE5ldHdvcmsAAAgJIwABIgIAIEoxNzAxAGlTQVRB
AAAICSQAASICACBKMTcwMgBpU0FUQQAACAklAAEiAgAgSjE3MDMAaVNBVEEAAAgJ
JgABIgIAIEoxNzA2AGlTQVRBAAAICScAAQACABxKMTEwMABIRE1JAAAICSgAAQAC
ABxKMTEwMQBIRE1JAAAICSkAAQACABxKMTEwMgBEUAAACAkqAAEAAh8dSjIxMDAA
RnJvbnQgQXVkaW8AAAgJKwABAAIfHUoyMTAxAEF1ZGlvIEphY2sAAAkRLAABqg0E
AwwABAEAAAAZSjEwAAAJES0AAakLAwMNAAQBAAAA/0ozNjAwIFBjaWUgeDggc2xv
dAAACREuAAGoCgMDAgAEAQAAAP9KMzcwOCBQQ0lFIHg0IHNsb3QgZnJvbSBCaXhi
eQAAKQsvAAEFAQAAAwBSVEw4MTExRVBWAAANFjAADwAAAAAAAAAAAAAAAAAAAAAB
ZW58VVN8aXNvODg1OS0xAHpofFRXfHVuaWNvZGUAemh8Q058dW5pY29kZQBydXxS
VXxpc284ODU5LTUAZGV8REV8aXNvODg1OS0xAGphfEpQfHVuaWNvZGUAa298S1J8
dW5pY29kZQBlc3xFU3xpc284ODU5LTEAZnJ8RlJ8aXNvODg1OS0xAGl0fElUfGlz
bzg4NTktMQBwdHxQVHxpc284ODU5LTEAdml8Vkl8aXNvODg1OS0xAGlkfElEfGlz
bzg4NTktMQB0cnxUUnxpc284ODU5LTEAcGx8UEx8aXNvODg1OS0xAAB/BDEAAAA=
LpcIO
Chip ID: Unknown Winbond / Nuvoton / Fintek with ID 0x8695 at 0x4E/0x4F
LPC IT87XX
Chip ID: 0x8689
Chip Version: 0x1
Base Address: 0x0A40
GPIO Address: 0x0A00
Environment Controller Registers Bank 0
00 13 10 00 80 DF FF 00 20 FF 98 48 40 30 1C FF FF
10 FE FF FF 77 C7 D0 C0 C0 02 FF FF FF FF FF FF FF
20 65 A7 A9 A7 63 4B 71 8A 7E 1B C9 2C 26 26 26 80
30 FF 00 FF 00 FF 00 FF 00 FF 00 FF 00 FF 00 FF 00
40 7F 7F 7F 7F 7F 7F 5F 40 AD 6A D4 00 00 00 00 00
50 FF 18 7F 7F 7F 40 00 00 90 00 28 12 65 00 00 00
60 00 14 46 1A 02 01 00 C0 00 14 46 46 02 01 00 FF
70 00 14 46 46 02 01 00 2E 00 14 46 46 02 01 00 C0
80 FF FF FF FF FF FF FF FF 01 00 00 00 00 5C 67 C2
90 00 00 00 00 FF 10 10 10 42 99 00 00 01 BC F2 2C
A0 00 14 46 46 02 01 00 D0 7F 7F 96 80 00 00 0F 98
Environment Controller Registers Bank 1
00 13 10 00 00 DF FF 20 20 FF 98 48 40 30 1C FF FF
10 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
20 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
30 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
40 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
50 FF FF FF FF FF FF FF FF FF FF 41 41 41 41 41 41
60 41 41 41 41 41 41 41 41 41 53 5F FF FF FF FF FF
70 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
80 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
90 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
A0 00 14 46 46 02 01 00 D0 7F 7F 96 80 00 00 0F 98
Environment Controller Registers Bank 2
00 13 10 00 00 DF FF 40 20 FF 98 48 40 30 1C FF FF
10 1E 02 80 2E 28 02 80 42 32 02 80 56 00 00 02 00
20 1E 02 80 5A 28 02 80 6E 32 02 80 82 00 14 75 FF
30 1E 02 80 5A 28 02 80 6E 32 02 80 82 00 77 5B FF
40 1E 02 80 5A 28 02 80 6E 32 02 80 82 00 00 00 00
50 1E 02 80 5A 28 02 80 6E 32 02 80 82 00 00 00 00
60 7F 00 00 00 7F 00 00 00 7F 00 00 00 00 00 00 00
70 4C 4B 00 00 00 00 00 00 00 00 18 18 00 00 00 00
80 7F 00 7F 00 00 00 00 00 00 00 00 00 00 00 00 00
90 00 00 00 00 00 00 00 00 00 00 00 08 08 08 08 08
A0 00 14 46 46 02 01 00 D0 7F 7F 96 80 00 00 0F 98
Environment Controller Registers Bank 3
00 13 10 00 00 DF FF 60 20 FF 98 48 40 30 1C FF FF
10 38 11 41 00 50 1F 50 00 50 00 50 00 03 03 07 00
20 38 1C 3C 00 3C 00 3C 00 3C 00 3C 00 03 02 00 00
30 38 1C 3C 00 3C 00 3C 00 3C 00 3C 00 03 02 00 00
40 38 1C 3C 00 3C 00 3C 00 3C 00 3C 00 03 02 00 00
50 38 0C 41 00 41 00 41 00 41 00 41 00 03 04 00 00
60 7F 00 7F 00 7F 00 7F 00 7F 00 7F 00 00 00 00 00
70 62 FF FF FF FF FF 8E FF FF FF FF FF 00 00 FF FF
80 8E FF FF FF FF FF 8E FF FF FF FF FF 00 00 FF FF
90 8E FF FF FF FF FF 00 00 00 00 00 00 00 00 FF FF
A0 00 14 46 46 02 01 00 D0 7F 7F 96 80 00 00 0F 98
GPIO Registers
LPC IT87XX
Chip ID: 0x8695
Chip Version: 0x1
Base Address: 0x0A60
GPIO Address: 0x0A50
Environment Controller Registers Bank 0
00 19 10 02 08 FF FF 00 00 00 80 48 00 30 FF FF FF
10 FF FF FF 77 C7 00 00 02 FF FF FF FF FF FF 19 19
20 A6 FF 56 08 A6 6D 82 9A 8A 22 C9 1D 79 0F CF 9A
30 FF 00 FF 00 FF 00 FF 00 FF 00 FF 00 FF 00 FF 00
40 7F 7F 7F 7F 7F 7F 5F 40 AD 6A D4 00 00 00 FF FF
50 FF 38 7F 7F 7F 40 00 00 90 00 35 12 65 00 00 00
60 00 14 41 7E 1C 03 00 FF 00 14 41 7E 1C 03 00 FF
70 00 14 41 5A 1C 03 00 FF FF FF FF 80 FF FF 0F FF
80 FF FF 00 00 FF FF FF FF 00 00 00 00 00 E2 02 18
90 FF 00 00 00 FF 00 00 00 07 97 00 00 40 73 C1 2A
A0 7A DF 00 00 FF FF FF FF FF FF FF FF FF FF FF FF
GPIO Registers
CPUID
Processor 0
Processor Vendor: AMD
Processor Brand: AMD Ryzen 9 5950X 16-Core Processor
Family: 0x19
Model: 0x21
Stepping: 0x0
CPUID Return Values
CPU Group: 0
CPU Thread: 0
APIC ID: 0
Processor ID: 0
Core ID: 0
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 00200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000000
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000000 00000100 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 1
APIC ID: 1
Processor ID: 0
Core ID: 1
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 01200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000001
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000001 00000100 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 2
APIC ID: 2
Processor ID: 0
Core ID: 2
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 02200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000002
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000002 00000101 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 3
APIC ID: 3
Processor ID: 0
Core ID: 3
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 03200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000003
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000003 00000101 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 4
APIC ID: 4
Processor ID: 0
Core ID: 4
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 04200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000004
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000004 00000102 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 5
APIC ID: 5
Processor ID: 0
Core ID: 5
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 05200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000005
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000005 00000102 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 6
APIC ID: 6
Processor ID: 0
Core ID: 6
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 06200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000006
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000006 00000103 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 7
APIC ID: 7
Processor ID: 0
Core ID: 7
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 07200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000007
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000007 00000103 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 8
APIC ID: 8
Processor ID: 0
Core ID: 8
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 08200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000008
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000008 00000104 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 9
APIC ID: 9
Processor ID: 0
Core ID: 9
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 09200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000009
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000009 00000104 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 10
APIC ID: 10
Processor ID: 0
Core ID: 10
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 0A200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000000A
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000000A 00000105 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 11
APIC ID: 11
Processor ID: 0
Core ID: 11
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 0B200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000000B
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000000B 00000105 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 12
APIC ID: 12
Processor ID: 0
Core ID: 12
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 0C200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000000C
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000000C 00000106 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 13
APIC ID: 13
Processor ID: 0
Core ID: 13
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 0D200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000000D
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000000D 00000106 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 14
APIC ID: 14
Processor ID: 0
Core ID: 14
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 0E200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000000E
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000000E 00000107 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 15
APIC ID: 15
Processor ID: 0
Core ID: 15
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 0F200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000000F
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000000F 00000107 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 16
APIC ID: 16
Processor ID: 0
Core ID: 16
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 10200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000010
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000010 00000108 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 17
APIC ID: 17
Processor ID: 0
Core ID: 17
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 11200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000011
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000011 00000108 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 18
APIC ID: 18
Processor ID: 0
Core ID: 18
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 12200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000012
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000012 00000109 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 19
APIC ID: 19
Processor ID: 0
Core ID: 19
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 13200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000013
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000013 00000109 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 20
APIC ID: 20
Processor ID: 0
Core ID: 20
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 14200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000014
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000014 0000010A 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 21
APIC ID: 21
Processor ID: 0
Core ID: 21
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 15200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000015
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000015 0000010A 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 22
APIC ID: 22
Processor ID: 0
Core ID: 22
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 16200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000016
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000016 0000010B 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 23
APIC ID: 23
Processor ID: 0
Core ID: 23
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 17200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000017
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000017 0000010B 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 24
APIC ID: 24
Processor ID: 0
Core ID: 24
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 18200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000018
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000018 0000010C 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 25
APIC ID: 25
Processor ID: 0
Core ID: 25
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 19200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 00000019
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 00000019 0000010C 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 26
APIC ID: 26
Processor ID: 0
Core ID: 26
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 1A200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000001A
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000001A 0000010D 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 27
APIC ID: 27
Processor ID: 0
Core ID: 27
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 1B200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000001B
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000001B 0000010D 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 28
APIC ID: 28
Processor ID: 0
Core ID: 28
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 1C200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000001C
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000001C 0000010E 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 29
APIC ID: 29
Processor ID: 0
Core ID: 29
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 1D200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000001D
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000001D 0000010E 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 30
APIC ID: 30
Processor ID: 0
Core ID: 30
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 1E200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000001E
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000001E 0000010F 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
CPU Group: 0
CPU Thread: 31
APIC ID: 31
Processor ID: 0
Core ID: 31
Thread ID: 0
Function EAX EBX ECX EDX
00000000 00000010 68747541 444D4163 69746E65
00000001 00A20F10 1F200800 7EF8320B 178BFBFF
00000002 00000000 00000000 00000000 00000000
00000003 00000000 00000000 00000000 00000000
00000004 00000000 00000000 00000000 00000000
00000005 00000040 00000040 00000003 00000011
00000006 00000004 00000000 00000001 00000000
00000007 00000000 219C97A9 0040068C 00000010
00000008 00000000 00000000 00000000 00000000
00000009 00000000 00000000 00000000 00000000
0000000A 00000000 00000000 00000000 00000000
0000000B 00000001 00000002 00000100 0000001F
0000000C 00000000 00000000 00000000 00000000
0000000D 00000207 00000340 00000988 00000000
0000000E 00000000 00000000 00000000 00000000
0000000F 00000000 000000FF 00000000 00000002
00000010 00000000 00000002 00000000 00000000
80000000 80000023 68747541 444D4163 69746E65
80000001 00A20F10 20000000 75C237FF 2FD3FBFF
80000002 20444D41 657A7952 2039206E 30353935
80000003 36312058 726F432D 72502065 7365636F
80000004 20726F73 20202020 20202020 00202020
80000005 FF40FF40 FF40FF40 20080140 20080140
80000006 48002200 68004200 02006140 02009140
80000007 00000000 0000003B 00000000 00006799
80000008 00003030 111EF657 0000501F 00010000
80000009 00000000 00000000 00000000 00000000
8000000A 00000001 00008000 00000000 101BBCFF
8000000B 00000000 00000000 00000000 00000000
8000000C 00000000 00000000 00000000 00000000
8000000D 00000000 00000000 00000000 00000000
8000000E 00000000 00000000 00000000 00000000
8000000F 00000000 00000000 00000000 00000000
80000010 00000000 00000000 00000000 00000000
80000011 00000000 00000000 00000000 00000000
80000012 00000000 00000000 00000000 00000000
80000013 00000000 00000000 00000000 00000000
80000014 00000000 00000000 00000000 00000000
80000015 00000000 00000000 00000000 00000000
80000016 00000000 00000000 00000000 00000000
80000017 00000000 00000000 00000000 00000000
80000018 00000000 00000000 00000000 00000000
80000019 F040F040 F0400000 00000000 00000000
8000001A 00000006 00000000 00000000 00000000
8000001B 000003FF 00000000 00000000 00000000
8000001C 00000000 00000000 00000000 00000000
8000001D 00004121 01C0003F 0000003F 00000000
8000001E 0000001F 0000010F 00000000 00000000
8000001F 0001780F 00000173 000001FD 00000001
80000020 00000000 00000002 00000000 00000000
80000021 0000004D 00000000 00000000 00000000
80000022 00000000 00000000 00000000 00000000
80000023 00000000 00000000 00000000 00000000
AMD CPU
Name: AMD Ryzen 9 5950X 1
Number of Cores: 32
Threads per Core: 1
Timer Frequency: 10 MHz
Time Stamp Counter: None
Estimated Time Stamp Counter Frequency: 3400.23 MHz
Estimated Time Stamp Counter Frequency Error: 0 Mhz
Time Stamp Counter Frequency: 3400.23 MHz
MSR Core #1
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFC7F4A3
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #2
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFF96BF9
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #3
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFCAF14E
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #4
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFE2B35E
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #5
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFB7FC3A
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #6
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFD18A99
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #7
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFDB79DA
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #8
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFCB8AA6
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #9
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFBE33CE
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #10
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFB5B8F6
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #11
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFF2A7D5
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #12
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFF271FF
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #13
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFD4B445
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #14
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFE0EA62
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #15
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFC9C4DC
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #16
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFBA80AE
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #17
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFF3E8CB
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #18
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFC8F5E7
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #19
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFC60EA9
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #20
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFCB28F3
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #21
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFDDE799
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #22
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFD8AFAB
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #23
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFFD1A57
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #24
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFCDEDD7
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #25
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFCF4332
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #26
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFCEC09C
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #27
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFE518D3
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #28
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFD86374
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #29
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFF4A5A9
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #30
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFDE32EA
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #31
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFDC80B3
C0010015 00000001 89000011
C0010064 80000000 48920888
MSR Core #32
MSR EDX EAX
C0010000 00000000 00000000
C0010004 0000FFFF FFDDFF3C
C0010015 00000001 89000011
C0010064 80000000 48920888
Ryzen SMU
PM table version: 0x00380805
PM table supported: True
PM table layout defined: True
PM table size: 0x8F0
PM table start address: 0xBC3A1000
PM table dump:
Idx Offset Value
10 0x028 0
11 0x02C 0
12 0x030 0
13 0x034 0
14 0x038 0
15 0x03C 0
16 0x040 0
17 0x044 0
18 0x048 0
19 0x04C 0
20 0x050 0
21 0x054 0
22 0x058 0
23 0x05C 0
24 0x060 0
25 0x064 0
26 0x068 0
27 0x06C 0
28 0x070 0
29 0x074 0
30 0x078 0
31 0x07C 0
32 0x080 0
33 0x084 0
34 0x088 0
35 0x08C 0
36 0x090 0
37 0x094 0
38 0x098 0
39 0x09C 0
40 0x0A0 0
41 0x0A4 0
42 0x0A8 0
43 0x0AC 0
44 0x0B0 0
45 0x0B4 0
46 0x0B8 0
47 0x0BC 0
48 0x0C0 0
49 0x0C4 0
50 0x0C8 0
51 0x0CC 0
52 0x0D0 0
53 0x0D4 0
54 0x0D8 0
55 0x0DC 0
56 0x0E0 0
57 0x0E4 0
58 0x0E8 0
59 0x0EC 0
60 0x0F0 0
61 0x0F4 0
62 0x0F8 0
63 0x0FC 0
64 0x100 0
65 0x104 0
66 0x108 0
67 0x10C 0
68 0x110 0
69 0x114 0
70 0x118 0
71 0x11C 0
72 0x120 0
73 0x124 0
74 0x128 0
75 0x12C 0
76 0x130 0
77 0x134 0
78 0x138 0
79 0x13C 0
80 0x140 0
81 0x144 0
82 0x148 0
83 0x14C 0
84 0x150 0
85 0x154 0
86 0x158 0
87 0x15C 0
88 0x160 0
89 0x164 0
90 0x168 0
91 0x16C 0
92 0x170 0
93 0x174 0
94 0x178 0
95 0x17C 0
96 0x180 0
97 0x184 0
98 0x188 0
99 0x18C 0
100 0x190 0
101 0x194 0
102 0x198 0
103 0x19C 0
104 0x1A0 0
105 0x1A4 0
106 0x1A8 0
107 0x1AC 0
108 0x1B0 0
109 0x1B4 0
110 0x1B8 0
111 0x1BC 0
112 0x1C0 0
113 0x1C4 0
114 0x1C8 0
115 0x1CC 0
116 0x1D0 0
117 0x1D4 0
118 0x1D8 0
119 0x1DC 0
120 0x1E0 0
121 0x1E4 0
122 0x1E8 0
123 0x1EC 0
124 0x1F0 0
125 0x1F4 0
126 0x1F8 0
127 0x1FC 0
128 0x200 0
129 0x204 0
130 0x208 0
131 0x20C 0
132 0x210 0
133 0x214 0
134 0x218 0
135 0x21C 0
136 0x220 0
137 0x224 0
138 0x228 0
139 0x22C 0
140 0x230 0
141 0x234 0
142 0x238 0
143 0x23C 0
144 0x240 0
145 0x244 0
146 0x248 0
147 0x24C 0
148 0x250 0
149 0x254 0
150 0x258 0
151 0x25C 0
152 0x260 0
153 0x264 0
154 0x268 0
155 0x26C 0
156 0x270 0
157 0x274 0
158 0x278 0
159 0x27C 0
160 0x280 0
161 0x284 0
162 0x288 0
163 0x28C 0
164 0x290 0
165 0x294 0
166 0x298 0
167 0x29C 0
168 0x2A0 0
169 0x2A4 0
170 0x2A8 0
171 0x2AC 0
172 0x2B0 0
173 0x2B4 0
174 0x2B8 0
175 0x2BC 0
176 0x2C0 0
177 0x2C4 0
178 0x2C8 0
179 0x2CC 0
180 0x2D0 0
181 0x2D4 0
182 0x2D8 0
183 0x2DC 0
184 0x2E0 0
185 0x2E4 0
186 0x2E8 0
187 0x2EC 0
188 0x2F0 0
189 0x2F4 0
190 0x2F8 0
191 0x2FC 0
192 0x300 0
193 0x304 0
194 0x308 0
195 0x30C 0
196 0x310 0
197 0x314 0
198 0x318 0
199 0x31C 0
200 0x320 0
201 0x324 0
202 0x328 0
203 0x32C 0
204 0x330 0
205 0x334 0
206 0x338 0
207 0x33C 0
208 0x340 0
209 0x344 0
210 0x348 0
211 0x34C 0
212 0x350 0
213 0x354 0
214 0x358 0
215 0x35C 0
216 0x360 0
217 0x364 0
218 0x368 0
219 0x36C 0
220 0x370 0
221 0x374 0
222 0x378 0
223 0x37C 0
224 0x380 0
225 0x384 0
226 0x388 0
227 0x38C 0
228 0x390 0
229 0x394 0
230 0x398 0
231 0x39C 0
232 0x3A0 0
233 0x3A4 0
234 0x3A8 0
235 0x3AC 0
236 0x3B0 0
237 0x3B4 0
238 0x3B8 0
239 0x3BC 0
240 0x3C0 0
241 0x3C4 0
242 0x3C8 0
243 0x3CC 0
244 0x3D0 0
245 0x3D4 0
246 0x3D8 0
247 0x3DC 0
248 0x3E0 0
249 0x3E4 0
250 0x3E8 0
251 0x3EC 0
252 0x3F0 0
253 0x3F4 0
254 0x3F8 0
255 0x3FC 0
256 0x400 0
257 0x404 0
258 0x408 0
259 0x40C 0
260 0x410 0
261 0x414 0
262 0x418 0
263 0x41C 0
264 0x420 0
265 0x424 0
266 0x428 0
267 0x42C 0
268 0x430 0
269 0x434 0
270 0x438 0
271 0x43C 0
272 0x440 0
273 0x444 0
274 0x448 0
275 0x44C 0
276 0x450 0
277 0x454 0
278 0x458 0
279 0x45C 0
280 0x460 0
281 0x464 0
282 0x468 0
283 0x46C 0
284 0x470 0
285 0x474 0
286 0x478 0
287 0x47C 0
288 0x480 0
289 0x484 0
290 0x488 0
291 0x48C 0
292 0x490 0
293 0x494 0
294 0x498 0
295 0x49C 0
296 0x4A0 0
297 0x4A4 0
298 0x4A8 0
299 0x4AC 0
300 0x4B0 0
301 0x4B4 0
302 0x4B8 0
303 0x4BC 0
304 0x4C0 0
305 0x4C4 0
306 0x4C8 0
307 0x4CC 0
308 0x4D0 0
309 0x4D4 0
310 0x4D8 0
311 0x4DC 0
312 0x4E0 0
313 0x4E4 0
314 0x4E8 0
315 0x4EC 0
316 0x4F0 0
317 0x4F4 0
318 0x4F8 0
319 0x4FC 0
320 0x500 0
321 0x504 0
322 0x508 0
323 0x50C 0
324 0x510 0
325 0x514 0
326 0x518 0
327 0x51C 0
328 0x520 0
329 0x524 0
330 0x528 0
331 0x52C 0
332 0x530 0
333 0x534 0
334 0x538 0
335 0x53C 0
336 0x540 0
337 0x544 0
338 0x548 0
339 0x54C 0
340 0x550 0
341 0x554 0
342 0x558 0
343 0x55C 0
344 0x560 0
345 0x564 0
346 0x568 0
347 0x56C 0
348 0x570 0
349 0x574 0
350 0x578 0
351 0x57C 0
352 0x580 0
353 0x584 0
354 0x588 0
355 0x58C 0
356 0x590 0
357 0x594 0
358 0x598 0
359 0x59C 0
360 0x5A0 0
361 0x5A4 0
362 0x5A8 0
363 0x5AC 0
364 0x5B0 0
365 0x5B4 0
366 0x5B8 0
367 0x5BC 0
368 0x5C0 0
369 0x5C4 0
370 0x5C8 0
371 0x5CC 0
372 0x5D0 0
373 0x5D4 0
374 0x5D8 0
375 0x5DC 0
376 0x5E0 0
377 0x5E4 0
378 0x5E8 0
379 0x5EC 0
380 0x5F0 0
381 0x5F4 0
382 0x5F8 0
383 0x5FC 0
384 0x600 0
385 0x604 0
386 0x608 0
387 0x60C 0
388 0x610 0
389 0x614 0
390 0x618 0
391 0x61C 0
392 0x620 0
393 0x624 0
394 0x628 0
395 0x62C 0
396 0x630 0
397 0x634 0
398 0x638 0
399 0x63C 0
400 0x640 0
401 0x644 0
402 0x648 0
403 0x64C 0
404 0x650 0
405 0x654 0
406 0x658 0
407 0x65C 0
408 0x660 0
409 0x664 0
410 0x668 0
411 0x66C 0
412 0x670 0
413 0x674 0
414 0x678 0
415 0x67C 0
416 0x680 0
417 0x684 0
418 0x688 0
419 0x68C 0
420 0x690 0
421 0x694 0
422 0x698 0
423 0x69C 0
424 0x6A0 0
425 0x6A4 0
426 0x6A8 0
427 0x6AC 0
428 0x6B0 0
429 0x6B4 0
430 0x6B8 0
431 0x6BC 0
432 0x6C0 0
433 0x6C4 0
434 0x6C8 0
435 0x6CC 0
436 0x6D0 0
437 0x6D4 0
438 0x6D8 0
439 0x6DC 0
440 0x6E0 0
441 0x6E4 0
442 0x6E8 0
443 0x6EC 0
444 0x6F0 0
445 0x6F4 0
446 0x6F8 0
447 0x6FC 0
448 0x700 0
449 0x704 0
450 0x708 0
451 0x70C 0
452 0x710 0
453 0x714 0
454 0x718 0
455 0x71C 0
456 0x720 0
457 0x724 0
458 0x728 0
459 0x72C 0
460 0x730 0
461 0x734 0
462 0x738 0
463 0x73C 0
464 0x740 0
465 0x744 0
466 0x748 0
467 0x74C 0
468 0x750 0
469 0x754 0
470 0x758 0
471 0x75C 0
472 0x760 0
473 0x764 0
474 0x768 0
475 0x76C 0
476 0x770 0
477 0x774 0
478 0x778 0
479 0x77C 0
480 0x780 0
481 0x784 0
482 0x788 0
483 0x78C 0
484 0x790 0
485 0x794 0
486 0x798 0
487 0x79C 0
488 0x7A0 0
489 0x7A4 0
490 0x7A8 0
491 0x7AC 0
492 0x7B0 0
493 0x7B4 0
494 0x7B8 0
495 0x7BC 0
496 0x7C0 0
497 0x7C4 0
498 0x7C8 0
499 0x7CC 0
500 0x7D0 0
501 0x7D4 0
502 0x7D8 0
503 0x7DC 0
504 0x7E0 0
505 0x7E4 0
506 0x7E8 0
507 0x7EC 0
508 0x7F0 0
509 0x7F4 0
510 0x7F8 0
511 0x7FC 0
512 0x800 0
513 0x804 0
514 0x808 0
515 0x80C 0
516 0x810 0
517 0x814 0
518 0x818 0
519 0x81C 0
520 0x820 0
521 0x824 0
522 0x828 0
523 0x82C 0
524 0x830 0
525 0x834 0
526 0x838 0
527 0x83C 0
528 0x840 0
529 0x844 0
530 0x848 0
531 0x84C 0
532 0x850 0
533 0x854 0
534 0x858 0
535 0x85C 0
536 0x860 0
537 0x864 0
538 0x868 0
539 0x86C 0
540 0x870 0
541 0x874 0
542 0x878 0
543 0x87C 0
544 0x880 0
545 0x884 0
546 0x888 0
547 0x88C 0
548 0x890 0
549 0x894 0
550 0x898 0
551 0x89C 0
552 0x8A0 0
553 0x8A4 0
554 0x8A8 0
555 0x8AC 0
556 0x8B0 0
557 0x8B4 0
558 0x8B8 0
559 0x8BC 0
560 0x8C0 0
561 0x8C4 0
562 0x8C8 0
563 0x8CC 0
564 0x8D0 0
565 0x8D4 0
566 0x8D8 0
567 0x8DC 0
568 0x8E0 0
569 0x8E4 0
570 0x8E8 0
571 0x8EC 0
AMD Display Library
Status: ADL_ERR
Intel GPU (D3D)
Number of adapters: 2
AdapterIndex: 0
DeviceId: \?\PCI#VEN_10DE&DEV_2204&SUBSYS_38841462&REV_A1#4&2283f625&0&0019#{1ca05180-a699-450a-9a0c-de4fbe3ddd89}
IsIntel: False
AdapterIndex: 1
DeviceId: \?\ROOT#BasicRender#0000#{1ca05180-a699-450a-9a0c-de4fbe3ddd89}
IsIntel: False
FTD2XX
Status: missing DLL
AquaComputer Hardware
No AquaComputer Hardware found.
AeroCool Hardware
No AeroCool Hardware found.
Nzxt Hardware
No Nzxt Hardware found.
Storage
Drive Name: Seagate FireCuda 530 ZP2000GM30023
Firmware Version: SU6SM001
PCI Vendor ID: 0x1bb1
IEEE OUI Identifier: 0x6479a7
Total NVM Capacity: 2000398934016
Unallocated NVM Capacity: 0
Controller ID: 1
Number of Namespaces: 1
Critical Warning: -
Temperature: 28 Celsius
Available Spare: 100%
Available Spare Threshold: 5%
Percentage Used: 0%
Data Units Read: 609551
Data Units Written: 574640
Host Read Commands: 7135492
Host Write Commands: 6514517
Controller Busy Time: 8
Power Cycles: 53
Power On Hours: 49
Unsafe Shutdowns: 21
Media Errors: 0
Number of Error Information Log Entries: 24
Warning Composite Temperature Time: 0
Critical Composite Temperature Time: 0
Logical Drive Name: C:
Format: NTFS
Total Size: 1999732789248
Total Free Space: 1863026688000
Corsair HXi/RMi series PSU Hardware
Beta Was this translation helpful? Give feedback.
All reactions
