Grid subsetting

Function subsetGrid in transformeR allows to make subsets of grid data, hence, the needed data can be loaded at once and then make subsets of the geographic domain or the time period creating several objects from the same data.

Time period:

data(NCEP_Iberia_tas)
range(NCEP_Iberia_tas$Dates)

## [1] "1990-12-01 GMT" "2000-03-01 GMT"

sub.time <- subsetGrid(NCEP_Iberia_tas, years = 1995:1998)
range(sub.time$Dates)

## [1] "1994-12-01 GMT" "1998-03-01 GMT"

str(sub.time)

## List of 4
##  $ Variable:List of 2
##   ..$ varName: chr "tas"
##   ..$ level  : NULL
##   ..- attr(*, "is_standard")= logi TRUE
##   ..- attr(*, "units")= chr "degrees Celsius"
##   ..- attr(*, "longname")= chr "2-meter air temperature"
##   ..- attr(*, "daily_agg_cellfun")= chr "min"
##   ..- attr(*, "monthly_agg_cellfun")= chr "none"
##   ..- attr(*, "verification_time")= chr "DD"
##  $ Data    : num [1:361, 1:7, 1:9] 19 17.1 16 15.7 17.2 ...
##   ..- attr(*, "dimensions")= chr [1:3] "time" "lat" "lon"
##  $ xyCoords:List of 2
##   ..$ x: num [1:9] -9.38 -7.5 -5.62 -3.75 -1.88 ...
##   ..$ y: num [1:7] 33.3 35.2 37.1 39 41 ...
##   ..- attr(*, "projection")= chr "+proj=longlat +ellps=WGS84 +datum=WGS84 +no_defs +towgs84=0,0,0"
##  $ Dates   :List of 2
##   ..$ start: chr [1:361] "1994-12-01 GMT" "1994-12-02 GMT" "1994-12-03 GMT" "1994-12-04 GMT" ...
##   ..$ end  : chr [1:361] "1994-12-02 GMT" "1994-12-03 GMT" "1994-12-04 GMT" "1994-12-05 GMT" ...
##   ..- attr(*, "subset")= chr "subsetYears"
##  - attr(*, "dataset")= chr "NCEP"
##  - attr(*, "source")= chr "ECOMS User Data Gateway"
##  - attr(*, "URL")= chr "<http://meteo.unican.es/trac/wiki/udg/ecoms>"

Geographic domain:

data(NCEP_Iberia_tas)
plotMeanGrid(NCEP_Iberia_tas)

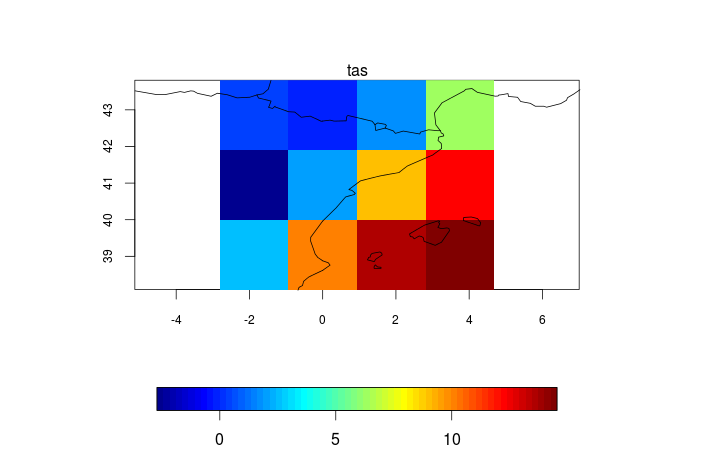

sub.geo <- subsetGrid(NCEP_Iberia_tas, lonLim = c(-1, 3), latLim = c(39,43))
plotMeanGrid(sub.geo)

subsetGrid can be applied to a multigrid:

data(NCEP_Iberia_tp)

multi <- makeMultiGrid(NCEP_Iberia_tas, NCEP_Iberia_tp)

plotMeanGrid(multi)

sub.geo.multi <- subsetGrid(multi, lonLim = c(-1, 3), latLim = c(39,43))
plotMeanGrid(sub.geo.multi)

Grid from a multigrid:

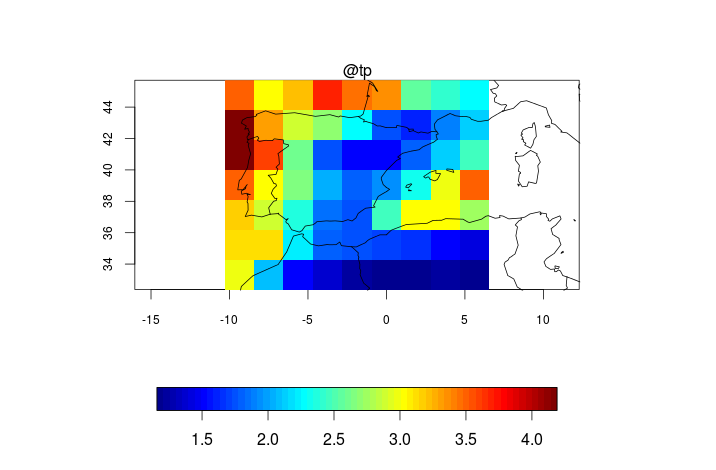

sub.Grid <- subsetGrid(multi, var = "tp")
plotMeanGrid(sub.Grid)

If the data is multimember, function subsetFied can also be applied to select some members.

---
