how do I make other gates

[yaay1010]

Hi, I want to make gates like XOR, OR, NAND, and others. Can someone record them making one? Thanks in advance :)

[Fisch37]

Uhhh, so NAND is short for NOT-AND. That should tell you how to do that.
And if I remember correctly the OR gate is a NAND Gate with two inverted inputs.

[Subroutine7901]

i don't have a screen shot but in text i'll try to explain

or:

input -- not\
=========== nand -- output
input -- not/

xor:

input\------/nand\
======nand<====== nand--output
input/------\nand/

the =='s are placeholders

i'm sorry if this is confusing

[Subroutine7901]

also if a gates name starts with an n then it's like the example Leonix1 gave earlier and xnor is like the "n" in it's name is just at the start

[BenjeminStar]

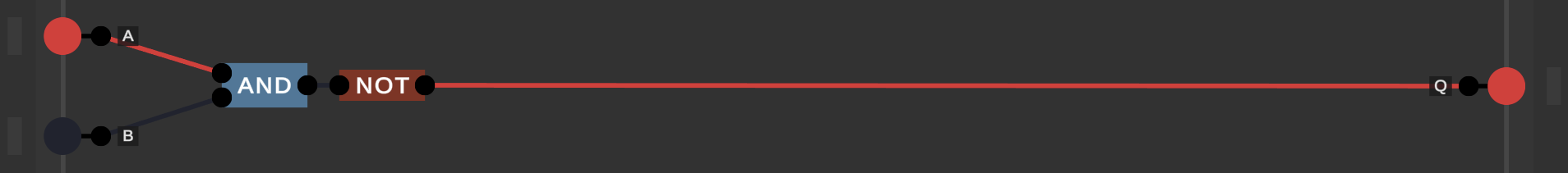

NAND:

Truth Table

A | B | Q
0 | 0 | 1
0 | 1 | 1
1 | 0 | 1
1 | 1 | 0

---

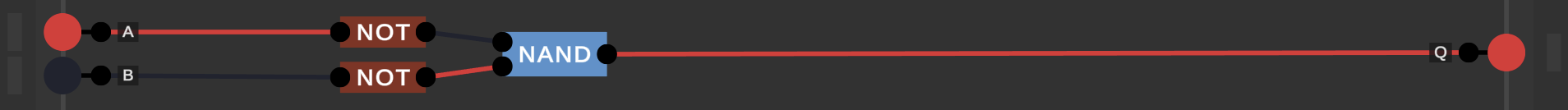

OR:

Truth Table

A | B | Q
0 | 0 | 0
0 | 1 | 1
1 | 0 | 1
1 | 1 | 1

---

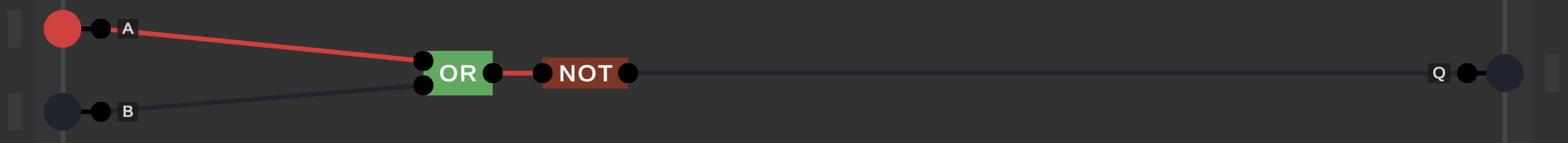

NOR:

Truth Table

A | B | Q
0 | 0 | 1
0 | 1 | 0
1 | 0 | 0
1 | 1 | 0

---

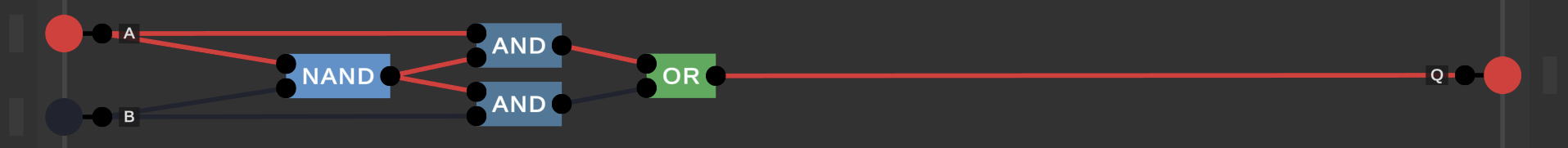

XOR:

Truth Table

A | B | Q
0 | 0 | 0
0 | 1 | 1
1 | 0 | 1
1 | 1 | 0

---

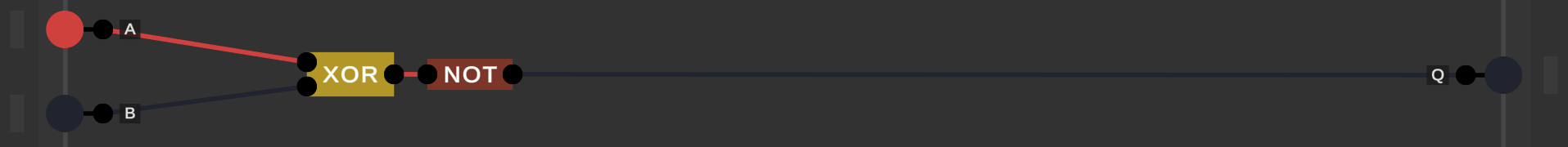

XNOR;

Truth Table

A | B | Q
0 | 0 | 1
0 | 1 | 0
1 | 0 | 0
1 | 1 | 1

---
