How to avoid banding issue on gray to black gradient?

[pwltr]

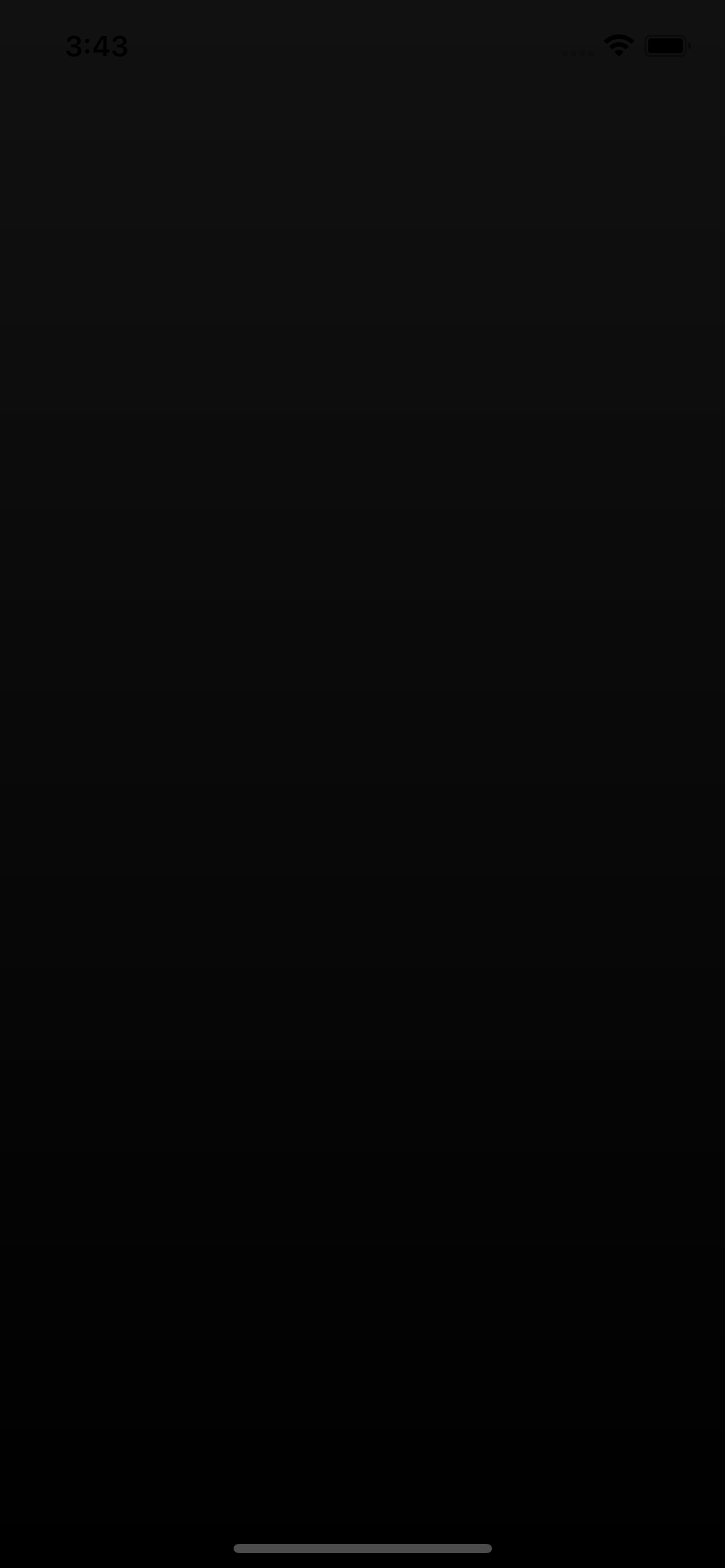

Take a look at the screenshot below. See these lines/non-smooth transitions between the shades? I understand this is more of a general issue with gradients but is there a way to avoid banding issue on a gradient with 2 dark colour stops very close to each other?

I've tried the following:

• add flags={1} to <LinearGradient />
• <RadialGradient /> instead of <LinearGradient />

Is there a way to improve this? Is it possible to extend the colour space skia uses? Or maybe write a custom shader?

Repro here

[a7medev]

It's hard to make a smooth gradient between these two very close shades of gray as the total number of gray shades we have is 256 shades if you go from #000 to #FFF when colors are represented in 24-bit true color bitmap format which is the most common in image formats. In the example you have, we only have 18 possible shades of gray to use in the gradient between the colors #000 and #111 (think of it as the hexadecimal numbers between 0x00 and 0x11 (17 in decimal) and this number is very small compared to the height of the screen making the gradient look that way.

[pwltr]

Thank you for the explanation, that makes total sense.
