Hyperledger Cryptographic Material & MSP Structure

If you're looking for MSP info regarding the traditional MSP trees created by cryptogen, see the last sections on this page.

/MSP

Here are the MSP trees created by this network. Unlike other Hyperledger Fabric examples, these trees are separated between containers (could be servers in production), with minimal sharing of crypto material. This resembles the network setup in a production environment.

---

Keep in mind:

• The /tls* and /admincerts folders are manually created (first time the CLI is started - see first CLI startup steps)

• /tls certs are the respective (root or intermediate) PEM-encoded trusted cert for the orderering endpoint (if unchanged, same as the original ca-cert.pem from starting the CA that was sent to the org's shared directory (e.g. /shared). This cert is the same as the /cacerts/{...}.pem cert). IF THE CA CERT IS PLACED ON THE REJECTION LIST, THIS MUST BE UPDATED WITH THE NEW CA CERT.

• The /admincerts cert is the /signcert/cert.pem for the admin, when it was enrolled. Because this folder is manually created, IT MUST BE UPDATED EVERY TIME THE ADMIN IS ENROLLED (since the signcert/cert.pem public cert will change for every enroll request)

---

CA

FABRIC_CA_SERVER_HOME (org1-ca)
├── fabric-ca-server.db
├── fabric-ca-server-config.yaml
├── IssuerPublicKey
├── IssuerRevocationPublicKey
├── ca-cert.pem
└── msp
    └── keystore
        ├── {...}_sk
        ├── IssuerRevocationPrivateKey
        └── IssuerSecretKey

CLI

FABRIC_CFG_PATH/orgs (org1-cli)
├── org1
│   ├── ca
│   │   └── org1-admin-ca
│   │       └── msp                         <--- from org1-admin-ca enroll
│   ├── fabric-ca-client-config.yaml
│   ├── msp                                 <--- from "fabric-ca-client getcacert"
│   │   ├── admincerts                      <--- MANUAL: copy org1-admin cert
│   │   ├── cacerts                         <--- from "fabric-ca-client getcacert"
│   │   ├── keystore
│   │   ├── signcerts
│   │   ├── tlscacerts                      <--- MANUAL: copy cacerts dir contents
│   │   └── user
│   │
│   ├── users
│   │   ├── org1-admin
│   │   │   ├── fabric-ca-client-config.yaml
│   │   │   └── msp
│   │   │       ├── admincerts              <--- MANUAL: copy org1-admin cert (configtxgen uses CORE_PEER_MSPCONFIGPATH)
│   │   │       ├── cacerts                 <--- matches Root CA Cert
│   │   │       ├── keystore                <--- org1-admin private key
│   │   │       ├── signcerts               <--- org1-admin public cert
│   │   │       └── user                    <--- empty (auto-created)
│   │   └── org1-user-test
│   │       ├── fabric-ca-client-config.yaml
│   │       └── msp
│   │           ├── admincerts              <--- MANUAL: add an org admin cert
│   │           ├── cacerts                 <--- matches Root CA Cert
│   │           ├── keystore                <--- org1-user-test private key
│   │           ├── signcerts               <--- org1-user-test public cert
│   │           └── user                    <--- empty (auto-created)
│   └── tls                                 <--- MANUAL: add the peer tls pair
│
└── org2
    ├── msp
    │   ├── cacerts                         <--- MANUAL: add the org ca cert
    │   ├── keystore                        <--- empty (auto-created)
    │   ├── signcerts                       <--- empty (auto-created)
    │   └── user                            <--- empty (auto-created)
    └── tls

ORDERER

FABRIC_CA_CLIENT_HOME (org1-orderer)
├── fabric-ca-client-config.yaml
├── msp
│   ├── admincerts      <--- MANUAL: copy org1-admin cert (for orderer start)
│   ├── cacerts         <--- matches Root CA Cert
│   ├── keystore        <--- org1-orderer private key
│   ├── signcerts       <--- org1-orderer public cert
│   ├── tlscacerts      <--- MANUAL: copy cacerts dir content (for orderer start)
│   └── user            <--- empty (auto-created)
└── tls                 <--- MANUAL: add tls crt and key (for orderer start)

PEER

FABRIC_CA_CLIENT_HOME (org1-peer0)
├── fabric-ca-client-config.yaml
├── msp
│   ├── admincerts      <--- MANUAL: copy org1-admin cert (for peer start)
│   ├── cacerts         <--- matches Root CA Cert
│   ├── keystore        <--- org1-peer private key
│   ├── signcerts       <--- org1-peer public cert
│   ├── tlscacerts      <--- MANUAL: copy cacerts dir content (for peer start)
│   └── user            <--- empty (auto-created)
└── tls                 <--- MANUAL: add tls crt and key (for peer start)

/TLS

---

TLS file pairs for mutual TLS communication

• The TLS directory may have numerous tls certs/keys at any one time. They could even all be active at the same time. Pairs might have been placed on the rejection list (crl), and will no longer work.

• New pairs can be created by using the fabric-ca-client enroll --enrollment.profile tls ... (see peer startup steps for examples). They will be dumped in the directory specified in the enroll request.

• The Hyperledger examples seem to always create the TLS cert/key from the peer container and then pass the pair to the shared directory for use by the CLI when making peer ... requests. This transfer is not needed, since the CLI can make the fabric-ca-client enroll --enrollment.profile tls ... request directly, and then save the TLS pair in a local directory. Sharing via the shared directory is not needed in this case.

---

CLI Container: /tls

.
├── org1-peer0-cli-client.crt
└── org1-peer0-cli-client.key

PEER Container: /tls

.
├── server.crt
└── server.key

Usage example:

peer chaincode invoke -C mychannel -n mychaincode -c '{"Args":["invoke","a","b","10"]}' -o org1-orderer:7050 --tls --cafile /shared/org1-ca-cert.pem --clientauth --keyfile /etc/hyperledger/fabric/tls/org1-peer0-client.key --certfile /etc/hyperledger/fabric/tls/org1-peer0-client.crt

More information:

• Mutual TLS: https://www.codeproject.com/Articles/326574/An-Introduction-to-Mutual-SSL-Authentication

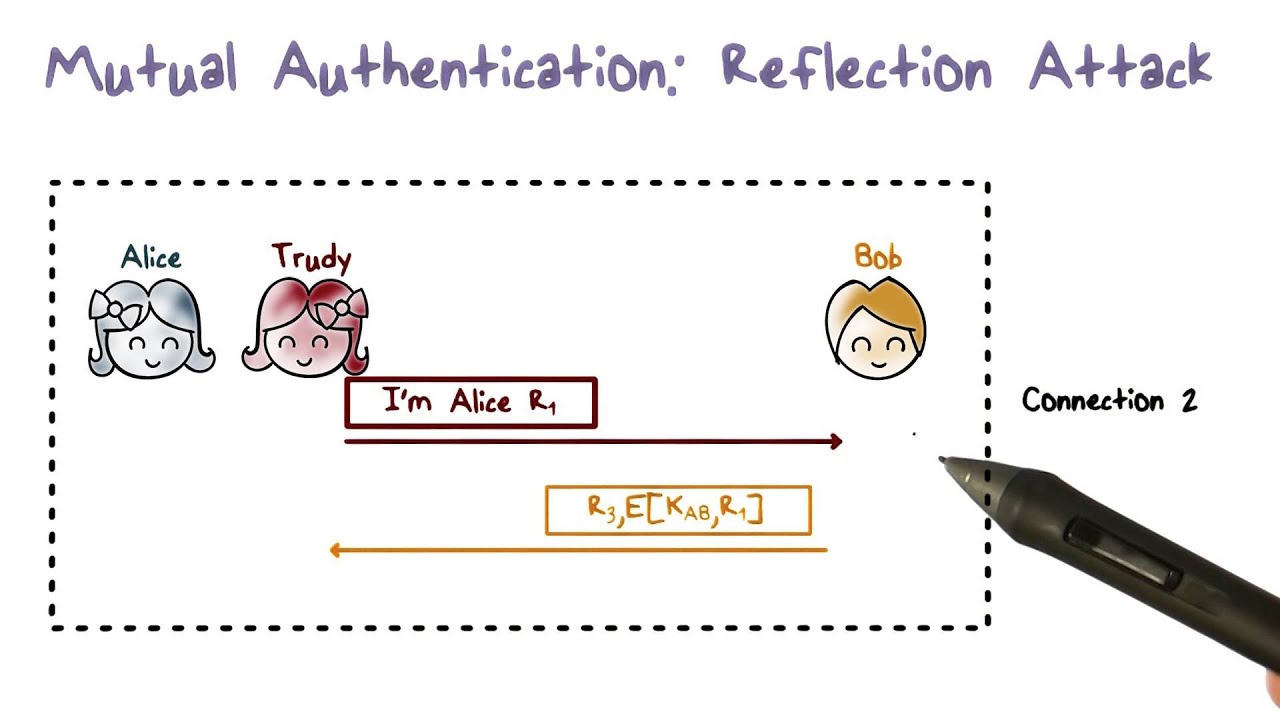

• Mutual Authentication Vulnerability - Reflection Attack: https://www.youtube.com/watch?v=Y6d-fRMJObI

Hyperledger's "First-Network" Example - a comparison

Let's look at the first-network example provided by The Hyperledger Foundation to understand how a complete MSP tree is typically structured.

First-Network MSP Directories:

.
└── org1
   ├── ca
   ├── msp
   │   ├── admincerts
   │   ├── cacerts
   │   ├── config.yaml
   │   └── tlscacerts
   ├── orderers
   │   └── orderer
   │       ├── msp
   │       │   ├── admincerts
   │       │   ├── cacerts
   │       │   ├── config.yaml
   │       │   ├── keystore
   │       │   ├── signcerts
   │       │   └── tlscacerts
   │       └── tls
   ├── peers
   │   └── org1-peer0
   │       ├── msp
   │       │   ├── admincerts
   │       │   ├── cacerts
   │       │   ├── config.yaml
   │       │   ├── keystore
   │       │   ├── signcerts
   │       │   └── tlscacerts
   │       └── tls
   ├── tlsca
   └── users
       ├── org1-admin
       │   ├── msp
       │   │   ├── admincerts
       │   │   ├── cacerts
       │   │   ├── keystore
       │   │   ├── signcerts
       │   │   └── tlscacerts
       │   └── tls
       └── org1-user1
           ├── msp
           │   ├── admincerts
           │   ├── cacerts
           │   ├── keystore
           │   ├── signcerts
           │   └── tlscacerts
           └── tls

First-Network MSP Structure:

.
└── org1
   ├── ca
   │   ├── {...}_sk                    <---  KEY: Root CA priv key
   │   └── ca-cert.pem                 <--- CERT: Root CA
   ├── msp
   │   ├── admincerts
   │   │   └── cert.pem                <--- CERT: User Cert: Admin
   │   ├── cacerts
   │   │   └── ca-cert.pem             <--- CERT: Root CA
   │   ├── config.yaml
   │   └── tlscacerts
   │       └── tlsca-cert.pem          <--- CERT: Root TLS CA Cert
   ├── orderers
   │   └── orderer
   │       ├── msp
   │       │   ├── admincerts
   │       │   │   └── cert.pem        <--- CERT: User Cert: Admin
   │       │   ├── cacerts
   │       │   │   └── ca-cert.pem     <--- CERT: Root CA
   │       │   ├── config.yaml
   │       │   ├── keystore
   │       │   │   └── {...}_sk        <---  KEY: Orderer Cert priv key
   │       │   ├── signcerts
   │       │   │   └── cert.pem        <--- CERT: Orderer Cert
   │       │   └── tlscacerts
   │       │       └── tlsca-cert.pem  <--- CERT: Root TLS CA Cert
   │       └── tls
   │           ├── tlsca-cert.pem      <--- CERT: Root TLS CA Cert
   │           ├── server.crt          <--- CERT: Orderer TLS Cert
   │           └── server.key          <---  KEY: Orderer TLS Cert priv key
   ├── peers
   │   └── org1-peer0
   │       ├── msp
   │       │   ├── admincerts
   │       │   │   └── cert.pem        <--- CERT: User Cert: Admin
   │       │   ├── cacerts
   │       │   │   └── ca-cert.pem     <--- CERT: Root CA
   │       │   ├── config.yaml
   │       │   ├── keystore
   │       │   │   └── {...}_sk        <---  KEY: Peer Cert priv key: peer0
   │       │   ├── signcerts
   │       │   │   └── cert.pem        <--- CERT: Peer Cert: peer0
   │       │   └── tlscacerts
   │       │       └── tlsca-cert.pem  <--- CERT: Root TLS CA Cert
   │       └── tls
   │           ├── tlsca-cert.pem      <--- CERT: Root TLS CA Cert
   │           ├── server.crt          <--- CERT: Peer TLS Cert: peer0
   │           └── server.key          <---  KEY: Peer TLS Cert priv key: peer0
   ├── tlsca
   │   ├── {...}_sk                    <---  KEY: Root TLS CA Cert priv key
   │   └── tlsca-cert.pem              <--- CERT: Root TLS CA Cert
   └── users
       ├── org1-admin
       │   ├── msp
       │   │   ├── admincerts
       │   │   │   └── cert.pem        <--- CERT: User Cert: Admin
       │   │   ├── cacerts
       │   │   │   └── ca-cert.pem     <--- CERT: Root CA
       │   │   ├── keystore
       │   │   │   └── {...}_sk        <---  KEY: User Cert priv key: Admin
       │   │   ├── signcerts
       │   │   │   └── cert.pem        <--- CERT: User Cert: Admin
       │   │   └── tlscacerts
       │   │       └── tlsca-cert.pem  <--- CERT: Root TLS CA Cert
       │   └── tls
       │       ├── tlsca-cert.pem      <--- CERT: Root TLS CA Cert
       │       ├── client.crt          <--- CERT: User TLS Cert: Admin
       │       └── client.key          <---  KEY: User TLS Cert priv key: Admin
       └── org1-user1
           ├── msp
           │   ├── admincerts
           │   │   └── cert.pem        <--- CERT: User Cert: User1
           │   ├── cacerts
           │   │   └── ca-cert.pem     <--- CERT: Root CA
           │   ├── keystore
           │   │   └── {...}_sk        <--- KEY: User Cert priv key: User1
           │   ├── signcerts
           │   │   └── cert.pem        <--- CERT: User Cert: User1
           │   └── tlscacerts
           │       └── tlsca-cert.pem  <--- CERT: Root TLS CA Cert
           └── tls
               ├── tlsca-cert.pem      <--- CERT: Root TLS CA Cert
               ├── client.crt          <--- CERT: User TLS Cert: User1
               └── client.key          <--- KEY: User TLS Cert priv key: User1

First-Network MSP Structure w/ Detail:

.
├── ordererOrganizations
│   └── example.com
│       ├── ca
│       │   ├── {...}_sk                                    <---  KEY: MIG...OLE -- Root CA priv key
│       │   └── ca.example.com-cert.pem                     <--- CERT: MII.../19 -- Root CA
│       ├── msp
│       │   ├── admincerts
│       │   │   └── Admin@example.com-cert.pem              <--- CERT: MII.../ZS -- User Cert: Admin
│       │   ├── cacerts
│       │   │   └── ca.example.com-cert.pem                 <--- CERT: MII.../19 -- Root CA
│       │   └── tlscacerts
│       │       └── tlsca.example.com-cert.pem              <--- CERT: MII...1E= -- Root TLS CA Cert
│       ├── orderers
│       │   └── orderer.example.com
│       │       ├── msp
│       │       │   ├── admincerts
│       │       │   │   └── Admin@example.com-cert.pem      <--- CERT: MII.../ZS -- User Cert: Admin
│       │       │   ├── cacerts
│       │       │   │   └── ca.example.com-cert.pem         <--- CERT: MII.../19 -- Root CA
│       │       │   ├── keystore
│       │       │   │   └── {...}_sk                        <---  KEY: MIG...R58 -- Orderer Cert priv key
│       │       │   ├── signcerts
│       │       │   │   └── orderer.example.com-cert.pem    <--- CERT: MII...Mm6 -- Orderer Cert
│       │       │   └── tlscacerts
│       │       │       └── tlsca.example.com-cert.pem      <--- CERT: MII...1E= -- Root TLS CA Cert
│       │       └── tls
│       │           ├── ca.crt                              <--- CERT: MII...1E= -- Root TLS CA Cert
│       │           ├── server.crt                          <--- CERT: MII...+r0 -- Orderer TLS Cert
│       │           └── server.key                          <---  KEY: MIG...rVc -- Orderer TLS Cert priv key
│       ├── tlsca
│       │   ├── {...}_sk                                    <---  KEY: MIG...SSj -- Root TLS CA Cert priv key
│       │   └── tlsca.example.com-cert.pem                  <--- CERT: MII...1E= -- Root TLS CA Cert
│       └── users
│           └── Admin@example.com
│               ├── msp
│               │   ├── admincerts
│               │   │   └── Admin@example.com-cert.pem      <--- CERT: MII.../ZS -- User Cert: Admin
│               │   ├── cacerts
│               │   │   └── ca.example.com-cert.pem         <--- CERT: MII.../19 -- Root CA
│               │   ├── keystore
│               │   │   └── {...}_sk                        <---  KEY: MIG...fCD -- User Cert priv key: Admin
│               │   ├── signcerts
│               │   │   └── Admin@example.com-cert.pem      <--- CERT: MII.../ZS -- User Cert: Admin
│               │   └── tlscacerts
│               │       └── tlsca.example.com-cert.pem      <--- CERT: MII...1E= -- Root TLS CA Cert
│               └── tls
│                   ├── ca.crt                              <--- CERT: MII...1E= -- Root TLS CA Cert
│                   ├── client.crt                          <--- CERT: MII...H4= -- User TLS Cert: Admin
│                   └── client.key                          <---  KEY: MIG...5rY -- User TLS Cert priv key: Admin
└── peerOrganizations
    └── org1.example.com
       ├── ca
       │   ├── {...}_sk                                     <---  KEY: MIG...5bQ -- Root CA priv key
       │   └── ca.org1.example.com-cert.pem                 <--- CERT: MII...TOK -- Root CA
       ├── msp
       │   ├── admincerts
       │   │   └── Admin@org1.example.com-cert.pem          <--- CERT: MII.../jA -- User Cert: Admin
       │   ├── cacerts
       │   │   └── ca.org1.example.com-cert.pem             <--- CERT: MII...TOK -- Root CA
       │   ├── config.yaml
       │   └── tlscacerts
       │       └── tlsca.org1.example.com-cert.pem          <--- CERT: MII...w== -- Root TLS CA Cert
       ├── peers
       │   ├── peer0.org1.example.com
       │   │   ├── msp
       │   │   │   ├── admincerts
       │   │   │   │   └── Admin@org1.example.com-cert.pem  <--- CERT: MII.../jA -- User Cert: Admin
       │   │   │   ├── cacerts
       │   │   │   │   └── ca.org1.example.com-cert.pem     <--- CERT: MII...TOK -- Root CA
       │   │   │   ├── config.yaml
       │   │   │   ├── keystore
       │   │   │   │   └── {...}_sk                         <---  KEY: MIG...d4Q -- Peer Cert priv key: peer0
       │   │   │   ├── signcerts
       │   │   │   │   └── peer0.org1.example.com-cert.pem  <--- CERT: MII...wA== -- Peer Cert: peer0
       │   │   │   └── tlscacerts
       │   │   │       └── tlsca.org1.example.com-cert.pem  <--- CERT: MII...w== -- Root TLS CA Cert
       │   │   └── tls
       │   │       ├── ca.crt                               <--- CERT: MII...w== -- Root TLS CA Cert
       │   │       ├── server.crt                           <--- CERT: MII...XA== -- Peer TLS Cert: peer0
       │   │       └── server.key                           <---  KEY: MIG...W+3 -- Peer TLS Cert priv key: peer0
       │   └── peer0.org1.example.com
       │       ├── msp
       │       │   ├── admincerts
       │       │   │   └── Admin@org1.example.com-cert.pem  <--- CERT: MII.../jA -- User Cert: Admin
       │       │   ├── cacerts
       │       │   │   └── ca.org1.example.com-cert.pem     <--- CERT: MII...TOK -- Root CA
       │       │   ├── config.yaml
       │       │   ├── keystore
       │       │   │   └── {...}_sk                         <---  KEY: MIG...xF8 -- Peer Cert priv key: peer0
       │       │   ├── signcerts
       │       │   │   └── peer0.org1.example.com-cert.pem  <--- CERT: MII...bgi -- Peer Cert: peer0
       │       │   └── tlscacerts
       │       │       └── tlsca.org1.example.com-cert.pem  <--- CERT: MII...w== -- Root TLS CA Cert
       │       └── tls
       │           ├── ca.crt                               <--- CERT: MII...w== -- Root TLS CA Cert
       │           ├── server.crt                           <--- CERT: MII...B/w -- Peer TLS Cert: peer0
       │           └── server.key                           <---  KEY: MIG...0b1 -- Peer TLS Cert priv key: peer0
       ├── tlsca
       │   ├── {...}_sk                                     <---  KEY: MIG...gYD -- Root TLS CA Cert priv key
       │   └── tlsca.org1.example.com-cert.pem              <--- CERT: MII...w== -- Root TLS CA Cert
       └── users
           ├── Admin@org1.example.com
           │   ├── msp
           │   │   ├── admincerts
           │   │   │   └── Admin@org1.example.com-cert.pem  <--- CERT: MII.../jA -- User Cert: Admin
           │   │   ├── cacerts
           │   │   │   └── ca.org1.example.com-cert.pem     <--- CERT: MII...TOK -- Root CA
           │   │   ├── keystore
           │   │   │   └── {...}_sk                         <---  KEY: MIG...l4K -- User Cert priv key: Admin
           │   │   ├── signcerts
           │   │   │   └── Admin@org1.example.com-cert.pem  <--- CERT: MII.../jA -- User Cert: Admin
           │   │   └── tlscacerts
           │   │       └── tlsca.org1.example.com-cert.pem  <--- CERT: MII...w== -- Root TLS CA Cert
           │   └── tls
           │       ├── ca.crt                               <--- CERT: MII...w== -- Root TLS CA Cert
           │       ├── client.crt                           <--- CERT: MII...Y07 -- User TLS Cert: Admin
           │       └── client.key                           <---  KEY: MIG...dil -- User TLS Cert priv key: Admin
           └── User1@org1.example.com
               ├── msp
               │   ├── admincerts
               │   │   └── User1@org1.example.com-cert.pem  <--- CERT: MII...P8= -- User Cert: User1
               │   ├── cacerts
               │   │   └── ca.org1.example.com-cert.pem     <--- CERT: MII...TOK -- Root CA
               │   ├── keystore
               │   │   └── {...}_sk                         <---  KEY: MIG...55w -- User Cert priv key: User1
               │   ├── signcerts
               │   │   └── User1@org1.example.com-cert.pem  <--- CERT: MII...P8= -- User Cert: User1
               │   └── tlscacerts
               │       └── tlsca.org1.example.com-cert.pem  <--- CERT: MII...w== -- Root TLS CA Cert
               └── tls
                   ├── ca.crt                               <--- CERT: MII...w== -- Root TLS CA Cert
                   ├── client.crt                           <--- CERT: MII...f0= -- User TLS Cert: User1
                   └── client.key                           <---  KEY: MIG...1fm -- User TLS Cert priv key: User1
