Java dev (#52)

* Update Java module

* Add java example

* Updating Readme

* Updating Readme Images

* Pre-commit

* Fixing readme screenshot

* Update README.md

Co-authored-by: Rodrigue Koffi <[email protected]>

Author: lewinkedrs

examples/existing-cluster-java/README.md

@@ -0,0 +1,240 @@
+# Existing Cluster with the AWS Observability accelerator base module and Java monitoring
+
+
+This example demonstrates how to use the AWS Observability Accelerator Terraform
+modules with Java monitoring enabled.
+The current example deploys the [AWS Distro for OpenTelemetry Operator](https://docs.aws.amazon.com/eks/latest/userguide/opentelemetry.html) for Amazon EKS with its requirements and make use of existing
+Amazon Managed Service for Prometheus and Amazon Managed Grafana workspaces.
+
+It is based on the `java module`, one of our [workloads modules](../../modules/workloads/)
+to provide an existing EKS cluster with an OpenTelemetry collector,
+curated Grafana dashboards, Prometheus alerting and recording rules with multiple
+configuration options on the cluster infrastructure.
+
+
+## Prerequisites
+
+Ensure that you have the following tools installed locally:
+
+1. [aws cli v2](https://docs.aws.amazon.com/cli/latest/userguide/getting-started-install.html)
+2. [kubectl](https://kubernetes.io/docs/tasks/tools/)
+3. [terraform](https://learn.hashicorp.com/tutorials/terraform/install-cli)
+
+
+## Setup
+
+This example uses a local terraform state. If you need states to be saved remotely,
+on Amazon S3 for example, visit the [terraform remote states](https://www.terraform.io/language/state/remote) documentation
+
+1. Clone the repo using the command below
+
+```
+git clone https://github.com/aws-observability/terraform-aws-observability-accelerator.git
+```
+
+2. Initialize terraform
+
+```console
+cd examples/existing-cluster-java
+terraform init
+```
+
+3. AWS Region
+
+Specify the AWS Region where the resources will be deployed. Edit the `terraform.tfvars` file and modify `aws_region="..."`. You can also use environement variables `export TF_VAR_aws_region=xxx`.
+
+4. Amazon EKS Cluster
+
+To run this example, you need to provide your EKS cluster name.
+If you don't have a cluster ready, visit [this example](../eks-cluster-with-vpc)
+first to create a new one.
+
+Add your cluster name for `eks_cluster_id="..."` to the `terraform.tfvars` or use an environment variable `export TF_VAR_eks_cluster_id=xxx`.
+
+5. Amazon Managed Service for Prometheus workspace (optional)
+
+If you have an existing workspace, add `managed_prometheus_workspace_id=ws-xxx`
+or use an environment variable `export TF_VAR_managed_prometheus_workspace_id=ws-xxx`.
+
+If you don't specify anything a new workspace will be created for you.
+
+6. Amazon Managed Grafana workspace
+
+If you have an existing workspace, create an environment variable `export TF_VAR_managed_grafana_workspace_id=g-xxx`.
+
+7. <a name="apikey"></a> Grafana API Key
+
+Amazon Managed Service for Grafana provides a control plane API for generating Grafana API keys. We will provide to Terraform
+a short lived API key to run the `apply` or `destroy` command.
+Ensure you have necessary IAM permissions (`CreateWorkspaceApiKey, DeleteWorkspaceApiKey`)
+
+```sh
+export TF_VAR_grafana_api_key=`aws grafana create-workspace-api-key --key-name "observability-accelerator-$(date +%s)" --key-role ADMIN --seconds-to-live 1200 --workspace-id $TF_VAR_managed_grafana_workspace_id --query key --output text`
+```
+
+## Deploy
+
+```sh
+terraform apply -var-file=terraform.tfvars
+```
+
+or if you had only setup environment variables, run
+
+```sh
+terraform apply
+```
+
+## Visualization
+
+1. Prometheus datasource on Grafana
+
+Open your Grafana workspace and under Configuration -> Data sources, you will see `aws-observability-accelerator`. Open and click `Save & test`. You will then see a notification confirming that the Amazon Managed Service for Prometheus workspace is ready to be used on Grafana.
+
+2. Grafana dashboards
+
+Go to the Dashboards panel of your Grafana workspace. There will be a folder called `Observability Accelerator Dashboards`
+
+<img width="832" alt="image" src="https://user-images.githubusercontent.com/97046295/194903648-57c55d30-6f90-4b03-9eb6-577aaba7dc22.png">
+

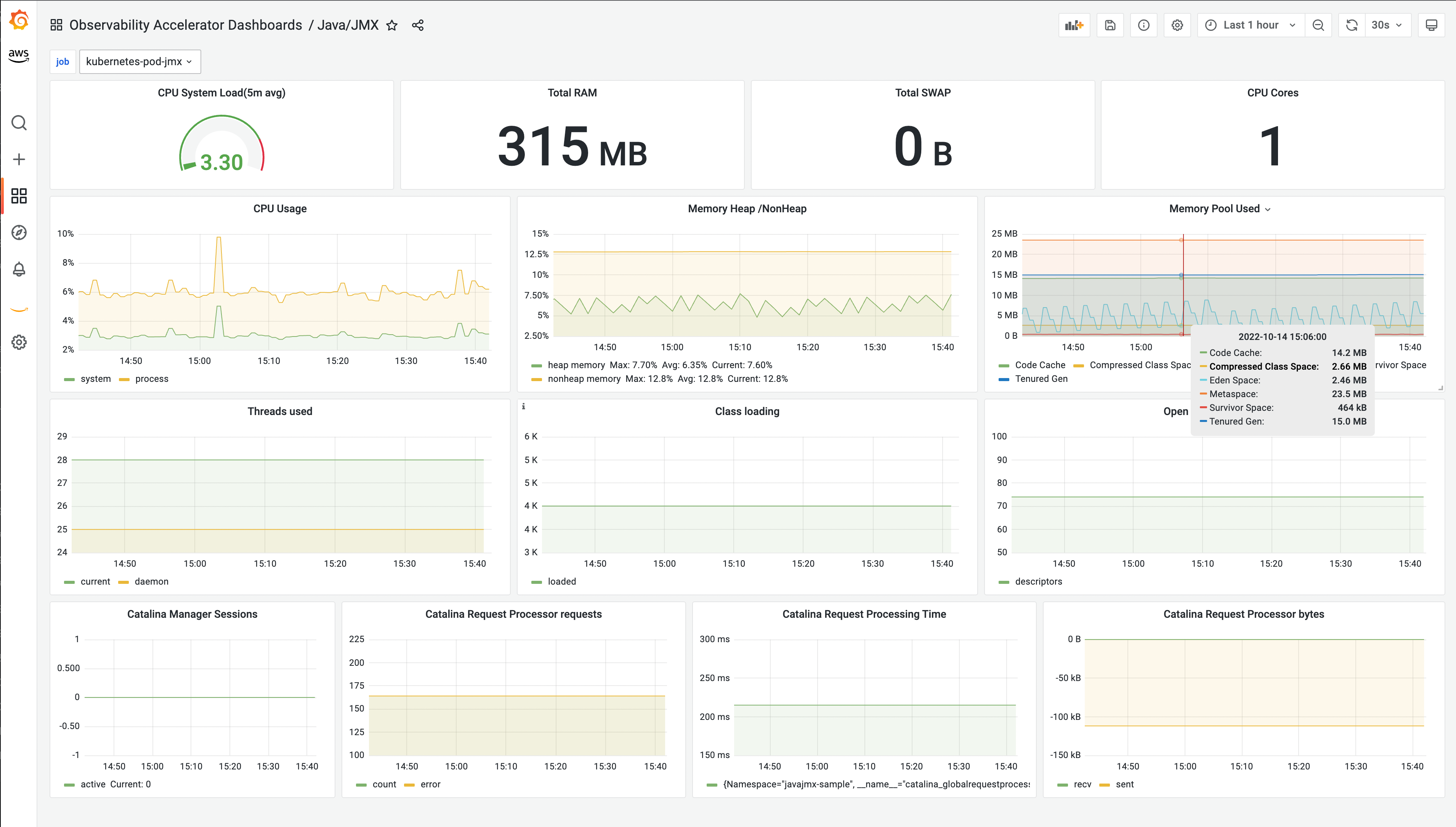

+Open the "Java/JMX" dashboard to view its visualization
+
+
+![image](https://user-images.githubusercontent.com/10175027/195903211-c47a5746-daa7-41f2-a6ea-bfe13f630c63.png)
+
+
+2. Amazon Managed Service for Prometheus rules and alerts
+
+Open the Amazon Managed Service for Prometheus console and view the details of your workspace. Under the `Rules management` tab, you will find new rules deployed.
+
+<img width="1314" alt="image" src="https://user-images.githubusercontent.com/97046295/194904104-09a28577-d149-478e-b0a1-dc21cb7effc1.png">
+
+
+To setup your alert receiver, with Amazon SNS, follow [this documentation](https://docs.aws.amazon.com/prometheus/latest/userguide/AMP-alertmanager-receiver.html)
+
+
+## Deploy an Example Java Application
+
+In this section we will reuse an example from the AWS OpenTelemetry collector [repository](https://github.com/aws-observability/aws-otel-collector/blob/main/docs/developers/container-insights-eks-jmx.md). For convenience, the steps can be found below.
+
+1. Clone [this repository](https://github.com/aws-observability/aws-otel-test-framework) and navigate to the `sample-apps/jmx/` directory.
+
+2. Authenticate to Amazon ECR
+
+```sh
+export AWS_ACCOUNT_ID=`aws sts get-caller-identity --query Account --output text`
+export AWS_REGION={region}
+aws ecr get-login-password --region $AWS_REGION | docker login --username AWS --password-stdin $AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com
+```
+
+3. Create an Amazon ECR repository
+
+```sh
+aws ecr create-repository --repository-name prometheus-sample-tomcat-jmx \
+ --image-scanning-configuration scanOnPush=true \
+ --region $AWS_REGION
+```
+
+4. Build Docker image and push to ECR.
+
+```sh
+docker build -t $AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com/prometheus-sample-tomcat-jmx:latest .
+docker push $AWS_ACCOUNT_ID.dkr.ecr.$AWS_REGION.amazonaws.com/prometheus-sample-tomcat-jmx:latest
+```
+
+5. Install sample application
+
+```sh
+export SAMPLE_TRAFFIC_NAMESPACE=javajmx-sample
+curl https://raw.githubusercontent.com/aws-observability/aws-otel-test-framework/terraform/sample-apps/jmx/examples/prometheus-metrics-sample.yaml > metrics-sample.yaml
+sed -i "s/{{aws_account_id}}/$AWS_ACCOUNT_ID/g" metrics-sample.yaml
+sed -i "s/{{region}}/$AWS_REGION/g" metrics-sample.yaml
+sed -i "s/{{namespace}}/$SAMPLE_TRAFFIC_NAMESPACE/g" metrics-sample.yaml
+kubectl apply -f metrics-sample.yaml
+```
+
+Verify that the sample application is running:
+
+```sh
+kubectl get pods -n $SAMPLE_TRAFFIC_NAMESPACE
+
+NAME                              READY   STATUS              RESTARTS   AGE
+tomcat-bad-traffic-generator      1/1     Running             0          11s
+tomcat-example-7958666589-2q755   0/1     ContainerCreating   0          11s
+tomcat-traffic-generator          1/1     Running             0          11s
+```
+
+## Advanced configuration
+
+1. Cross-region Amazon Managed Prometheus workspace
+
+If your existing Amazon Managed Prometheus workspace is in another AWS Region,
+add this `managed_prometheus_region=xxx` and `managed_prometheus_workspace_id=ws-xxx`.
+
+2. Cross-region Amazon Managed Grafana workspace
+
+If your existing Amazon Managed Prometheus workspace is in another AWS Region,
+add this `managed_prometheus_region=xxx` and `managed_prometheus_workspace_id=ws-xxx`.
+
+## Destroy resources
+
+If you leave this stack running, you will continue to incur charges. To remove all resources
+created by Terraform, [refresh your Grafana API key](#apikey) and run:
+
+```sh
+terraform destroy -var-file=terraform.tfvars
+```
+
+
+<!-- BEGINNING OF PRE-COMMIT-TERRAFORM DOCS HOOK -->
+## Requirements
+
+| Name | Version |
+|------|---------|
+| <a name="requirement_terraform"></a> [terraform](#requirement\_terraform) | >= 1.1.0, < 1.3.0 |
+| <a name="requirement_aws"></a> [aws](#requirement\_aws) | >= 4.0.0 |
+| <a name="requirement_grafana"></a> [grafana](#requirement\_grafana) | >= 1.25.0 |
+| <a name="requirement_helm"></a> [helm](#requirement\_helm) | >= 2.4.1 |
+| <a name="requirement_kubectl"></a> [kubectl](#requirement\_kubectl) | >= 1.14 |
+| <a name="requirement_kubernetes"></a> [kubernetes](#requirement\_kubernetes) | >= 2.10 |
+
+## Providers
+
+| Name | Version |
+|------|---------|
+| <a name="provider_aws"></a> [aws](#provider\_aws) | >= 4.0.0 |
+
+## Modules
+
+| Name | Source | Version |
+|------|--------|---------|
+| <a name="module_eks_observability_accelerator"></a> [eks\_observability\_accelerator](#module\_eks\_observability\_accelerator) | ../../ | n/a |
+| <a name="module_workloads_java"></a> [workloads\_java](#module\_workloads\_java) | ../../modules/workloads/java | n/a |
+
+## Resources
+
+| Name | Type |
+|------|------|
+| [aws_eks_cluster.this](https://registry.terraform.io/providers/hashicorp/aws/latest/docs/data-sources/eks_cluster) | data source |
+| [aws_eks_cluster_auth.this](https://registry.terraform.io/providers/hashicorp/aws/latest/docs/data-sources/eks_cluster_auth) | data source |
+
+## Inputs
+
+| Name | Description | Type | Default | Required |
+|------|-------------|------|---------|:--------:|
+| <a name="input_aws_region"></a> [aws\_region](#input\_aws\_region) | AWS Region | `string` | n/a | yes |
+| <a name="input_eks_cluster_id"></a> [eks\_cluster\_id](#input\_eks\_cluster\_id) | Name of the EKS cluster | `string` | n/a | yes |
+| <a name="input_grafana_api_key"></a> [grafana\_api\_key](#input\_grafana\_api\_key) | API key for authorizing the Grafana provider to make changes to Amazon Managed Grafana | `string` | `""` | no |
+| <a name="input_managed_grafana_workspace_id"></a> [managed\_grafana\_workspace\_id](#input\_managed\_grafana\_workspace\_id) | Amazon Managed Grafana Workspace ID | `string` | `""` | no |
+| <a name="input_managed_prometheus_workspace_id"></a> [managed\_prometheus\_workspace\_id](#input\_managed\_prometheus\_workspace\_id) | Amazon Managed Service for Prometheus Workspace ID | `string` | `""` | no |
+
+## Outputs
+
+| Name | Description |
+|------|-------------|
+| <a name="output_aws_region"></a> [aws\_region](#output\_aws\_region) | AWS Region |
+| <a name="output_eks_cluster_id"></a> [eks\_cluster\_id](#output\_eks\_cluster\_id) | EKS Cluster Id |
+| <a name="output_eks_cluster_version"></a> [eks\_cluster\_version](#output\_eks\_cluster\_version) | EKS Cluster version |
+| <a name="output_grafana_dashboard_urls"></a> [grafana\_dashboard\_urls](#output\_grafana\_dashboard\_urls) | URLs for dashboards created |
+| <a name="output_managed_prometheus_workspace_endpoint"></a> [managed\_prometheus\_workspace\_endpoint](#output\_managed\_prometheus\_workspace\_endpoint) | Amazon Managed Prometheus workspace endpoint |
+| <a name="output_managed_prometheus_workspace_id"></a> [managed\_prometheus\_workspace\_id](#output\_managed\_prometheus\_workspace\_id) | Amazon Managed Prometheus workspace ID |
+<!-- END OF PRE-COMMIT-TERRAFORM DOCS HOOK -->

examples/existing-cluster-java/main.tf

@@ -0,0 +1,100 @@
+provider "aws" {
+  region = local.region
+}
+
+data "aws_eks_cluster_auth" "this" {
+  name = var.eks_cluster_id
+}
+
+data "aws_eks_cluster" "this" {
+  name = var.eks_cluster_id
+}
+
+provider "kubernetes" {
+  host                   = local.eks_cluster_endpoint
+  cluster_ca_certificate = base64decode(data.aws_eks_cluster.this.certificate_authority[0].data)
+  token                  = data.aws_eks_cluster_auth.this.token
+}
+
+provider "helm" {
+  kubernetes {
+    host                   = local.eks_cluster_endpoint
+    cluster_ca_certificate = base64decode(data.aws_eks_cluster.this.certificate_authority[0].data)
+    token                  = data.aws_eks_cluster_auth.this.token
+  }
+}
+
+locals {
+  region               = var.aws_region
+  eks_cluster_endpoint = data.aws_eks_cluster.this.endpoint
+  create_new_workspace = var.managed_prometheus_workspace_id == "" ? true : false
+  tags = {
+    Source = "github.com/aws-observability/terraform-aws-observability-accelerator"
+  }
+}
+
+# deploys the base module
+module "eks_observability_accelerator" {
+  # source = "aws-observability/terrarom-aws-observability-accelerator"
+  source = "../../"
+
+  aws_region     = var.aws_region
+  eks_cluster_id = var.eks_cluster_id
+
+  # deploys AWS Distro for OpenTelemetry operator into the cluster
+  enable_amazon_eks_adot = true
+
+  # reusing existing certificate manager? defaults to true
+  enable_cert_manager = true
+
+  # creates a new Amazon Managed Prometheus workspace, defaults to true
+  enable_managed_prometheus = local.create_new_workspace
+
+  # reusing existing Amazon Managed Prometheus if specified
+  managed_prometheus_workspace_id     = var.managed_prometheus_workspace_id
+  managed_prometheus_workspace_region = null # defaults to the current region, useful for cross region scenarios (same account)
+
+  # sets up the Amazon Managed Prometheus alert manager at the workspace level
+  enable_alertmanager = true
+
+  # reusing existing Amazon Managed Grafana workspace
+  enable_managed_grafana       = false
+  managed_grafana_workspace_id = var.managed_grafana_workspace_id
+  grafana_api_key              = var.grafana_api_key
+
+  tags = local.tags
+}
+
+# https://www.terraform.io/language/modules/develop/providers
+# A module intended to be called by one or more other modules must not contain
+# any provider blocks.
+# This allows forcing dependency between base and workloads module
+provider "grafana" {
+  url  = module.eks_observability_accelerator.managed_grafana_workspace_endpoint
+  auth = var.grafana_api_key
+}
+
+module "workloads_java" {
+  source = "../../modules/workloads/java"
+
+  eks_cluster_id = module.eks_observability_accelerator.eks_cluster_id
+
+  dashboards_folder_id            = module.eks_observability_accelerator.grafana_dashboards_folder_id
+  managed_prometheus_workspace_id = module.eks_observability_accelerator.managed_prometheus_workspace_id
+
+  managed_prometheus_workspace_endpoint = module.eks_observability_accelerator.managed_prometheus_workspace_endpoint
+  managed_prometheus_workspace_region   = module.eks_observability_accelerator.managed_prometheus_workspace_region
+
+  # optional, defaults to 60s interval and 15s timeout
+  prometheus_config = {
+    global_scrape_interval = "60s"
+    global_scrape_timeout  = "15s"
+    scrape_sample_limit    = 2000
+  }
+
+  tags = local.tags
+
+  depends_on = [
+    module.eks_observability_accelerator
+  ]
+}

examples/existing-cluster-java/outputs.tf

@@ -0,0 +1,29 @@
+output "eks_cluster_id" {
+  description = "EKS Cluster Id"
+  value       = module.eks_observability_accelerator.eks_cluster_id
+}
+
+output "aws_region" {
+  description = "AWS Region"
+  value       = module.eks_observability_accelerator.aws_region
+}
+
+output "eks_cluster_version" {
+  description = "EKS Cluster version"
+  value       = module.eks_observability_accelerator.eks_cluster_version
+}
+
+output "managed_prometheus_workspace_endpoint" {
+  description = "Amazon Managed Prometheus workspace endpoint"
+  value       = module.eks_observability_accelerator.managed_prometheus_workspace_endpoint
+}
+
+output "managed_prometheus_workspace_id" {
+  description = "Amazon Managed Prometheus workspace ID"
+  value       = module.eks_observability_accelerator.managed_prometheus_workspace_id
+}
+
+output "grafana_dashboard_urls" {
+  description = "URLs for dashboards created"
+  value       = module.workloads_java.grafana_dashboard_urls
+}

examples/existing-cluster-java/variables.tf

@@ -0,0 +1,24 @@
+variable "eks_cluster_id" {
+  description = "Name of the EKS cluster"
+  type        = string
+}
+variable "aws_region" {
+  description = "AWS Region"
+  type        = string
+}
+variable "managed_prometheus_workspace_id" {
+  description = "Amazon Managed Service for Prometheus Workspace ID"
+  type        = string
+  default     = ""
+}
+variable "managed_grafana_workspace_id" {
+  description = "Amazon Managed Grafana Workspace ID"
+  type        = string
+  default     = ""
+}
+variable "grafana_api_key" {
+  description = "API key for authorizing the Grafana provider to make changes to Amazon Managed Grafana"
+  type        = string
+  default     = ""
+  sensitive   = true
+}
