aws-cloudformation: Unable to addDependency to CfnStack

[ChrisLane]

Describe the bug

I am unable to add an S3 deployment as a dependency to a CfnStack as I would expect from the documentation.

Expected Behavior

I expect to be able to add an S3 deployment resource as a dependency of a CfnStack, resulting in that CfnStack not being deployed until the S3 deployment is complete.

Current Behavior

I receive the following error when running npm run cdk -- synth in the example project attached.

TypeError: target.shouldSynthesize is not a function
    at CfnStack.addDependency (/home/chris/cloud/documents/cdk-deployment-dependency-issue-example/node_modules/aws-cdk-lib/core/lib/cfn-resource.js:1:4351)
    at new CdkDeploymentDependencyIssueExampleStack (/home/chris/cloud/documents/cdk-deployment-dependency-issue-example/lib/cdk-deployment-dependency-issue-example-stack.js:78:20)
    at Object.<anonymous> (/home/chris/cloud/documents/cdk-deployment-dependency-issue-example/bin/cdk-deployment-dependency-issue-example.js:7:1)
    at Module._compile (node:internal/modules/cjs/loader:1275:14)
    at Module._extensions..js (node:internal/modules/cjs/loader:1329:10)
    at Module.load (node:internal/modules/cjs/loader:1133:32)
    at Module._load (node:internal/modules/cjs/loader:972:12)
    at Function.executeUserEntryPoint [as runMain] (node:internal/modules/run_main:83:12)
    at node:internal/main/run_main_module:23:47

Reproduction Steps

1. Download and extract this example project: cdk-deployment-dependency-issue-example.zip
2. npm install in the project directory
3. npm run cdk -- synth in the project directory

Possible Solution

No response

Additional Information/Context

No response

CDK CLI Version

2.67.0 (build b6f7f39)

Framework Version

No response

Node.js Version

v19.7.0

OS

Arch Linux 6.2.2-zen1

Language

Typescript

Language Version

No response

Other information

No response

[pahud]

This seems to be an interesting use case.

I'll see what I can do with your given sample.

 const thirdPartyBinariesDeployment = new s3deploy.BucketDeployment(
        this,
        "third-party-binaries-deploy",
        {
          sources: [s3deploy.Source.asset("./s3-assets/third-party-binaries")],
          destinationBucket: thirdPartyBinariesBucket
        });

    const parameters = {
      BuildkiteQueue: "default",
      VpcId: vpc.vpcId,
      Subnets: vpc.privateSubnets.map(subnet => subnet.subnetId),
      InstanceRoleName: "buildkite-role",
      ManagedPolicyARN: [
        iam.ManagedPolicy.fromAwsManagedPolicyName(AWSManagedPolicies.AMAZON_S3_FULL_ACCESS).managedPolicyArn
      ],
      AssociatePublicIpAddress: false,
      InstanceType: "t3.medium",
      MinSize: 1,
      MaxSize: 1
    };

    const buildkiteStack = new cloudformation.CfnStack(this, "buildkite-agent", {
      templateUrl: "https://s3.amazonaws.com/buildkite-aws-stack/v5.17.0/aws-stack.yml",
      parameters: objectMap(parameters, v => v.toString())
    });
    buildkiteStack.addDependency(thirdPartyBinariesDeployment);
  }

[pahud]

I think you probably need to use

buildkiteStack.node.addDependency(thirdPartyBinariesDeployment) instead.

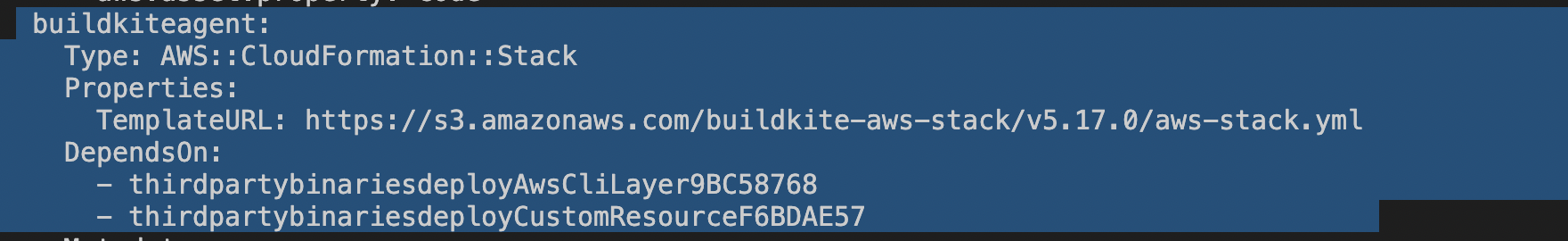

And if you run cdk synth you will see the dependency in its synthesized template.

I noticed you are using native javascript to author your CDK code. I will recommend using TypeScript instead that helps you better trouble-shooing from your IDE with strong type check capabilities.

Moving this to discussion as this appears to be a general guidance issue.

[ChrisLane]

Synth works with that, thank you!
