Home Assitant Install-Configuration error

[mani94321]

I install home assistant add on ,below is my frigate.yml code

mqtt:
  host: 192.168.30.30
  port: 1883
  user: mqtt_username
  password: mqtt passord

cameras:
  garage:
    ffmpeg:
      inputs:
        - path: rtsp://login:passowrd@192.168.20.110:554/Streaming/Channels/102/
          roles:
            - detect
  detect:
    width: 640
    height: 480
    fps: 6
detectors:
  cpu1:
    type: cpu
  cpu2:
    type: cpu

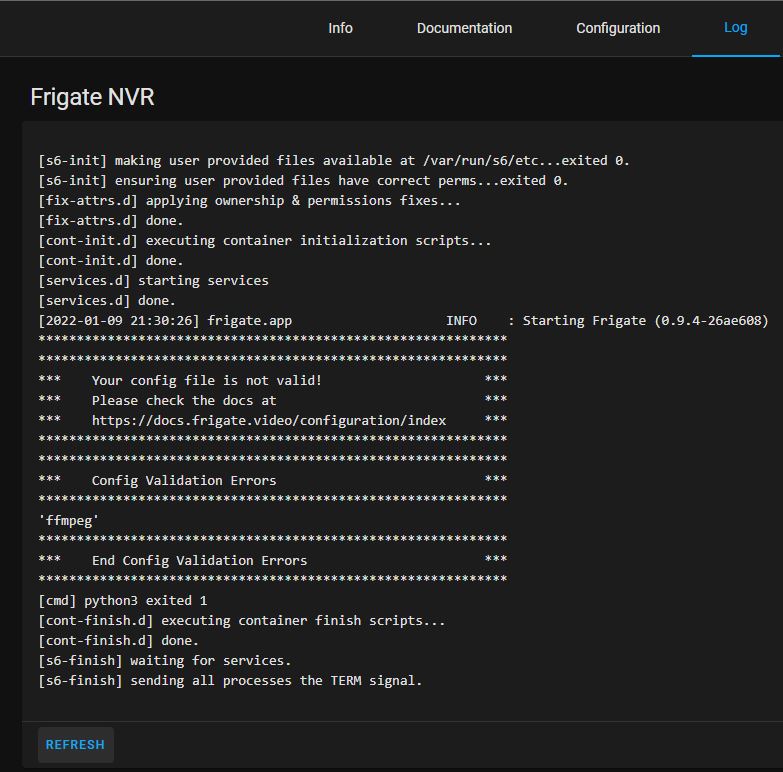

When is start the add on, i get following error while starting it. I am not able to start the frigate add on. Tried many times restarting but same issue. Can anyone help.

Home assistant supervisor version: supervisor-2021.12.2
on Raspberri Pi4, 4gb

[shred86]

Could you edit your post and put ``` before and ``` after your frigate.yml? It should look something like this:

cameras:
  garage:

[mani94321]

done, apology for not add ``` initially

[shred86]

You need to move the detect: section over two spaces so it's nested under the garage: line (see example in documentation). So your frigate.yml should look like:

mqtt:
  host: 192.168.30.30
  port: 1883
  user: mqtt_username
  password: mqtt passord

cameras:
  garage:
    ffmpeg:
      inputs:
        - path: rtsp://login:passowrd@192.168.20.110:554/Streaming/Channels/102/
          roles:
            - detect
    detect:
      width: 640
      height: 480
      fps: 6

detectors:
  cpu1:
    type: cpu
  cpu2:
    type: cpu

You could also define the detect: section globally so it would apply to all cameras. For example:

mqtt:
  host: 192.168.30.30
  port: 1883
  user: mqtt_username
  password: mqtt passord

cameras:
  garage:
    ffmpeg:
      inputs:
        - path: rtsp://login:passowrd@192.168.20.110:554/Streaming/Channels/102/
          roles:
            - detect

detect:
  width: 640
  height: 480
  fps: 6

detectors:
  cpu1:
    type: cpu
  cpu2:
    type: cpu

Some other techniques/notes:

• port: 1883 under mqtt: isn't required since that is the default.
• Any particular reason for fps: 6 for detect? 5 usually works for most situations (unless you're trying to record fast moving objects). 5 is also the default so you could omit that line if you wanted.

[mani94321]

Any particular reason for fps: 6 for detect? 5 usually works for most situations (unless you're trying to record fast moving objects). 5 is also the default so you could omit that line if you wanted.

HIK visoin camera setting have 4 or 6 fps , anyhow i have mentioned 5 fps in code now. its working fine.

Moving the detect section to globally resolved the issue, thanks a lot for ur help.
