Getting error on "Build ipa for distribution"

[vovaparkhomchuk]

So I got my ARCHIVE FAILED.

/Users/builder/clone/ios/MindistWell.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 16.0, but the range of supported deployment target versions is 9.0 to 15.5.99. (in target 'NumoWidgetExtension' from project 'MindistWell')
** ARCHIVE FAILED **

The following build commands failed:
CompileSwift normal arm64 /Users/builder/clone/ios/NumoWidget/NumoWidget.swift (in target 'NumoWidgetExtension' from project 'MindistWell')
CompileSwiftSources normal arm64 com.apple.xcode.tools.swift.compiler (in target 'NumoWidgetExtension' from project 'MindistWell')
(2 failures)

<<< Process completed with status code 65 in 00:19

I have a widget in my app and it works fine. But when I try to archive the app using codemagic, I'm getting this error.

[himesh-cm]

Hi @vovaparkhomchuk, can you please share the build id so that i can look into your query further?

[vovaparkhomchuk]

And could you please check another build id? Cause I changed XCode version, and there is another build failure reason. This is another build id 63d3e2e451a34f12456f1543. Thanks!

[himesh-cm]

Let me check, i will get back to you.

[himesh-cm]

Hi @vovaparkhomchuk for the build id 63d3e2e451a34f12456f1543

The error is related to the latest node version (node 19.3.0) being used which is the default on M1 machines, can you set node: v16.11.1 and try again?

You can set it under environment section in your yaml file

environment:
  node: 16.11.1

the error I can see

opensslErrorStack: [ 'error:03000086:digital envelope routines::initialization error' ],
  library: 'digital envelope routines',
  reason: 'unsupported',
  code: 'ERR_OSSL_EVP_UNSUPPORTED'

[vovaparkhomchuk]

Yeah, it helped! Thanks!
But now I have a problem with my signing certificates and provisioning profiles.

There is an issue
❌ error: exportArchive: Provisioning profile "NumoAppStoreProvisioningProfile" doesn't include signing certificate "Apple Distribution: Mindist, Inc. (K45B3N5K3U)".

Here is my build id
63d7a42f7f79ba2b445df004

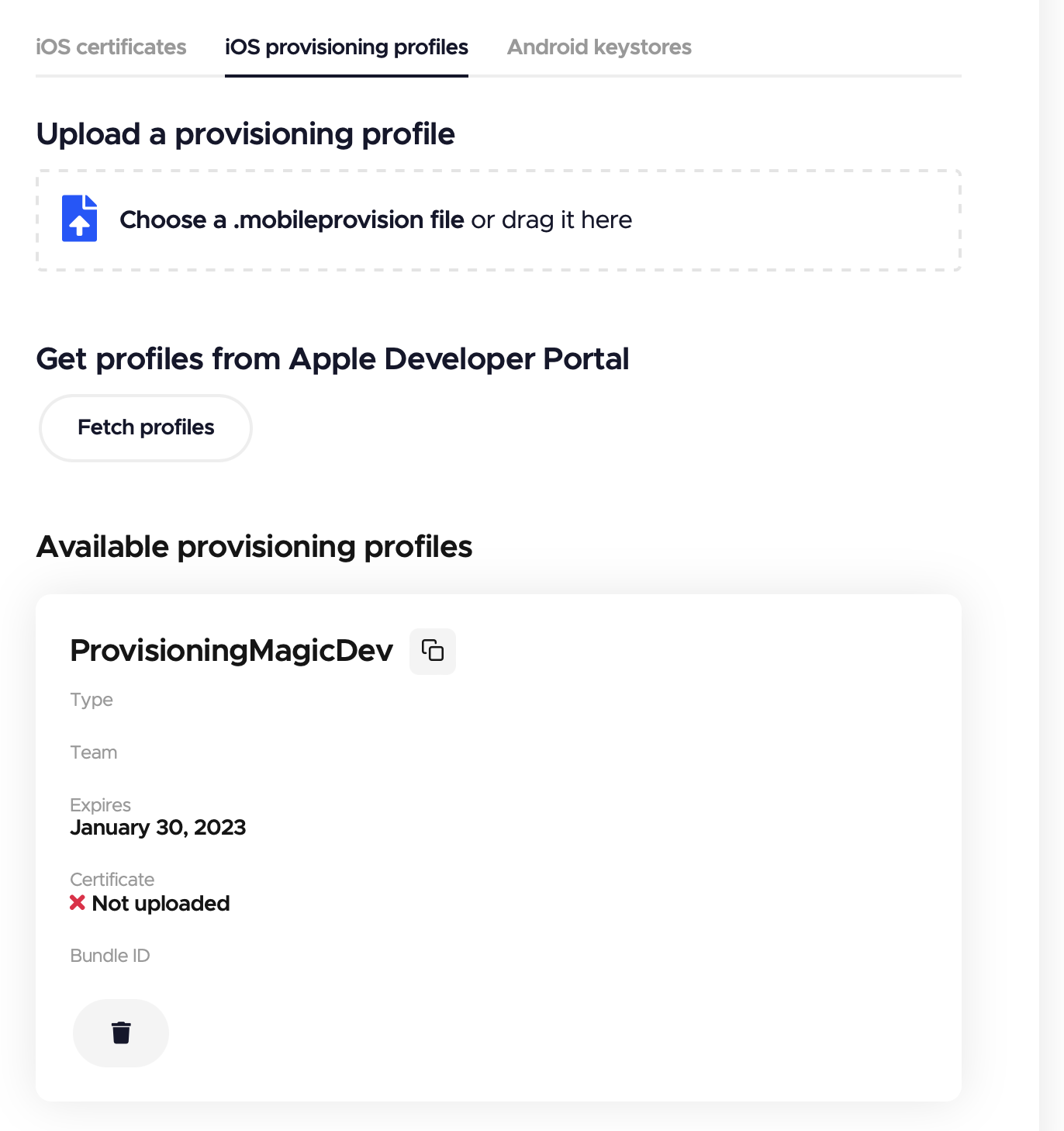

And when I'm adding my provisioning profile, it says that Certificate - Not uploaded

[himesh-cm]

Please go to the edit section of the provisioning profile on the apple developer account and check. Maybe the certificate got expired.
Try editing the profile, selecting the certificate once again, and then uploading it on Codemagic.

[SharbelOkzan]

Hello, I think facing a related problem.
I use Flutter, though my knowledge of iOS and xCode are pretty limited, please let me know if I should share more about my project.

My last successful build was 3 days ago. Flutter version was set to default in codemagic.yaml 👇

/#...

  prod:
    name: prod
    max_build_duration: 60
    environment:
      groups:
        - prod_env
      vars:
        FCI_KEYSTORE_PATH: /tmp/keystore.keystore
        FCI_KEYSTORE: Encrypted(***)
        FCI_KEYSTORE_PASSWORD: Encrypted(***)
        FCI_KEY_PASSWORD: Encrypted(***)
        FCI_KEY_ALIAS: Encrypted(****)
        APP_STORE_CONNECT_ISSUER_ID: ****
        APP_STORE_CONNECT_KEY_IDENTIFIER: ****
        APP_STORE_CONNECT_PRIVATE_KEY: Encrypted(****)
        CERTIFICATE_PRIVATE_KEY: Encrypted(****)
      flutter: default
      xcode: latest
      cocoapods: default
    cache:
      cache_paths: []
    scripts:
    # .....

However, this morning, without doing any related changes in my code, I my build failed due to name-conflict (we're using a class name used by Flutter also), so I checked the last successful build and saw that codemagic was using Flutter '3.3.10'.

So I locked Flutter version to '3.3.1' (which I use locally), and the error disappeared and the build was successful for Android.
codemagic.yaml is the same as above, I only changed this line

flutter: 3.3.1

But for iOS I got the following error:

command and error

#!/usr/bin/env bash

cd app && flutter build appbundle --release --build-name=2.0.$PROJECT_BUILD_NUMBER --build-number=$PROJECT_BUILD_NUMBER --flavor stage -t lib/main/main_stage.dart

💪 Building with sound null safety 💪

Archiving com.ballsquad.ballsquadWeb.stage$(bundle_suffix)...
Automatically signing iOS for device deployment using specified development team in Xcode project: [I_manually_removed_this]
Running pod install...                                           2,053ms
Running Xcode build...
Xcode archive done.                                          3.7s
Failed to build iOS app
Error output from Xcode build:
↳
    ** ARCHIVE FAILED **


Xcode's output:
↳
    Writing result bundle at path:
    	/var/folders/w2/rrf5p87d1bbfyphxc7jdnyvh0000gn/T/flutter_tools.hVcyZ1/flutter_ios_build_temp_dirt5fpd9/temporary_xcresult_bundle

    note: Building targets in dependency order
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 9.0, but the range of supported deployment target versions is 11.0 to 16.2.99. (in target 'GTMSessionFetcher' from project 'Pods')
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 8.0, but the range of supported deployment target versions is 11.0 to 16.2.99. (in target 'AppAuth' from project 'Pods')
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 9.0, but the range of supported deployment target versions is 11.0 to 16.2.99. (in target 'GTMAppAuth' from project 'Pods')
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 9.0, but the range of supported deployment target versions is 11.0 to 16.2.99. (in target 'GoogleMaps' from project 'Pods')
    warning: Run script build phase 'Run Script' will be run during every build because it does not specify any outputs. To address this warning, either add output dependencies to the script phase, or configure it to run in every build by unchecking "Based on dependency analysis" in the script phase. (in target 'Runner' from project 'Runner')
    warning: Run script build phase 'Thin Binary' will be run during every build because it does not specify any outputs. To address this warning, either add output dependencies to the script phase, or configure it to run in every build by unchecking "Based on dependency analysis" in the script phase. (in target 'Runner' from project 'Runner')
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 8.0, but the range of supported deployment target versions is 11.0 to 16.2.99. (in target 'libPhoneNumber-iOS' from project 'Pods')
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 9.0, but the range of supported deployment target versions is 11.0 to 16.2.99. (in target 'GoogleSignIn' from project 'Pods')
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: warning: The iOS deployment target 'IPHONEOS_DEPLOYMENT_TARGET' is set to 9.0, but the range of supported deployment target versions is 11.0 to 16.2.99. (in target 'GoogleSignIn-GoogleSignIn' from project 'Pods')
    /Users/builder/clone/app/ios/Pods/Pods.xcodeproj: error: Signing for "GoogleSignIn-GoogleSignIn" requires a development team. Select a development team in the Signing & Capabilities editor. (in target 'GoogleSignIn-GoogleSignIn' from project 'Pods')
    warning: Run script build phase '[CP-User] Config codegen' will be run during every build because it does not specify any outputs. To address this warning, either add output dependencies to the script phase, or configure it to run in every build by unchecking "Based on dependency analysis" in the script phase. (in target 'flutter_config' from project 'Pods')
    warning: no rule to process file '/Users/builder/programs/flutter/.pub-cache/hosted/pub.dartlang.org/flutter_config-2.0.0/ios/Classes/BuildDotenvConfig.rb' of type 'text.script.ruby' for architecture 'arm64' (in target 'flutter_config' from project 'Pods')
    warning: no rule to process file '/Users/builder/programs/flutter/.pub-cache/hosted/pub.dartlang.org/flutter_config-2.0.0/ios/Classes/BuildXCConfig.rb' of type 'text.script.ruby' for architecture 'arm64' (in target 'flutter_config' from project 'Pods')
    warning: no rule to process file '/Users/builder/programs/flutter/.pub-cache/hosted/pub.dartlang.org/flutter_config-2.0.0/ios/Classes/ReadDotEnv.rb' of type 'text.script.ruby' for architecture 'arm64' (in target 'flutter_config' from project 'Pods')

    Result bundle written to path:
    	/var/folders/w2/rrf5p87d1bbfyphxc7jdnyvh0000gn/T/flutter_tools.hVcyZ1/flutter_ios_build_temp_dirt5fpd9/temporary_xcresult_bundle


Error (Xcode): Signing for "GoogleSignIn-GoogleSignIn" requires a development team. Select a development team in the Signing & Capabilities editor.
/Users/builder/clone/app/ios/Pods/Pods.xcodeproj

Encountered error while archiving for device.


Build failed :|
Step 12 script `cd app && flutter build ipa --export-options-plist=/Users/builder/export_options ...` exited with status code 1

[SharbelOkzan]

I tried searching my codebase, I see no results for "9.0"

And for "8.0" I see:

While for "11.0" I see:

Apologies for this lousy way of sharing info, but as I said, my knowledge in iOS is very limited, so I'm not sure where to look. Any help is appreciated.

[himesh-cm]

@SharbelOkzan , Please share a build id, so we can look into the same.

[SharbelOkzan]

@himesh-cm 63d79fe7da348fcf09affbcc

[himesh-cm]

Hi @SharbelOkzan,
The below issue has been fixed on Flutter 3.3.3; please change the version and try running the build again.

Error (Xcode): Signing for "GoogleSignIn-GoogleSignIn" requires a development team. Select a development team in the Signing & Capabilities editor.
/Users/builder/clone/app/ios/Pods/Pods.xcodeproj

[SharbelOkzan]

Thankyou @himesh-cm ! that worked
