wireless emulation in multiple servers

[PengfeiM]

After installation, I can run wired and wireless(basic and emane) emulation locally.

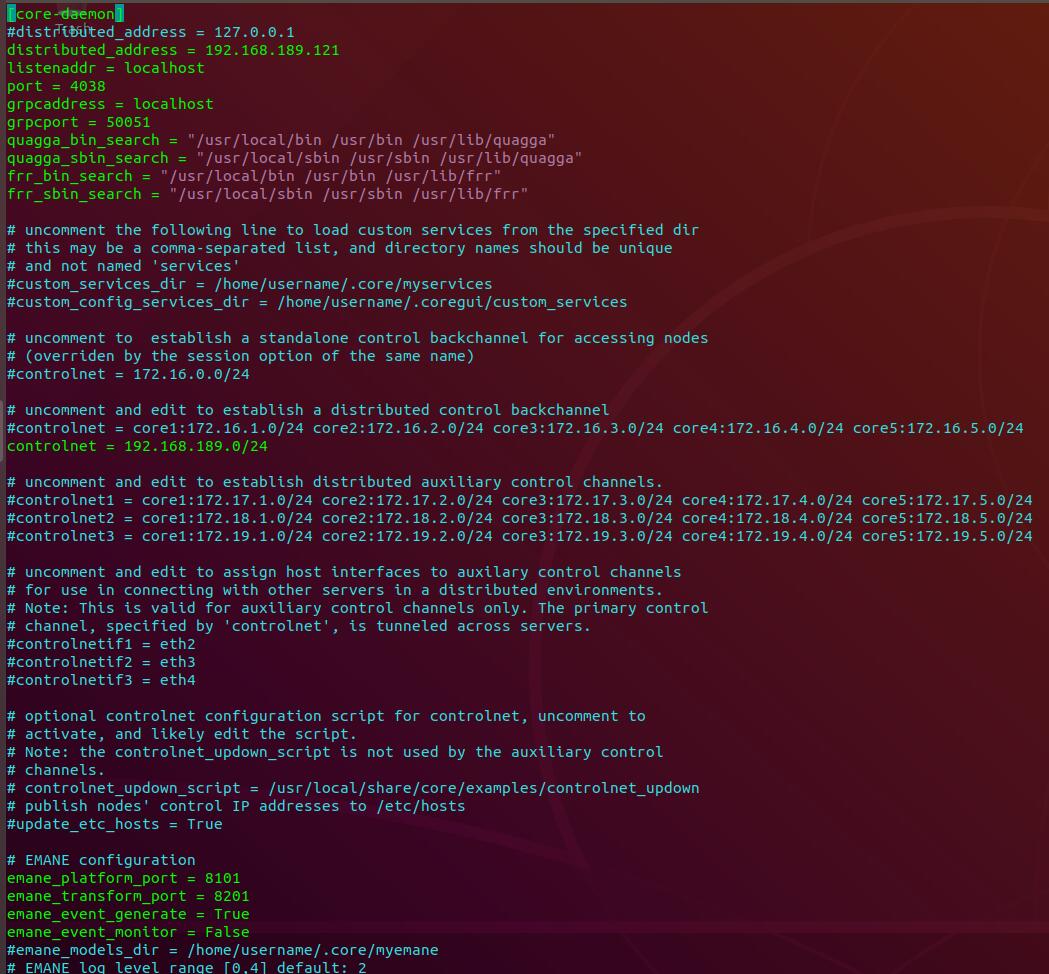

And when I config core as follows:(192.168.189.121 is master server's IP)

I can run a wired emulation in multiple servers.

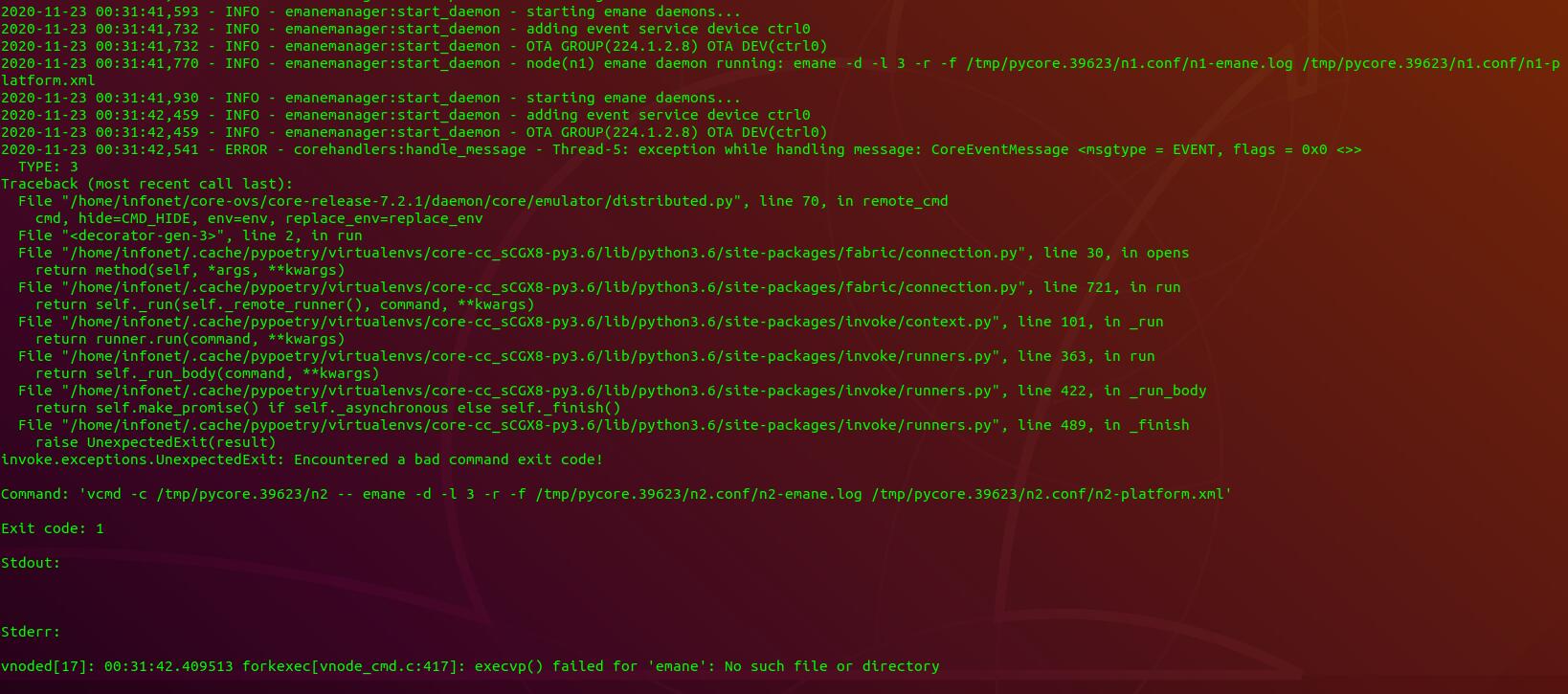

But when I try to run a emane emulation with all nodes in master server, an error occurs as following:

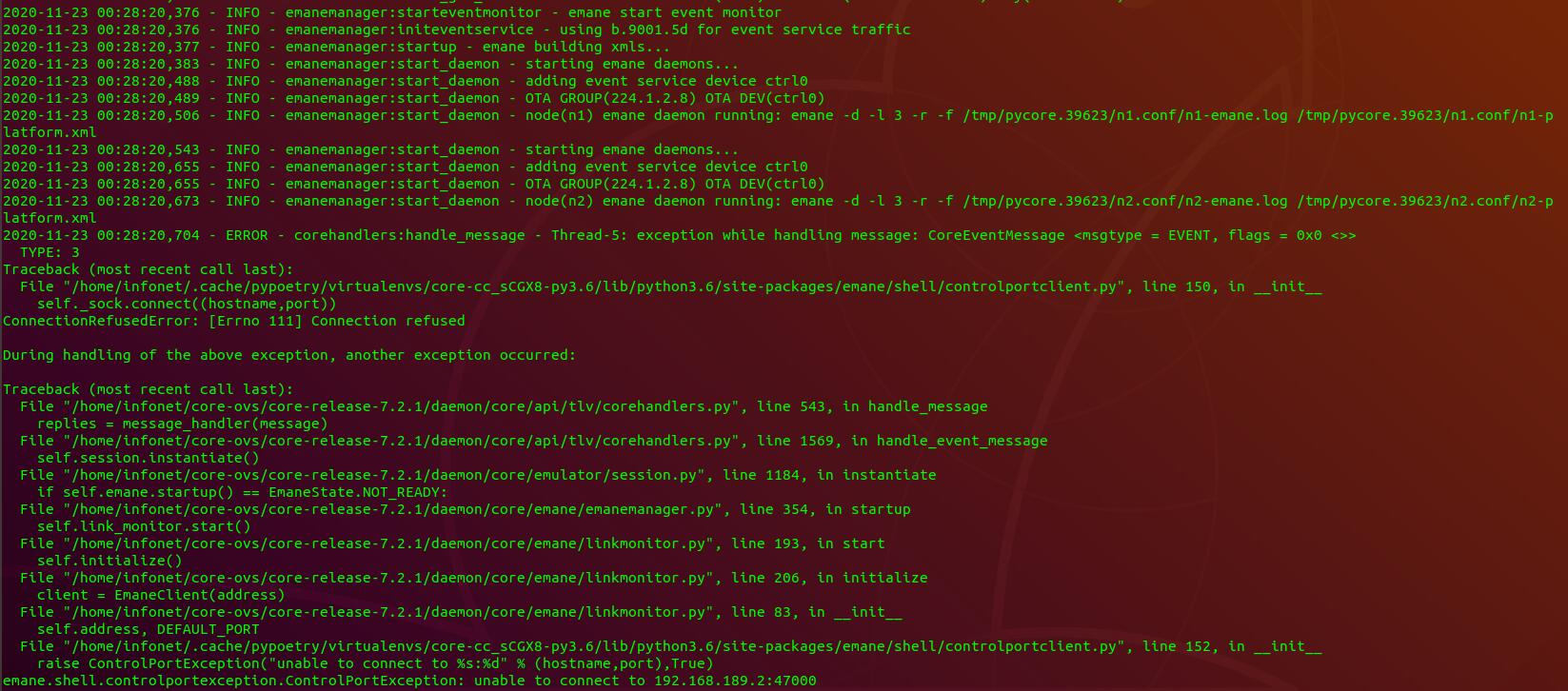

And when I run a emane emulation with nodes in both master and slave servers, an error occurs as following:

Besides, I have a question for distributed emane.
In documentation of Distribution, it says that I only need to install core in master server.

But in documentation of EMANE, it says that each machine that will act as an emulation server needs to have CORE and EMANE installed.

So, which instruction should I follow?

[PengfeiM]

I check the /tmp/pycore.xxxx/. path, find out that ,there is .log file in master server but no .log file in distributed server.

[bharnden]

EMANE being a separate component and is not a default part of CORE. If EMANE is desired, then yes, EMANE is required to be installed on each machine.

[PengfeiM]

So, that means the server should install packges as follosing:
master server: CORE, EMANE, core_distributed
distributed server: EMANE, core_distributed
Am I right?

[PengfeiM]

I installed CORE and EMANE in both master server and distributed server, the error n2-platform.xml didn't exist disapeared.

But I still get the error bellow:

240 - ERROR - corehandlers:handle_message - Thread-5: exception while handling message: CoreEventMessage <msgtype = EVENT, flags = 0x0 <>>
TYPE: 3CORE反馈的错误信息

Traceback (most recent call last):
File "/home/infonet/.cache/pypoetry/virtualenvs/core-bjdTMDRL-py3.6/lib/python3.6/site-packages/emane/shell/controlportclient.py", line 150, in __init__
self._sock.connect((hostname,port))
ConnectionRefusedError: [Errno 111] Connection refused

During handling of the above exception, another exception occurred:

Traceback (most recent call last):
File "/home/infonet/core/core-release-7.2.1/daemon/core/api/tlv/corehandlers.py", line 543, in handle_message
replies = message_handler(message)
File "/home/infonet/core/core-release-7.2.1/daemon/core/api/tlv/corehandlers.py", line 1569, in handle_event_message
self.session.instantiate()
File "/home/infonet/core/core-release-7.2.1/daemon/core/emulator/session.py", line 1184, in instantiate
if self.emane.startup() == EmaneState.NOT_READY:
File "/home/infonet/core/core-release-7.2.1/daemon/core/emane/emanemanager.py", line 354, in startup
self.link_monitor.start()
File "/home/infonet/core/core-release-7.2.1/daemon/core/emane/linkmonitor.py", line 193, in start
self.initialize()
File "/home/infonet/core/core-release-7.2.1/daemon/core/emane/linkmonitor.py", line 206, in initialize
client = EmaneClient(address)
File "/home/infonet/core/core-release-7.2.1/daemon/core/emane/linkmonitor.py", line 83, in __init__
self.address, DEFAULT_PORT
File "/home/infonet/.cache/pypoetry/virtualenvs/core-bjdTMDRL-py3.6/lib/python3.6/site-packages/emane/shell/controlportclient.py", line 152, in __init__
raise ControlPortException("unable to connect to %s:%d" % (hostname,port),True)
emane.shell.controlportexception.ControlPortException: unable to connect to 192.168.6.2:47000

---

My configuration is:

distributed_address = 192.168.6.106
controlnet = 192.168.6.0/24
emane_event_generate = True

---

192.168.6.106 is the master server's ip

[bharnden]

Don't have the controlnet addresses be the same as your actual host address, that woul dlikely cause a conflict. Set it to something like the default controlnet = 172.16.0.0/24.

[bharnden]

So, that means the server should install packges as follosing:
master server: CORE, EMANE, core_distributed
distributed server: EMANE, core_distributed
Am I right?

Master server does not need core_distributed, since the executables it contains are a part of the normal CORE installation. It is only for distributed nodes.

[PengfeiM]

If I want to implement openvswitch on this.
I need to install ovs and ryu for every server, right?

[bharnden]

yes, you need to have any software you plan to use installed on the actual host machine, for any given machine.

[PengfeiM]

Thanks for answering my question in the past days,
I have a question, does CORE surppot OVS & RYU like EMANE so that I can just install them and use them with only one click in service configuration of the nodes.
Or I need to write some configuration about OVS & RYU?

[bharnden]

Depends on what you are trying to do. There is an --ovs flag for the core-daemon that can allows the network to be linked by way of ovs bridges vs linux bridges if desired.

There are some basic OVS/RYU services provided, assuming they are installed. That provide some bare bones setup for one given take on setting things up.

If either of the above are good enough alone they may help. Otherwise you will need to write a custom service for your use case or orchestrate your setup after the scenario has started etc.

[PengfeiM]

Hello again, I installed ovs and also installed ryu following the document.
But when I start the core by sudo core-daemon --ovs and core-gui, I can only see ovs in SDN service.
what is this because?

[bharnden]

The Ryu service depends on having ryu-manager on PATH, so potentially that is your issue and the reason it is not showing up. This also means not your PATH as a user, but the PATH when CORE is ran under sudo/root.

sudo which ryu-manager

Also the --ovs flag is a different way of running CORE and not a requirement, you probably would not want to use that flag and try and use an OVS service on top of it.

[PengfeiM]

Thanks for that.
Is there any document about ovs in CORE?
Or where can I read the code about how ovs is called by CORE in the source code.

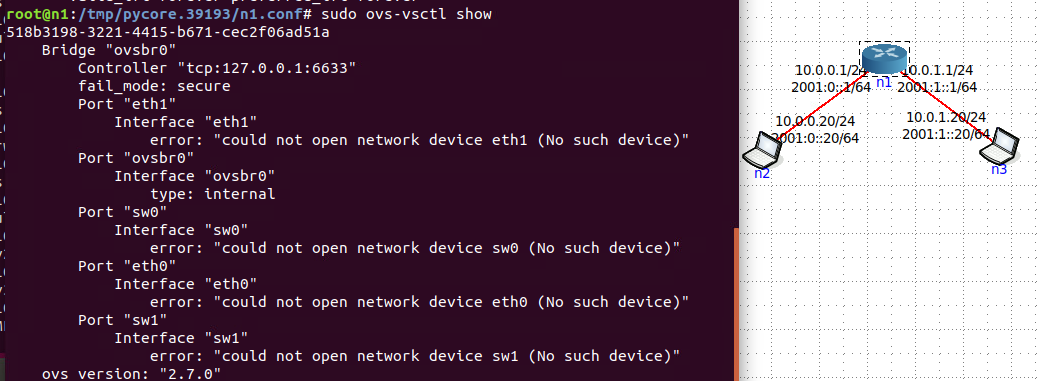

Because currently, I can't get is work.
Thanks.

[bharnden]

This is the example service contributed to CORE for one way to try and use OVS:

core/daemon/core/services/sdn.py

Line 24 in a57b838

class OvsService(SdnService):

This is by no means an end all solution to anyone wanting to use OVS, it is just one simple example that can be run. If you want things differently, you are getting to the point of looking into OVS documentation and potentially you would write a custom service to carry out your desired actions, or manually set things up by hand, etc.

At that point, this is not a CORE specific issue, but more of an issue for how you want to use OVS itself.
