RuntimeError: Failed to authenticate through CAM. HTTP response does not contain 'cam_passport' cookie

[ommore1523]

Hi , I am facing issue with connecting tm1 server

Versions:
tm1py = 1.7.0

NOTE: single sign on is enabled for IBM Cognos Analytics and Planning Analytics

 from TM1py.Services import TM1Service
 with TM1Service(address="<IP_ADDRESS>", port=<PORT> , ssl=False, namespace="<NAMESPACE>", gateway="https://DOMAIN:449/ibmcognos/bi/v1/disp", user="<USERNAME>", password="<PASSWORD>") as tm1:
    print(tm1.server.get_product_version())

ERROR MESSAGE: Failed to authenticate through CAM. HTTP response does not contain 'cam_passport' cookie

[MariusWirtz]

If you want to authenticate with USER, PASSWORD and NAMESPACE, don't pass the gateway parameter.

You can read about the different authentication modes here:
https://code.cubewise.com/tm1py-help-content/how-to-authenticate-to-tm1-with-tm1py

by the way, you probably want to upgrade to TM1py 1.9: pip install tm1py --upgrade

[ommore1523]

Hi @MariusWirtz

 from TM1py.Services import TM1Service
 with TM1Service(address="<IP_ADDRESS>", port=<PORT> , ssl=False, namespace="<NAMESPACE>", user="<USERNAME>", password="<PASSWORD>") as tm1:
    print(tm1.server.get_product_version())

I tried to connect with tm1py version 1.9.1 and removing gateway ..

It stuck in between...

Not get any response...

and @MariusWirtz Should I ask to check the single sign on configuration check to administrator side ...

[MariusWirtz]

Please post the stack trace and error message you get.

Yes. It definitely makes sense to speak to the person that administrates the TM1 Environment.
Make sure that as port you pass the HTTPPortNumber that is configured in the tm1s.cfg

[ommore1523]

@MariusWirtz as per doucmentation reference I kept gateway instead of username and password..

with TM1Service(address="192.168.XX.XX", port=4XXXX, ssl=True, namespace="XX", gateway="https://dc1XXXX:449/ibmcognos/bi/v1/disp") as tm1:
    print(tm1.server.get_product_version())

Traceback message

Traceback (most recent call last):
  File ".\test.py", line 31, in <module>
    with TM1Service(address="192.168.80.30", port=40652, ssl=True, namespace="KM", gateway="https://dc1epmcatst1:449/ibmcognos/bi/v1/disp") as tm1:
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\TM1Service.py", line 15, in __init__
    self._tm1_rest = RestService(**kwargs)
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 201, in __init__
    self._start_session(
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 353, in _start_session
    token = self._build_authorization_token(
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 472, in _build_authorization_token
    return RestService._build_authorization_token_cam(user, password, namespace, gateway, verify)
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 494, in _build_authorization_token_cam
    raise RuntimeError(
RuntimeError: Failed to authenticate through CAM. HTTP response does not contain 'cam_passport' cookie

and

What should I ask to tm1 adminstrator to verify for ?

As per my debug information :

response = requests.get(
    gateway,
    auth=HttpNegotiateAuth(),
   verify=verify,params={"CAMNamespace": namespace}
)

The above code is not returning cam_passport cookie.

[MariusWirtz]

Just to make sure, can you please open the URL in a different browser and verify that single sign-on works?

For the first approach, if it hangs and doesn't return, please make sure you got the port, address and ssl right. For port, you need to pass the port that is specified in the tm1s.cfg as the HttpPortNumber.

to verify if have the right address and port and SSL you can try out this request in the browser. It doesn't require authentication:

https://<<address>>:<<port>>/api/v1/$metadata

[ommore1523]

@MariusWirtz URL : https://192.168.XX.XX:40XXX/api/v1/$metadata
Returning : This site can’t be reached error message

With Gateway URL: https://dc1XXX:449/ibmcognos/bi/v1/$metadata
Return : forbidden

[MariusWirtz]

What should I ask to tm1 adminstrator to verify for ?

Please check with the TM1 administrator about whether you are using the wrong parameters in the URL or why the TM1 REST API isn't exposed

[ommore1523]

Ok @MariusWirtz . Thank you for your cooperation.

[ommore1523]

Hi @MariusWirtz

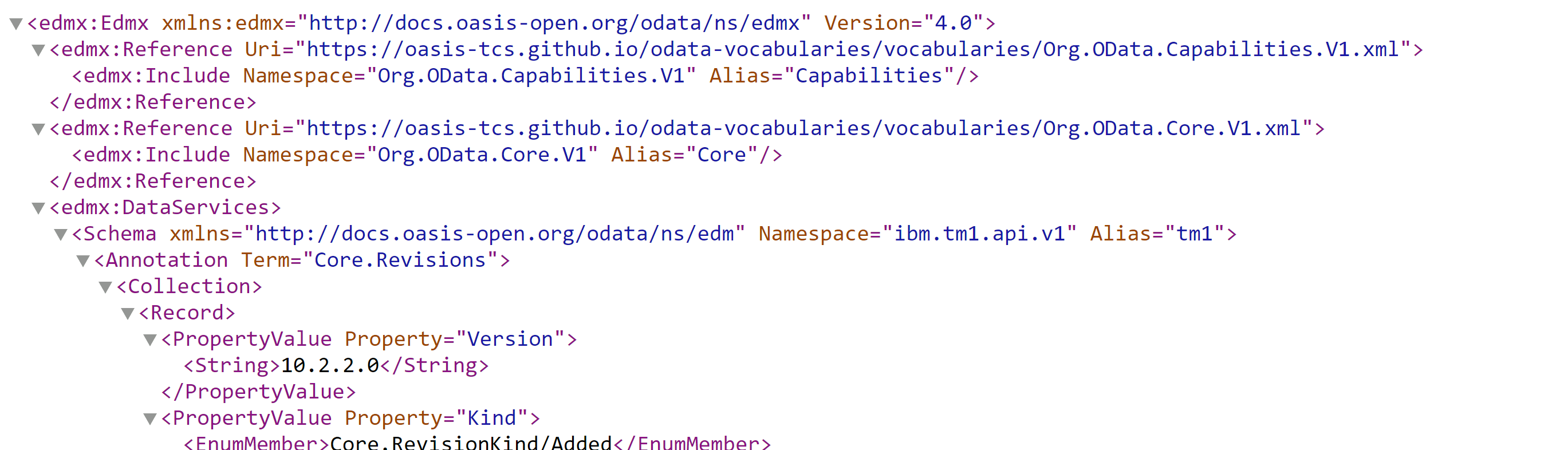

as per your suggetions the url : https://:/api/v1/$metadata is returning some xml data.

But,
when i try to run :

with TM1Service(address="", port=40672, ssl=True, namespace="KMMM", gateway="http://web-host:80/ibmcognos/bi/v1/disp") as tm1:
    print(tm1.server.get_product_version())

Error:

Traceback (most recent call last):
  File ".\test.py", line 9, in <module>
    with TM1Service(address="", port=40653, ssl=True, namespace="KM", gateway="https://dc1epmcatst1:449/ibmcognos/bi/v1/disp") as tm1:
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\TM1Service.py", line 15, in __init__
    self._tm1_rest = RestService(**kwargs)
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 201, in __init__
    self._start_session(
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 354, in _start_session
    token = self._build_authorization_token(
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 473, in _build_authorization_token
    return RestService._build_authorization_token_cam(user, password, namespace, gateway, verify)
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 495, in _build_authorization_token_cam
    raise RuntimeError(
RuntimeError: Failed to authenticate through CAM. HTTP response does not contain 'cam_passport' cookie

And IF I RUN:

with TM1Service(address="192.168.80.20", port=40653, ssl=True, namespace="KMM",  user="abc", password="Pass") as tm1:
    print(tm1.server.get_product_version())

Error:

Traceback (most recent call last):
  File ".\test.py", line 4, in <module>
    with TM1Service(address="192.168.80.30", port=40653, ssl=True, namespace="KM",  user="abc", password="Pass") as tm1:
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\TM1Service.py", line 15, in __init__
    self._tm1_rest = RestService(**kwargs)
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 201, in __init__
    self._start_session(
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 369, in _start_session
    response = self.GET(url=url, headers=additional_headers)
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 80, in wrapper
    self.verify_response(response=response)
  File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 460, in verify_response
    raise TM1pyRestException(response.text,
TM1py.Exceptions.Exceptions.TM1pyRestException: Text: '' - Status Code: 401 - Reason: 'Unauthorized' - Headers: {'Content-Type': 'text/plain', 'Content-Length': '0', 'Connection': 'keep-alive', 'Set-Cookie': 'TM1SessionId=9Xk1Djr6CfUALhlhZYNie2Zi8_I; Path=/api/; HttpOnly; Secure', 'WWW-Authenticate': 'CAMPassport https://DC1EPMCATST1:449/ibmcognos/bi/v1/disp, CAMNamespace'}

In both case , errors are different .

[rclapp]

#1 seems to suggest that your gateway URL is wrong. It has reached its maximum number of tries #2 is clearer, the user name, password, namespace combo is invalid. First I would ensure that gateway is available by trying it in a browser.

…

Sent from my mobile device On Aug 8, 2022 7:45 AM, omkar more ***@***.***> wrote: Hi @MariusWirtz<https://github.com/MariusWirtz> as per your suggetions the url : https://:/api/v1/$metadata is returning some xml data. [Screenshot from 2022-08-08 17-08-12]<https://user-images.githubusercontent.com/52170865/183409961-23145a6d-1927-460d-90d7-1f1e95d7bbee.png> But, when i try to run : with TM1Service(address="", port=40652, ssl=True, namespace="KM", gateway="http://web-host:80/ibmcognos/bi/v1/disp") as tm1: print(tm1.server.get_product_version()) Error: File ".\test.py", line 9, in <module> with TM1Service(address="", port=40652, ssl=True, namespace="KM", gateway="http://web-host:80/ibmcognos/bi/v1/disp") as tm1: File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\TM1Service.py", line 15, in __init__ self._tm1_rest = RestService(**kwargs) File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 201, in __init__ self._start_session( File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 354, in _start_session token = self._build_authorization_token( File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 473, in _build_authorization_token return RestService._build_authorization_token_cam(user, password, namespace, gateway, verify) File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 487, in _build_authorization_token_cam response = requests.get(gateway, auth=HttpNegotiateAuth(), verify=verify, File "E:\development\TariffModeling\venv1\lib\site-packages\requests\api.py", line 75, in get return request('get', url, params=params, **kwargs) File "E:\development\TariffModeling\venv1\lib\site-packages\requests\api.py", line 61, in request return session.request(method=method, url=url, **kwargs) File "E:\development\TariffModeling\venv1\lib\site-packages\requests\sessions.py", line 542, in request resp = self.send(prep, **send_kwargs) File "E:\development\TariffModeling\venv1\lib\site-packages\requests\sessions.py", line 655, in send r = adapter.send(request, **kwargs) File "E:\development\TariffModeling\venv1\lib\site-packages\requests\adapters.py", line 516, in send raise ConnectionError(e, request=request) requests.exceptions.ConnectionError: HTTPConnectionPool(host='web-host', port=80): Max retries exceeded with url: /ibmcognos/bi/v1/disp?CAMNamespace=KM (Caused by NewConnectionError('<urllib3.connection.HTTPConnection object at 0x000002E4D6686550>: Failed to establish a new connection: [Errno 11001] getaddrinfo failed')) And IF I RUN: with TM1Service(address="192.168.80.30", port=40653, ssl=True, namespace="KM", user="ibmcognos", ***@***.***") as tm1: print(tm1.server.get_product_version()) Error: Traceback (most recent call last): File ".\test.py", line 4, in <module> with TM1Service(address="192.168.80.30", port=40653, ssl=True, namespace="KM", user="ibmcognos", ***@***.***") as tm1: File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\TM1Service.py", line 15, in __init__ self._tm1_rest = RestService(**kwargs) File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 201, in __init__ self._start_session( File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 369, in _start_session response = self.GET(url=url, headers=additional_headers) File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 80, in wrapper self.verify_response(response=response) File "E:\development\TariffModeling\venv1\lib\site-packages\TM1py\Services\RestService.py", line 460, in verify_response raise TM1pyRestException(response.text, TM1py.Exceptions.Exceptions.TM1pyRestException: Text: '' - Status Code: 401 - Reason: 'Unauthorized' - Headers: {'Content-Type': 'text/plain', 'Content-Length': '0', 'Connection': 'keep-alive', 'Set-Cookie': 'TM1SessionId=9Xk1Djr6CfUALhlhZYNie2Zi8_I; Path=/api/; HttpOnly; Secure', 'WWW-Authenticate': 'CAMPassport https://DC1EPMCATST1:449/ibmcognos/bi/v1/disp, CAMNamespace'} In both case , errors are different . - Reply to this email directly, view it on GitHub<#772 (reply in thread)>, or unsubscribe<https://github.com/notifications/unsubscribe-auth/AEK7GZR7ECJY5F3DAL7SKM3VYDXKFANCNFSM54ZKR67Q>. You are receiving this because you are subscribed to this thread.Message ID: ***@***.***>

[ommore1523]

@rclapp

Login is possible through the browser with same username and password.

Login process is as follows :

• Put http://<dc1--->:449/ibmcognos/bi/v1/disp url on browser in incognito window.
• When it pop ups window for username and password same as used which using inside my code
• Note: It does not ask for any namespace . Only in incognito it asks for username and passoword otherwise it do login using sso.
• They provided me namespace something like KM not a LDAP

[MariusWirtz]

Hi @ommore1523,

option B should work in any case:

with TM1Service(address="192.168.80.20", port=40653, ssl=True, namespace="KMM",  user="abc", password="Pass") as tm1:
    print(tm1.server.get_product_version())

If you get all arguments right it should work. Please note that the namespace is case-sensitive.

[ommore1523]

unfortunately Its not working as it should. May I know which configuration should I ask to check as tm1s.conf side. Is there anything where we can diagnostic whether it is working or not..
