MPW-5

[d-m-bailey]

This discussion describes the issues found with this repo's tools on the mpw-5 designs.

No errors were flagged in the following 22 designs:

slot-001
slot-002
slot-003
slot-004
slot-006
slot-007
slot-008
slot-010
slot-011
slot-012
slot-013
slot-014
slot-019
slot-027
slot-029
slot-030
slot-032
slot-033
slot-034
slot-035
slot-037
slot-040

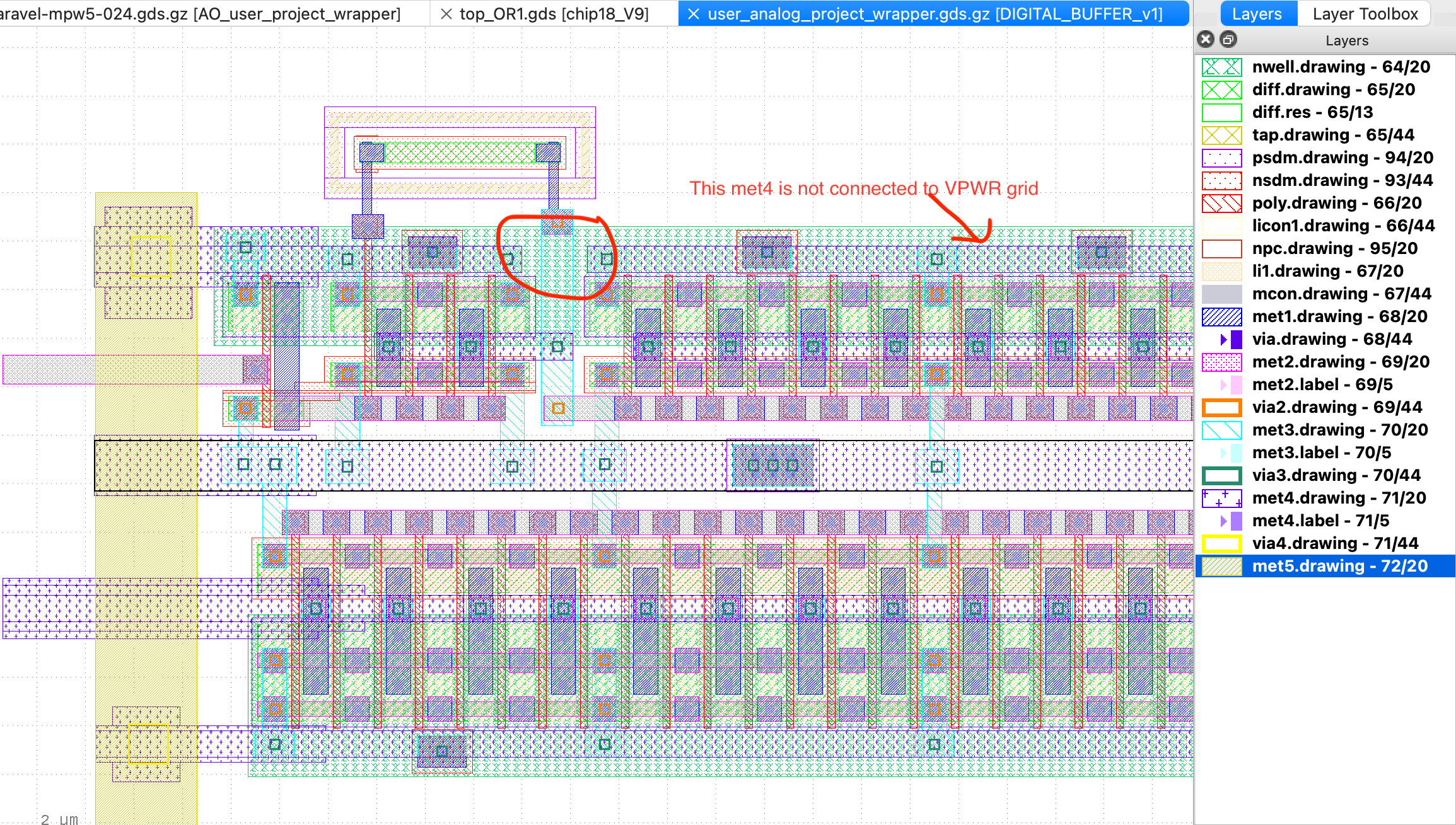

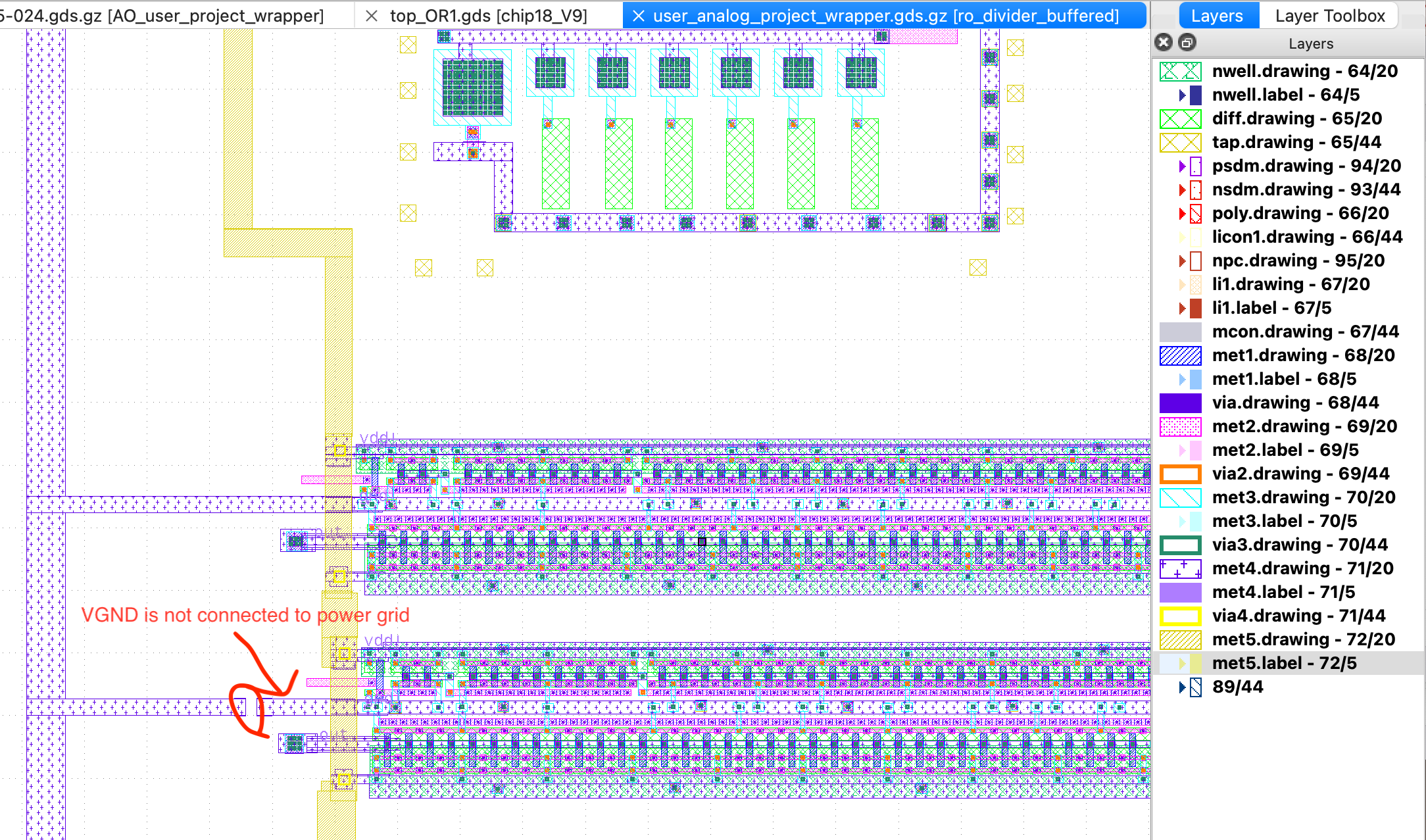

There are soft connection errors in 3 designs (power connections through well only).

slot-017
slot-018
slot-022

There is an unconnected dnwell in one design that is not detectable in any current verification flow.

slot-026

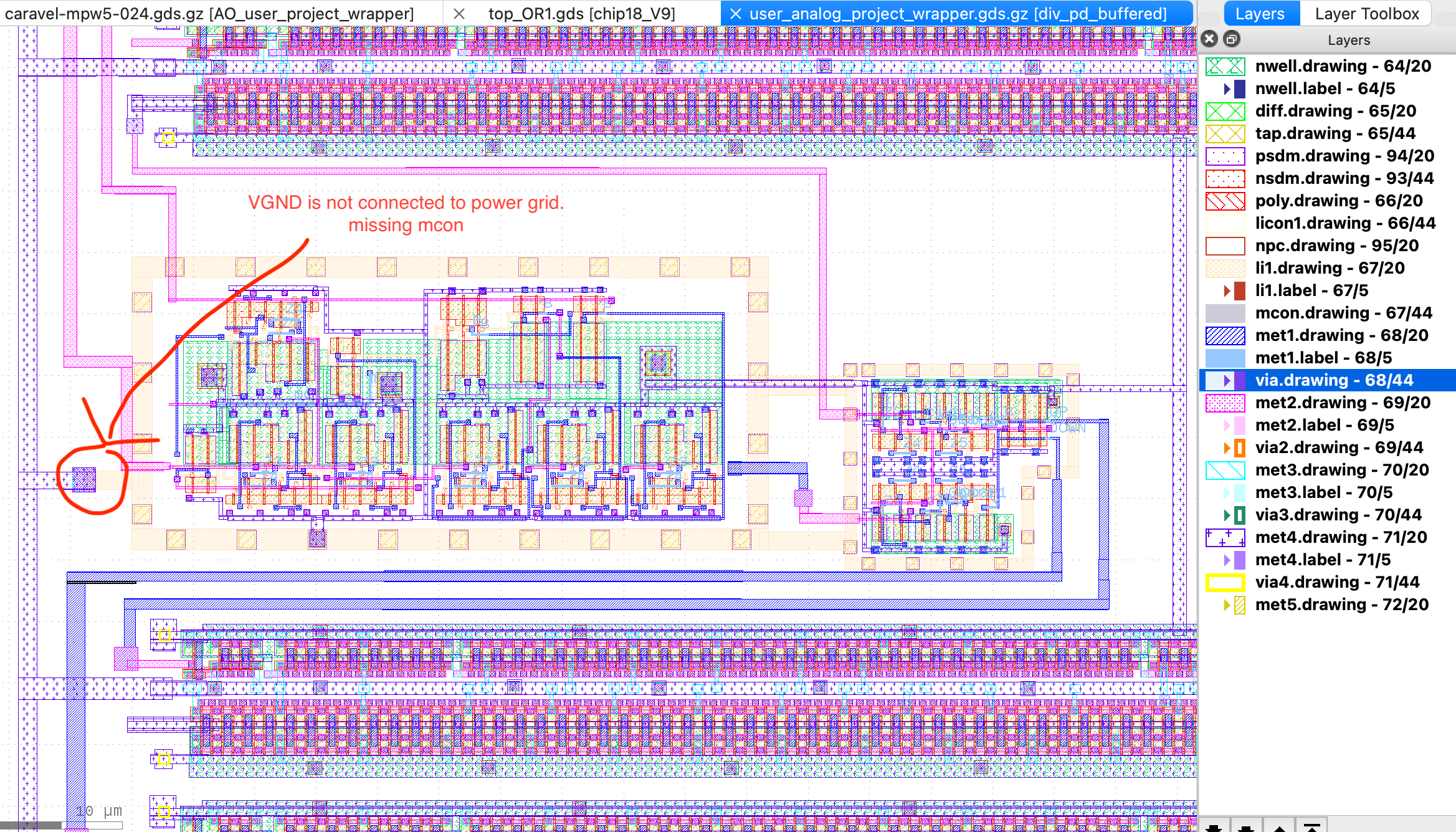

Although not technically an error, 2 designs require the addition of SUBCUT (81/53) to pass LVS because 2 separate ground nets are connected to the same substrate.

slot-028
slot-031

The following is a TEG chip without labeled pads which makes verification impossible.

slot-016

[d-m-bailey]

slot-017 has 3 substrate only connections and 1 well only connection




.
