How to improve the performance of multi-gpu

[phyoung123]

deepmd-kit version 2.1.1

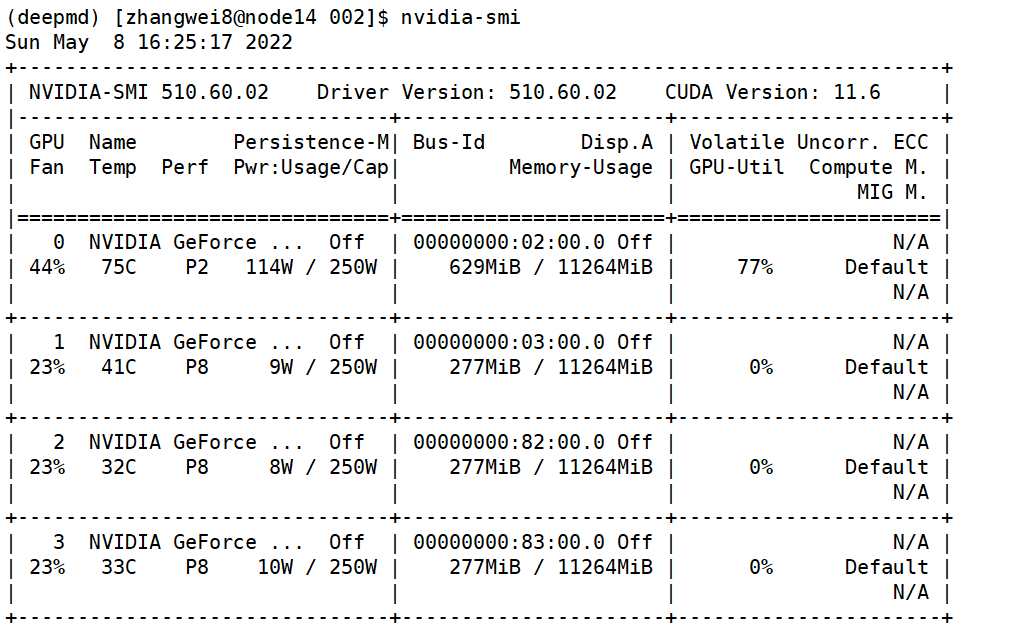

First of all, Thank you for your concern of my question. I have 4 GPU cards in one node, and 2 cpus with 12 cores for each one. I want to use this respectable code to train a model but I don't think my computing resources are being fully utilized, the usage of my computer is low and it cost about 10s per 100 steps, I think this is very inefficient and unacceptable.

I have tried to modify the bach_size to change the utilization rate, but an error emerged:
"batch_size" is not defined in the strict model
So I have to annotate it out to keep the code running.

I have also set the environment vaiables as follow:
export OMP_NUM_THREADS=24; export TF_INTRA_OP_PARALLELISM_THREADS=12; export TF_INTER_OP_PARALLELISM_THREADS=2; export CUDA_VISIBLE_DEVICES=0,1,2,3

So my question is how can i improve the performance of GPU cards based on my existing computer configuration . Thank you for your reply.

[Lewis-YL]

It is similar in my case. The GPU power usage is only 40-50%.

When the power usage is low, there is some room for optimization as mentioned in this post:
https://superuser.com/questions/1013001/relation-between-gpu-utilization-and-graphic-cards-power-consumption

The optimization may take months, I think

[njzjz]

For the usage of multi GPUs, refer to https://docs.deepmodeling.com/projects/deepmd/en/master/train/parallel-training.html.

[AnguseZhang]

"it cost about 10s per 100 steps" What's the type of your GPU cards ? Also, what's the training parameters? It seems the speed is slower than the expectation.

[Lewis-YL]

What is your expected speed for GPU? Is there a benchmark for GPU training?
I used RTX 3080Ti and i9-12900K
In my case, it takes 8 s to train 100 steps with 3080Ti and 24s to train 100 steps with 12900K.

[phyoung123]

I don't think there's a benchmark here, as long as you can accept it, and the reason I can't accept it for 10s per 100 steps is because I have a very wide temperature-pressure zone to iterate over

[phyoung123]

Thanks to all of you, I think the slow speed might be because the GPU cards is so outdated, which I used four 1080Ti cards for trainning. When I perform it on the Tesla v100 it only takes about 2 seconds to train 100 steps. Thanks again for your concern.
