RESTful_command template for Home Assistant

[Djelibeybi]

Hey folks,

I thought I'd share a restful_command template you can add to your Home Assistant configuration.yaml to simplify making a kelvin-based transformations when using the Photons Interactor add-on.

Essentially, using a template means you don't have to have lots of the same JSON repeated over and over in your configuration. Instead, you can use this simple YAML defintion.

service: rest_command.lifx_kelvin_transform
data:
  serials:
    - d073d5000000
    - d073d51111111
  brightness: 0.9
  kelvin: 4000
  duration: 10

Here's what you need to add to configuration.yaml (or wherever you put your restful_command configuration!):

rest_command:
  lifx_kelvin_transform:
    url: "http://localhost:6100/v1/lifx/command"
    method: put
    content_type: application/json
    payload: |
      {
        "command": "transform",
        "args": {
          {% if serials %}
          "matcher": {
            "serial": [
              {% for serial in serials %}
              {% if loop.last %}
              "{{ serial }}"
              {% else %}
              "{{ serial }}",
              {% endif %}
              {% endfor %}
            ]
          },
          {% endif %}
          "transform": {
            {% if brightness is defined and brightness|float and brightness >= 0 and brightness <= 1 %}
            "brightness": {{ brightness }},
            {% endif %}
            {% if kelvin is defined and kelvin|int and kelvin >= 1500 and kelvin <= 9500 %}
            "kelvin": {{ kelvin }},
            {% endif %}
            {% if duration is defined and duration|int and duration > 0 %}
            "duration": {{ duration }},
            {% endif %}
            {% if power is defined and power in ("on", "off") %}
            "power": {{ power }},
            {% endif %}
            "hue": 0,
            "saturation": 0
          },
          "transform_options": {
            "transition_color": true
          }
        }
      }

[Final-Hawk]

Ooo, that looks great. I will have to try it out. Thanks!

[delfick]

shiny

[pimw1]

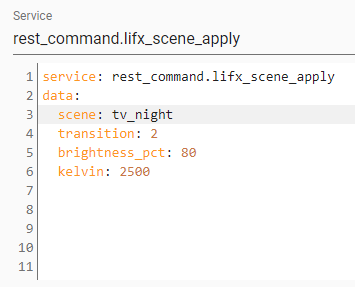

Hi, i've adopted a similar approach for applying scenes. Two improvements:

• Home Assistant terminology and units are used: "transition" instead of "duration", "brightness_pct" in the range [0:100] instead of "brightness" in the range of [0:1]
• a default value (0) is provided for the integers and floats, in line with the new best practice for templating as introduced in Home Assistant 2021.10. This helps in preventing an error when providing an empty value instead of no value.

rest_command:
  lifx_scene_apply:
    url: 'http://127.0.0.1:6100/v1/lifx/command'
    method: "put"
    payload: |
      {
        "command": "scene_apply",
        "args": {
          "uuid":"{{scene}}",
          "overrides": {
            {% if brightness_pct is defined and brightness_pct|float(0) and brightness_pct >= 0 and brightness_pct <= 100 %}
            "brightness": {{ brightness_pct/100 }},
            {% endif %}
            {% if kelvin is defined and kelvin|int(0) and kelvin >= 1500 and kelvin <= 9500 %}
            "kelvin": {{ kelvin }},
            {% endif %}
            {% if transition is defined and transition|int(0) and transition > 0 %}
            "duration": {{ transition }}
            {% endif %}
          }
        }
      }

[pimw1]

That would not be my preference, reason being that i have incorporated standard naming conventions in Home Assistant for both entity_id and friendly_name. Those naming conventions are very helpful to me.

[Djelibeybi]

Oh, not my preference either. If I can find some spare time, I'll see if I can add serial as an attribute to the LIFX integration and if upstream will accept it.

[pimw1]

That would be so nice!

[Djelibeybi]

In the meantime, I logged a bug upstream: home-assistant/core#57457

[Djelibeybi]

And just submitted a PR that fixes the bug: home-assistant/core#58457

It's my first PR to Home Assistant, so I have no idea if they'll merge it or not.

[pimw1]

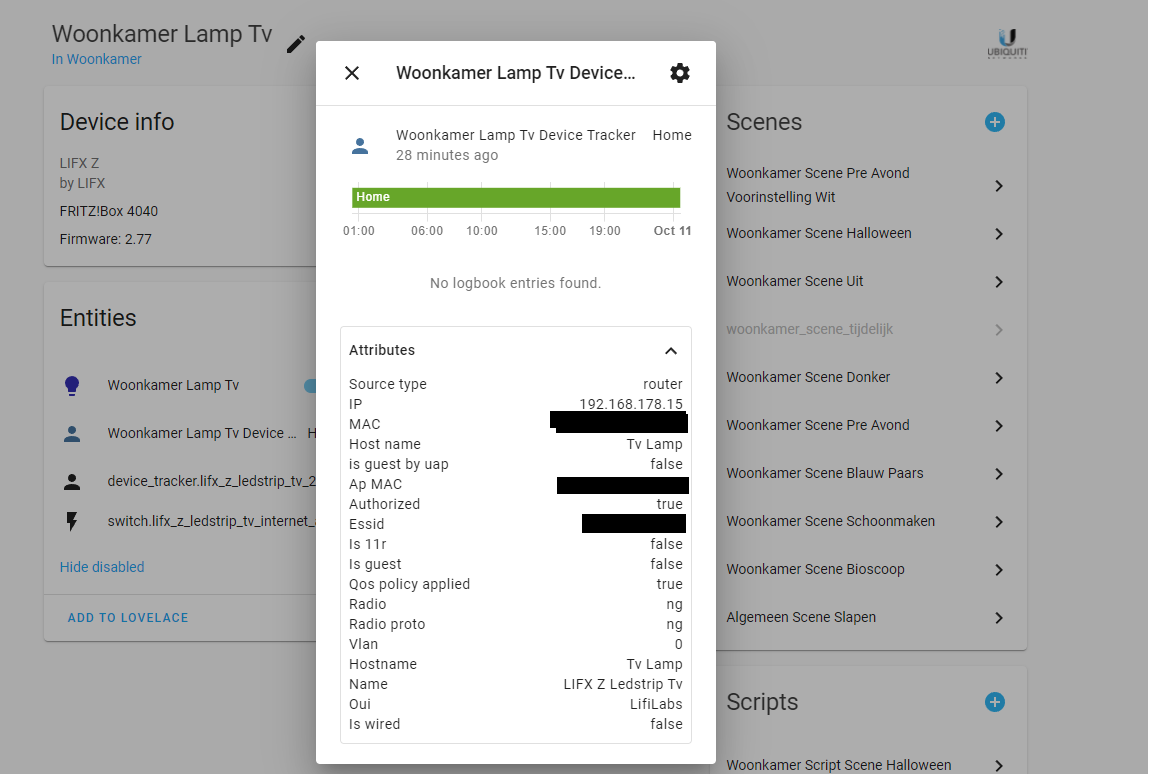

While thinking about it: the serial equals the mac address of the device. With an unifi access point, you can use the unifi integration to find the mac address. Could be something?

[Djelibeybi]

Except the serial no longer equals the MAC address, at least not for Gen3/Gen4 bulbs. For some reason, the latest firmware incremented the MAC address by one.

[delfick]

this is correct. Annoying reality of a particular feature those lights have.

[pimw1]

I've expanded the functionality a little bit.

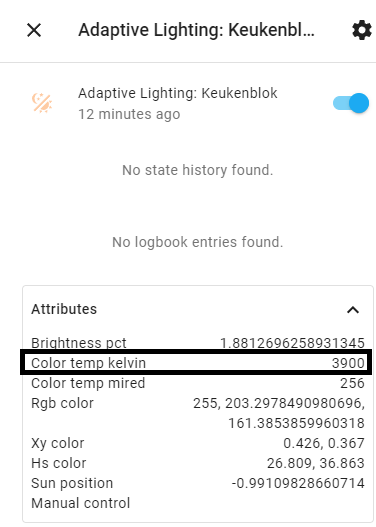

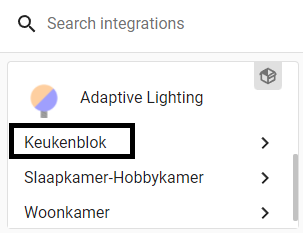

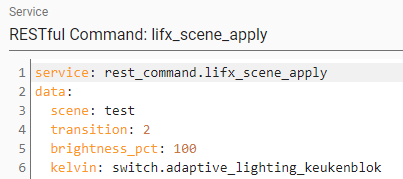

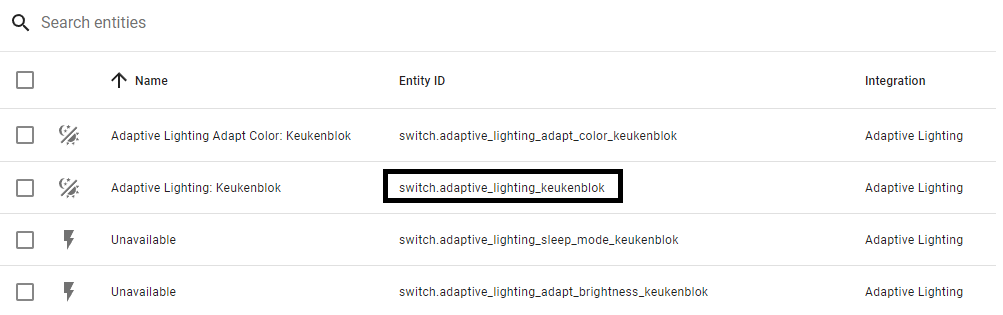

• It is now possible to provide a kelvin value from any choosen switch from the custom component adaptive lighting ( https://github.com/basnijholt/adaptive-lighting ) . Manual entering of a kelvin value is still possible of course.
• The code is a little bit more robust (less prone to user errors) and more efficient

rest_command:
  lifx_scene_apply:
    url: 'http://127.0.0.1:6100/v1/lifx/command'
    method: "put"
    payload: |
      {
        "command": "scene_apply",
        "args": {
          "uuid":"{{scene}}",
          "overrides": {
            {% if brightness_pct is defined and is_number(brightness_pct) == True and 0 <= brightness_pct|float(0) <= 100 %}
                "brightness": {{ brightness_pct/100 }},
            {% else %}
                "dummy_brightness": 0,
            {% endif %}
            {% if kelvin is defined and is_number(kelvin) == True and 1500 <= kelvin|int(0) <= 9500 %}
                "kelvin": {{ kelvin }},
            {% elif kelvin is defined  and is_number(kelvin) == False and 1500 <= state_attr(kelvin, 'color_temp_kelvin')|int(0) <= 9500 %}
                "kelvin": {{state_attr(kelvin, 'color_temp_kelvin')}},
            {% else %}
                "dummy_kelvin": 0,
            {% endif %}
            {% if transition is defined and is_number(transition) == True and 0 <= transition|int(0) %}
                "duration": {{ transition }}
            {% else %}
                "dummy_duration": 0
            {% endif %}
          }
        }
      }

->

->

[Djelibeybi]

That's awesome. I use Node-RED for actual automnations, so I was pulling the kelvin value from Adaptive Lighting in my Flow.

[pimw1]

Thanks!

By pushing this logic down towards the rest_command, everything else build on top of it becomes simpeler (node-red, automations, scripts)..... or at least i hope this will make my automations somewhat simpeler haha.

[Djelibeybi]

Oh, I agree. It also ensures that whatever you chose to use to automate, the outcome when using a specific rest_command is the same. I've added this to my "should apply" list. :)

[Djelibeybi]

Here's another RESTful Command, this time to trigger a two-hour clean cycle on all available HEV bulbs:

lifx_clean:
  url: "http://localhost:6100/v1/lifx/command"
  method: put
  content_type: application/json
  payload: |
    {
      "command": "clean/start",
      "args": {
        "matcher": "cap=hev",
        "duration": 7200
      }
    }
