GLSP vscode client: How to diasable layout editing #397

sathya-1994 · 2021-09-16T06:42:09Z

sathya-1994
Sep 16, 2021

Currently we can drag and drop edges and nodes. But I want to disable this layout editing.

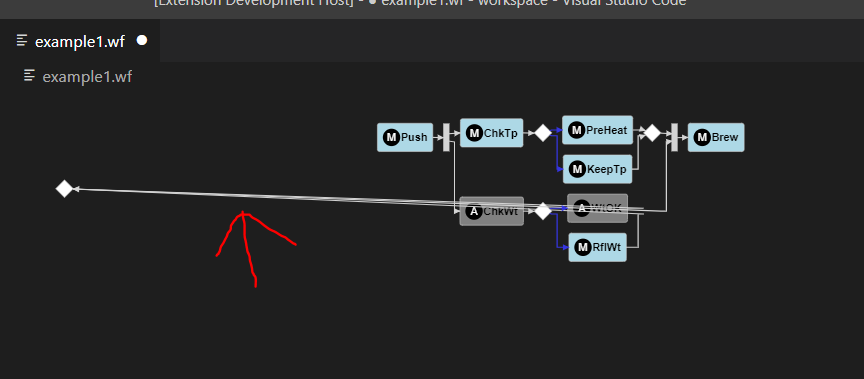

Screenshot:

Sep 29, 2021

Hi,
you can customize this behavior using the Typehints API. This allows you to define on the server side whether elements of a certain type should be deleteable,repositonable, resizeable etc.
For you usecase you should deactive the repositonable flag for all element types.
The type hints are configured in the DiagramConfiguration class : https://github.com/eclipse-glsp/glsp-server/blob/c1f7b8d0af052a5ac3ba2adc4590355519509255/examples/org.eclipse.glsp.example.workflow/src/org/eclipse/glsp/example/workflow/WorkflowDiagramConfiguration.java#L70

tortmayr · 2021-09-29T08:41:43Z

Hi,
you can customize this behavior using the Typehints API. This allows you to define on the server side whether elements of a certain type should be deleteable,repositonable, resizeable etc.
For you usecase you should deactive the repositonable flag for all element types.
The type hints are configured in the DiagramConfiguration class : https://github.com/eclipse-glsp/glsp-server/blob/c1f7b8d0af052a5ac3ba2adc4590355519509255/examples/org.eclipse.glsp.example.workflow/src/org/eclipse/glsp/example/workflow/WorkflowDiagramConfiguration.java#L70

0 replies
