LOWER not working for span matcher

[iamyihwa]

Applying 'LOWER' to span matcher does not seem to work well.

brands = ['nike corp', 'adidas corp']
(1) patterns = [{"label": "BRAND", "pattern": brand} for brand in brands]

(2) patterns = [{"label": "BRAND", "pattern": [{"LOWER": brand }]} for brand in brands]

In scenarios (1) and (2) does not detect reliably the brand names.

How to reproduce the behaviour

brands = ['nike corp', 'adidas corp']
nlp = spacy.load("en_core_web_sm")
ruler = nlp.add_pipe("span_ruler")
#patterns = [{"label": "BRAND", "pattern": brand} for brand in brands]

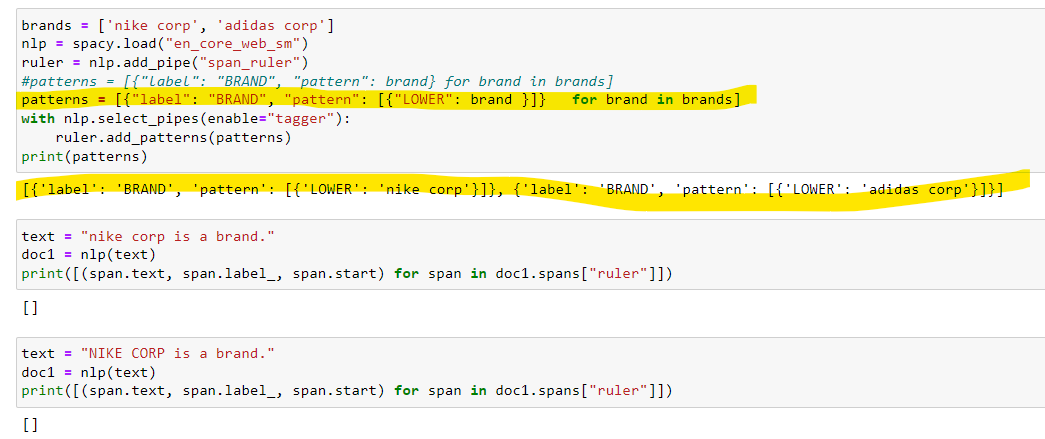

patterns = [{"label": "BRAND", "pattern": [{"LOWER": brand }]}   for brand in brands]
with nlp.select_pipes(enable="tagger"):
    ruler.add_patterns(patterns)
print(patterns)

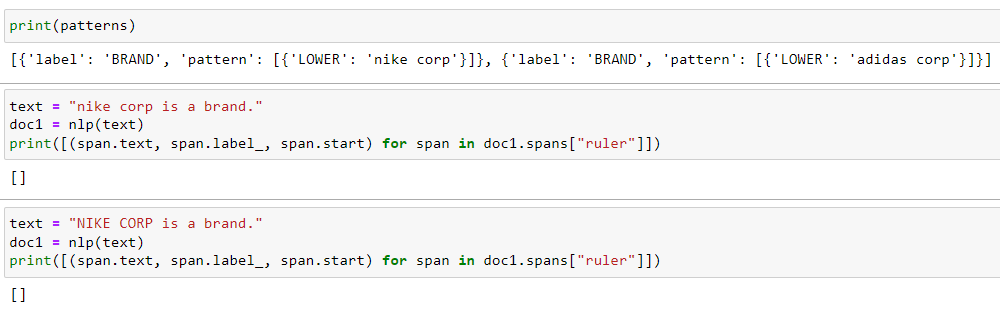

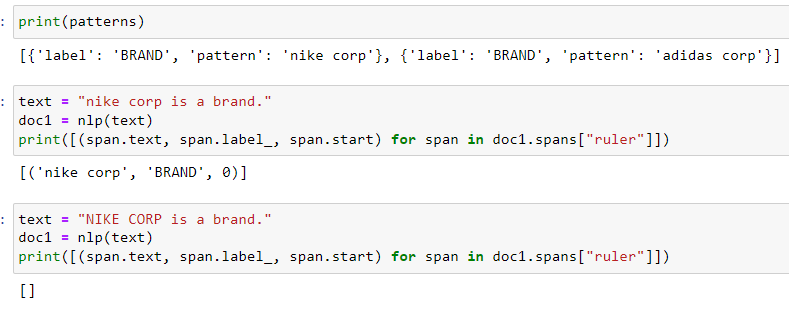

text = "nike corp is a brand."
doc1 = nlp(text)
print([(span.text, span.label_, span.start) for span in doc1.spans["ruler"]])

text = "NIKE CORP is a brand."
doc1 = nlp(text)
print([(span.text, span.label_, span.start) for span in doc1.spans["ruler"]])

Your Environment

• Operating System: Windows
• Python Version Used: 3.7.2
• spaCy Version Used: 3.4.1
• Environment Information:

[rmitsch]

Hi @iamyihwa, the components of the patterns passed on span_ruler have to correspond to spaCy's tokenization. I.e. each part of your pattern has to align with a token as recognized by spaCy.

If you want to want to match for spans consisting of multiple tokens (such as "nike corp" or "adidas corp"), the pattern has to reflect this (see here for another example with a pattern for "san francisco"). So instead of

patterns = [{"label": "BRAND", "pattern": [{"lower": "nike corp"}]}]

you'll want to do:

patterns = [{"label": "BRAND", "pattern": [{"lower": "nike", "lower": "corp"}]}]

In your example you can replace

patterns = [{"label": "BRAND", "pattern": [{"LOWER": brand }]}   for brand in brands]

with

patterns = [{"label": "BRAND", "pattern": [{"lower": token} for token in brand.split()]} for brand in brands]

to obtain correct results.

[iamyihwa]

Thanks @rmitsch for your help!

patterns = [{"label": "BRAND", "pattern": [{"lower": token} for token in brand.split()]} for brand in brands]

works perfect!

[iamyihwa]

Just was wondering how different ways to do Rule Based Matchings are different in their uses.
(e.g. 'EntityRuler', 'SpanMatcher', 'PhraseMatcher', 'TokenMatcher', etc.) are very different.
I intended to do 'EntityRuler' using 'SpanMatcher'.
In fact the solution is by using 'EntityRuler' with 'TokenMatcher'..

[rmitsch]

An alternative way to achieve the same goal would be to configure your EntityRuler or SpanRuler like so (see the docs):

ruler = nlp.add_pipe("span_ruler", config={"phrase_matcher_attr": "lower"})

Then you can add your patterns without breaking them down into tokens:

patterns = [{"label": "BRAND", "pattern": brand} for brand in brands]

There are some caveats regarding the tokenization though that might or might not be relevant for you if you choose to use this approach.

[iamyihwa]

Thank you for your explanation @rmitsch !
Sure will use the first approach but will have the second one also in mind!

Thanks for the great work and help!!!
