RPI Pico Hat for ease of life and improved measurements? #38
Replies: 3 comments 6 replies
-
Great idea. I've made a few crude attempts at designing some front end circuitry but not a PCB or Hat, so I'd be interested to see what you come up with. |
Beta Was this translation helpful? Give feedback.
-
Alright, I'll try to reproduce circuit 4 then. Let me know what you think. |
Beta Was this translation helpful? Give feedback.
-
Cool. Since publishing that circuit I found that using (substantially) lower values for the input resistors can reduce noise (especially at higher sensitivies) - at the expense of lower input impedence of course.
Definitely. GPIO6 to GPIO13 are the input GPIOs used when the app is in Logic Analyzer mode.
BT should be possible though I'm not sure how difficult this would be on the Android side of things - I'll look into it. Wi-Fi is also another option - eg. via an ESP32. |
Beta Was this translation helpful? Give feedback.
-
|
What do you think about the ADA4850-2, it's very very fast, I think we would have unity gain for all the mainly used bandwidth, and it's rail-to-rail. |
Beta Was this translation helpful? Give feedback.
-
Looks very impressive for the price. I'm no expert but I don't think it needs to be this fast and so you might be able to find something even cheaper. At a sample rate of 500ksps, Scoppy is only really useful up to a frequency of about 50kHz. I'm not sure what gain you're planning on but even a gain of 20 means a GBP of 10Mhz should be enough .... I think. Having rail-to-rail outputs is a definite plus. Pity the inputs aren't RtoR. Using a 3.3V supply the input range is limited to 0-1.1V. One other downside of this op amp is that it only comes in an LFSCP package. That would make it difficult to prototype on a breadboard or perf board for someone like me. I'm considering the MCP6292 as an alternative to the LM358 I've been using so far. It's nowhere near as capable as the ADS4850-2 but is cheaper. |
Beta Was this translation helpful? Give feedback.
-
|
Hello, I just learned about this project from the article on Hackaday. |
Beta Was this translation helpful? Give feedback.
-
|
Awesome 😄 |
Beta Was this translation helpful? Give feedback.
-
|

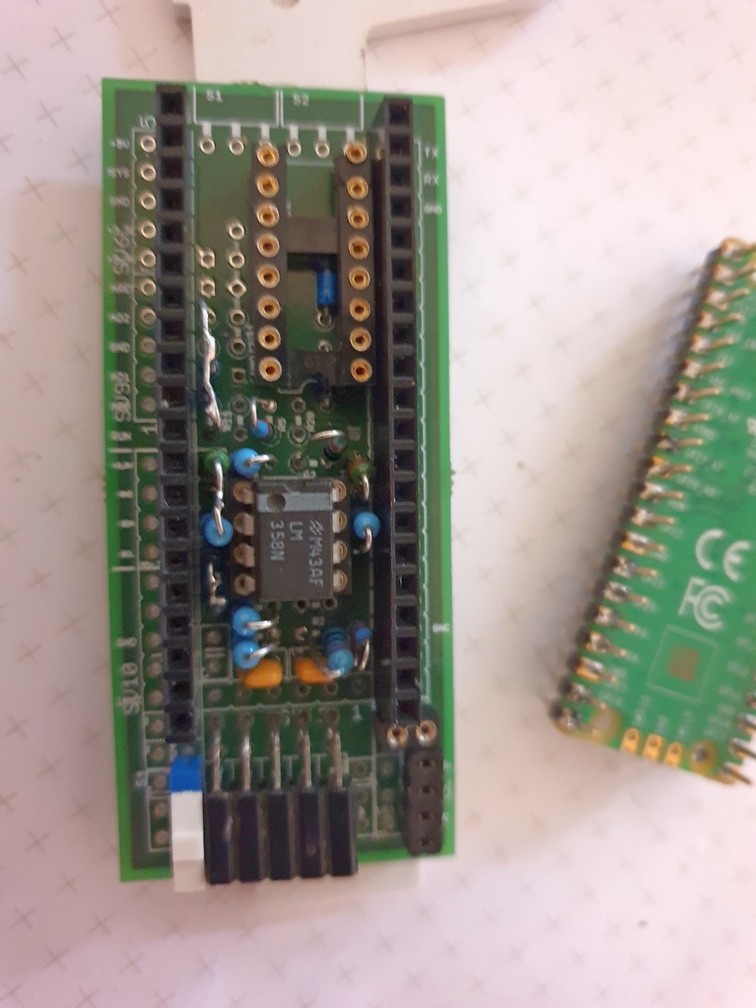

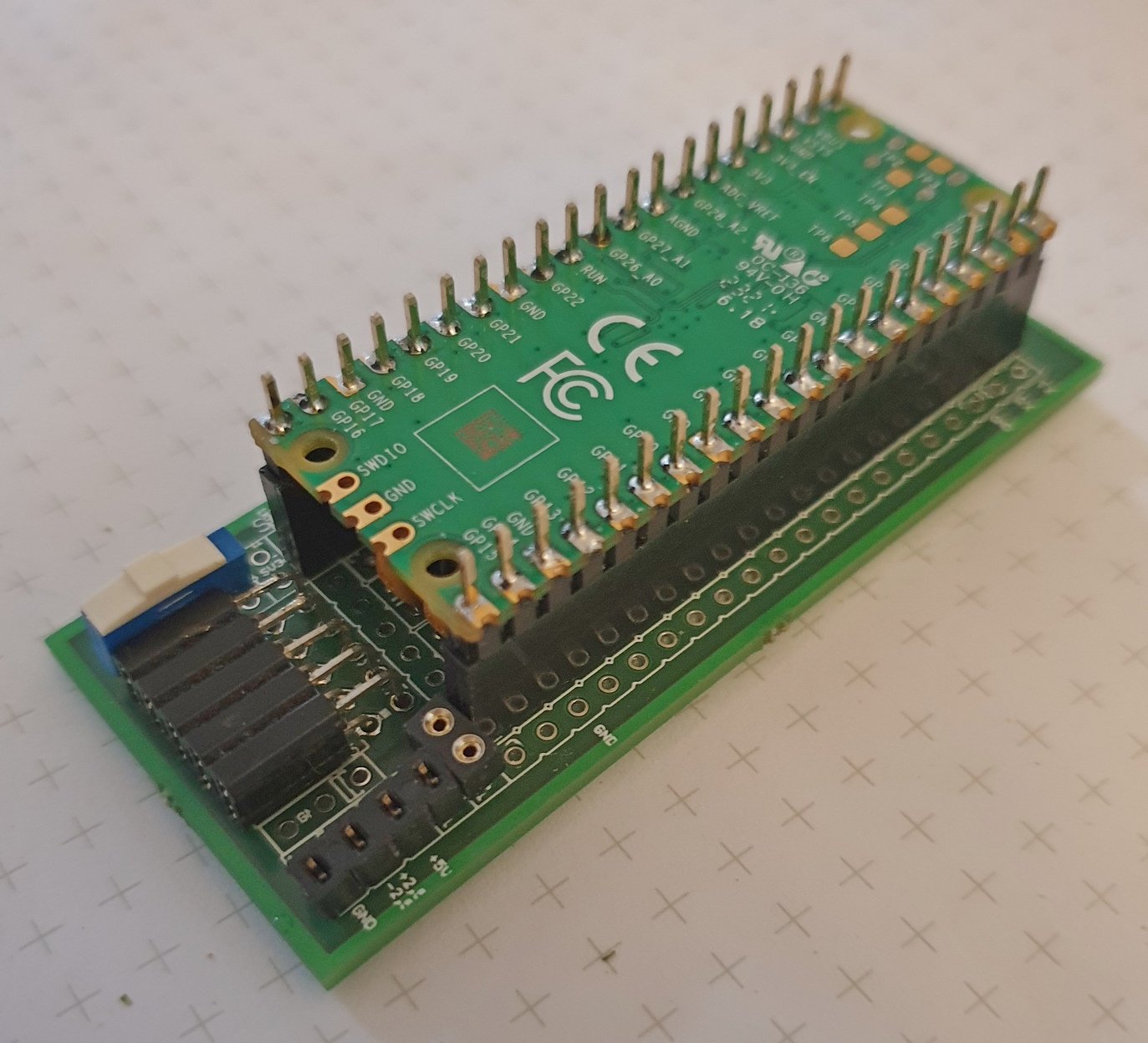

My first Scoppy HAT for Rp2040 Pico I described a lot of functions in the circuit diagram. It has 2CH Input with LM358 supplied with +5V/-2,5V , 1CH with Voltage range switch CD4052. First i send only Fotos and Schematic and Eagle 6.6 File |
Beta Was this translation helpful? Give feedback.
-
|
That's awesome! I'm impressed by the way you are able to fit so many components in such a small area. |
Beta Was this translation helpful? Give feedback.
Uh oh!
There was an error while loading. Please reload this page.
-
Hi all,
just came across this wonderful project.
I was wondering if a simple hat could be designed so that we'd have +-5V acquisition and a couple of BNC males to directly connect the probes to the channels on the pico.
I never had the chance to make such a circuit before, but if others are interested/ more knowledgeable, I can try to put something down and have a cheap PCB made.
Let me know
Beta Was this translation helpful? Give feedback.
