Collateral Missing After Upgrade of CC Sector

[William8Work]

I upgraded a CC sector using mark-for-upgrade but after it's upgraded with a deal, the PreCommit and Commit were all looked normal (see below). However, I couldn't find where the collateral is returned or re-used from the original sector.

The original sector 102 has some collaterals (see the on-chain-info details below). However, during the upgrade with the deal, the PreCommit message costs and the Commit costs are the same as the non-upgrade sectors. Where did the original collaterals go?

$ lotus-miner sectors status --on-chain-info 102

SectorID:       102
Status:         Proving
CIDcommD:       baga6ea4seaqao7s73y24kcutaosvacpdjgfe5pw76ooefnyqw4ynr3d2y6x2mpq
CIDcommR:       bagboea4b5abcbsun4npx7mwvnsuspnhq4orhucuyoykhbj3ngmf5g5sh7iionmzk
Ticket:         78f6b9cb0d666de4b08f1aee88d7259223d845e443b0c366145ab11f51c20bdb
TicketH:        157801
Seed:           7344a3eb8dba7e1c2c072b2a215a739e175a9156befef52c86121162464128a6
SeedH:          159511
Precommit:      bafy2bzaceaq33earg4kapupap3germhk6toigvfnd5id354buwuov5zqmdo7e
Commit:         bafy2bzaced7tr7tzypfsbiyxkrdya2h6j7kugjbe33ze2ccv6udilyw42zwwg
Proof:          963d30622c52989a9c3ab1cecca0cae5710641ab4e4c36be168dd5ee037c1736c5baee73b089d51b9ab094e24088d8d481be970c17a0b3203f5958ad762fa2992cb5a361b43ee6c1ed3b43f77d07a07de3c39b5e631f276cd4d3e61a21452b420cf24ae476832e8b04b9296725cb2429a75b4be009ad24b0998d62a5423849a7f7726e92c67079b888a235408726deab8efbf2f356b464aa931bc905f7efa626515dc81aa8850a261d41c978e0fd490040e2be6688b03c72e9fd0d93dc16b64cb52a5aabb68b0fe8cd1c85199e9d68a8338948003fe3841b8fa474bc8d2f80cc58e58cfc2a34feb2385ca4d82c85aa6181a6cb4bba8e3c75f6db7d0142ca596fbeaedc01777ca78c96be1df199750f715a8d3cea126dacbd7d42bbf7b40a7a8e0f0b3885c747ce999c765012bcc8fc13396e572598a7b86576c1e0e0330fe8c03549bff61c653ca4680484d960b2eeb8b7a78551912b3a502e744ee65e8382d4a7dada1114211de8dbedf4a0c992e8dfd09b65d9ae32bab2b714d1b3fab0bfe1b5f670b5c34c6a526c42707302330c055778f68ed23c8957970573548defbeea30cc4a0016800b6309d3221f9a026bac8bd4d859b7160ec19f25b2c7e74eff1747fc8962cc8e146a3e24dfe24482c47d8197c9b6e78c0e36386fb05e302f2d370d6b9cc10a53695a811cc2d4a1b0b1d49eb706cba13acd66d6f0d15bee6fd1fcaaca994c7a7af8a50692055f479c7b67a452931e2f8569e54cb9bc987e4e64dd8a273ce7d9c8383b790e3c01f8604aac02d23eaaa05c3f9d0aed847f841a6fd7a2dc61ce6f64ec8d152d76144a032c5e3b241e436e2cba7e11bdacea5a74f700d3edd1992254c2eb8336c4669168323aa4933d6afdef2107b421799a5b82da257e53aac7f63814c043571f9d29f2f2c414ee3e04cf2a7b213a03bef4c9ff039201267281652fa0a55209f582e410d7feaabffcea100c3af46b7c61f7ff33333aca75e70f359286f6c7f53108d690f0688af206fa9a1d8870d914ac48beeb256d8f6171642ba98e98b07ebbc8c1338aa267a6d2c8f3768ba2a1b6a8865e702a488557656358720a414cb9e6ddd8f116545d90151eaec1c758ab430584ea138eb26265f2d3e7c01bd1b015d7338e95c2248b2e74b2d3d5d0e9100754f57f0b1c3dd2431171b6e111f4349d760a51577998fe42cec683dc1b1015ac2c3251762e5d125a6e65141b9b3efa411c5c92ea603a5ff3c9101b1c7fdea20e84a63581e96343cc1e1f0f378f61d54ab51ab14b141497a337b15765ce1c11595a66e9fa8668a7603d7bde0b700250d3e50d30785804b9c9f562c1214553a58b8ffaf955cc27a0b120454a38d03ed9b66f0560f9e760365d7c5075ccdb19d45fc70165d44eab929d613a11c1d4c1c524954d27a5df9a99c91eabc990667c933c8a12474c7fd3ae1b189a37aefcffcf986fe8de5ab9ccbf26d2cb692583f1aade3606b7168faa0bf01b4fc2b4f4d0a6947c2f9db03606ad0dc76afbe5aed30227d435bf56537d4258322bbebcb9e762486d01fc23b8d9a21f699d45e0d1851b587cc42127938010f4994d2bcd74a30a088d073ac4d76899b5bc77e66c76826cccc27171db15178dae9f9212be89c42972616637e66f03e177235dd7b5ae3e8d5accf16dac4d07262b86c56d449795b35ecd85bbbe1fbfb964cf39288dba94bd0fa74cc15ebd0f158bd3a4a477c7cc7854990bf95648782ae09f2d9b39d3ee173e943f3fefd30711b51116ef7ac552462a68d9fa85049ef048c73e467cbe91b073496db3231ce3e4cf2f88ba4fefaf04783c9e447e31bb8e95dab348aac6663b9967bf5bff2d61537398acda146cdc1e1ac609daf138d5cbc10f3ad7548ca6df51f0eb6407eb9ca43a5503a820c0dfd86b5373e859128359033ae95c2be5d77abfe83a388b92e6dcda86973cf01cc49f8894e3c5f3e62685d4d26170b327923f2ba208102515e4d2ee211db4971bea23462688189fa34f512d5e345d0ad3f915ac826c422b28cd1500ba80a6128f1a5603882ed90bdc885767d7b23e1c49835d368a1379264b3cd58705733fc1075ead354817cc258fdc898e1b502870cd4c97a8e650e62b7f9581c4faef7c2350d6e003a7673d880e113c44900b744f6c01c3430d95f950a306811c67c12db0cdd5d1750e719e6a90bb48dedee1ee9f65bfe6ac13c77faaca47bce29a6b8f9ff03b7b1cf67917b59275a48f5a6f9ae023d946c4cd1cb9fa678200543cae6a14c68d6cde6eccc138d50c66aa95e86de2bc1bf8660e08d8994f6f0f8b4e1241a85551441a2300c44af0ea1b743b028aec5d492804c2ea36b91f6edf6d3245710cde673fd00e22aa67515fb575ad8dd61a9cd19cfa7ff27d5d02f3a99e9d6499a7137dfefcda5d0d7098c232209980540038ed6ba806bffb85a3498543a04ce45f5244496cde1b90b6e078a03ca8ecc5636075794792d8dfef88dfe8af2ebf7a0c9f754333a9e106a7e6fb879d51167eff9106c77df0a9a0f3079c2a256d331bf62d06238e6d83578cff7bb85b2f92da5b0ddf91bf0fe5a75cd750042066cd9f2dbe1fe007fce8942707ed6c09aedcd56268f4da37dce4df91367bb834fd60b76cb2684c6bd49550a81b13b0e1c4f306135c6090a200ee3e1d712820196e099299607008d34745ca1c144ad2e4e7340da66cf96b6fac170ddf116e
Deals:          [0]
Retries:        0

Sector On Chain Info
SealProof:              3
Activation:             159669
Expiration:             1711884
DealWeight:             0
VerifiedDealWeight:             0
InitialPledge:          190137671959275001

Expiration Info
OnTime:         1711944
Early:          0

The I issued the command:
$lotus-miner sectors mark-for-upgrade 102

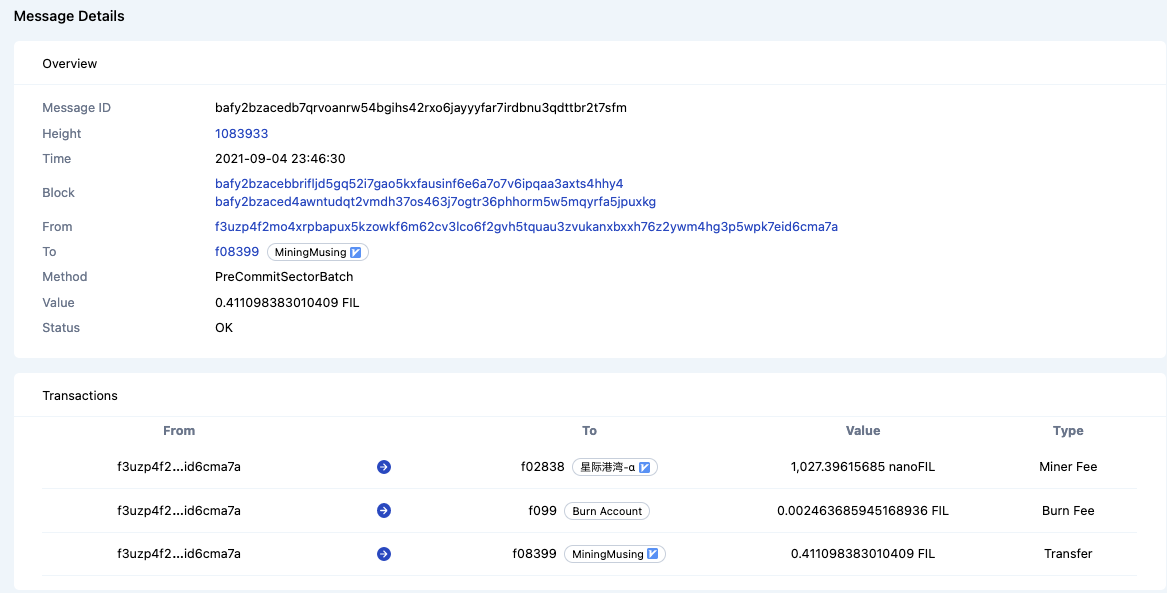

This sector was selected for an upgrade during Precommit process:

{
  "Sectors": [
    {
      "RegisteredProof": 8,
      "SectorNumber": 8718,
      "SealedCid": "bagboea4b5abcajlf2gsmgbdlu3xcu5aguijyaqpachluimtiabcufi4ami3hd6yy",
      "SealRandEpoch": 1082120,
      "DealIds": [
        2392528
      ],
      "Expiration": 2169804,
      "ReplaceCapacity": true,
      "ReplaceSectorDeadline": 0,
      "ReplaceSectorPartition": 0,
      "ReplaceSector": 102
    },
    {
      "RegisteredProof": 8,
      "SectorNumber": 8720,
      "SealedCid": "bagboea4b5abcbuxcg6kiceexdqjby5xfyjvtlvqgvxw2eadise2ljmztc2xzi6su",
      "SealRandEpoch": 1082120,
      "DealIds": [
        2392527
      ],
      "Expiration": 2169804,
      "ReplaceCapacity": false,
      "ReplaceSectorDeadline": 0,
      "ReplaceSectorPartition": 0,
      "ReplaceSector": 0
    }
  ]
}

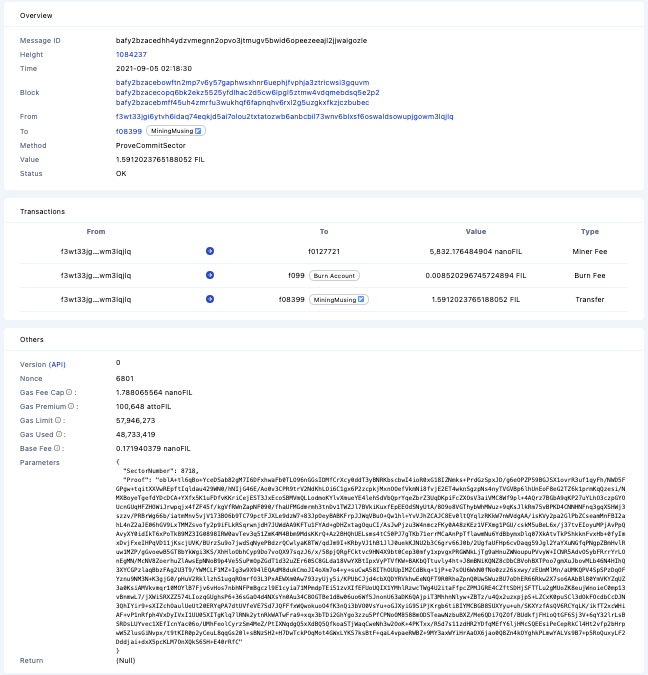

Here is the Commit message:

After that, the original sector 102 was removed from chain:

$ lotus-miner sectors status --on-chain-info 102

SectorID:       102
Status:         Proving
CIDcommD:       baga6ea4seaqao7s73y24kcutaosvacpdjgfe5pw76ooefnyqw4ynr3d2y6x2mpq
CIDcommR:       bagboea4b5abcbsun4npx7mwvnsuspnhq4orhucuyoykhbj3ngmf5g5sh7iionmzk
Ticket:         78f6b9cb0d666de4b08f1aee88d7259223d845e443b0c366145ab11f51c20bdb
TicketH:        157801
Seed:           7344a3eb8dba7e1c2c072b2a215a739e175a9156befef52c86121162464128a6
SeedH:          159511
Precommit:      bafy2bzaceaq33earg4kapupap3germhk6toigvfnd5id354buwuov5zqmdo7e
Commit:         bafy2bzaced7tr7tzypfsbiyxkrdya2h6j7kugjbe33ze2ccv6udilyw42zwwg
Proof:          963d30622c52989a9c3ab1cecca0cae5710641ab4e4c36be168dd5ee037c1736c5baee73b089d51b9ab094e24088d8d481be970c17a0b3203f5958ad762fa2992cb5a361b43ee6c1ed3b43f77d07a07de3c39b5e631f276cd4d3e61a21452b420cf24ae476832e8b04b9296725cb2429a75b4be009ad24b0998d62a5423849a7f7726e92c67079b888a235408726deab8efbf2f356b464aa931bc905f7efa626515dc81aa8850a261d41c978e0fd490040e2be6688b03c72e9fd0d93dc16b64cb52a5aabb68b0fe8cd1c85199e9d68a8338948003fe3841b8fa474bc8d2f80cc58e58cfc2a34feb2385ca4d82c85aa6181a6cb4bba8e3c75f6db7d0142ca596fbeaedc01777ca78c96be1df199750f715a8d3cea126dacbd7d42bbf7b40a7a8e0f0b3885c747ce999c765012bcc8fc13396e572598a7b86576c1e0e0330fe8c03549bff61c653ca4680484d960b2eeb8b7a78551912b3a502e744ee65e8382d4a7dada1114211de8dbedf4a0c992e8dfd09b65d9ae32bab2b714d1b3fab0bfe1b5f670b5c34c6a526c42707302330c055778f68ed23c8957970573548defbeea30cc4a0016800b6309d3221f9a026bac8bd4d859b7160ec19f25b2c7e74eff1747fc8962cc8e146a3e24dfe24482c47d8197c9b6e78c0e36386fb05e302f2d370d6b9cc10a53695a811cc2d4a1b0b1d49eb706cba13acd66d6f0d15bee6fd1fcaaca994c7a7af8a50692055f479c7b67a452931e2f8569e54cb9bc987e4e64dd8a273ce7d9c8383b790e3c01f8604aac02d23eaaa05c3f9d0aed847f841a6fd7a2dc61ce6f64ec8d152d76144a032c5e3b241e436e2cba7e11bdacea5a74f700d3edd1992254c2eb8336c4669168323aa4933d6afdef2107b421799a5b82da257e53aac7f63814c043571f9d29f2f2c414ee3e04cf2a7b213a03bef4c9ff039201267281652fa0a55209f582e410d7feaabffcea100c3af46b7c61f7ff33333aca75e70f359286f6c7f53108d690f0688af206fa9a1d8870d914ac48beeb256d8f6171642ba98e98b07ebbc8c1338aa267a6d2c8f3768ba2a1b6a8865e702a488557656358720a414cb9e6ddd8f116545d90151eaec1c758ab430584ea138eb26265f2d3e7c01bd1b015d7338e95c2248b2e74b2d3d5d0e9100754f57f0b1c3dd2431171b6e111f4349d760a51577998fe42cec683dc1b1015ac2c3251762e5d125a6e65141b9b3efa411c5c92ea603a5ff3c9101b1c7fdea20e84a63581e96343cc1e1f0f378f61d54ab51ab14b141497a337b15765ce1c11595a66e9fa8668a7603d7bde0b700250d3e50d30785804b9c9f562c1214553a58b8ffaf955cc27a0b120454a38d03ed9b66f0560f9e760365d7c5075ccdb19d45fc70165d44eab929d613a11c1d4c1c524954d27a5df9a99c91eabc990667c933c8a12474c7fd3ae1b189a37aefcffcf986fe8de5ab9ccbf26d2cb692583f1aade3606b7168faa0bf01b4fc2b4f4d0a6947c2f9db03606ad0dc76afbe5aed30227d435bf56537d4258322bbebcb9e762486d01fc23b8d9a21f699d45e0d1851b587cc42127938010f4994d2bcd74a30a088d073ac4d76899b5bc77e66c76826cccc27171db15178dae9f9212be89c42972616637e66f03e177235dd7b5ae3e8d5accf16dac4d07262b86c56d449795b35ecd85bbbe1fbfb964cf39288dba94bd0fa74cc15ebd0f158bd3a4a477c7cc7854990bf95648782ae09f2d9b39d3ee173e943f3fefd30711b51116ef7ac552462a68d9fa85049ef048c73e467cbe91b073496db3231ce3e4cf2f88ba4fefaf04783c9e447e31bb8e95dab348aac6663b9967bf5bff2d61537398acda146cdc1e1ac609daf138d5cbc10f3ad7548ca6df51f0eb6407eb9ca43a5503a820c0dfd86b5373e859128359033ae95c2be5d77abfe83a388b92e6dcda86973cf01cc49f8894e3c5f3e62685d4d26170b327923f2ba208102515e4d2ee211db4971bea23462688189fa34f512d5e345d0ad3f915ac826c422b28cd1500ba80a6128f1a5603882ed90bdc885767d7b23e1c49835d368a1379264b3cd58705733fc1075ead354817cc258fdc898e1b502870cd4c97a8e650e62b7f9581c4faef7c2350d6e003a7673d880e113c44900b744f6c01c3430d95f950a306811c67c12db0cdd5d1750e719e6a90bb48dedee1ee9f65bfe6ac13c77faaca47bce29a6b8f9ff03b7b1cf67917b59275a48f5a6f9ae023d946c4cd1cb9fa678200543cae6a14c68d6cde6eccc138d50c66aa95e86de2bc1bf8660e08d8994f6f0f8b4e1241a85551441a2300c44af0ea1b743b028aec5d492804c2ea36b91f6edf6d3245710cde673fd00e22aa67515fb575ad8dd61a9cd19cfa7ff27d5d02f3a99e9d6499a7137dfefcda5d0d7098c232209980540038ed6ba806bffb85a3498543a04ce45f5244496cde1b90b6e078a03ca8ecc5636075794792d8dfef88dfe8af2ebf7a0c9f754333a9e106a7e6fb879d51167eff9106c77df0a9a0f3079c2a256d331bf62d06238e6d83578cff7bb85b2f92da5b0ddf91bf0fe5a75cd750042066cd9f2dbe1fe007fce8942707ed6c09aedcd56268f4da37dce4df91367bb834fd60b76cb2684c6bd49550a81b13b0e1c4f306135c6090a200ee3e1d712820196e099299607008d34745ca1c144ad2e4e7340da66cf96b6fac170ddf116e
Deals:          [0]
Retries:        0

Sector On Chain Info
SealProof:              3
Activation:             159669
Expiration:             1711884
DealWeight:             0
VerifiedDealWeight:             0
InitialPledge:          190137671959275001

Expiration Info
OnTime:         0
Early:          0

Logging Information

Here is what I found in the miner log:

2021-09-04T23:02:36.048-0700    INFO    sectors storage-sealing/upgrade_queue.go:71     replacing sector 102 with 8718

Repo Steps

1. Run '...'
2. Do '...'
3. See error '...'
   ...

[jennijuju]

InitialPledge only represents how much pledge a sector costs and doesn't imply any balance movement as of today, since the new replacement sector is a completely new sector on-chain.

That being said, original ticket info doesn't imply any bug. However, it can use a discussion for the community to 💬 and dig into upgrade cc sector's mechanism.

[William8Work]

Thanks @jennijuju for moving this to a discussion. I think logically when the upgrade happens, the lotus miner will do the following:

1. The deal sector will be sealed normally, marking "ReplaceCapacity" = yes, and set the "ReplaceSector" with the sector number that's being upgraded.
2. During the next Window Post,
   1). Refund the collateral to miner available balance from the CC sector has been upgraded successfully.
   2). The CC sector has been upgraded successfully will be changed to Active = NO, and its expiration will be set to 0
   3). Remove the CC sectors that Active = No from physical storage so that the storage space is freed up for future usage (nice to have).
