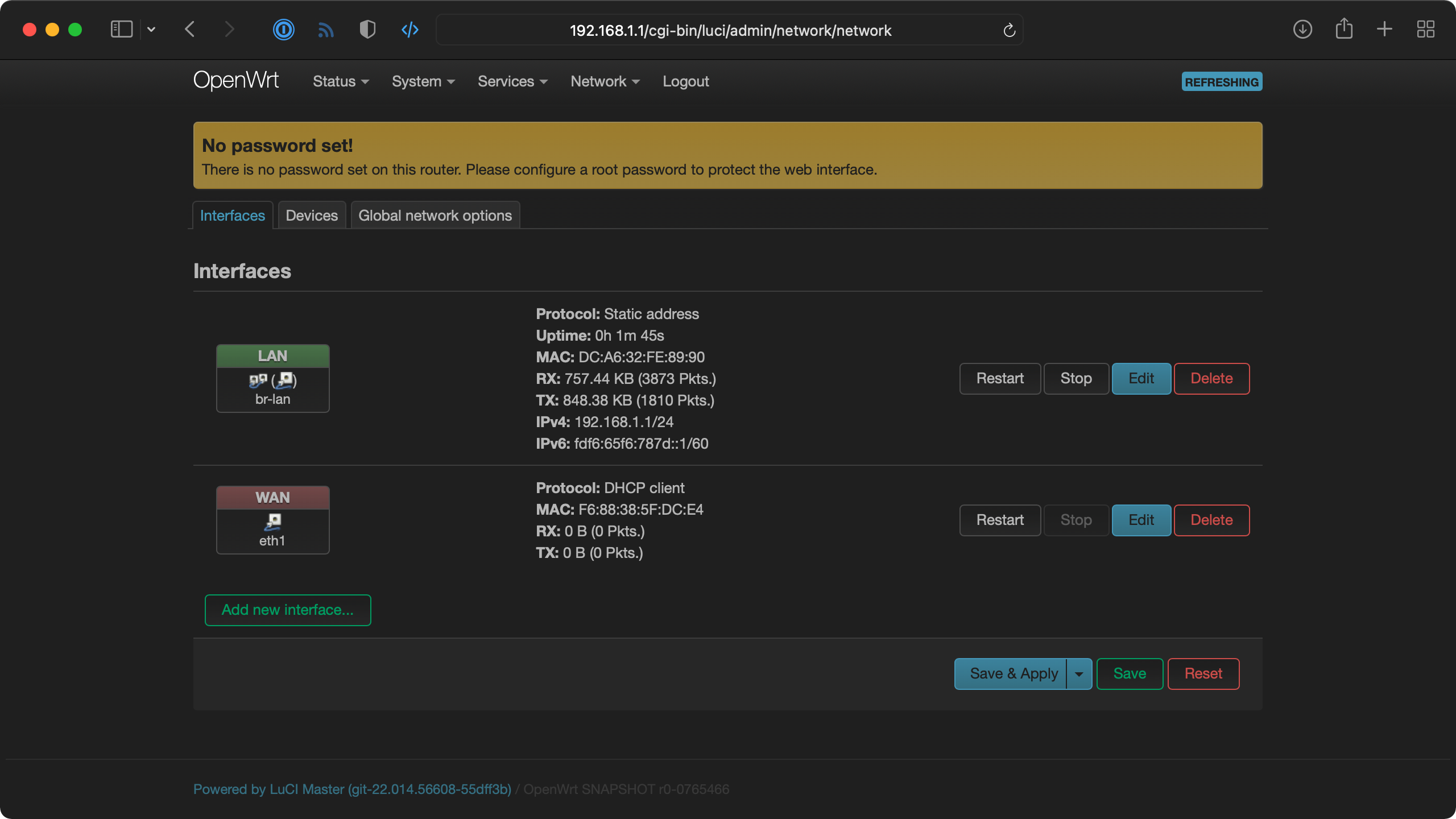

> And I tested the latest OpenWRT image (openwrt-bcm2711-rpi-4-ext4-rtl8168-factory.img.gz, flashed with Etcher), and it booted up and let me add the WAN port / eth1 without issue:

[David-McGuire]

And I tested the latest OpenWRT image (openwrt-bcm2711-rpi-4-ext4-rtl8168-factory.img.gz, flashed with Etcher), and it booted up and let me add the WAN port / eth1 without issue:

Now if the software config for that OLED display gets sorted, I think this board will have everything fixed up out of the box except the PoE issue. I saw a comment about pulling resistors earlier, but it looks like that comment was removed. @yoyojacky are the hardware engineers still taking a look at that? Thanks!

Hi bro,
Thanks for your testing, that's cool, and our products has been removed the resistor on board which cause the PoE issue. the product on stock is good to go.

Originally posted by @yoyojacky in #337 (comment)

[David-McGuire]

Help needed installing the openwrt on the Raspberry Pi CM4 Router Carrier Board by 52Pi

So ive tried to use the (openwrt-22.03.0-rc4-bcm27xx-bcm2711-rpi-4-ext4-factory.img) to load this and It will not load.

Steps I have taken to install openwrt

1. downloaded the (openwrt-22.03.0-rc4-bcm27xx-bcm2711-rpi-4-ext4-factory.img) from (https://downloads.openwrt.org/snapshots/targets/bcm27xx/bcm2711/)
2. decompiled this file
3. Flashed to SD card using BalenEtcher
4. Inserted the SD card

to [Raspberry Pi CM4 Router Carrier Board by 52Pi]
5. Enabled by jumper caps, to Device mode and Host mode both and same results.
6. Powered up

Steps taken to install Raspberry Pi OS

1. I have also tried to install the Raspberry Pi OS using the steps n (https://wiki.52pi.com/index.php/EP-0146#Operating_System) with the same results.

Any help here to get (openwrt) installed I would greatly appreciate.

[yoyojacky]

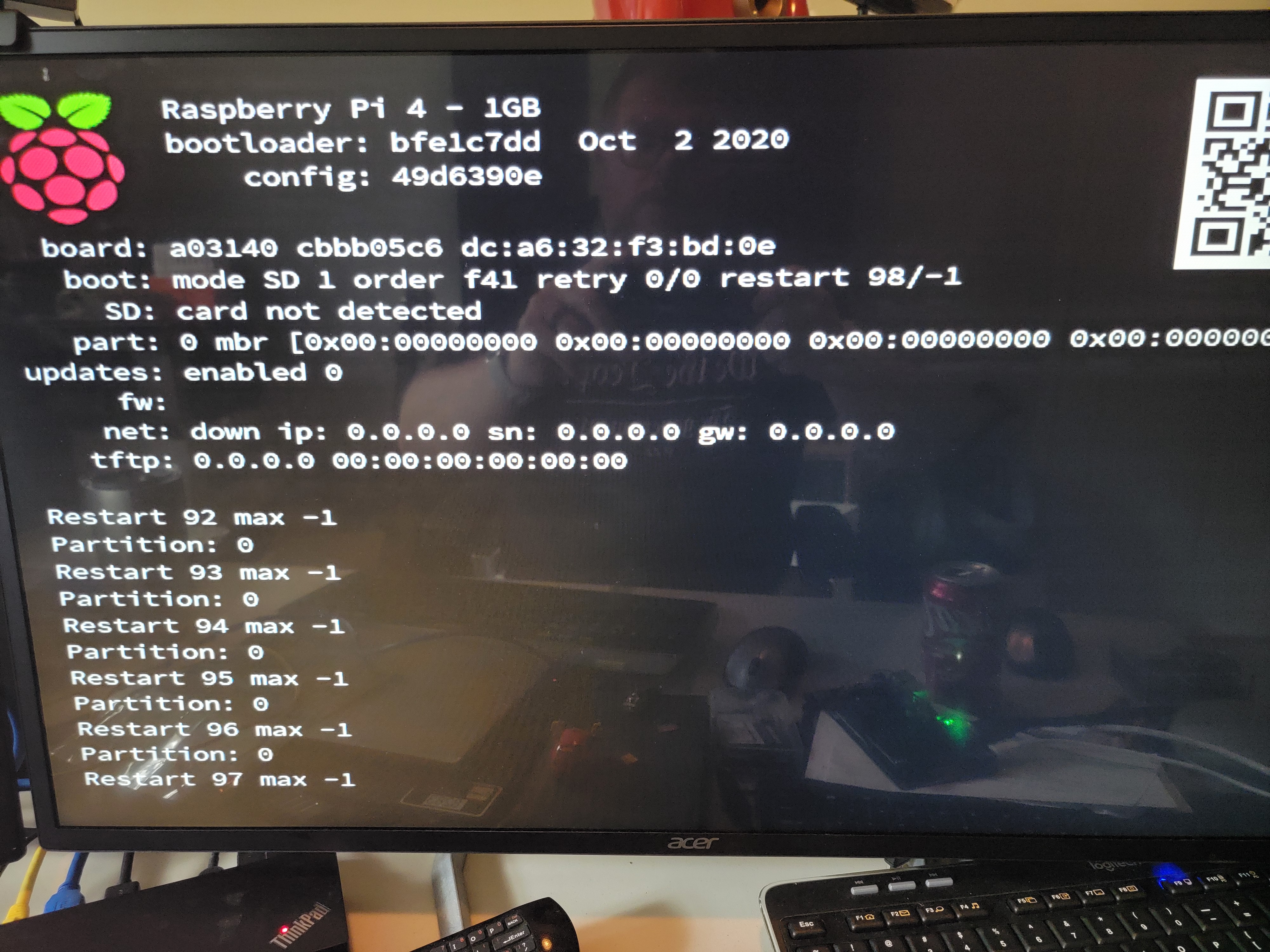

SD:　card not detected... please check the TF card and try again?

[David-McGuire]

thanks Ill check this out

[David-McGuire]

Thanks everyone I got this set up :)

[David-McGuire]

The only other question I have is the OLED I can seem to get it working, I saw posts about this and I installed the version with the OLED but I get the following (*/etc/int.d/oled emable) do i need to add the files in the "luci-app-oled.zip" file to this? Also I have the WAN port connected to the Router/I currently have and I can seem to connect to the Internet (Port0), from the PC I have on the LAN port (Port1). I can access the Webpage but not outside the router.

[PixlRainbow]

Have you visited Services > OLED page and ticked "Enable"?
If you visit Network > Interfaces page do you see a "WAN" interface displayed there?
Also, your message appears to be malformed:

but I get the following (*/etc/int.d/oled emable) do i need to add the files in the "luci-app-oled.zip" file to this?

Did you mean to put something after "I get the following"?

[David-McGuire]

for the OLED I have tried that and no luck

When O boot eth1 is not shown

Created eth1 and these are the results

As for the eth1 (Wan I have tried a few different things
Connected laptop to Eth0. able to get in the gui webpage and make the following
Eth1 connected to laptop (using ip of 192.168.1.194
Eth0 connected to ISP ..

Network design ... Modem -> router on eth1
Network design with laptop -> modem

1. DHCP and not pulling an IP address from the internet provider Deleted this interface and re added it.
2. Connected laptop to modem verified ip information as follows.
   IP Address : xx.x.214.133
   Subnet Mask: 255.255.248.0
   Gateway: xx.x.240.1
   DHCP Server: xx.x.193.1
   DNS: xx.x.0.184
   b. Changed interface on Eth1 to static and set to the same address that I get when laptop is connected (Spoke to ISP and they confirmed that there is a lease time of 120 days but that this also would be the same address when it gets renewed).
   IP Address : xx.x.214.133
   Subnet Mask: 255.255.248.0
   Gateway: xx.x.240.1
   DHCP Server: xx.x.193.1
   DNS: xx.x.0.184

When the Modem is directly plugged into the router I get RX and TX but no IP address,
Any thoughts
