Screenshot/snapshot feature only available for iOS but not Android #1903

pzyu · 2020-07-02T13:29:00Z

pzyu
Jul 2, 2020

elalish · 2020-07-02T15:24:19Z

elalish
Jul 2, 2020

Indeed, we're working on bringing this feature to WebXR, but it's not available yet. However, SceneViewer (the Android equivalent of iOS QuickLook) does have this feature, so you can use ar-modes="scene-viewer quick-look webxr" to prioritize the modes that support screenshots.

0 replies

pzyu · 2020-07-02T15:50:36Z

pzyu
Jul 2, 2020
Author

Indeed, we're working on bringing this feature to WebXR, but it's not available yet. However, SceneViewer (the Android equivalent of iOS QuickLook) does have this feature, so you can use ar-modes="scene-viewer quick-look webxr" to prioritize the modes that support screenshots.

I do have ar-modes="scene-viewer quick-look webxr" included, but I do not get the button to take a screenshot, or even the title and link.

0 replies

elalish · 2020-07-02T15:58:07Z

elalish
Jul 2, 2020

Oh, actually I should have said to remove webxr entirely from the list; I think that's where you're ending up still. I bet you hit #1286, which is already fixed and will be part of the next release.

0 replies

pzyu · 2020-07-03T02:25:38Z

pzyu
Jul 3, 2020
Author

I actually realized that when I revert the model-viewer version back to 0.8.0, the screenshot feature becomes available again. I think it has to do with #1142 where the title and link have been removed. In that case, I will probably just modify the model-viewer.js to suit my needs.

0 replies

vortice3D · 2020-11-13T00:36:47Z

vortice3D
Nov 13, 2020

Hi @elalish and @pzyu:

Correct me if I am wrong, but with last release (v1.3.0) the screenshot functionality (button) is still missing on Android-Chrome, even using ar-modes="scene-viewer quick-look" as stated before in this same thread.

Isn't it?

0 replies

elalish · 2020-11-13T01:11:38Z

elalish
Nov 13, 2020

@vortice3D It's working for me here: https://modelviewer.dev/examples/augmentedreality/#sceneViewer

What OS version and device are you testing on? It's possible the recording feature is only available in more recent versions.

0 replies

vortice3D · 2020-11-13T13:25:47Z

vortice3D
Nov 13, 2020

Hi @elalish:

First, thank you very much for your immediate response and, by the way, for your great job in this forum.

The "official examples" link you're addressing works also OK for me.

After double-check my code, that as usual with this technology is really simple. I'm realizing that:

1. When I don´t use the ar-modes parameter at all, it works as expected:

<!DOCTYPE html>
<html lang="es">
	<head>
		<title>Web Model</title>
		<meta charset="utf-8">
		<meta http-equiv="X-UA-Compatible" content="IE=edge">
		<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1">

		<style>
			body,
			html {
				height: 100%;
				margin: 0;
				padding: 0;
				width: 100%;
			}

			#model {
				background: #ff7900;
				height: 100%;
				width: 100%;
			}
		</style>

		<!-- Import the component -->
		<script type="module" src="https://unpkg.com/@google/model-viewer/dist/model-viewer.min.js"></script>
		<script nomodule src="https://unpkg.com/@google/model-viewer/dist/model-viewer-legacy.js"></script>
	</head>

	<body>
		<model-viewer id="model" alt="Astronauta" ar ar-scale="auto" camera-controls src="assets/Astronaut.glb"></model-viewer>
	</body>
</html>

2. However, when I add the ar-modes parameter, forcing the use of native scene-viewer instead of webxr, this way:

```
<body>
     <model-viewer id="model" alt="Astronauta" ar ar-modes="scene-viewer webxr" ar-scale="auto" camera-controls src="assets/Astronaut.glb"></model-viewer>
</body>

```

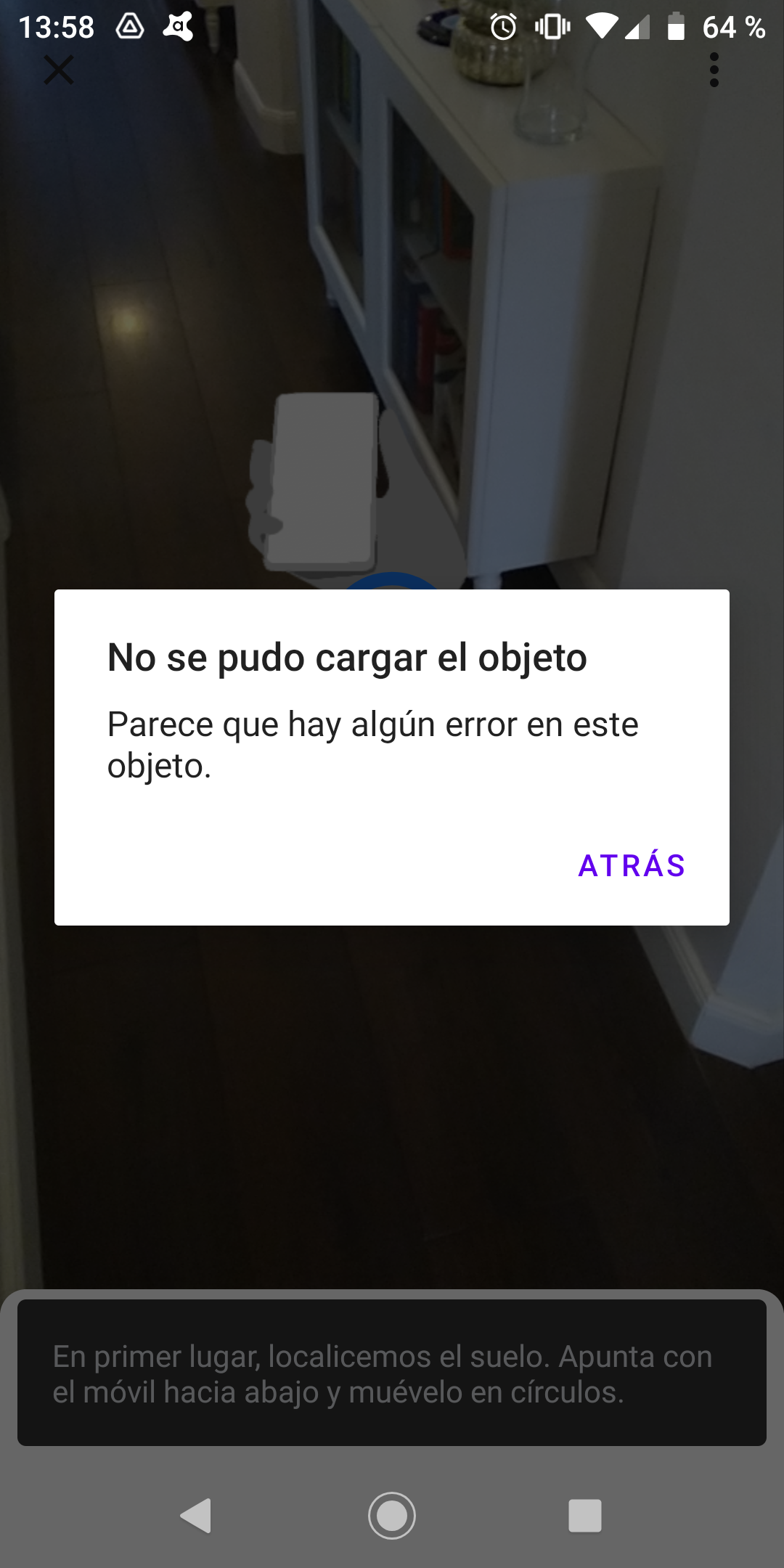

for getting so access to Record Button functionality, I can see the model in SceneViewer but not when passing to the AR experience:

What translated to English says: Couldn't load object. Looks like there's something wrong with this object.

All this in the following devices:

Motorola MOTO G6 / Android 9 / Chrome 86.0.4240.185
Samsung Tab S4 / Android 10 / Chrome 86.0.4240.185

Thanks for your time.

0 replies

elalish · 2020-11-13T17:57:06Z

elalish
Nov 13, 2020

@tpsiaki Looks like this is another glTF parsing error in Scene Viewer? I'm surprised this is happening with the astronaut model, since it's so simple. Maybe it's specific to older Android versions?

0 replies

vortice3D · 2020-11-16T07:43:16Z

vortice3D
Nov 16, 2020

Hi there, @elalish and @tpsiaki:

Don't panic! I've just found where the problem is ... but don't understand why.

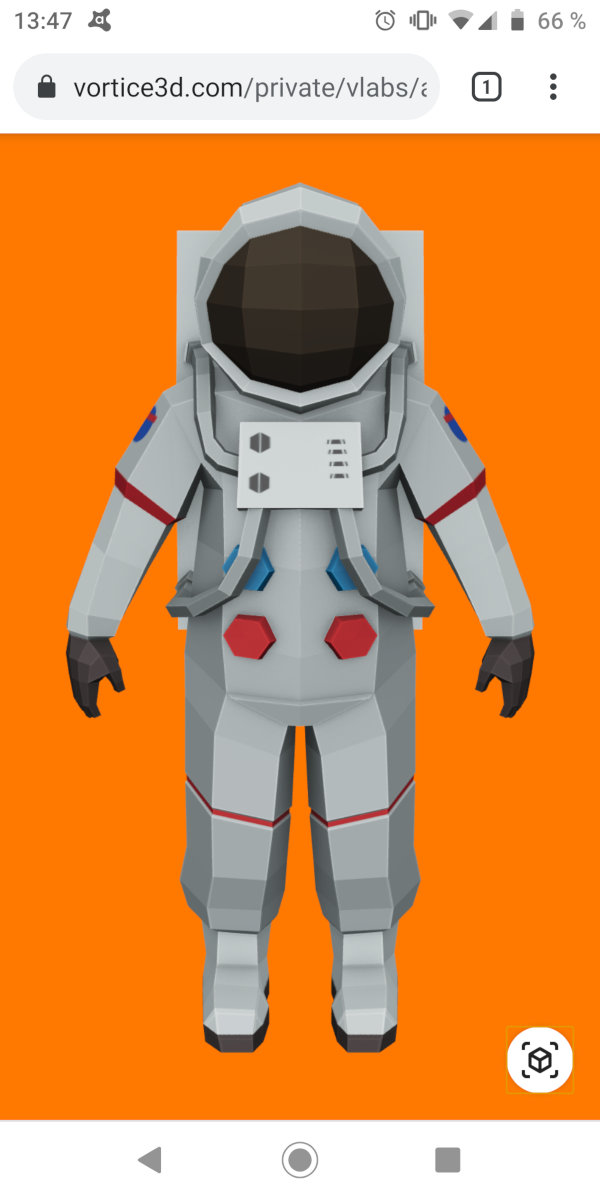

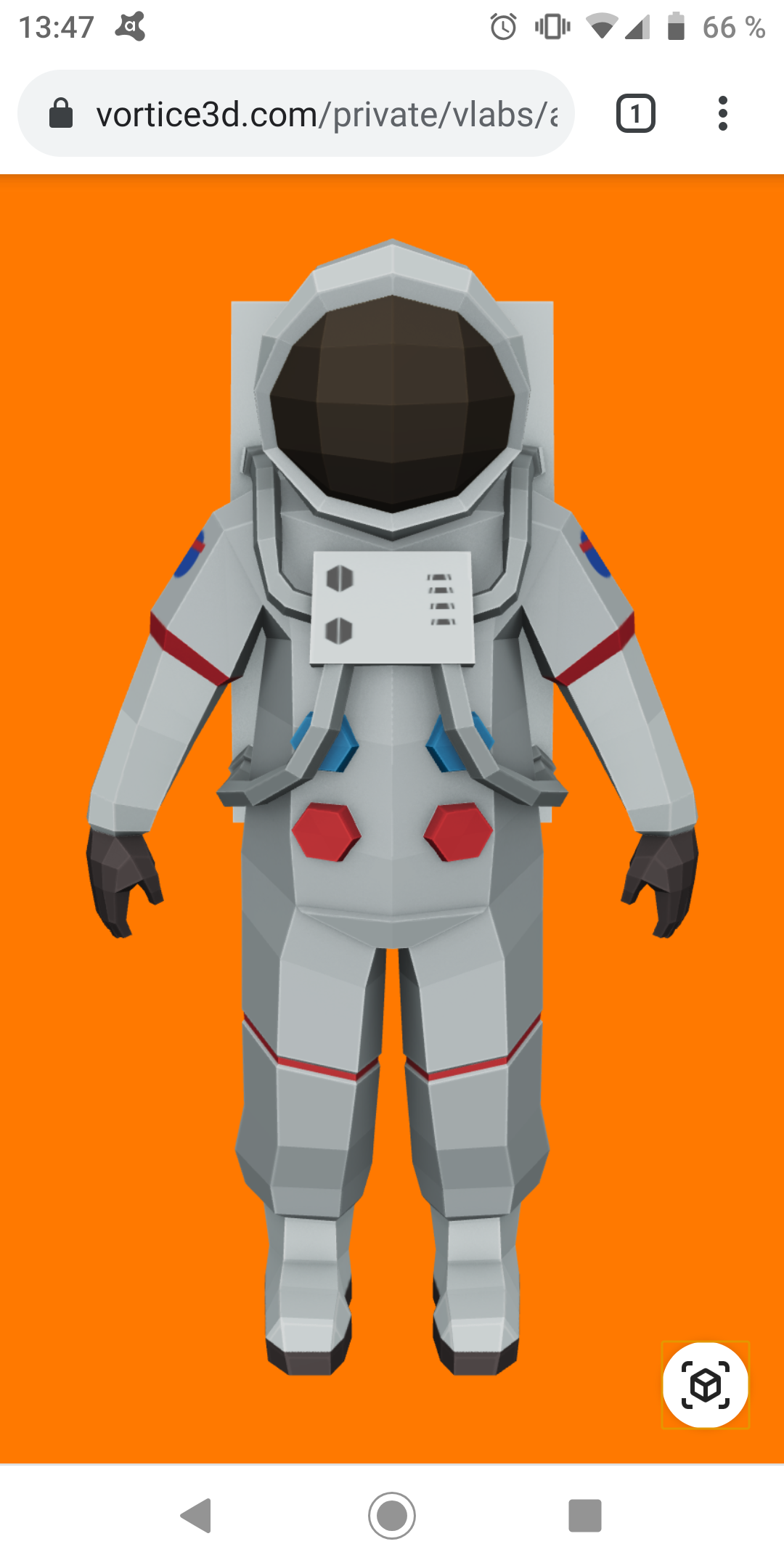

The case is that I'm hosting this playground project in a private folder of my web server. So when I launch it, a user and password must be provided. After doing so, and as I showed you in my previous post, the non-ar-experience part is shown without problems:

And here comes the strange behavior:

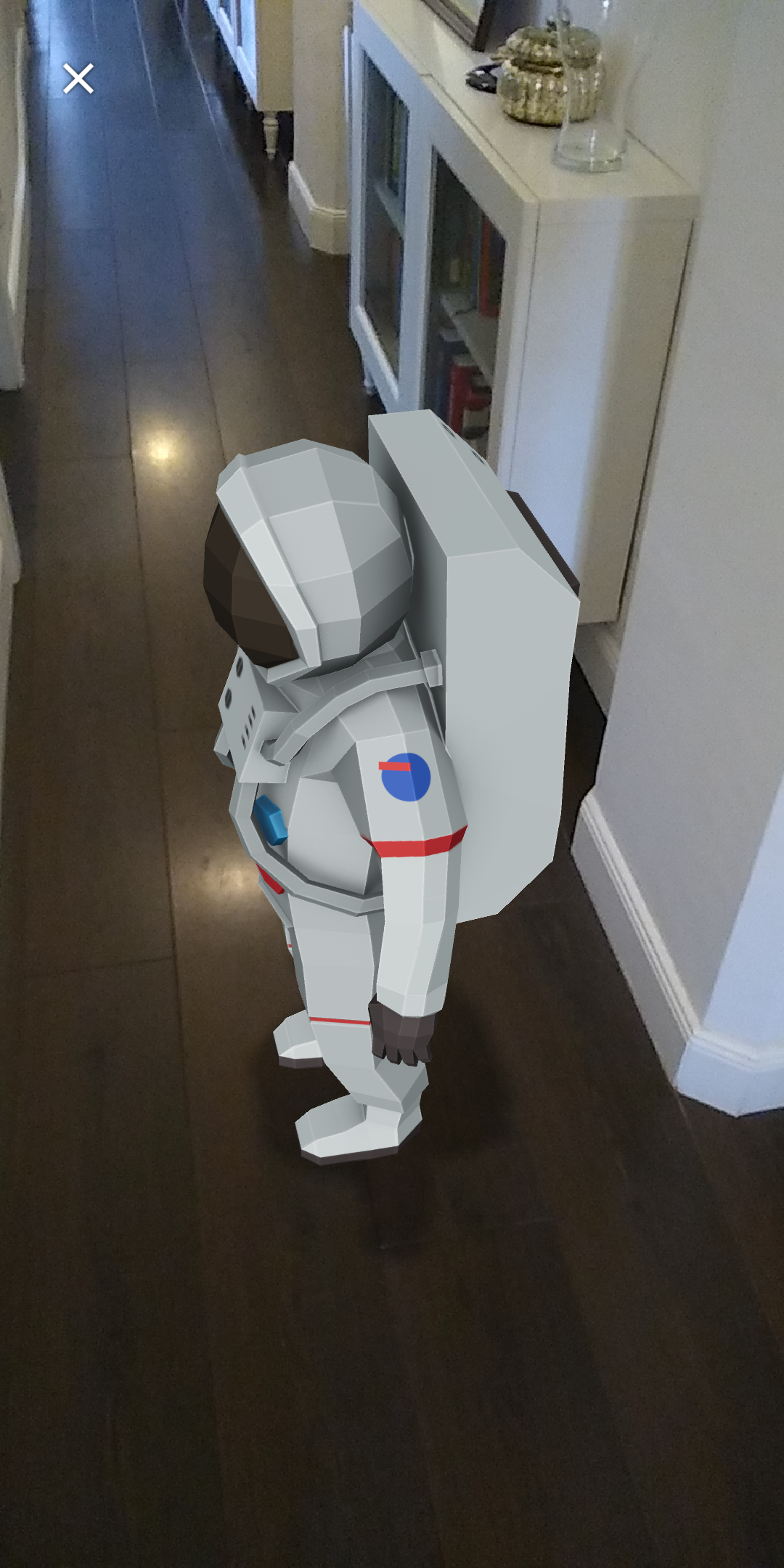

When no "ar-modes" parameter is used, AR-experience is launched OK.
But with "ar-modes" set, something prevents the AR experience to being launched.

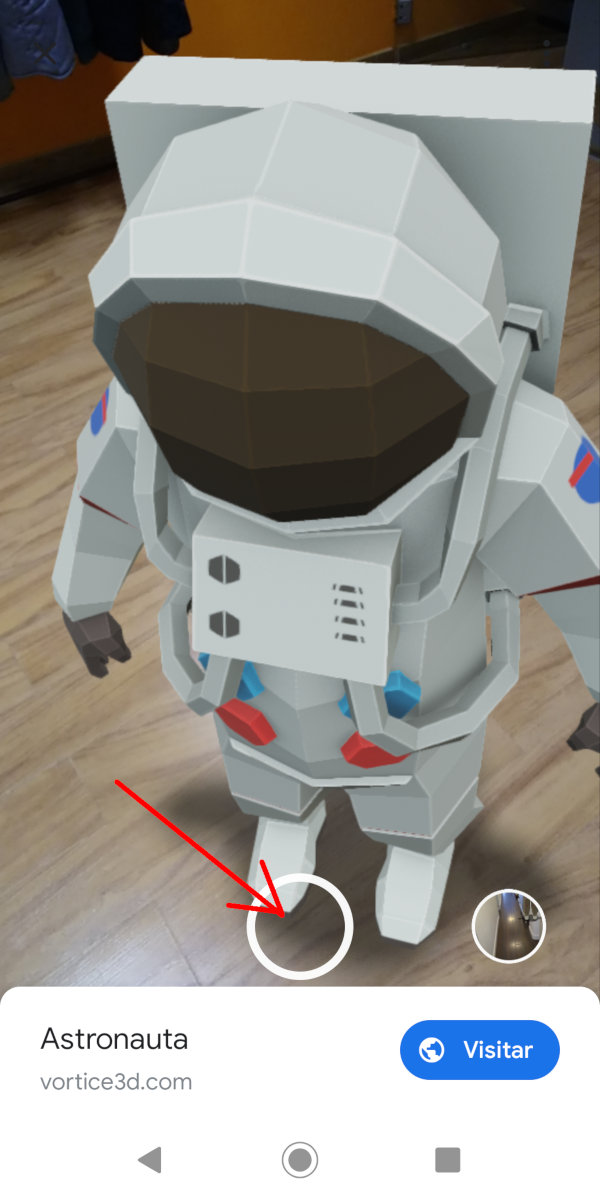

This said, I'm pretty sure of that using a private-but-already-granted-access content is here the problem, mainly because moving all (HTML and GLTF) to a public folder of the same server, does the trick, and now I can view the astronaut in AR and with the record button (courtesy of "ar-modes"):

Any help with this? I mean how to host a content (GLTF/GLB/UDSZ) in a private folder meanwhile can be shown in AR and with Record Button (in other words, shown without WebXR).

0 replies

elalish · 2020-11-16T17:08:02Z

elalish
Nov 16, 2020

@vortice3D Ah, that does make sense. Remember that scene-viewer and quick-look (unlike webxr) are completely separate apps that share nothing with the browser. The only thing we pass to them is the model's URL, so they need to get permissions on their own. It may be possible to achieve what you want using query parameters on that URL to pass authentication, but that'll be on you to figure out.

0 replies

vortice3D · 2020-11-17T07:18:20Z

vortice3D
Nov 17, 2020

Hi @elalish:

Yes, that is what I was thinking last night, that it would be an authentication problem of the native AR functionality. Anyway, thank you very much for all the info. I'll try with query parameters.

Anyway, when testing it on Android, keeping pressed the record button a video recording is carried out. This is not possible under iOS, that only lets you take screenshots. I suppose that this is also a Quick-look limitation. Isn't it?

Finally, about that you're saying at the beginning of this thread: "...we're working on bringing this feature to WebXR, but it's not available yet." Do you have any date or milestone for it?

Best regards.

0 replies
