Hello all!

Is it possible to hide 3d file on source codes. If you check my demo link below when you right click on page and open source code panel you can easily download my glb file from html based assets. Any idea or suggestions to hide it from users/visitors would be great. Thanks..

ps: I deployed my html, css, js based static webpage via Netlify.

Demo Link
https://confident-lamport-09f645.netlify.app/m6.html

The paart I want to hide is src line

  class="a"
  src="/Assets/m6/m6.glb"
  alt="3D Koltuk by BaseBros"

`

Browser Affected

• [x ] Chrome
• [x ] Edge
• [ x] Firefox
• [ x] IE
• [x ] Safari

[elalish]

Not that I'm aware of. You can look at the network tab to see what files are downloaded even if they aren't clear from your code. It's exactly like an image; you can protect it by only making a low-res version downloadable for free, or by watermarking it, or by bringing legal action against people who use it without permission. There's no equivalent to video DRM in the 3D space.

[daniel-limar2u]

Hey @sercandemirtas you can hide it in a 'post-loading' way. Here is an example:

const observer = new MutationObserver(function (mutations) {
if (document.contains(document.querySelector('model-viewer'))) {
const modelviewer = document.querySelector('model-viewer')
modelviewer.src = glb
observer.disconnect()
}
})

observer.observe(document, {
attributes: false,
childList: true,
characterData: false,
subtree: true,
})

The src will be setted to unknown when the page is inspected. Unfortunately, will still be possible to track the file via network on devTools. Hope it will help you.

[shamsail]

1. Get file from the asset path and make a new file locally.

let file = await fetch("url/model.glb")
.then((r) => r.blob())
.then((blobFile) => new File([blobFile], "model.glb"));

2. create a url for local saved file
   URL.createObjectURL(file)

3. Assign this url to modelViewer.src
   modelViewer.src = URL.createObjectURL(file)

Hope it will work, This will not show the src path :)

[Robeater]

Hi @shamsail,

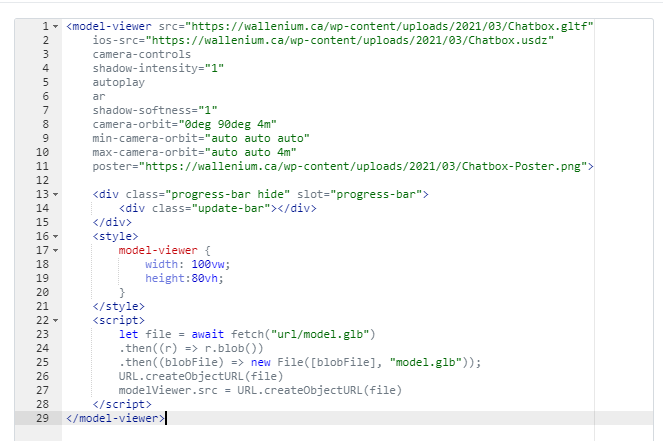

How would I go about implementing this in my code? I tried just copy/pasting it in and the src of my models is still visible in the console. Afraid I don't have much experience with javascript.

Thanks!

[edaerdogann]

Hello all!

Is it possible to hide 3d file on source codes. If you check my demo link below when you right click on page and open source code panel you can easily download my glb file from html based assets. Any idea or suggestions to hide it from users/visitors would be great. Thanks..

ps: I deployed my html, css, js based static webpage via Netlify.

Demo Link https://confident-lamport-09f645.netlify.app/m6.html

The paart I want to hide is src line       class="a"   src="/Assets/m6/m6.glb"   alt="3D Koltuk by BaseBros"

`

Browser Affected

• [x ] Chrome
• [x ] Edge
• [ x] Firefox
• [ x] IE
• [x ] Safari

Merhaba Sercan,

Sitem için 3d görsellerimin indirilebilirliğini korumak istiyorum aynı şekilde. Profilindeki sayfayı incelediğimde görünen glb dosyası değil de başka bir dosya iniyor. Bunu nasıl yaptın acaba? Yardımcı olabilirsen çok sevinirim.

[sercandemirtas]

Eda selamlar. Testi yapmış olduğun link off durumda. Hangi linkten test ediyorsun ?

[edaerdogann]

Anasayfadaki owl için denemiştim fakat indirememişim, yanlış alarm :D Ben de aynı şekilde linki off hale getirmek istiyorum fakat yapamadım. Nasıl yaptın acaba?
