Can we load s3 bucket .gltf file in Android?

[dhaval951753]

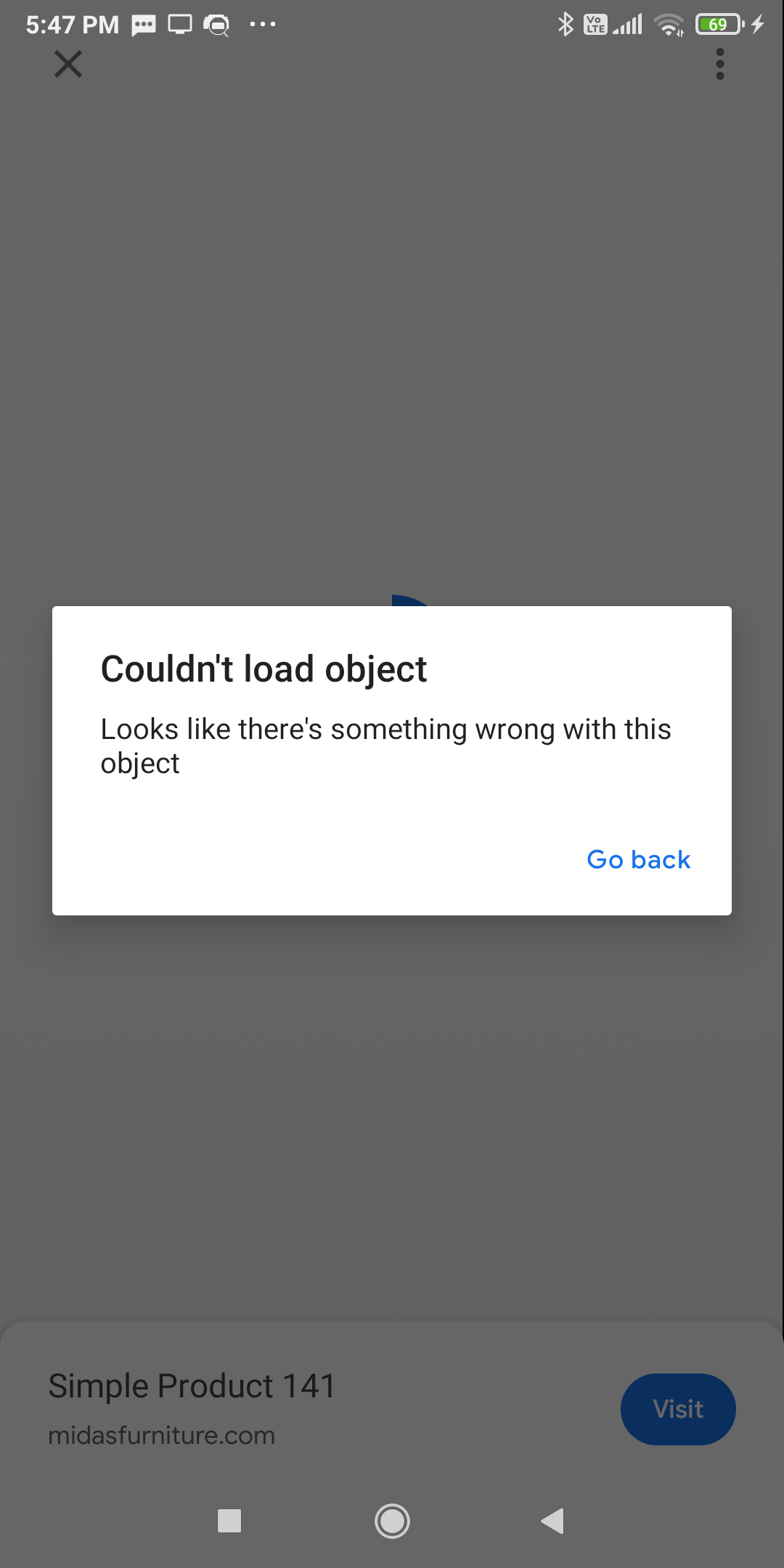

I have .gltf file in s3 bucket in aws but when i am going to load its saying couldn't load object.

So if there any solution to load s3 bucket .gltf file in Android please suggest me.

[elalish]

Can you provide a repro link or at least copy your JS console errors here? Mostly likely you need to set your CORS headers on your bucket so you site is allowed access to the gltf.

[dhaval951753]

Hi @elalish Can you please suggest what i have to do ?

This is my .gltf URL of my application
https://midasfurniture-3d-objects.s3.me-south-1.amazonaws.com/GlamVelvetSofa.gltf

I dont have JS console Error. i am loading this URL in Android Native (Kotlin). Using below code

Intent sceneViewerIntent = new Intent(Intent.ACTION_VIEW);
Uri intentUri =
    Uri.parse("https://arvr.google.com/scene-viewer/1.0").buildUpon()
    .appendQueryParameter("file", "https://raw.githubusercontent.com/KhronosGroup/glTF-Sample-Models/master/2.0/Avocado/glTF/Avocado.gltf")
    .appendQueryParameter("mode", "ar_only")
    .build();
sceneViewerIntent.setData(intentUri);
sceneViewerIntent.setPackage("com.google.ar.core");
startActivity(sceneViewerIntent);

Error Log:

2022-09-23 15:17:34.816 1639-2265/? E/ActivityTrigger: activityResumeTrigger: not whiteListedcom.google.android.googlequicksearchbox/com.google.android.googlequicksearchbox.ViewerLauncher/301209407
2022-09-23 15:17:34.817 578-634/? E/ANDR-PERF-MPCTL: Invalid profile no. 0, total profiles 0 only
2022-09-23 15:17:34.824 1639-2265/? E/ActivityTrigger: activityResumeTrigger: not whiteListedcom.google.android.googlequicksearchbox/com.google.android.googlequicksearchbox.ViewerLauncher/301209407
2022-09-23 15:17:34.827 578-634/? E/ANDR-PERF-UTIL: Failed to read
2022-09-23 15:17:34.827 578-634/? E/ANDR-PERF-UTIL: Failed to read
2022-09-23 15:17:34.828 578-634/? E/ANDR-PERF-OPTSHANDLER: Failed to read /sys/class/kgsl/kgsl-3d0/force_no_nap
2022-09-23 15:17:34.828 578-634/? E/ANDR-PERF-RESOURCEQS: Failed to apply optimization [10, 7]
2022-09-23 15:17:34.854 1639-2265/? E/ActivityTrigger: activityResumeTrigger: not whiteListedcom.google.android.googlequicksearchbox/com.google.android.googlequicksearchbox.ViewerLauncher/301209407
2022-09-23 15:17:34.855 578-634/? E/ANDR-PERF-OPTSHANDLER: Failed to read /sys/class/kgsl/kgsl-3d0/force_no_nap
2022-09-23 15:17:34.855 578-634/? E/ANDR-PERF-RESOURCEQS: Failed to apply optimization [10, 7]
2022-09-23 15:17:34.967 563-706/? E/SDM: HWCDisplay::GetHWCLayer: [0] GetLayer(249) failed: no such layer
2022-09-23 15:17:35.040 601-672/? E/SurfaceFlinger: Permission Denial: can't openGlobalTransaction pid=24380, uid<=10050
2022-09-23 15:17:35.042 24380-24380/? E/BpSurfaceComposerClient: Failed to transact (-1)
2022-09-23 15:17:35.042 601-952/? E/SurfaceFlinger: Permission Denial: can't openGlobalTransaction pid=24380, uid<=10050
2022-09-23 15:17:35.042 24380-24380/? E/BpSurfaceComposerClient: Failed to transact (-1)
2022-09-23 15:17:35.104 24380-24380/? E/ImpView: Failed to Load Gltf url 'https://midasfurniture-3d-objects.s3.me-south-1.amazonaws.com/GlamVelvetSofa.gltf' reason: Failed to create InputStream.

Getting this error:

[elalish]

Oh, this isn't even a model-viewer issue. @AdrianAtGoogle for SceneViewer bugs. Have you at least tested that the GLB is valid? Try loading it in our editor: https://modelviewer.dev/editor/, which will tell you the Model Details or Errors.

[Stynson]

Your "GlamVelvetSofa.gltf" file references other assets with relative path. Scene viewer will download the gltf but won't able to load the other assets. Either modify the asset path to absolut URLs (I didn't test this) or use an 'Embedded glTF format' where your file won't reference other resources.

[AdrianAtGoogle]

SceneViewer supports gltf assets that reference adjacent assets with a relative path.

There seems to be an issue with permissions on your bucket - I can wget the gltf file you referenced above, but the dependencies fail (e.g. wget https://midasfurniture-3d-objects.s3.me-south-1.amazonaws.com/GlamVelvetSofa_normal.png returns a 403: Forbidden.
