Help undestanding how to write an insert mutation with many-to-many relations using parameters

[ravargash]

Hello everyone!

I've some experience with GraphQL and I'm using typescript, however, I cannot grasp how to do this.

I made a db similar to this:

Both Services and Brands tables are already filled with items

And I want to create a single mutation that fills every field from Shops and include and array of services and brands, filling both ShopServices and ShopBrands tables. Also, the owner_id is a preset using x-hasura-user-id

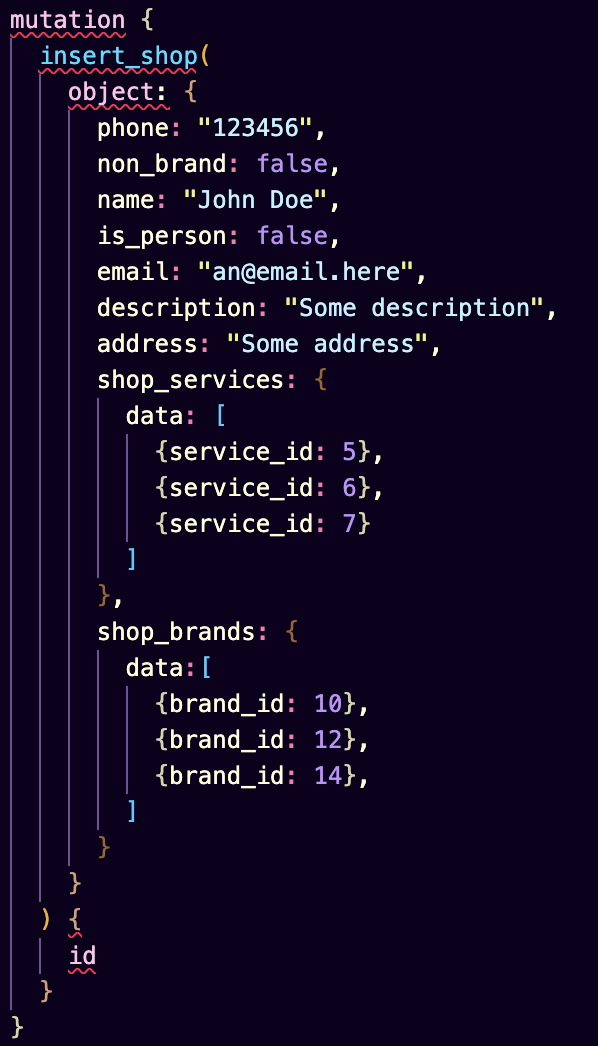

I'm able to generate a mutation doing something like this:

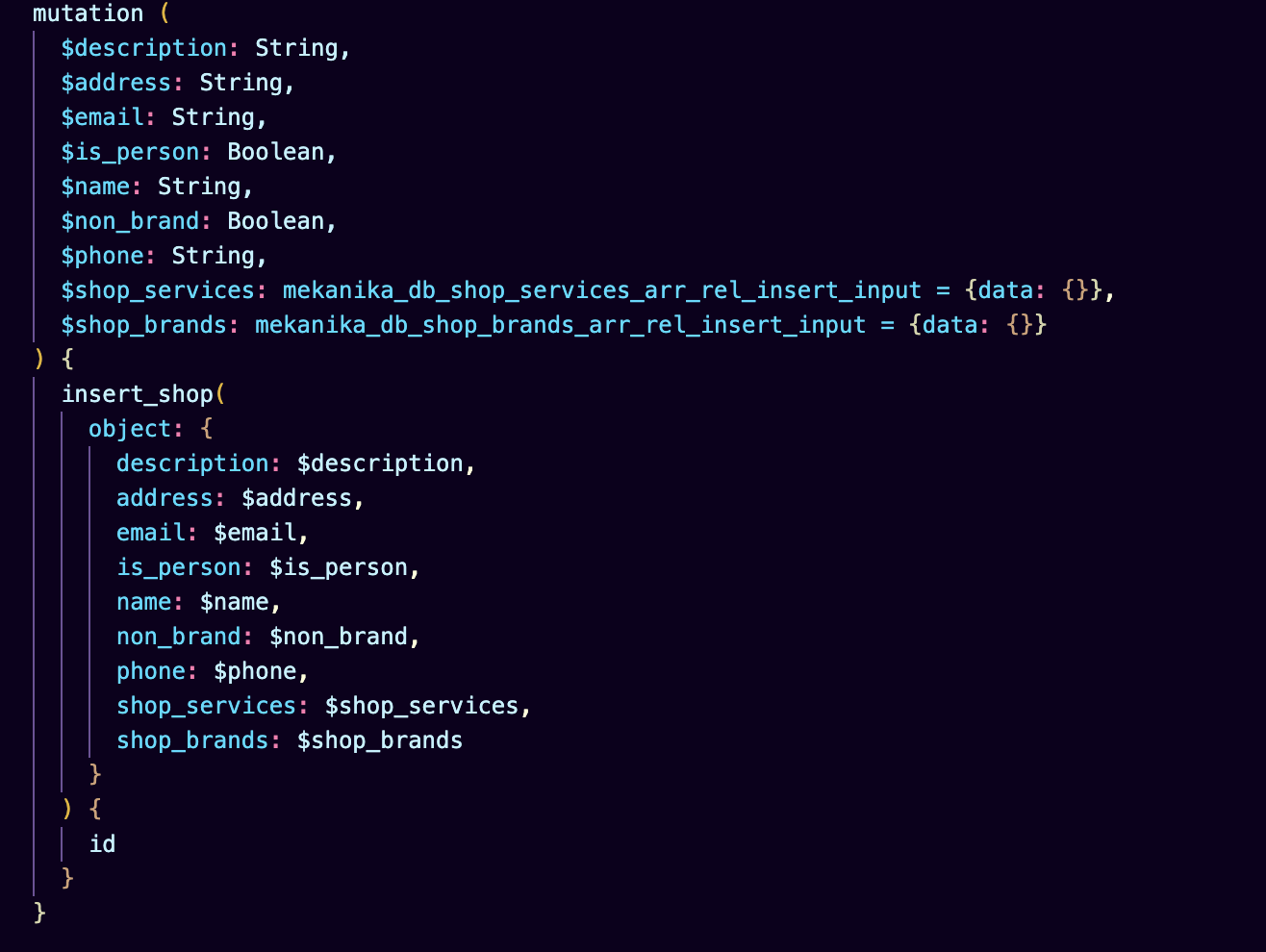

Then, I want to use arguments to be able to use it with a simple fetch function, adding both query and variables into a single "stringified", however, when doing so, I got this

I don't know how to tackle both $shop_services and $shop_brands variables nor how should I handle the variables. What should I do?

Please, any help or pointers will be very very appreciated.

Regards!

[adas98012]

We would suggest you to use "Input Types" for complex object types (e.g. shop_services and shop_brands in your case), which can make your mutations simpler to manage. You can refer to the official GraphQL document on the same:

https://graphql.org/learn/schema/#input-types

In your case, you are looking at passing an array of these Input Types (shop_services and shop_brands) as part of the mutation.

Please checkout some illustrations on our Hasura docs page too:
https://hasura.io/docs/latest/mutations/postgres/insert/

[ravargash]

Hello!

Thank you. While building the query, I found that Hasura automatically uses the 'mekanika_db_shop_brands_arr_rel_insert_input' and 'mekanika_db_shop_services_arr_rel_insert_input' input types. I left them as they were and then, when filling the variables json, added a new json with the respective shop_brands and shop_services properties.

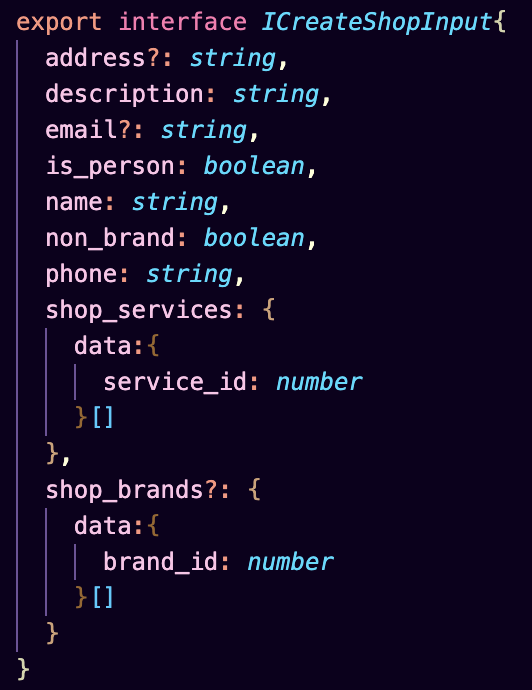

This interface I made worked right away:

Hope it helps

[adas98012]

Good to know that you were able to make it work using interface pattern. Please let us know any other issues you encounter in your usage of Hasura GraphQL Engine.
