Custom Table Name

[Tejesh-Duvvuru]

I am using cloud account my problem is with table names when we created table name we use - (table1-dev) like that but now problem is hasura( graphql) not recognizing them. I can't rename table is production because it will cause so many problems. Is there any use to custom table name hasura.

[meetzaveri]

Hello @Tejesh-Duvvuru

Please follow these steps in order to track your table with custom name.

Step 1: First, untrack the table

If your table is already tracked, then first you’ll need to untrack that table. You can use pg_untrack_table metadata API to untrack the table. API Reference - https://hasura.io/docs/latest/api-reference/metadata-api/table-view/#metadata-pg-untrack-table

Example payload

{
    "type": "pg_untrack_table",
    "args": {
        "table": {
            "schema": "public",
            "name": “Devices”
         },
        "source": "default",
        "cascade": true
    }
}

Step 2: Track the table with new custom name

Then to make it track with a new custom name, use pg_track_table metadata API . In that, pass custom name to custom_name field under configuration object in metadata API payload. See the below example. API reference - https://hasura.io/docs/latest/api-reference/metadata-api/table-view/#metadata-pg-track-table

In the above API ref docs, see the 2nd paragraph where it mentions the use case of custom name.

Example payload

{
   "type": "pg_track_table",
   "args": {
     "source": "default",
     "table": "Devices",
     "configuration": {
        "custom_name": "my_devices"
     }
   }
}

Making API requests to v1/metadata endpoint

Suppose your graphql endpoint is https://new-project.hasura.app/v1/graphql then, you need to make POST API requests to v1/metadata endpoints such as https://new-project.hasura.app/v1/metadata . You can perform this in POSTMAN or any other API tools. Make sure to pass the admin secret or necessary headers to interact with the hasura server. In my case, I used x-hasura-admin-secret in header for just this purpose.

Note - Skip the 1st step if you haven't tracked your database tables yet.

[Tejesh-Duvvuru]

Thanks for responding @meetzaveri , but while doing the above process it given like this.

{
"code": "validation-failed",
"error": "cannot include "userProfileTable-devs_pkey" in the GraphQL schema because it is not a valid GraphQL identifier",
"path": "$.args"
}

[meetzaveri]

@Tejesh-Duvvuru
Looking at the error response, it seems you haven't untracked the table userProfileTable-devs because it shows in the error itself as userProfileTable-devs_pkey. Can you please untrack it first, as suggested in step 1 ?

[Tejesh-Duvvuru]

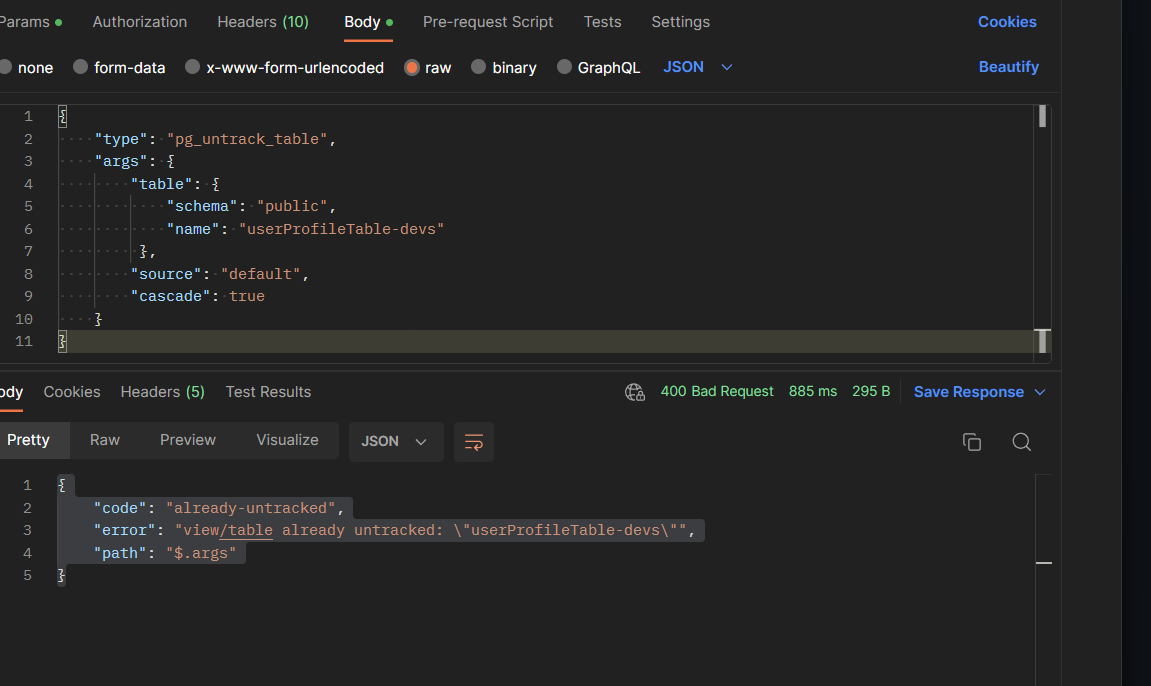

@meetzaveri
The table is in untracked only

{
"code": "already-untracked",
"error": "view/table already untracked: "userProfileTable-devs"",
"path": "$.args"
}

[Tejesh-Duvvuru]

@meetzaveri

Thank you very much for the information.

[meetzaveri]

I don't know how on the first place that table got created with hyphen symbol(-) in table name. Can you try to rename it and then check if it works ?

[Tejesh-Duvvuru]

@meetzaveri

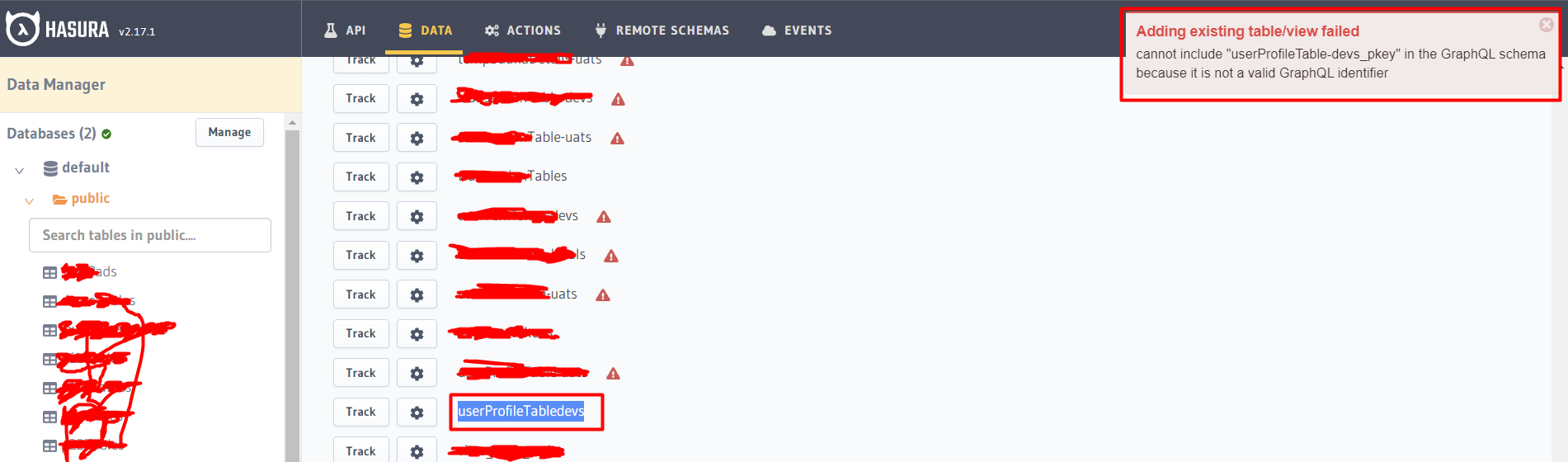

After renaming table name "userProfileTabledevs" also showing like this error
Adding existing table/view failed
cannot include "userProfileTable-devs_pkey" in the GraphQL schema because it is not a valid GraphQL identifier

[meetzaveri]

It seems like DB is still not updated with the new table name, though. Try checking list of table with psql command by running \dt which lists all the table under current schema.

[Tejesh-Duvvuru]

@meetzaveri

I got it. In db the primary key is in the this(userProfileTable-devs_pkey) format so it throwing error, now resolved it.

Thank you very much.
