Tile sensor severity colours

[tomlut]

Can we get a few tile sensor colours based on numeric state, like the gauge card?

e.g. for a temperature sensor, red, blue, and green to make it obvious when the temperature is hot, cold or just right respectively.

[tomlut]

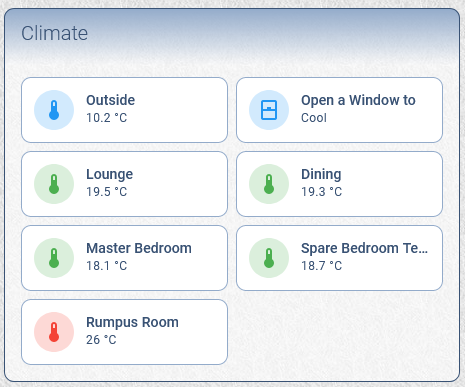

Look how much information this displays at a glance:

(done with card_mod).

[tomlut]

        card_mod:
          style: |
            .tile {
              {% if states(config.entity)|float(0) > 24.9 %}
                --tile-color: var(--rgb-red-color);
              {% elif states(config.entity)|float(0) > 22.9 %}
                --tile-color: var(--rgb-yellow-color);
              {% elif states(config.entity)|float(0) > 17.9 %}
                --tile-color: var(--rgb-green-color);
              {% else %}
                --tile-color: var(--rgb-blue-color);
              {% endif %}
            }

[bkbilly-intrack]

Thanks for the suggestion, it looks really nice, though I still believe it would be nice to have a gauge because it can be used with more applications.
Maybe an integration with the custom card bar-card would be nice.

[ChristophCaina]

The approach from tomlut is looking good - and it would meet the design approaches for the "next - gen" UI... :)
The Gauge-Card does not - and I beleive, the dev team doesn't really care about "custom bar card"...

While I agree, that a Gauge is a very helpfull card, it does not really provide much information at the first glance.
Not, if you have multiple gauges in the same area nearby... And I know what I am talking after creating Dashboards with aprox 9 or 10 gauge meters ... (was a silly approach :D )

Personally, what I'm more interested in:
How did you get the tile cards into the other card?
Is that a grid-stack?

[tomlut]

Hui-element. See the write-up here: https://community.home-assistant.io/t/icon-color-on-themes-open-window/499940/7

[ChristophCaina]

thanks - I've overlooked the "square: false" parameter :D

[ChristophCaina]

and the custom hui element ...

[ChristophCaina]

thanks :)
yes, that's something I can work & live with... when this will be possible without using "custom" components - I think that would be really a great addition to the dashboard elements :)
