Push notifications not sending with test despite having APN & specific device FCM token

[broskees]

I've looked all over stackoverflow and google for an answer to this, these are some of the things I've tried:

• Following Google's Client and Receive Guides.
• Made sure firebase has proper APN settings.
• This stackoverflow answer.
• This stackoverflow answer.

I'll run through what I've got:

AppDelegate.m:

#import "AppDelegate.h"

#import <React/RCTBridge.h>
#import <React/RCTBundleURLProvider.h>
#import <React/RCTRootView.h>

@import Firebase;
@import UserNotifications;

/** Flipper **/
#ifdef FB_SONARKIT_ENABLED
  #import <FlipperKit/FlipperClient.h>
  #import <FlipperKitLayoutPlugin/FlipperKitLayoutPlugin.h>
  #import <FlipperKitUserDefaultsPlugin/FKUserDefaultsPlugin.h>
  #import <FlipperKitNetworkPlugin/FlipperKitNetworkPlugin.h>
  #import <SKIOSNetworkPlugin/SKIOSNetworkAdapter.h>
  #import <FlipperKitReactPlugin/FlipperKitReactPlugin.h>

  static void InitializeFlipper(UIApplication *application) {
    FlipperClient *client = [FlipperClient sharedClient];
    SKDescriptorMapper *layoutDescriptorMapper = [[SKDescriptorMapper alloc] initWithDefaults];
    [client addPlugin:[[FlipperKitLayoutPlugin alloc] initWithRootNode:application withDescriptorMapper:layoutDescriptorMapper]];
    [client addPlugin:[[FKUserDefaultsPlugin alloc] initWithSuiteName:nil]];
    [client addPlugin:[FlipperKitReactPlugin new]];
    [client addPlugin:[[FlipperKitNetworkPlugin alloc] initWithNetworkAdapter:[SKIOSNetworkAdapter new]]];
    [client start];
  }
#endif
/** End Flipper **/

// Implement UNUserNotificationCenterDelegate to receive display notification via APNS for devices
// running iOS 10 and above.
@interface AppDelegate () <UNUserNotificationCenterDelegate>
@end

@implementation AppDelegate

NSString *const kGCMMessageIDKey = @"gcm.message_id";

- (BOOL)application:(UIApplication *)application didFinishLaunchingWithOptions:(NSDictionary *)launchOptions
{
  #ifdef FB_SONARKIT_ENABLED
    InitializeFlipper(application);
  #endif

  [FIRApp configure];

  [FIRMessaging messaging].delegate = self;

  /* Messaging */
  if ([UNUserNotificationCenter class] != nil) {
    // iOS 10 or later
    // For iOS 10 display notification (sent via APNS)
    [UNUserNotificationCenter currentNotificationCenter].delegate = self;
    UNAuthorizationOptions authOptions = UNAuthorizationOptionAlert |
        UNAuthorizationOptionSound | UNAuthorizationOptionBadge;
    [[UNUserNotificationCenter currentNotificationCenter]
        requestAuthorizationWithOptions:authOptions
        completionHandler:^(BOOL granted, NSError * _Nullable error) {
          // ...
        }];
  } else {
    // iOS 10 notifications aren't available; fall back to iOS 8-9 notifications.
    UIUserNotificationType allNotificationTypes =
    (UIUserNotificationTypeSound | UIUserNotificationTypeAlert | UIUserNotificationTypeBadge);
    UIUserNotificationSettings *settings =
    [UIUserNotificationSettings settingsForTypes:allNotificationTypes categories:nil];
    [application registerUserNotificationSettings:settings];
  }

  [application registerForRemoteNotifications];

  /*
  [[FIRMessaging messaging] tokenWithCompletion:^(NSString *token, NSError *error) {
    if (error != nil) {
      NSLog(@"Error getting FCM registration token: %@", error);
    } else {
      NSLog(@"FCM registration token: %@", token);
      //[FIRMessaging messaging].fcmRegTokenMessage.text = token;
    }
  }];
  /* End Messaging */

  /* Bridge */
  RCTBridge *bridge = [[RCTBridge alloc] initWithDelegate:self launchOptions:launchOptions];
  RCTRootView *rootView = [[RCTRootView alloc] initWithBridge:bridge
                                                   moduleName:@"UBFounders"
                                            initialProperties:nil];

  rootView.backgroundColor = [[UIColor alloc] initWithRed:1.0f green:1.0f blue:1.0f alpha:1];

  self.window = [[UIWindow alloc] initWithFrame:[UIScreen mainScreen].bounds];
  UIViewController *rootViewController = [UIViewController new];
  rootViewController.view = rootView;
  self.window.rootViewController = rootViewController;
  [self.window makeKeyAndVisible];
  /* End Bridge */

  return YES;
}

/* Monitor token refresh */
- (void)messaging:(FIRMessaging *)messaging didReceiveRegistrationToken:(NSString *)fcmToken {
    NSLog(@"FCM registration token: %@", fcmToken);
    // Notify about received token.
    NSDictionary *dataDict = [NSDictionary dictionaryWithObject:fcmToken forKey:@"token"];
    [[NSNotificationCenter defaultCenter] postNotificationName:
     @"FCMToken" object:nil userInfo:dataDict];
    // TODO: If necessary send token to application server.
    // Note: This callback is fired at each app startup and whenever a new token is generated.
}
/* End token refresh */

// [START receive_message]
- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo
    fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler {
  // If you are receiving a notification message while your app is in the background,
  // this callback will not be fired till the user taps on the notification launching the application.
  // TODO: Handle data of notification

  // With swizzling disabled you must let Messaging know about the message, for Analytics
  // [[FIRMessaging messaging] appDidReceiveMessage:userInfo];

  // [START_EXCLUDE]
  // Print message ID.
  if (userInfo[kGCMMessageIDKey]) {
    NSLog(@"Message ID: %@", userInfo[kGCMMessageIDKey]);
  }
  // [END_EXCLUDE]

  // Print full message.
  NSLog(@"%@", userInfo);

  completionHandler(UIBackgroundFetchResultNewData);
}
// [END receive_message]

// [START ios_10_message_handling]
// Receive displayed notifications for iOS 10 devices.
// Handle incoming notification messages while app is in the foreground.
- (void)userNotificationCenter:(UNUserNotificationCenter *)center
       willPresentNotification:(UNNotification *)notification
         withCompletionHandler:(void (^)(UNNotificationPresentationOptions))completionHandler {
  NSDictionary *userInfo = notification.request.content.userInfo;

  // With swizzling disabled you must let Messaging know about the message, for Analytics
  // [[FIRMessaging messaging] appDidReceiveMessage:userInfo];

  // [START_EXCLUDE]
  // Print message ID.
  if (userInfo[kGCMMessageIDKey]) {
    NSLog(@"Message ID: %@", userInfo[kGCMMessageIDKey]);
  }
  // [END_EXCLUDE]

  // Print full message.
  NSLog(@"%@", userInfo);

  // Change this to your preferred presentation option
  completionHandler(UNNotificationPresentationOptionBadge | UNNotificationPresentationOptionAlert);
}

// Handle notification messages after display notification is tapped by the user.
- (void)userNotificationCenter:(UNUserNotificationCenter *)center
didReceiveNotificationResponse:(UNNotificationResponse *)response
         withCompletionHandler:(void(^)(void))completionHandler {
  NSDictionary *userInfo = response.notification.request.content.userInfo;
  if (userInfo[kGCMMessageIDKey]) {
    NSLog(@"Message ID: %@", userInfo[kGCMMessageIDKey]);
  }

  // With swizzling disabled you must let Messaging know about the message, for Analytics
  // [[FIRMessaging messaging] appDidReceiveMessage:userInfo];

  // Print full message.
  NSLog(@"%@", userInfo);

  completionHandler();
}
// [END ios_10_message_handling]

- (NSURL *)sourceURLForBridge:(RCTBridge *)bridge
{
  #if DEBUG
    return [[RCTBundleURLProvider sharedSettings] jsBundleURLForBundleRoot:@"index" fallbackResource:nil];
  #else
    return [[NSBundle mainBundle] URLForResource:@"main" withExtension:@"jsbundle"];
  #endif
}

@end

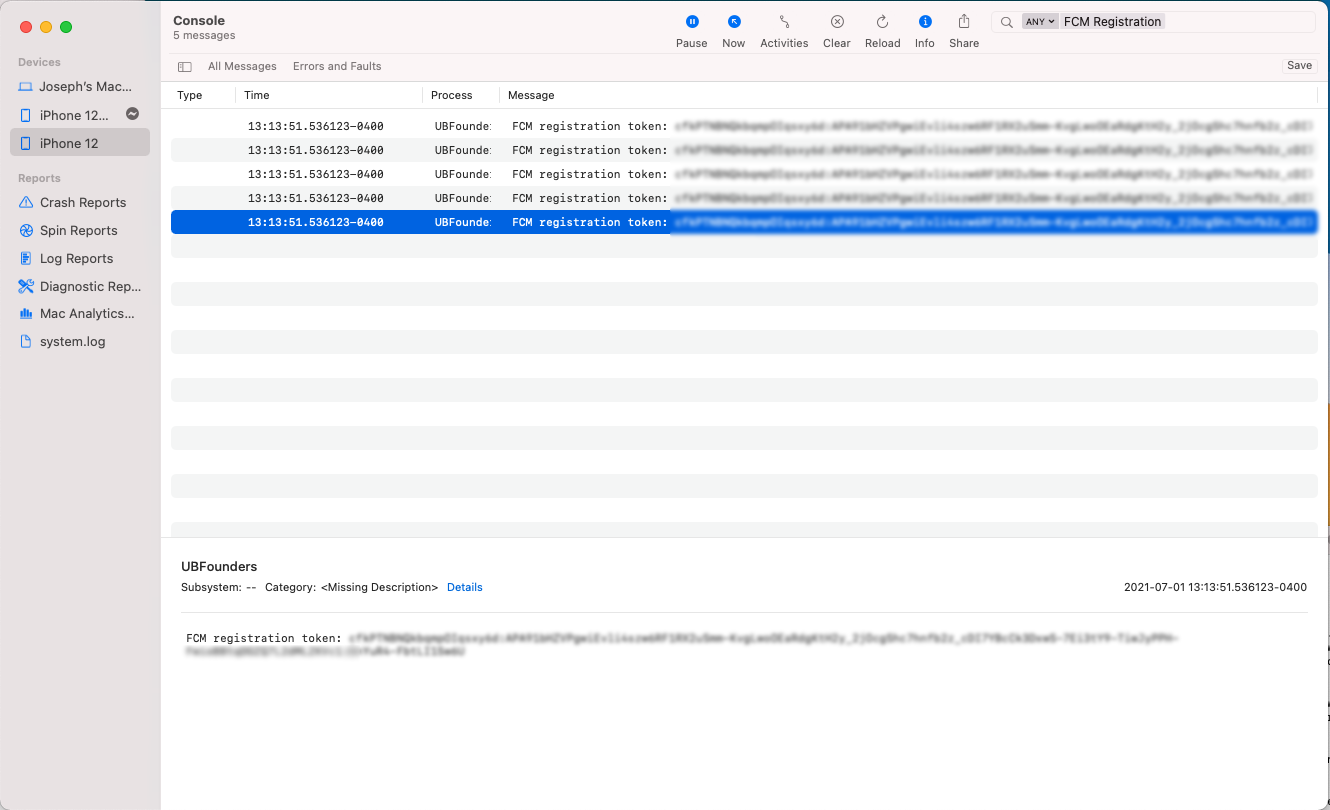

So basically I run the app, fetch the FCM Registration Token from the Console, as so:

Then I add the token to the Notification Center and try a test send, as so:

You can see from the reports, none of the notifications are being received, as so:

Not sure what else to try. Thoughts?

[mikehardy]

I find that my notifications are received, but not reported well in the web console.
Do you find the same? Or are you relying strictly on the web console to verify receipt?

[broskees]

@mikehardy

Well they should be appearing on my iPad too correct? Also, I'd think the "Message ID" should be showing in the XCode console as well, right?

[mikehardy]

Every install is a different token (tokens are hooked to "Installations" firebase module which we do not explicitly expose via APIs here but is used by all firebase modules that address devices). So you'll have to specifically address an iPad token for it to show up there. You may already be doing that. Unsure on message id showing up in xcode console, I think you may have more info with firebase-ios-sdk debugging turned on (it's below our layer - firebase-ios-sdk documentation should be consulted on how to turn it on but if I recall it's a flag you set in Xcode on build scheme, I vaguely remember it as FIRDebugEnabled or similar, if searching our issue list or their docs for it)
