How to use pjit to speed up divide and conquer algorithm?

[AdrienCorenflos]

Hi,

I have a divide and conquer algorithm that essentially generalises prefix sums (jax.lax.associative_scan) to non associative operators whilst retaining the logarithmic span complexity (an logarithmic compile time) of prefix sums in the size of the input data. The algorithm, written in an in-place fashion goes roughly like this:

    1. Pad `inputs` of shape (T, ...) in the first dimension to the nearest power of 2, resulting in length T=2^K
    2. For k=0...K-1
        a. Reshape `inputs` to (T/2^k, 2^k, ...)
        b. Split `inputs` between even and odd indices
            `even_elems = inputs[2t, t=0...T/2^k-2]`
            `odd_elems = inputs[2t+1, t=0...T/2^k-2]`
        c. Combine `even_elems` and `odd_elems` in parallel along the first dimension
            In parallel do:
            `inputs[t] = operator(even_elems[t], odd_elems[t]), t=0...T/2^k-1`
    3. Return `inputs`

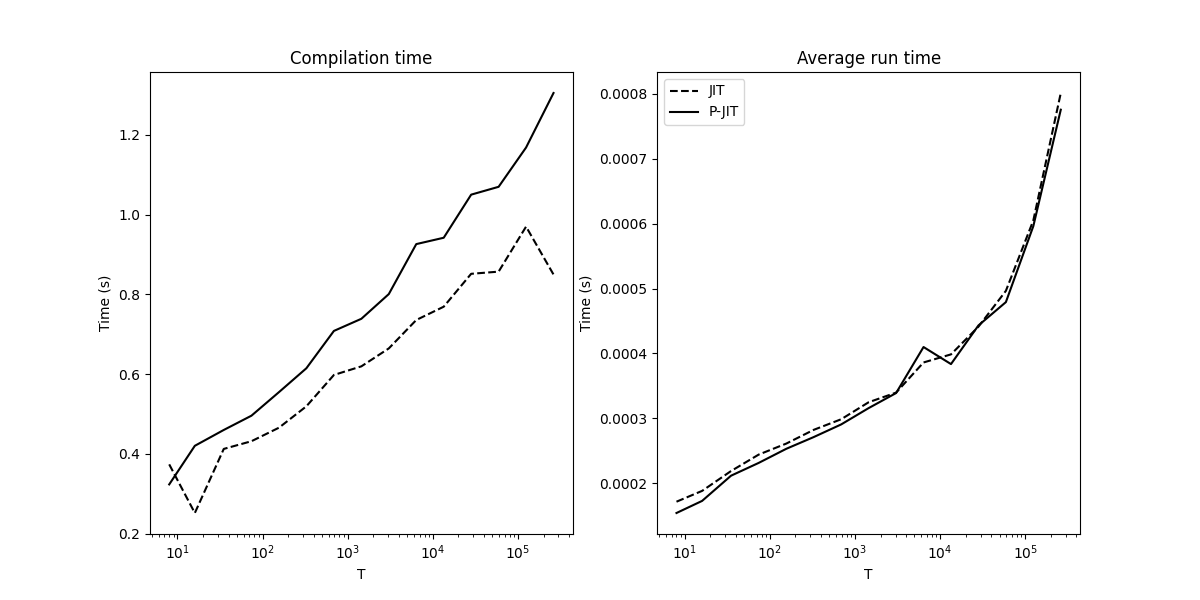

While it works really well on a single GPU, the logarithmic scaling stops happening when T becomes too big. Intuitively I tend think that it can be made compatible with pjit to make the scaling continue past the number of threads on a given GPU. However, I am at a complete loss when trying to use it. I have been trying different combinations of meshes and partition specs, to, so far, no avail (see figure).

I would very much appreciate (and acknowledge in coming paper using this algorithm) if someone could help me fix this issue. My code is available on Colab (although I think TPU pods are not compatible with PJIT on Colab yet?) at the following address https://colab.research.google.com/drive/1frM5UgGlmky2nbpJCvPSkQIzgSt9hCis?usp=sharing. The tentative PJIT is in the function dc_map_pjit.

Also, on a side note, if the JAX team is interested, I could contribute the divide and conquer algorithm to the code base.

Thanks a lot to whomever will be kind enough to read up to here

Adrien
